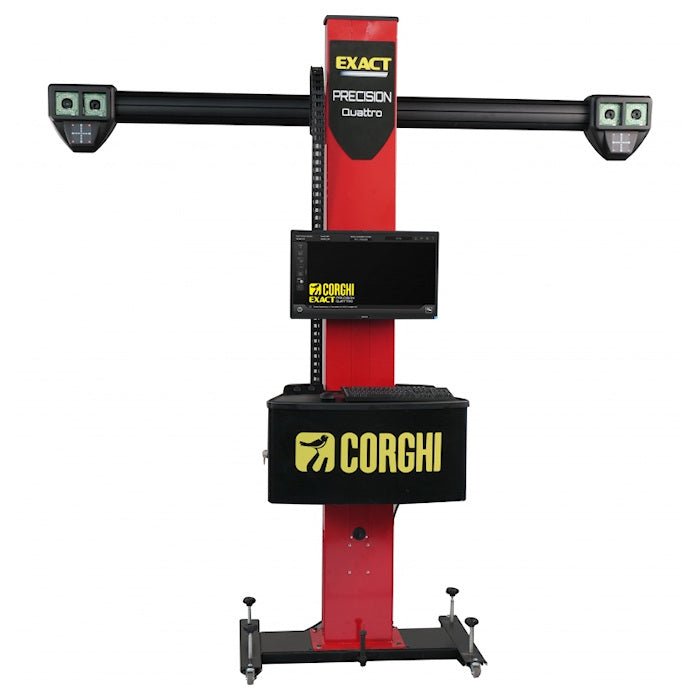

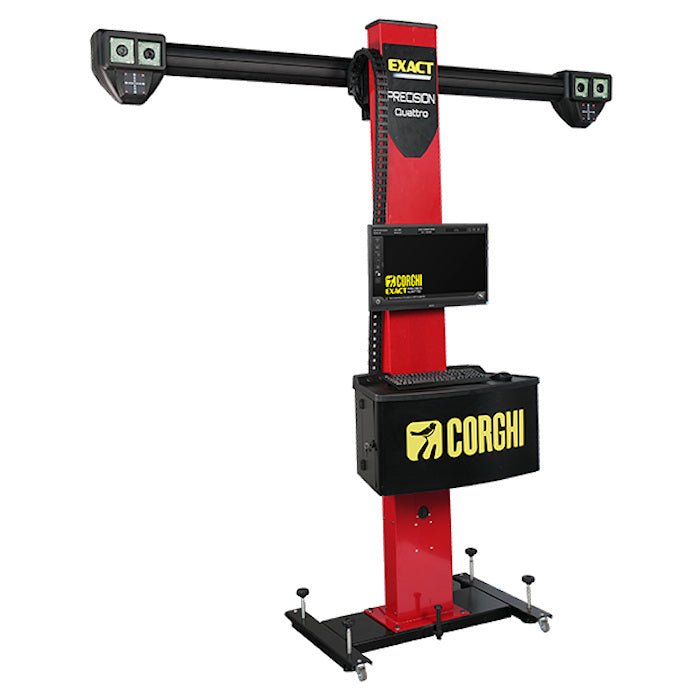

Corghi Exact Precision Quattro 3D Wheel Aligner

Corghi Exact Precision Quattro 3D Wheel Aligner
Passive Targets And 4 High-Resolution Digital Cameras

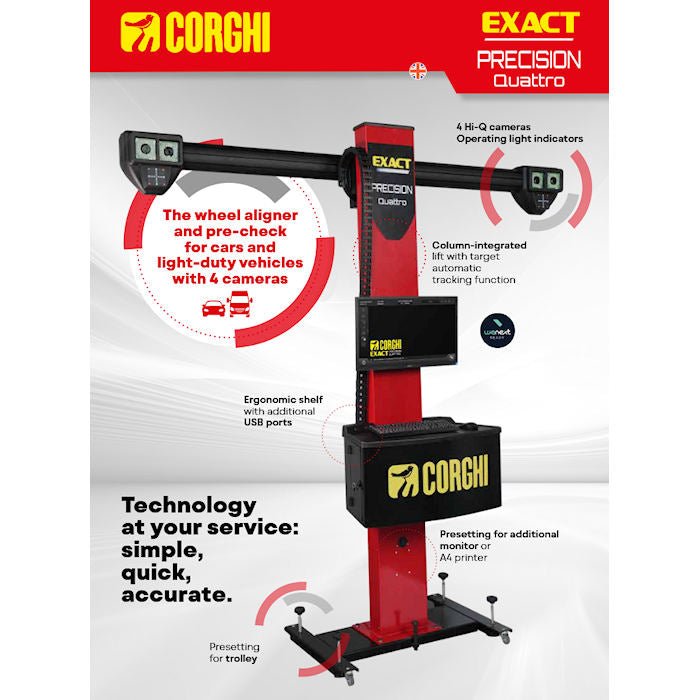

Technology At Your Service: Simple, Quick Accurate.

The Corghi Exact Precision Quattro 3D Wheel Aligner is the new wheel aligner with passive targets and 4 high-resolution digital cameras, to ensure measurement maximum precision and accuracy. The automation of wheel alignment operations and the extreme reliability of components enhance its productivity. Premium PC with the latest Windows Professional operating system, new Exact Alignment TOP software including a complete database with multi-brand technical specifications are part of the rich standard equipment.

With these features, Exact Precision Quattro stands as an industry benchmark and a safe investment for wheel alignment professionals.

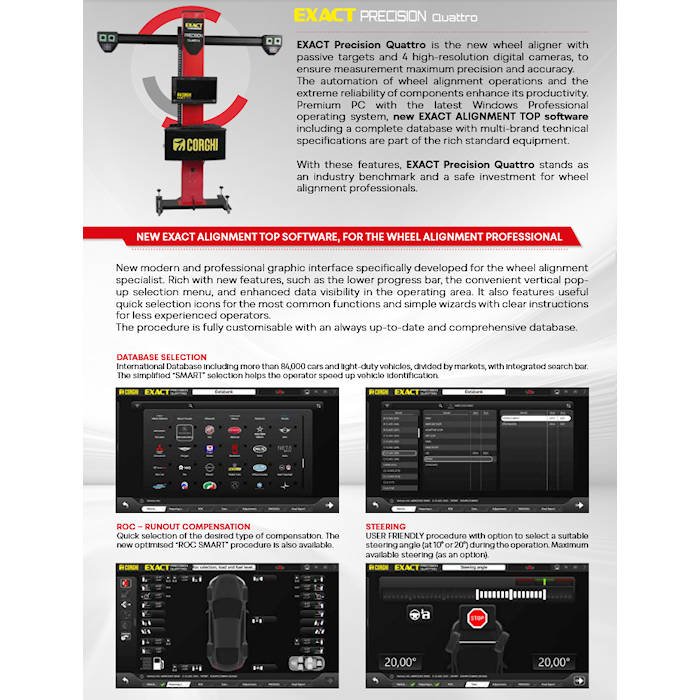

New Exact Alignment TOP Software For the Wheel Alignment Professional
New modern and professional graphic interface specifically developed for the wheel alignment specialist. Rich with new features, such as the lower progress bar, the convenient vertical pop up selection menu, and enhanced data visibility in the operating area. It also features useful quick selection icons for the most common functions and simple wizards with clear instructions for less experienced operators. The procedure is fully customizable with an always up-to-date and comprehensive database.

Database Selection
International Database including more than 84,000 cars and light-duty vehicles, divided by markets, with integrated search bar. The simplified “SMART”selection helps the operator speed up vehicle identification.

ROC – Runout Compensation
Quick selection of the desired type of compensation. The new optimized “ROC SMART” procedure is also available.

Steering
User-friendly procedure with option to select a suitable steering angle (at 10° or 20°) during the operation. Maximum available steering (as an option).

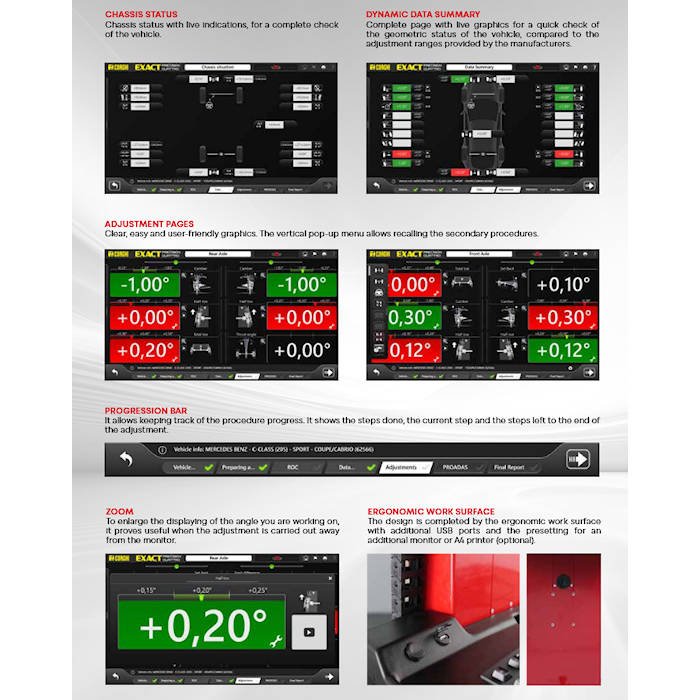

Chassis Status
Chassis status with live indications, for a complete check of the vehicle.

Dynamic Data Summary
Complete page with live graphics for a quick check of the geometric status of the vehicle, compared to the adjustment ranges provided by the manufacturers.

Adjustment Pages
Clear, easy and user-friendly graphics. The vertical pop-up menu allows recalling the secondary procedures.

Progression Bar
It allows keeping track of the procedure progress. It shows the steps done, the current step and the steps left to the end of the adjustment.

Zoom
To enlarge the displaying of the angle you are working on, it proves useful when the adjustment is carried out away from the monitor.

Ergonomic Work Surface
he design is completed by the ergonomic work surface with additional USB ports and the presetting for an additional monitor or A4 printer (optional).

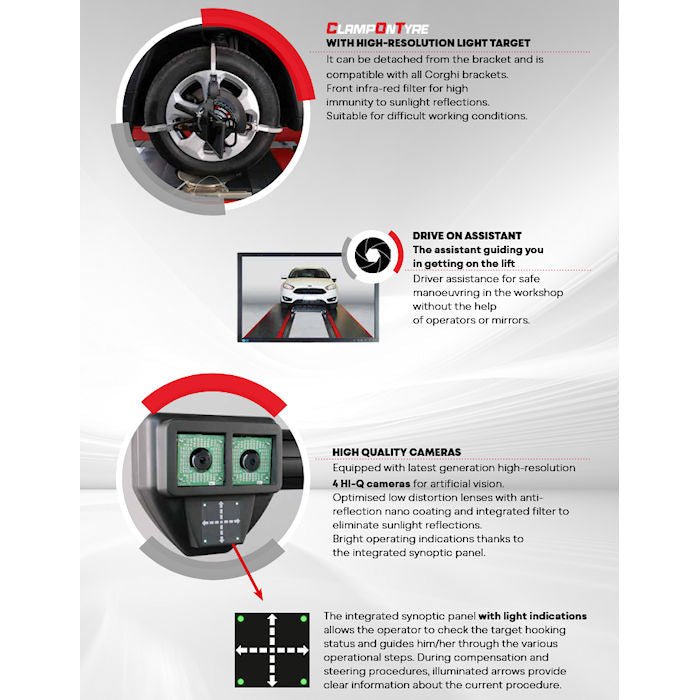

ClampOnTyre With High-Resolution Light Target
It can be detached from the bracket and is compatible with all Corghi brackets.
Front infra-red filter for high immunity to sunlight reflections. Suitable for difficult working conditions.

Drive On Assistant
The assistant guiding you in getting on the lift. Driver assistance for safe
maneuvering in the workshop without the help of operators or mirrors.

High Quality Cameras
Equipped with latest generation high-resolution 4 HI-Q cameras for artificial vision. Optimized low distortion lenses with anti-reflection nano coating and integrated filter to eliminate sunlight reflections. Bright operating indications thanks to the integrated synoptic panel. The integrated synoptic panel with light indications allows the operator to check the target hooking status and guides him/her through the various operational steps. During compensation and steering procedures, illuminated arrows provide clear information about the current procedure.

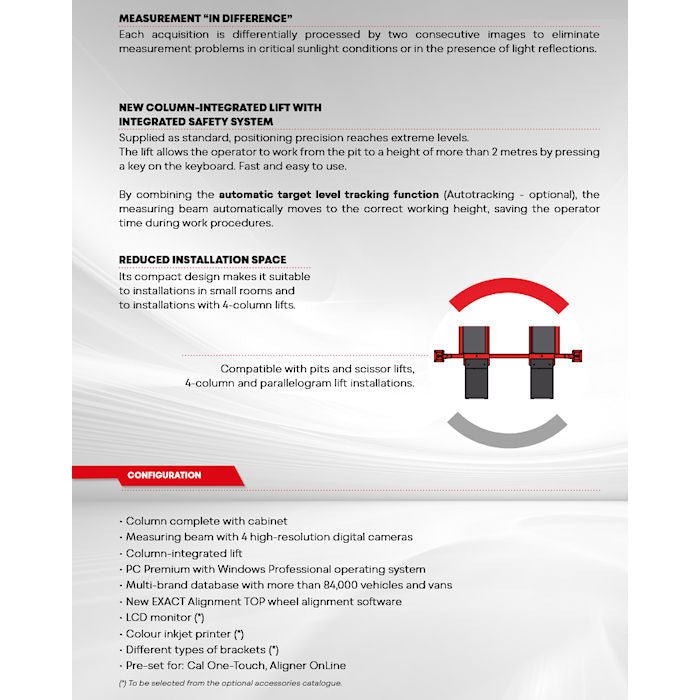

Measurement “In Difference”
Each acquisition is differentially processed by two consecutive images to eliminate measurement problems in critical sunlight conditions or in the presence of light reflections.

New Column-Integrated Lift With Integrated Safety System
Supplied as standard, positioning precision reaches extreme levels. The lift allows the operator to work from the pit to a height of more than 2 meters by pressing a key on the keyboard. Fast and easy to use.

Reduced Installation Space
By combining the automatic target level tracking function (Autotracking – optional), the measuring beam automatically moves to the correct working height, saving the operator time during work procedures. Its compact design makes it suitable to installations in small rooms and to installations with 4-column lifts. Compatible with pits and scissor lifts, 4-column and parallelogram lift installations.

Configuration

• Column Complete With Cabinet
• Measuring Beam With 4 High-Resolution Digital Cameras
• Column-Integrated Lift
• PC Premium With Windows Professional Operating System
• Multi-Brand Database With More Than 84,000 Vehicles And Vans
• New Exact Alignment TOP Wheel Alignment Software
• LCD Monitor (*)
• Color Inkjet Printer (*)
• Different Types Of Brackets (*)
• Pre-Set For: Cal One-Touch, Aligner Online
• (*) To Be Selected From The Optional Accessories Catalogue

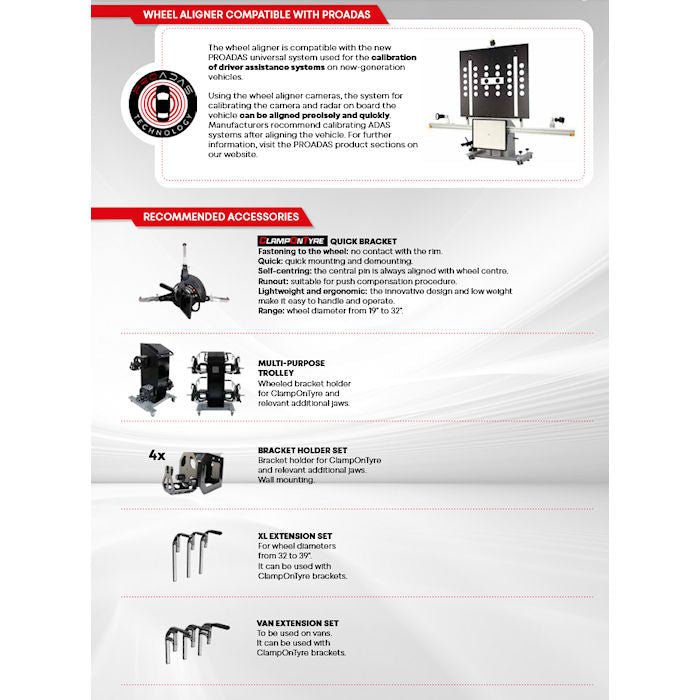

Wheel Aligner Compatible With PROADAS
The wheel aligner is compatible with the new PROADAS universal system used for the calibration of driver assistance systems on new-generation vehicles.

Using the wheel aligner cameras, the system for calibrating the camera and radar on board the vehicle can be aligned precisely and quickly. Manufacturers recommend calibrating ADAS systems after aligning the vehicle. For further information, visit the PROADAS product sections on Corghi website.
