MRCOOL DIY OuttaSight Series 18K BTU Ceiling Cassette | 21.8 SEER | 12.5 EER | Multi Zone Compatible

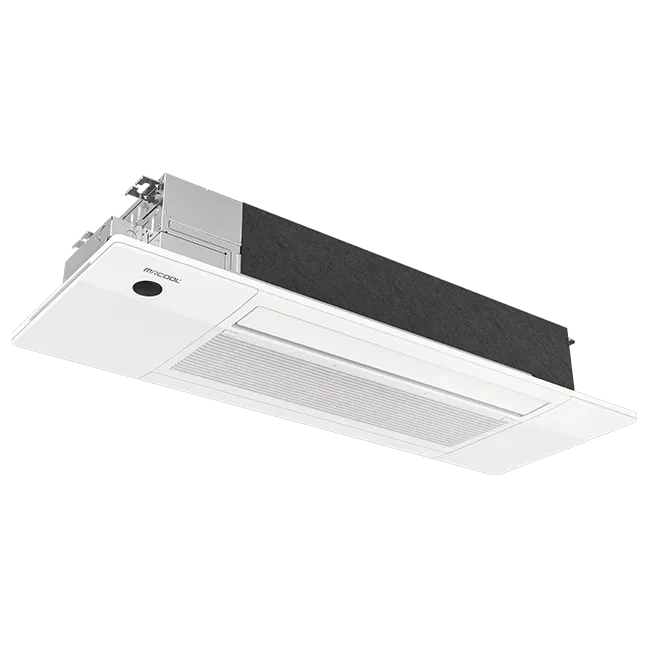

The MRCOOL® DIY® Series OuttaSight™ 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space. This easy to install and easy to maintain unit is offered in both single-zone and multi-zone options and can provide coverage for large and small spaces.

The OuttaSight™ cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space.

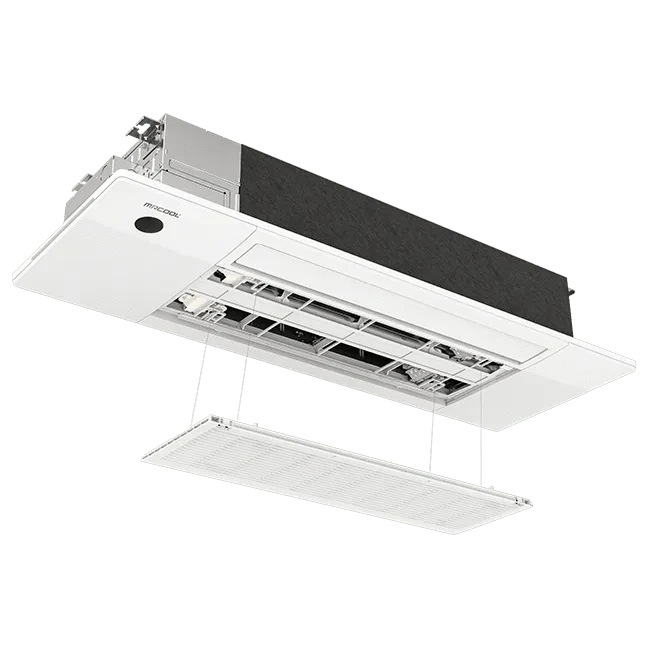

The OuttaSight™ works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series OuttaSight™ 18k BTU Ceiling Cassette are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.

MRCOOL offers 3 models of DIY OuttaSight Ceiling Cassette:

• MRCOOL DIY OuttaSight Series 9K BTU Ceiling Cassette | 20.75 SEER | 12.5 EER
• MRCOOL DIY OuttaSight Series 12K BTU Ceiling Cassette | 20.75 SEER | 12.5 EER
• MRCOOL DIY OuttaSight Series 18K BTU Ceiling Cassette | 21.8 SEER | 12.5 EER

CA Residents: See Prop 65 Warning

Features

Discreet heating & cooling for any space

The MRCOOL® DIY® Series OuttaSight™ Ceiling Cassette provides efficient heating and cooling while remaining discreet and out of sight, making it a perfect fit for any space. This unit, which is easy to install and maintain, is available in both single-zone and multi-zone options and can provide coverage for large and small spaces.

Low profile installation

You won’t even know it’s there. The MRCOOL® DIY® Series OuttaSight™ offers a low-profile heating and cooling option to discreetly fit any space.

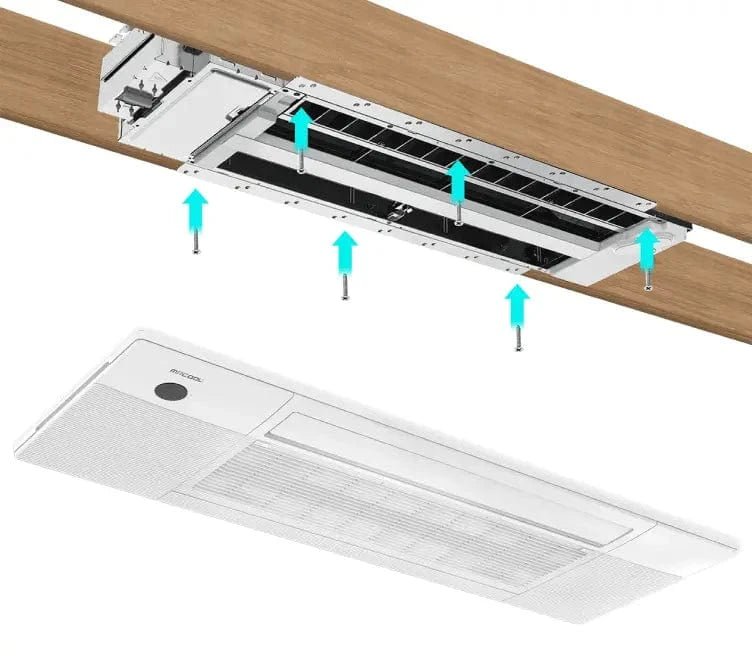

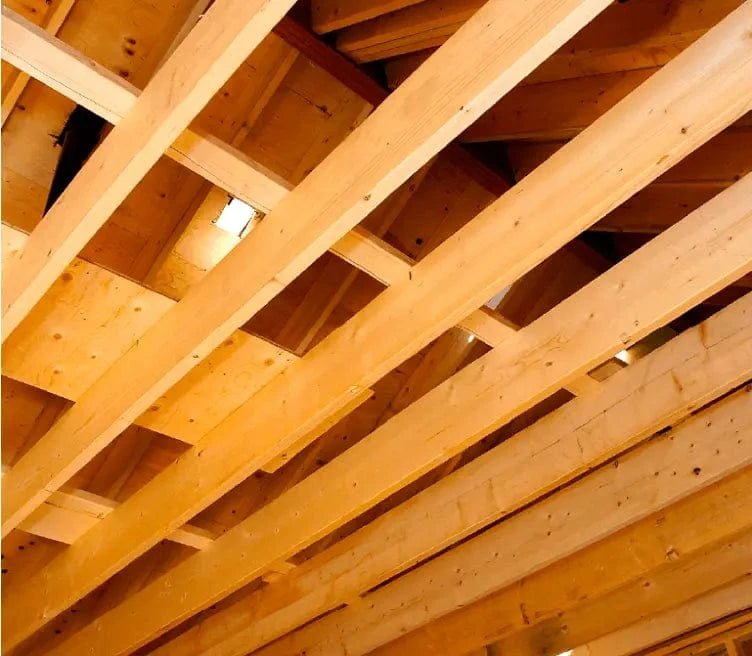

New construction, retrofit, and anything between

Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center – including pre-manufactured I-joists.

Single & multi-zone possibilities

This unit works with the MRCOOL® DIY® 4th generation series. The 18k ceiling cassette can also be installed as a single zone configuration.

Installed as a single zone configuration
The 18k BTU MRCOOL® DIY® OuttaSight™ Ceiling Cassette can be installed in a single-zone system. This unit can cover around 750 square feet in the precise temperature you want.

Add it to your multi-zone configuration
Our multi-zone MRCOOL® DIY® systems allow you to install both wall-mounted air handlers and the OuttaSight® Ceiling Cassette within the same system so you can mix and match your comfort to fit your needs.

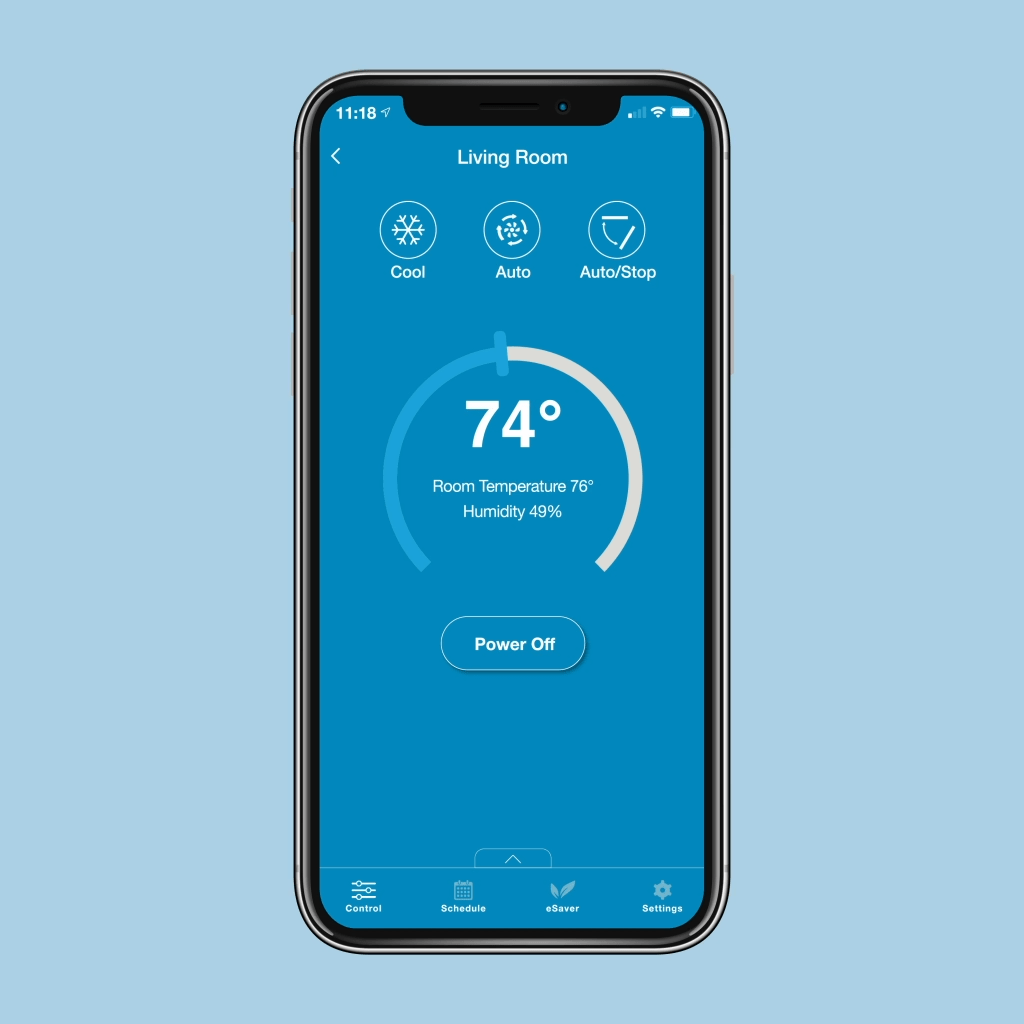

Compatible with smart technology

The OuttaSight™ Ceiling Cassette not only offers total comfort, it offers totally customizable control. Set specific schedules, decide on your ideal temperature parameters, manage your settings and more from your phone with the Smart HVAC app.

Enhanced control from anywhere

Control your MRCOOL® DIY® OuttaSight™ wherever you are with your Apple or Android smart device and an internet connection.

Best warranty in the business

When paired with a 4th Generation MRCOOL® DIY® Ductless Mini-Split condenser, the DIY® Outtasight™ Ceiling Cassette have an optional LIMITED LIFETIME compressor warranty*, a 7-year compressor replacement* warranty, and a standard 5-year parts warranty for the original registered owner. See rules and restrictions here.

Weight & Dimensions

Specifications

FAQ

What is the MRCOOL® DIY® OuttaSight™ Ceiling Cassette?

The MRCOOL® DIY® OuttaSight™ Ceiling Cassette is a sleek, discreet, design-focused air handler option within the DIY® Ductless Mini-Split series. Designed for multi-zone systems but compatible with the single-zone 18k BTU DIY® Ductless Mini-Split, the OuttaSight™ comes in three different sizes: 9k BTUs, 12k BTUs, and 18k BTUs.

Do you have to connect all of your air handlers at the same time when you’re installing a Multi-Zone DIY® system?

You do not need to connect all of your air handlers to a Multi-Zone DIY® Ductless Mini-Split system, but you do have to meet a certain BTU capacity depending on which condenser model you have. You must install at least 3/4ths of the BTU capacity of the condenser in air handlers for the system to work properly. This means that if you have a 36k BTU Multi-Zone DIY® Ductless Mini-Split condenser and four 9k BTU air handlers, you’ll need to install at least three of them at the same time in order for the system to properly function.

Are the indoor and outdoor components included?

The MRCOOL® DIY® OuttaSight™ is a new air handler option to give you the choice between a ceiling cassette and a typical wall-mounted air handler. When you purchase a Multi-Zone DIY® system, you’ll need to be sure that you select the OuttaSight™ Ceiling Cassette as an option.

Does the system include the communication wire to connect the indoor to the outdoor unit?

The OuttaSight™ will come with a DIYPRO™ cable, which securely connects the air handler to the condenser. This cable has a special, tough exterior that protects it from damage from weather, animals and pests, and lawn tools and appliances.

What’s Included?

INCLUDED
	1x MRCOOL DIY OuttaSight Series 12K BTU Ceiling Cassette 12000 BTU (Cooling and Heating) 20.75 SEER 12.5 EER
	MRCOOL No-Vac Quick-Connect Lineset (25 Ft.) Designed for fast and hassle-free installation of the MRCOOL DIY Ceiling Cassette It eliminates the need for specialized HVAC tools, refrigerant handling, or professional assistance, making it perfect for DIY installations Its pre-charged, sealed system ensures an airtight connection, reducing the risk of leaks and improving efficiency
	WiFi Dongle Allows you to connect the system to a wireless network for enhanced smart control and remote operation using a smart phone or tablet
	MRCOOL Remote Allows you to conveniently operate and adjust your ceiling cassette unit without direct access to it. It enables precise temperature control, mode selection, and fan speed adjustment, ensuring a comfortable indoor environment

Warranty

• Registered Warranty: Limited Lifetime Compressor
• Base Warranty: 5-year Parts / 7-year Compressor
• Base Parts Warranty: 5-year Parts
• Registered Compressor Warranty: Limited Lifetime Compressor
• Base Compressor Warranty: 7-year Compressor

Downloads

• MRCOOL DIY OuttaSight Ceiling Cassette Brochure – Download
• MRCOOL DIY OuttaSight Ceiling Cassette Installation Manual – Download
• MRCOOL Remote Control User Manual – Download
• MRCOOL  Trouble Shooting Guide – Download
• MRCOOL 4th Gen DIY Series Warranty Document – Download
• MRCOOL Multi Zone Matchup Guide – Download
