7′ 6″ L x 14″ W Aluminum Ramps, Pin-On End, Stub Foot – 10,000 per Axle

HD Ramps 7’6″ Aluminum Pin-On Equipment Ramps – Stub Foot

Load heavy-duty equipment such as skid steers, trenchers, loaders, or tractors safely and efficiently with these HD Ramps 7’6″ Aluminum Pin-On Equipment Ramps. Built in the USA from high-strength aluminum, these ramps combine lightweight design, high load capacity, and superior traction for reliable performance in all conditions.

Key Features:

• Pin-On End Connector: Secures ramps to skid seat brackets (sold separately) for safe loading on trailers, step decks, or flatbeds. Prevents slipping or movement during use.
• Stub Foot Design: Provides stability and durability, while accommodating trailer rises from 24″ to 36″.
• Serrated Rung Traction: Flat, welded rungs grip tires in wet or muddy conditions, allowing road debris, gravel, and mud to pass through for safe loading.
• Lightweight & Strong: Each ramp weighs only 47 lbs. but supports up to 10,000 lbs. per axle, making handling and setup easy for one person.

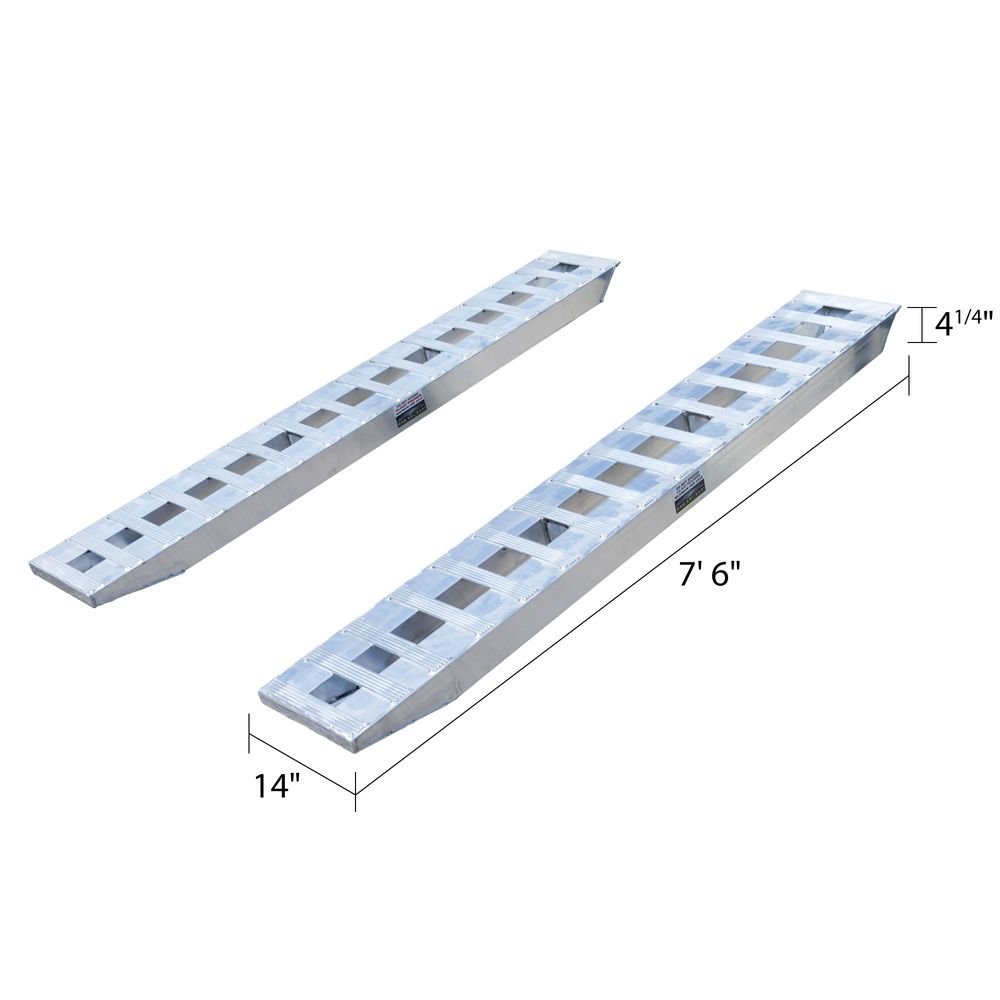

Specifications:

• Made in the USA
• Length: 7’6″
• Width: 14″
• Height: 4-1/4″
• Weight: 47 lbs. per ramp
• Maximum Capacity: 10,000 lbs. per axle
• Minimum Height: 24″
• Maximum Height: 36″
• Material: Aluminum
• Foot Type: Stub
• Attaching End: Pin-On

More Information:
These ramps are engineered to provide a smooth, secure loading experience for trailers with 24″–36″ rises. The pin-on connection works with compatible skid seat brackets to ensure ramps remain stable, while the stub foot design maximizes durability and support during equipment loading.

Usage Guidelines:

• Not suitable for trucks with mounted cranes, forklifts, or steel-track vehicles
• Never exceed maximum axle capacity
• Pin-on ramps must be secured in skid seat brackets before use
• To determine axle weight, weigh the heaviest axle of the vehicle (typically the front axle)

Warranty:
This HD Ramps product is backed by a 5-year warranty and guaranteed free of defects at the time of purchase.

⚠️ WARNING: This product may expose you to chemicals, including Cadmium and Lead, known to the State of California to cause cancer, birth defects, or other reproductive harm
