8′ L x 18″ W / 4 Ramp System for 18″ H Step Deck Trailers – 23,500 lb. Cap

Aluminum Step Deck Ramp & Load Leveler System

Maximize the versatility of your step deck trailer with this multi-purpose ramp and load leveler system. Designed for 102″ W step deck trailers with an 18″ upper step drop, this setup allows you to safely load heavy equipment and convert your ramps into load levelers for extended cargo support.

Key Features

Dual-Purpose Design
Each ramp can be used for loading equipment or turned on its side to serve as a load leveler. Ramp width varies based on your trailer’s step height, ensuring the correct leveling fit.

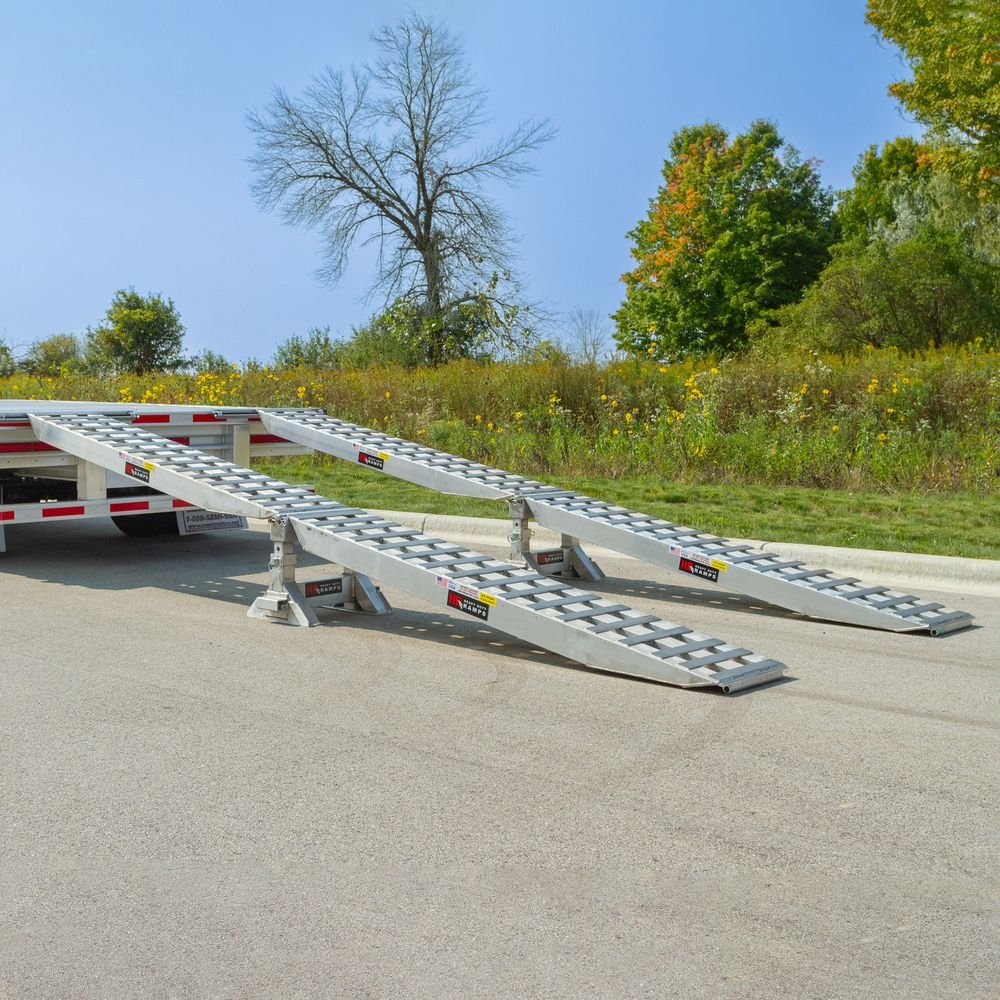

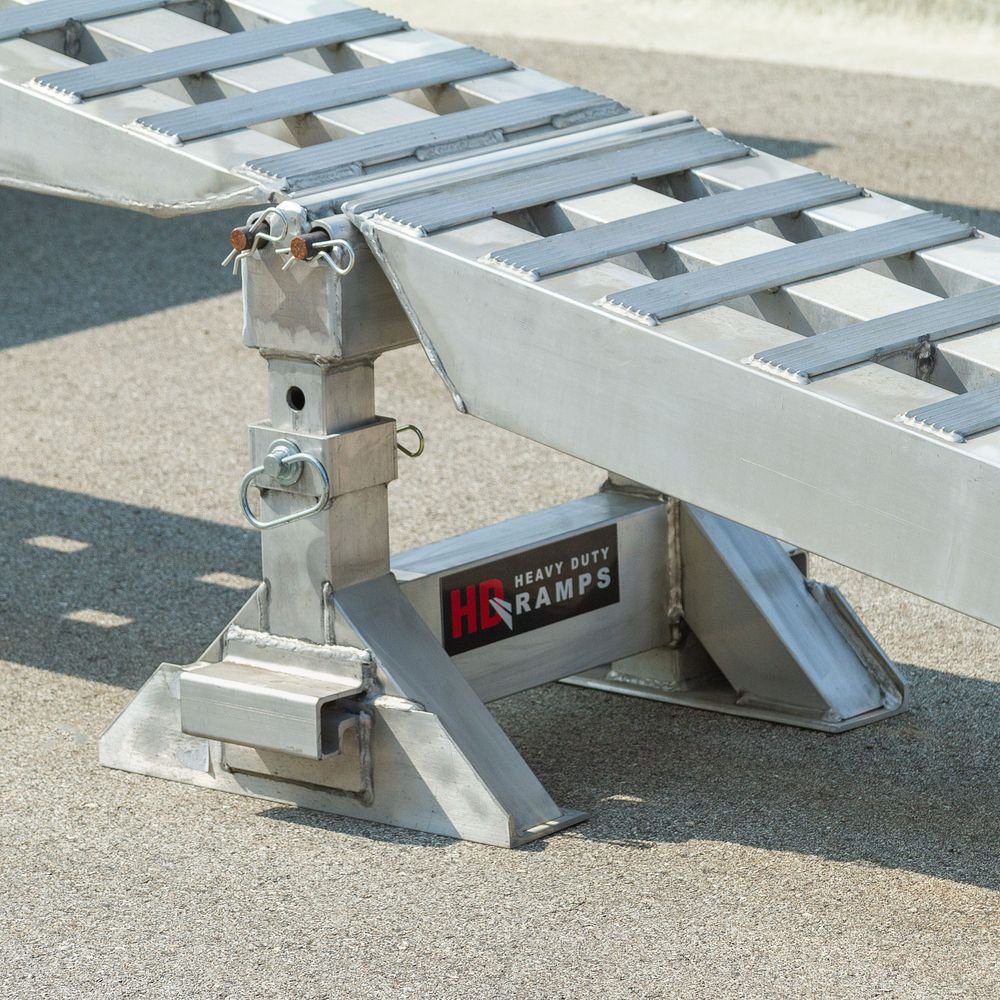

Ramp Support Stands
Adjustable support stands provide extra stability when loading heavy equipment. They also allow for a slight arch setup—ideal for vehicles or machinery with long wheelbases or low ground clearance.

Load Leveler Spacers
Sized for 24” and 26” step decks, the included spacers sit on top of the load levelers before adding lumber clips and dunnage to maintain proper height and alignment.

Lumber Clips
Attach directly to the load levelers to hold planks in place and prevent scratching or damage to your cargo. Each kit includes three lumber clips per load leveler.

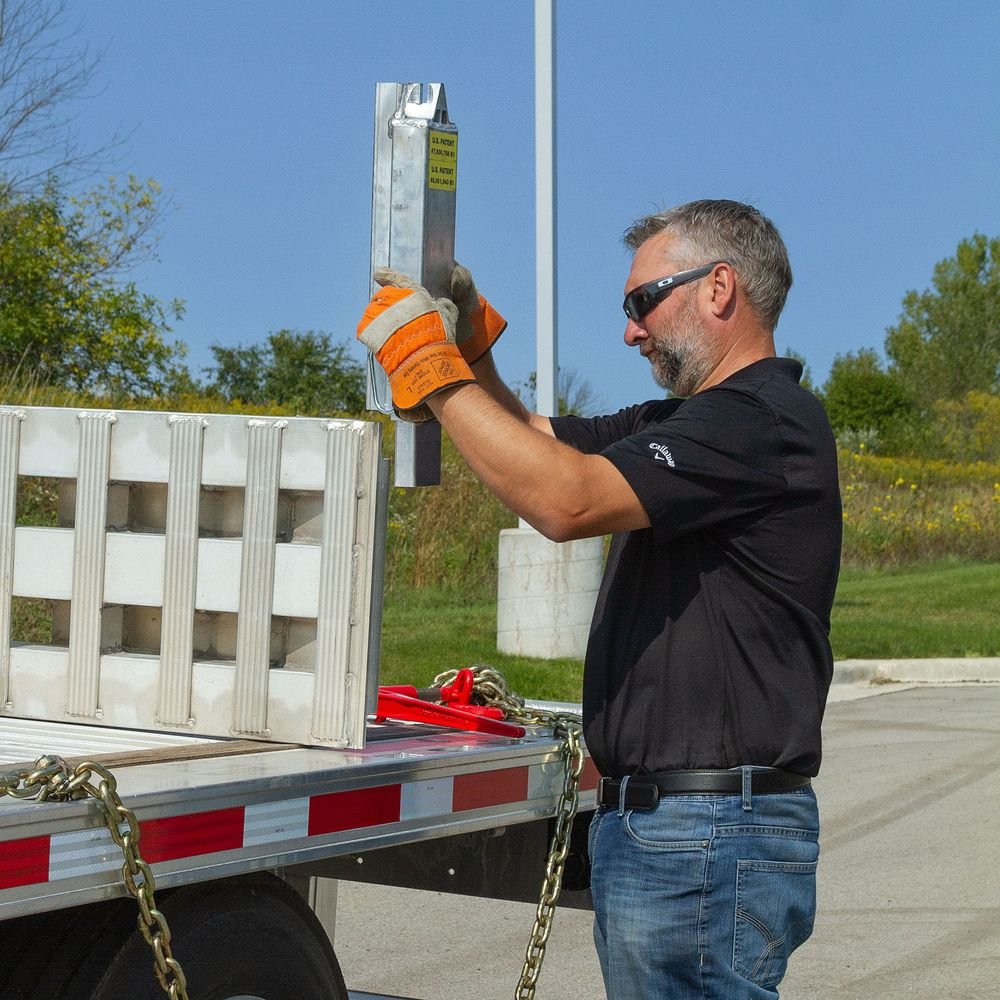

Stake Pocket Supports
Keep your load levelers securely positioned at stake pocket locations. Kits include two stake pocket supports per load leveler, with chains used to lock everything in place for transport.

Specifications

• Made in the USA
• Grid Description: 2 Bunk Load Leveler
• Maximum Capacity: 23,500 lbs. per axle
• Length: 16 ft.
• Width: 18 in.
• Height: 5 in.
• Weight: 506 lbs.
• Material: Aluminum

More Information

This affordable, lightweight, and durable ramp system provides a safe and efficient way to handle heavy-duty equipment loading. When turned on their side, the ramps easily convert into load levelers using the included adjustable stakes that fit directly into the trailer’s stake pockets.

Each system includes:

• (4) 8′ aluminum ramps
• (2) ramp support stands
• (6) lumber clips
• (4) stake pocket supports

All components are engineered for precision fit and tested for reliability. This patented design (U.S. Patent #8347439, #7930788) ensures maximum safety and performance.

Usage Guidelines

• Rated at 23,500 lbs. per axle – do not exceed this limit.
• Not recommended for vehicles with mounted cranes, forklifts, or steel tracks.
• Always use true 6” wide lumber (2×8 cut down) when using as load levelers.
• Never use load levelers without lumber to ensure a level surface and protect ramp integrity.

Warranty

This HD Ramps product includes a 5-year warranty and is guaranteed to be free from defects at the time of purchase.
