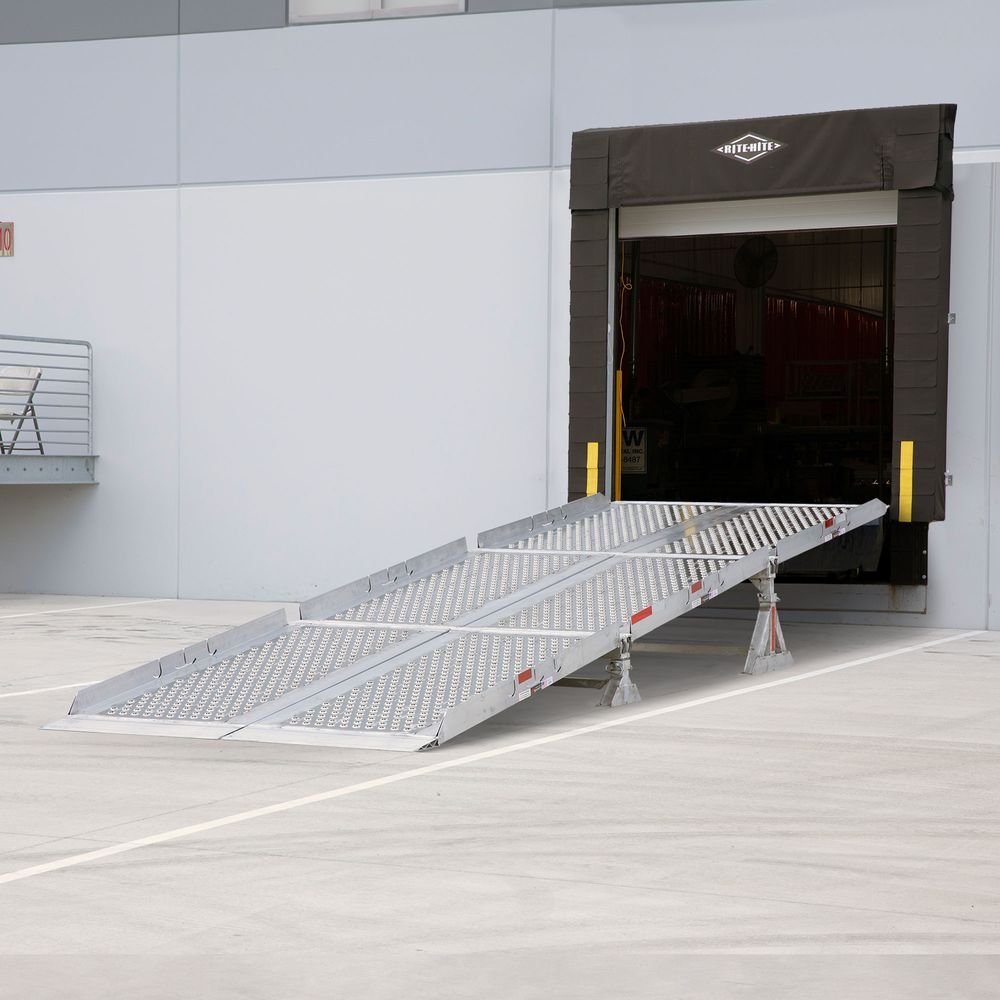

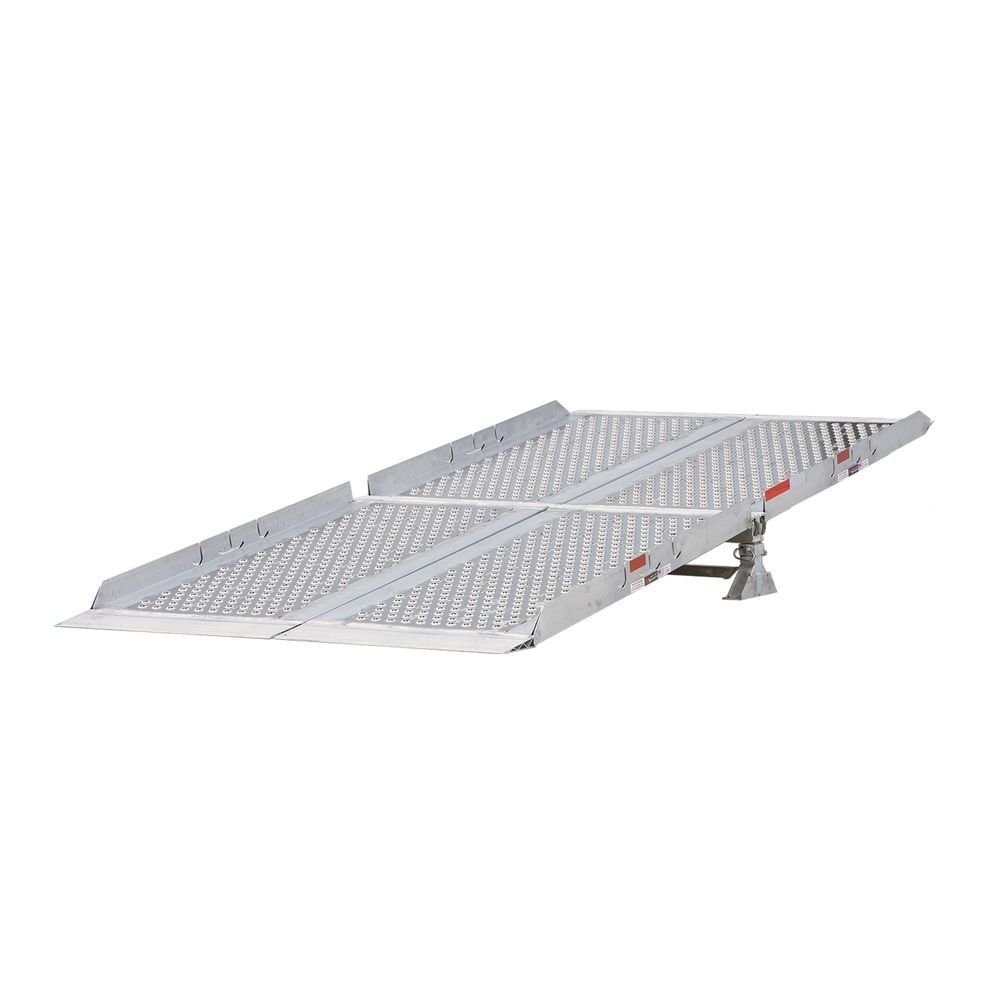

84″ W Aluminum Portable Modular Box Truck Ramp System – 25,000 lb. Cap
Price range: £4,636.78 through £5,667.18

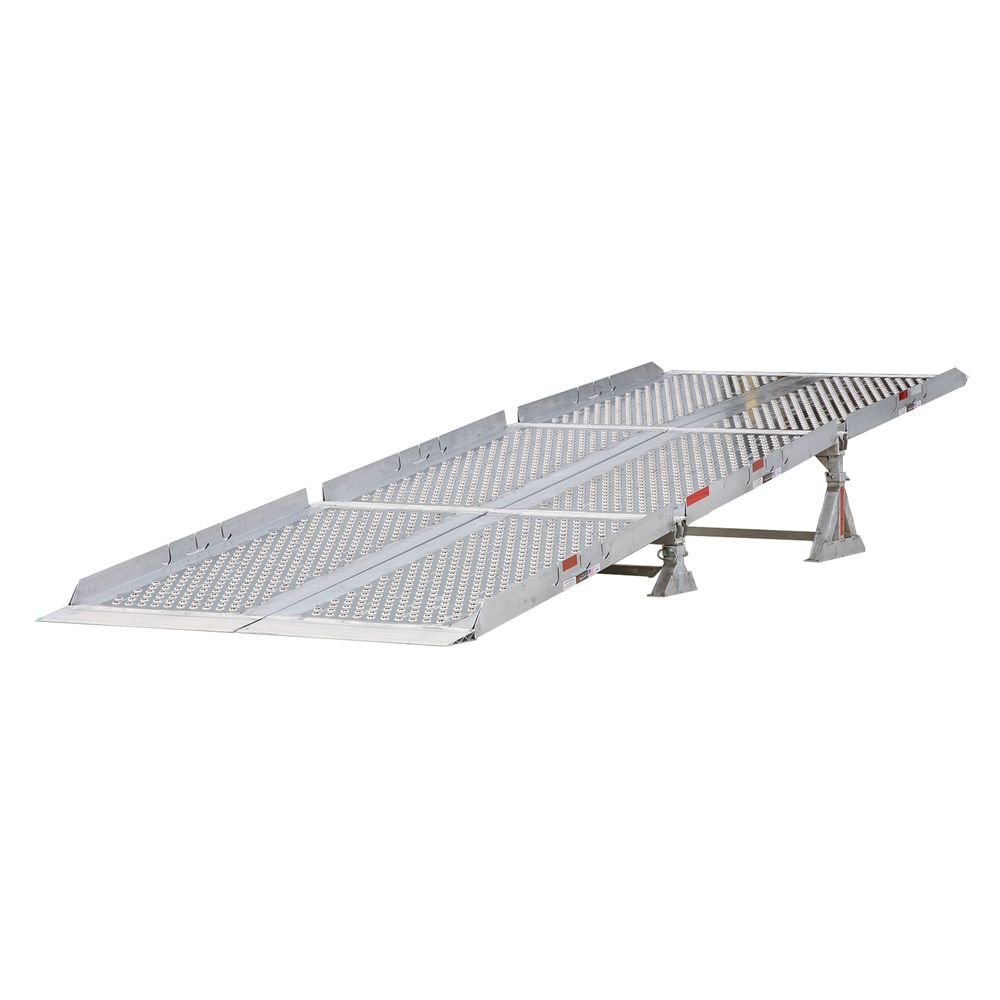

Portable Aluminum Modular Yard Ramp System
Features
- Modular Design for Easy Storage and Transport: The ramp components stack compactly to fit on a single pallet, making storage and transport simple. Perfect for seasonal use or moving between facilities, the system fits in a pickup truck bed or a 4 x 8 trailer and ships economically via common carrier.
- Quick, Tool-Free Setup: Two people can assemble the ramp system in as little as 15 minutes. Simply position the adjustable height stands, attach the ramps with pin-on ends, and secure with the included ratchet safety straps.

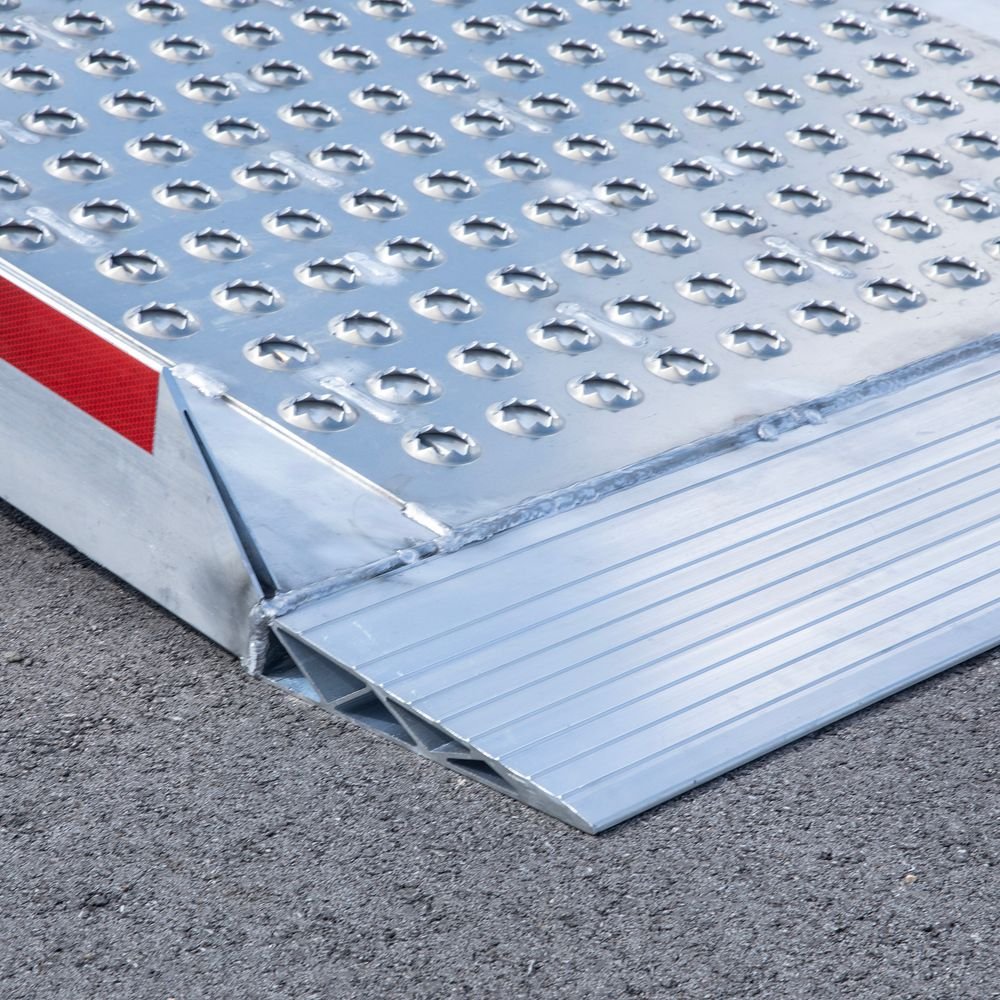

- EZ Traction Punch-Plate Surface: Raised, serrated punch plates provide excellent grip for forklift, car, or equipment tires in all weather conditions, while allowing rain, snow, and mud to pass through for safer operation.

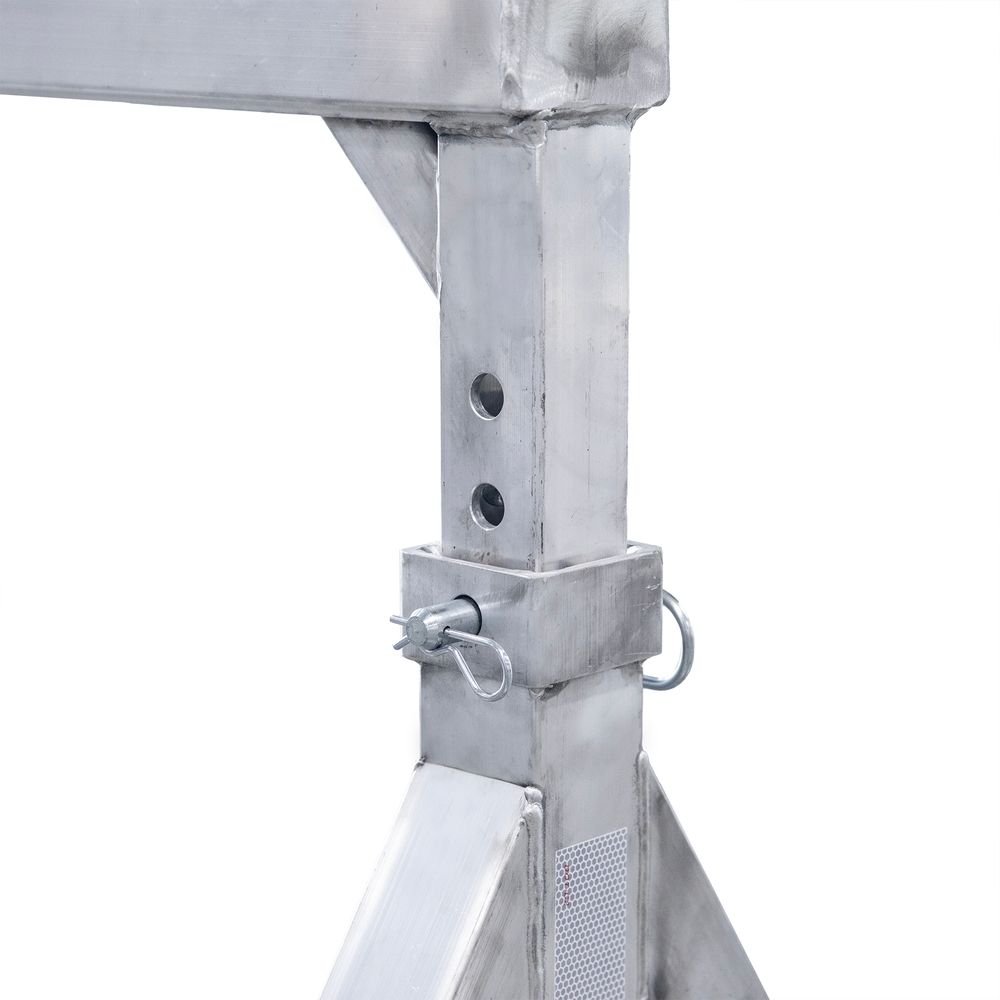

- Adjustable Height Stands: Ramp stand heights adjust incrementally to accommodate loading heights from 15″ up to 48″ (depending on ramp configuration), ensuring smooth transitions to trucks, trailers, or docks.
- Integrated Safety Rails: 4″ high rail guards provide additional safety and structural support along the ramp edges.

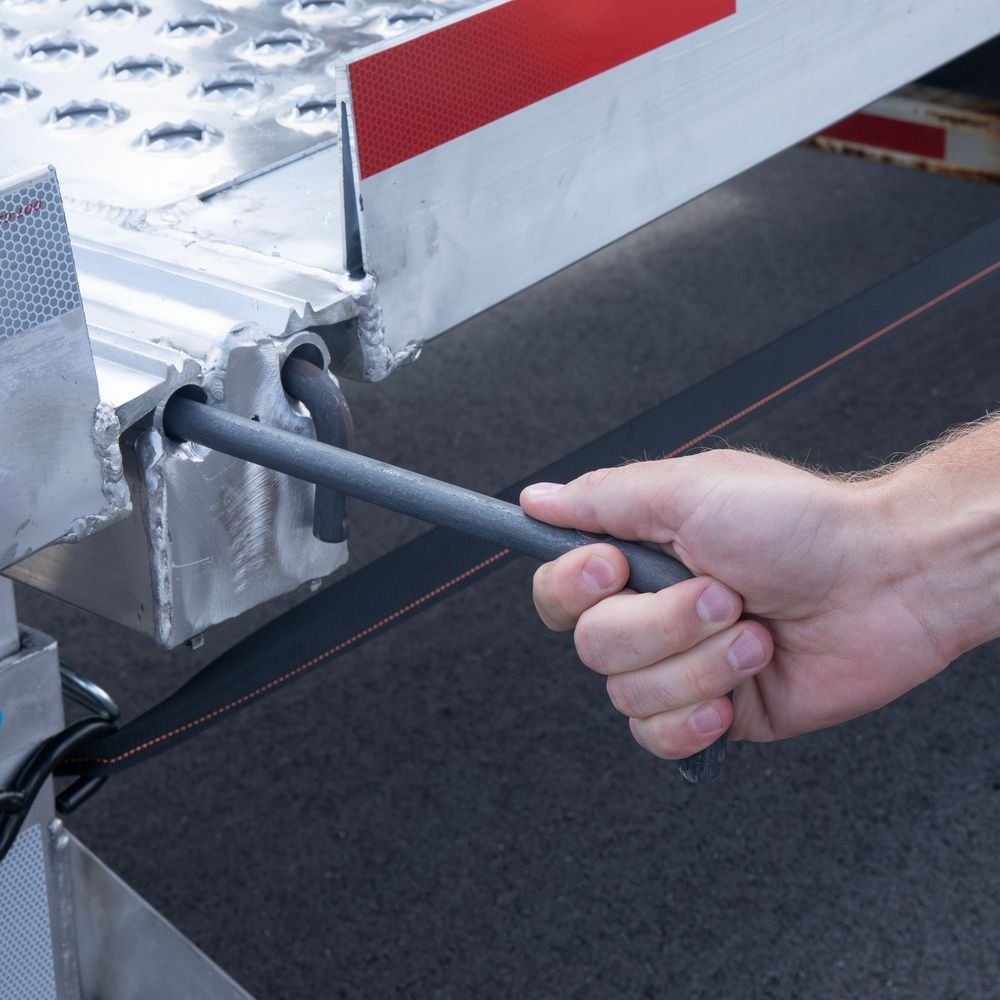

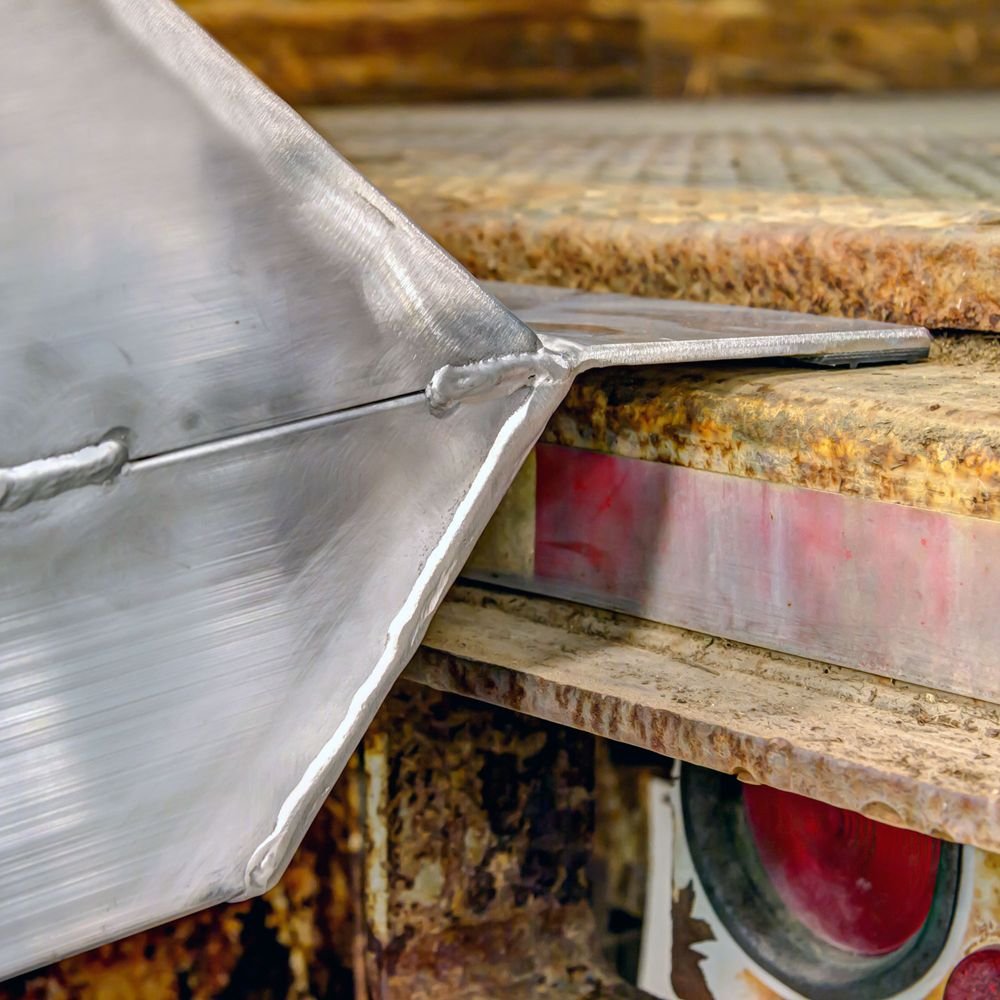

- Smooth Ground and Vehicle Transitions: Pin-on ends secure ramps to the stands, while knife foot and plate end ramps provide smooth transitions to the ground and truck or trailer bed.
Specifications
- Made in the USA

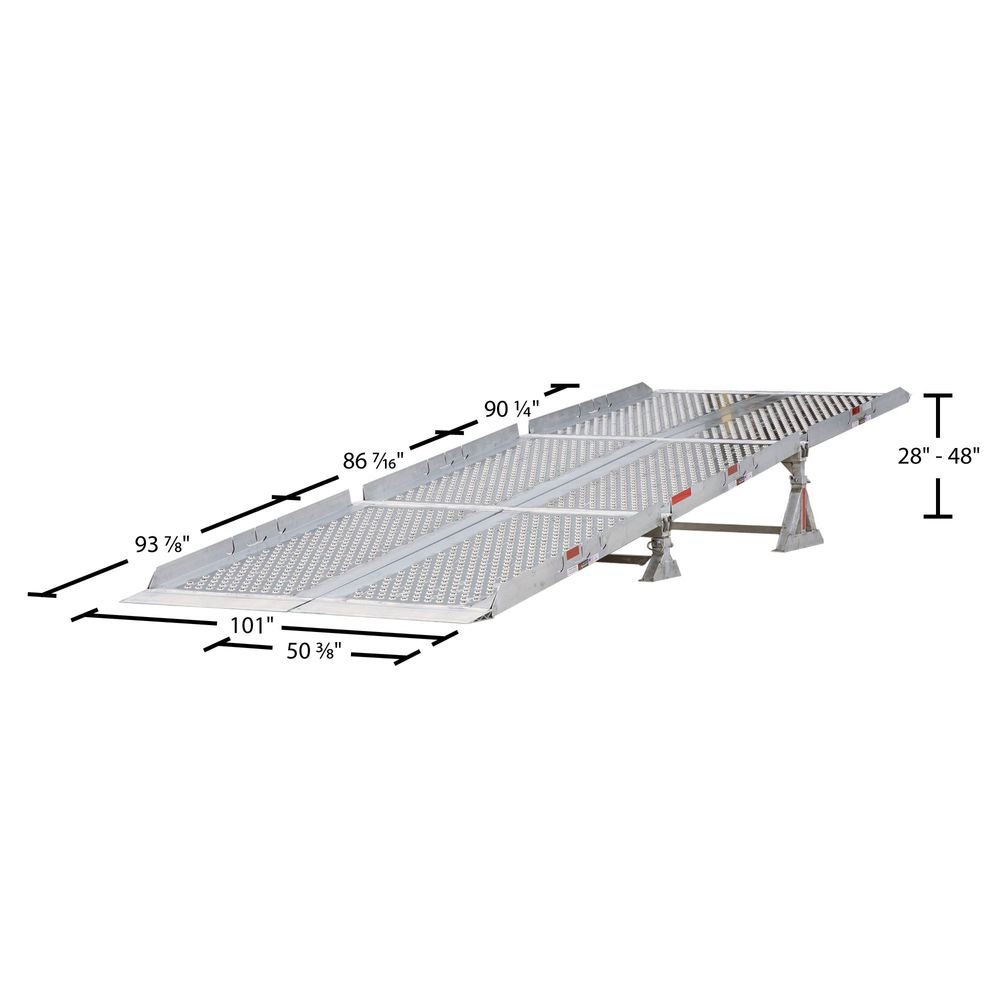

- Length: Configurable from 8′ to 22′ 6″
- Width Options: 7′ or 8′ 5″ (usable widths: 6′ 10″ and 8′ 3″)
- Minimum Height: 15″
- Maximum Height: 48″
- Weight: 1,942 lbs.
- Maximum Capacity: 25,000 lb. total
- Material: Aluminum
- Lift Type: Height-adjustable stands
- Guard Rail Height: 4″
More Information

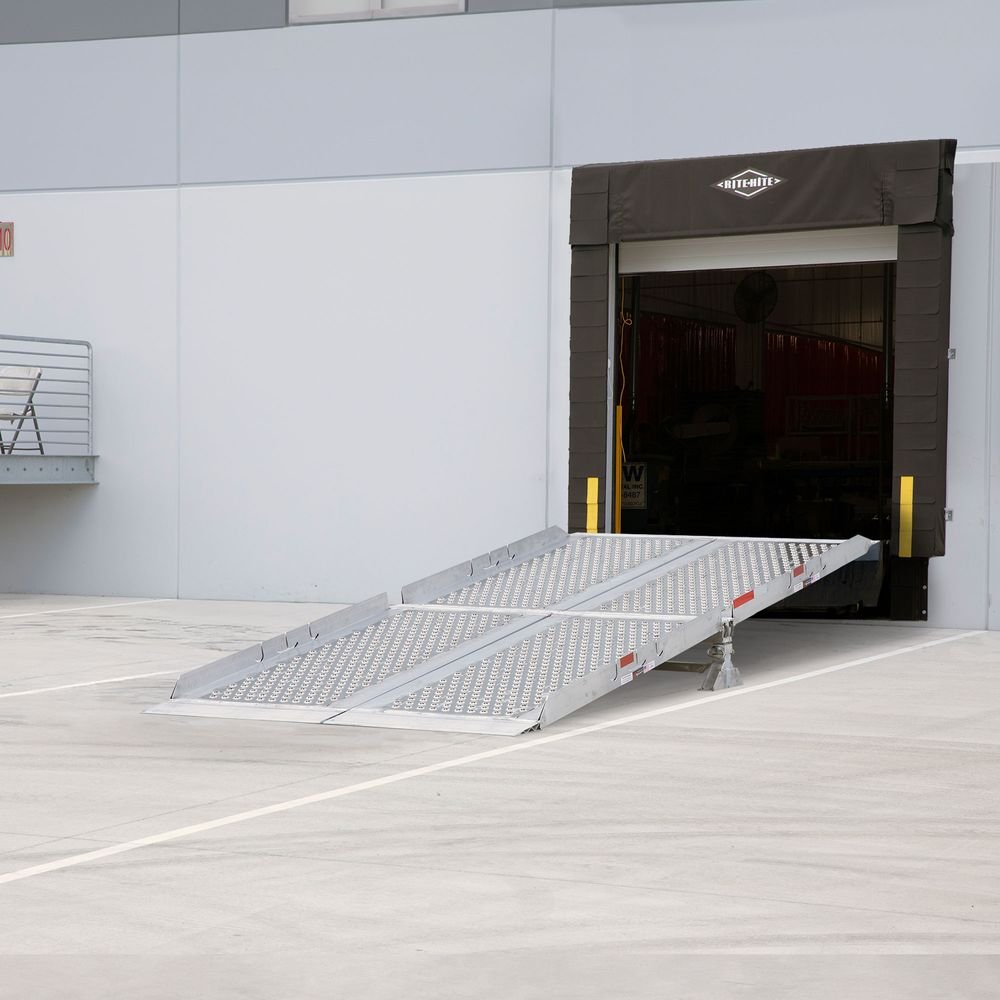

This portable yard ramp system provides quick, safe loading access for box trucks, trailers, and docks without the need for a permanent loading dock. The modular design allows flexible ramp lengths from 8′ to 22′ 6″ to suit various vehicle sizes and loading applications. Two 18′ ratchet safety straps are included for secure attachment. Patent pending.
Key Benefits
- Modular, single-pallet design for easy storage and transport
- Tool-free setup in under 15 minutes
- EZ Traction punch-plate surface ensures maximum grip in all weather
- Fully adjustable for a variety of truck, trailer, and dock heights
- Integrated 4″ safety rails for added protection
