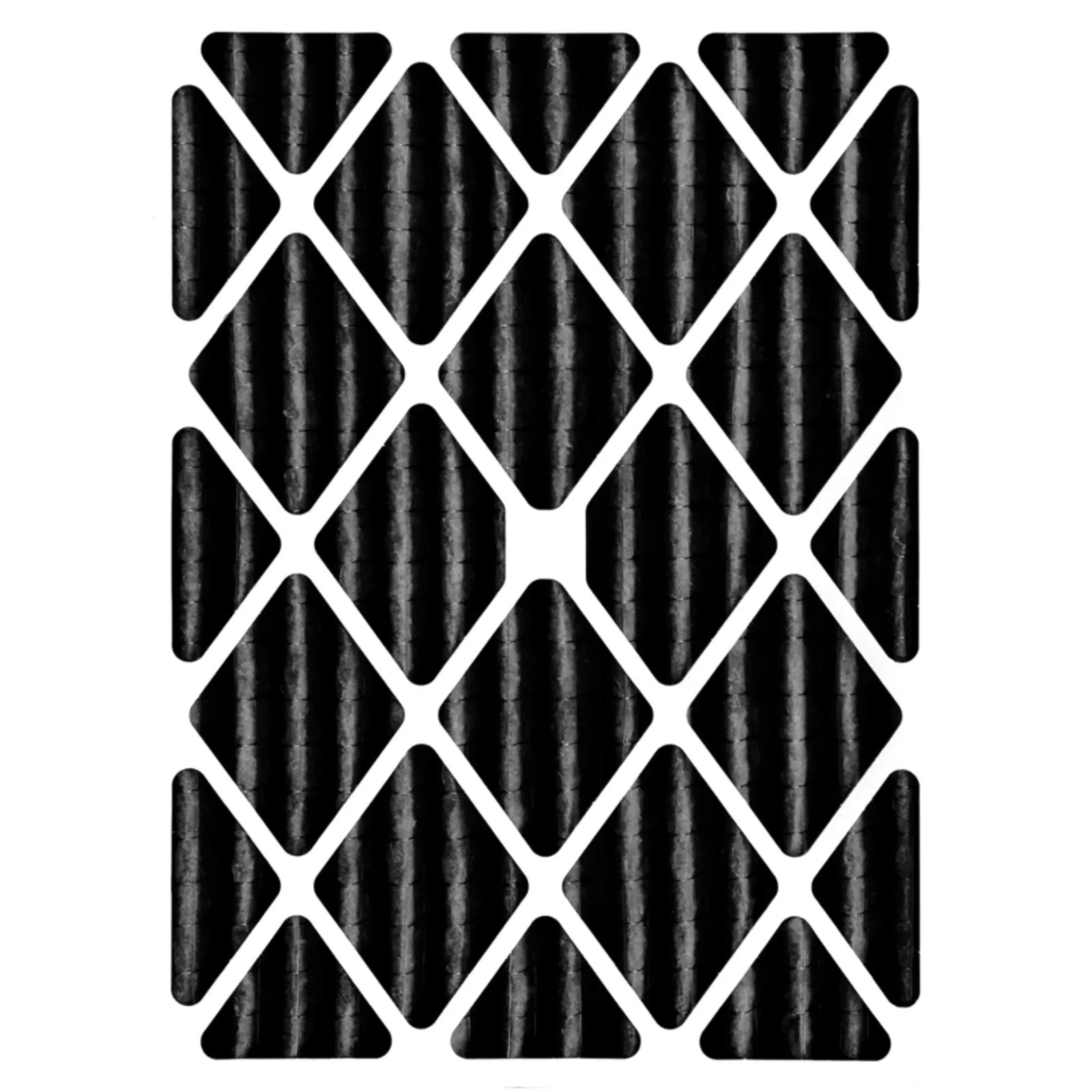

Abatement Technologies VL2002 VAPOR-LOCK Carbon Filter – MERV 7, Pleated, UL900

Abatement VL2002 VAPOR-LOCK Third-Stage Carbon Filter — Activated Carbon VOC Control

The VL2002 VAPOR-LOCK filter slots into Abatement Technologies air scrubbers as a third-stage activated carbon module for odor and VOC removal. Pleated carbon web media raises adsorption capacity above flat-pad alternatives, and the MERV 7 rating ensures low pressure drop so the upstream HEPA stage continues operating at designed airflow.

VL2002 Filter Media and Structural Specifications

• Activated carbon web media — pleated for increased surface area and extended adsorption capacity per replacement cycle.
• MERV 7 efficiency rating — 50%+ capture at 3–10 microns with minimal restriction to scrubber airflow.
• UL900 Class 2 flammability — certified for use in commercial and healthcare environments.
• Die-cut beverage board frame — dimensionally stable frame resists warping under sustained airflow pressure.
• No gasket required — drop-in fit in compatible Abatement filter bays.

When to Add Carbon Filtration to an Air Scrubber

HEPA filtration in air scrubbers captures particulates — mold spores, asbestos fibers, lead dust, and construction debris — but does not adsorb gas-phase contaminants. Projects involving fire and smoke damage, sewage intrusion, mold with heavy mycotoxin loads, or chemical abatement benefit from adding a carbon stage. The VL2002 fits downstream of the HEPA to intercept VOCs and odors before the cleaned air is discharged into adjacent occupied spaces. Hospital infection control officers increasingly specify carbon-stage air scrubbers for renovation projects near patient care areas to control construction chemical off-gassing.

Part Identification and Replacement Guidance

Part number VL2002. Confirm compatibility with your Abatement scrubber model before ordering. Replace at odor breakthrough or per manufacturer maintenance schedule.
