Adjustable Trailer Wheel Risers for Loading Docks

Adjustable Trailer Wheel Risers for Loading Docks

Features

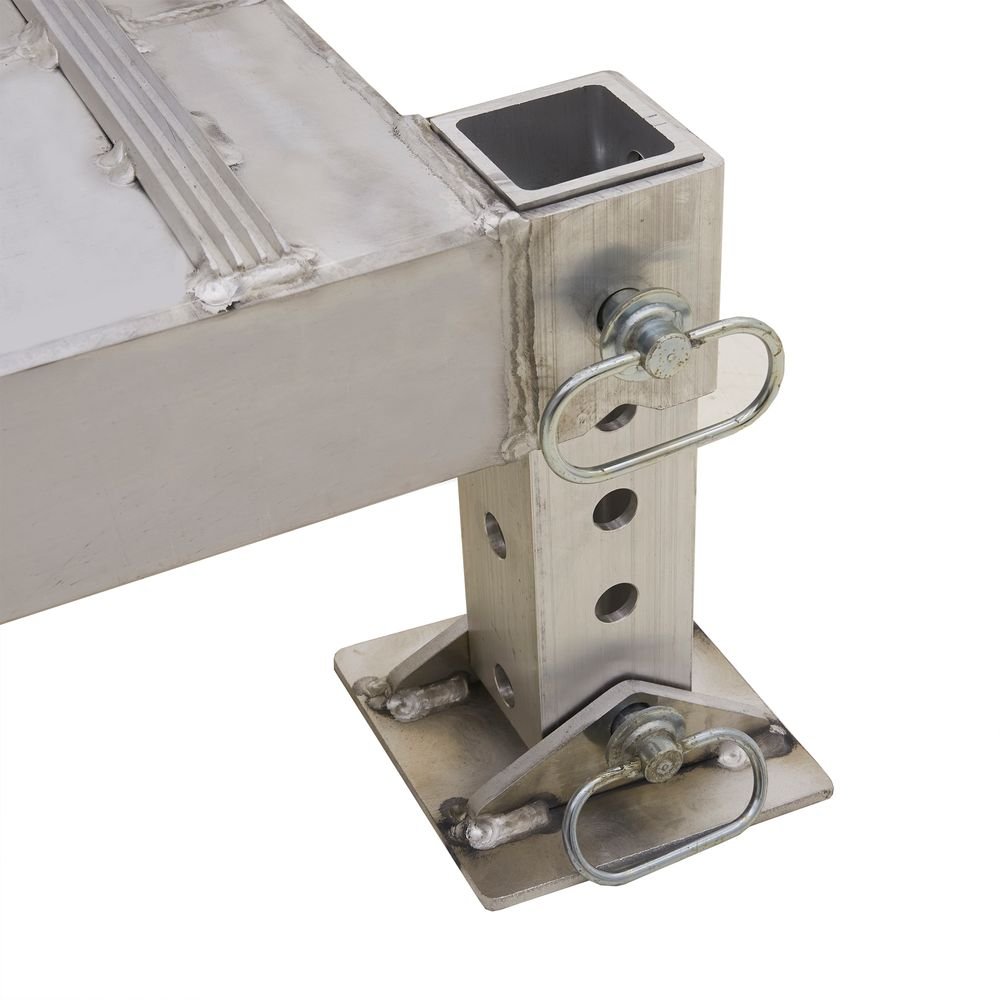

• Adjustable Height: Easily set the height from 5” to 12” in 1” increments using the pin system. The 7” range makes it simple to level trailers at different docks, accommodating older facilities with settled concrete.
• Serrated Rungs for Traction: The serrated surface ensures tires grip securely, even in snow, ice, or wet conditions, keeping wheels stable on the riser.
• Multiple Sizes to Fit Your Trailers: Available in two lengths (66” and 90”) and two widths (18” single wheel, 27” tandem wheels) to accommodate single axle or tandem axle trailers, ensuring all wheels are safely supported.

Specifications

• Made in the USA
• Material: High-strength Aluminum

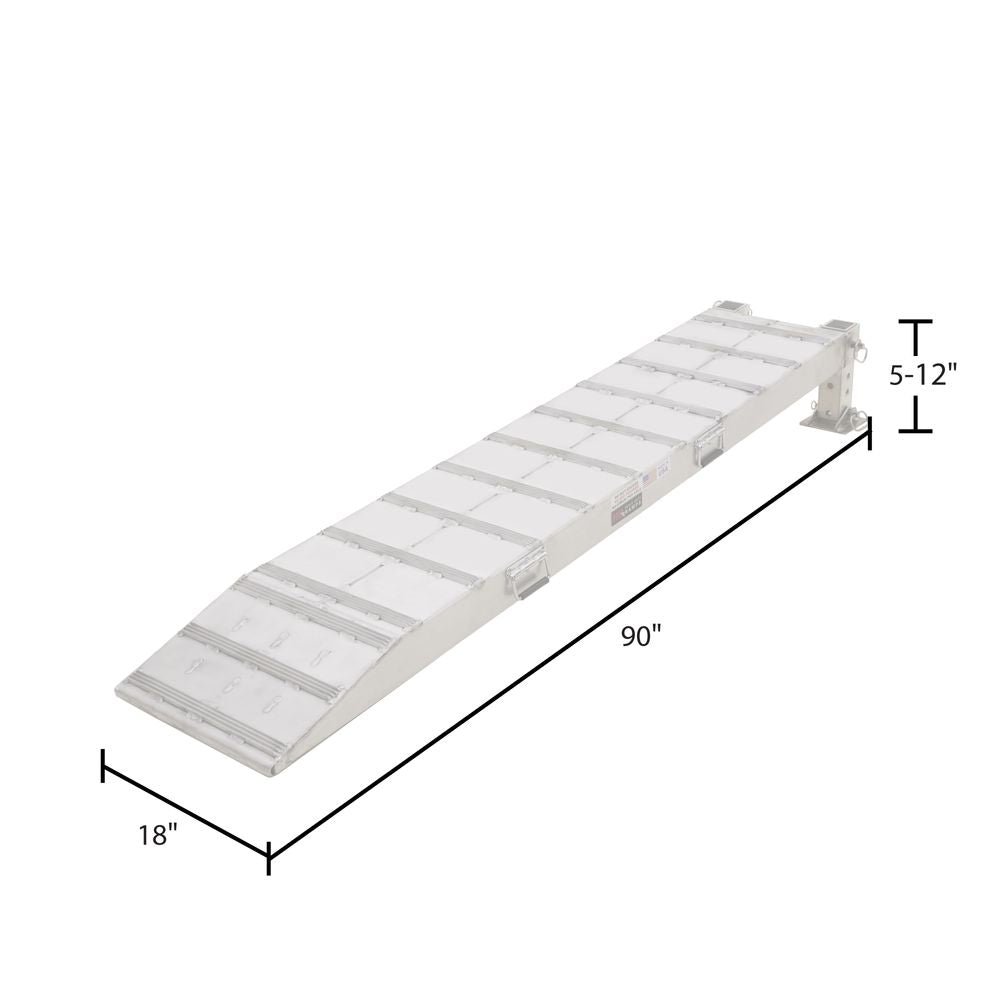

• Ramp Length: 66” or 90”
• Ramp Width: 18” or 27”
• Minimum Height: 6-1/2”
• Maximum Height: 13”
• Weight: 81 lbs. per riser
• Maximum Capacity: 40,000 lbs. per pair

More Information

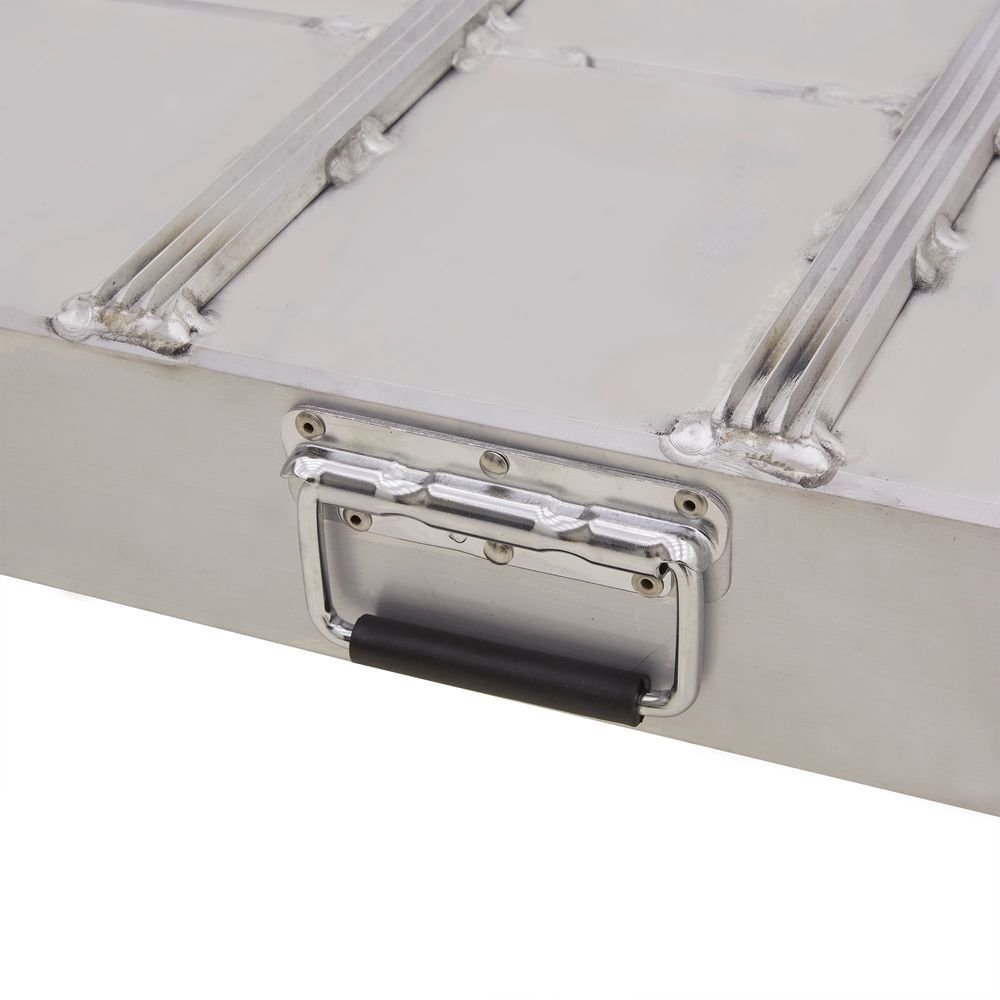

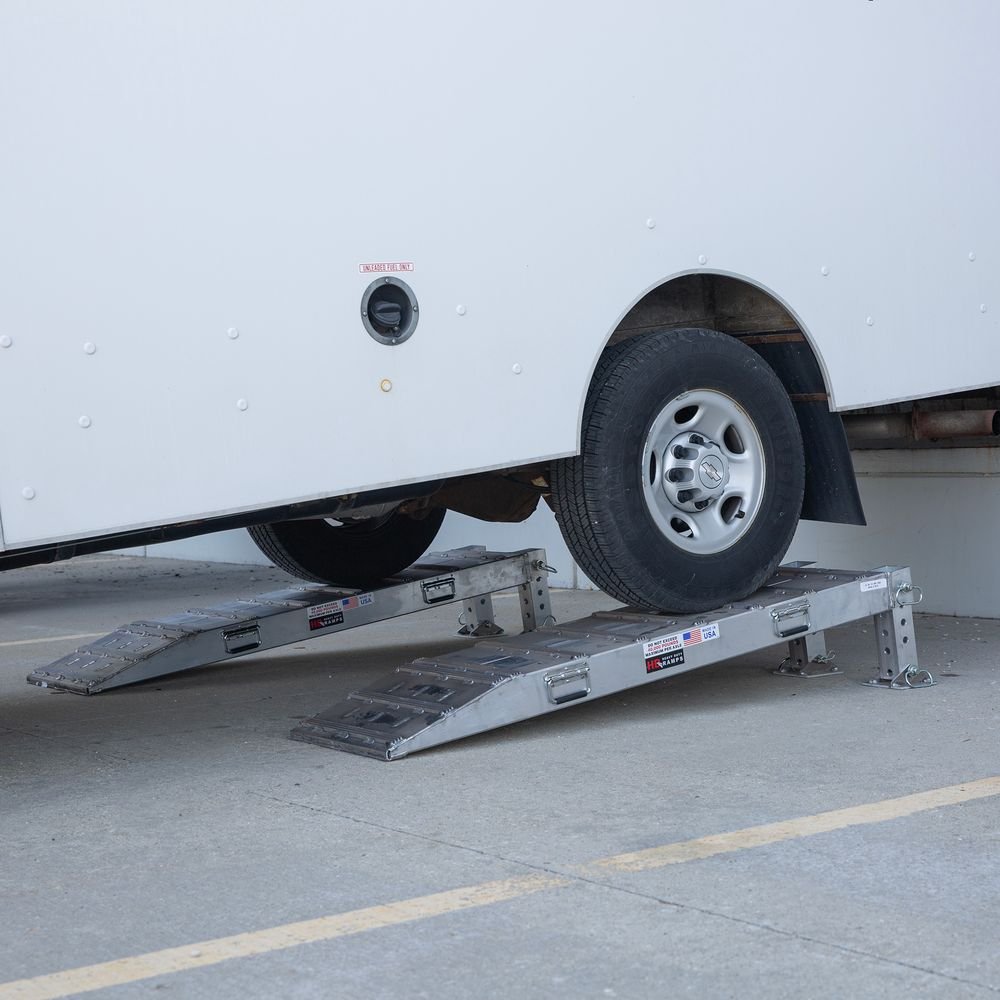

These Adjustable Wheel Risers improve safety and efficiency at loading docks by leveling trailers and preventing wheel instability. Constructed from lightweight aluminum, each riser features serrated rungs for maximum traction and four stainless steel handles for easy manual repositioning. Sold in pairs, the risers are ideal for single or tandem axle trailers, providing a secure base for docking operations.

Usage Guidelines

• Not intended for loading vehicles onto RGN lowboy trailers. Using in that application will void the warranty.

Warranty

• Backed by a 5-year warranty, guaranteed free of defects at the time of purchase.
