Aerospace America 9116 Compact Two Stage Water Pump – 6 GPM, 22 lbs, Garden Hose, SKU 9116

Aerospace America 9116 Compact Two Stage Water Filtration Pump — 6 GPM, 22 lbs

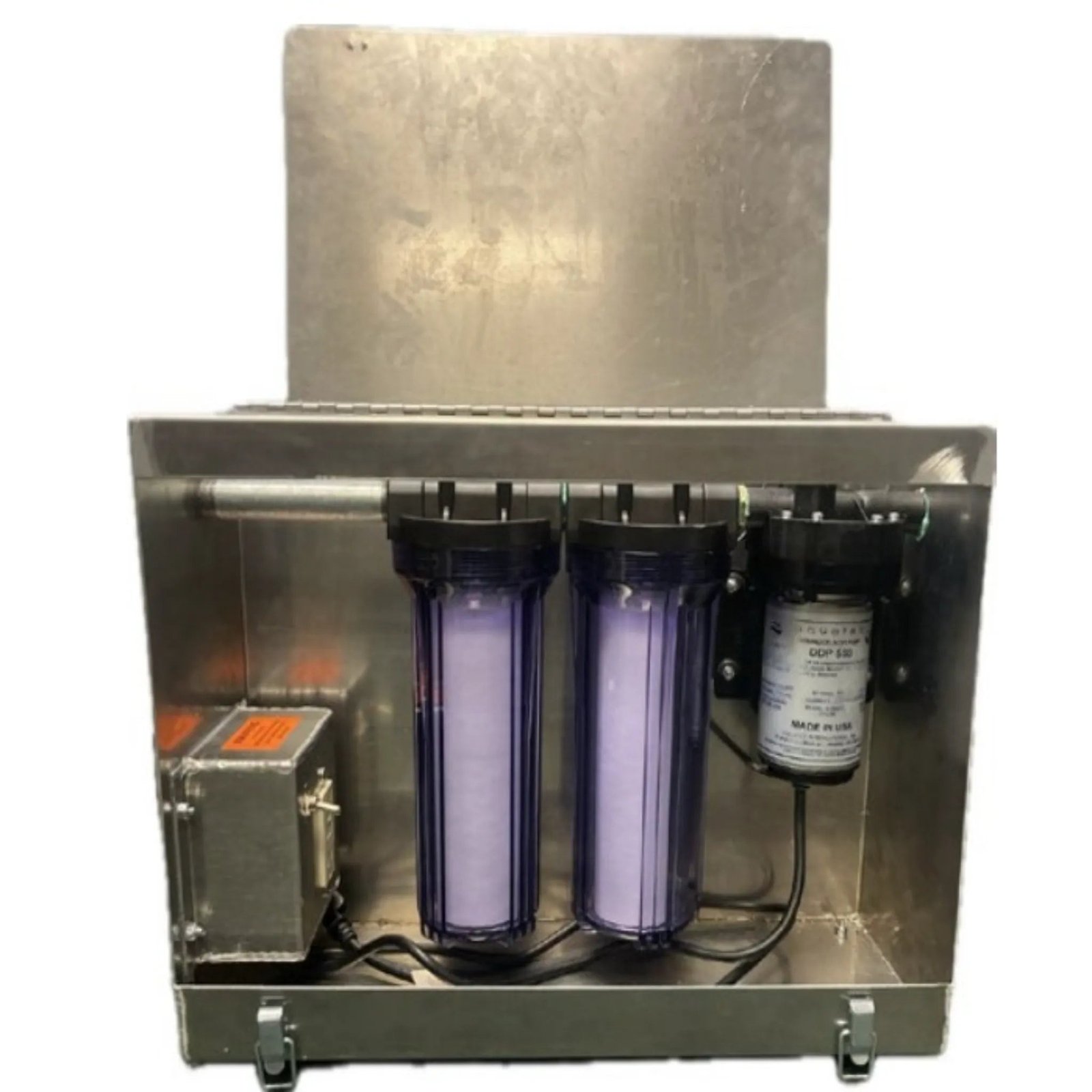

The Aerospace America 9116 is the compact version of the two-stage filtered pump — 6 GPM at 115V, 2.1 amps, versus the 9115’s 25 GPM at 8.5 amps. Enclosed high-strength aluminum housing at 22 lbs and 7.5″ × 20″ × 15″. Same two-stage filtration architecture: 50-micron first stage + 5-micron cartridge (10″ × 2¾”). Male garden hose connections on intake and outlet. Maximum discharge: 10 feet via standard hose. GFI protection included.

Aerospace America 9116 — Verified Specifications

• Pumping capacity: 6 GPM
• Power: 115V, 2.1 amps
• Filtration: 1st stage: 50-micron / 2nd stage: 5-micron cartridge (10″ × 2¾”)
• Connections: Male garden hose intake and outlet
• Maximum discharge: 10 ft via standard hose
• Housing: Enclosed high-strength aluminum
• Weight: 22 lbs at 7.5″ W × 20″ L × 15″ H
• Safety: GFI protection

6 GPM at 2.1 Amps — Light Duty Water Transfer Applications

At 6 GPM and only 2.1 amps, the 9116 is a low-impact water transfer tool for applications where the 9115’s 25 GPM is more than required — controlled filling of portable shower gray water collection tanks, slow-fill replenishment of extractor solution tanks on jobs where circuit sharing with high-draw equipment is tight, and sampling-quality filtered water transfer for testing purposes. Six units could run on a single 15-amp circuit (6 × 2.1 = 12.6 amps) while staying near the NEC continuous load threshold. The 10-foot maximum discharge positions the 9116 for close-range transfer between containers rather than long-distance pumping.

9116 vs. 9115 — When the Compact Pump Is the Right Choice

The 9115 moves water four times faster (25 GPM vs. 6 GPM) from a motor drawing four times the current (8.5A vs. 2.1A). Choose the 9116 when volume is not the priority: filling a portable shower’s gray water collection intake, transfer from a water line to a small container, or any application where slow controlled transfer is preferred over maximum flow rate. Choose the 9115 when speed matters — filling large extractor tanks, transferring water between bulk containers, or servicing portable shower units with large tanks.
