Afinia Einscan Libre All-in-One Wireless Handheld 3D Scanner
Original price was: $19,324.08.$11,594.45Current price is: $11,594.45.
Afinia Einscan Libre All-in-One Wireless Handheld 3D Scanner

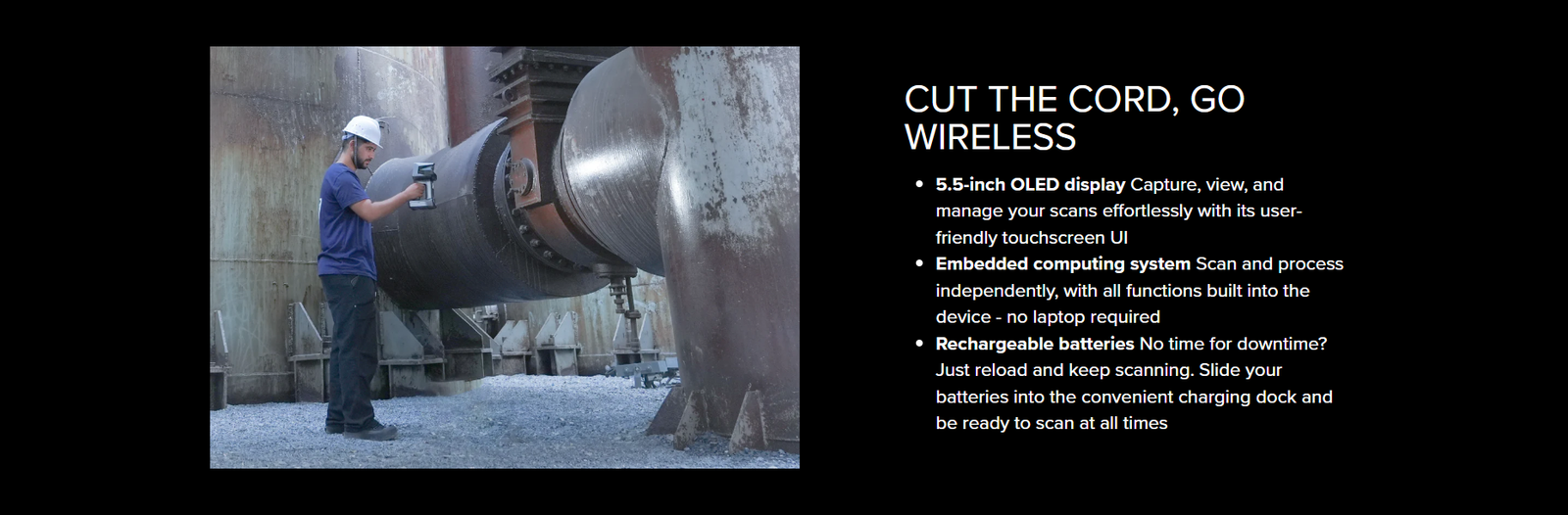

Wireless and Standalone

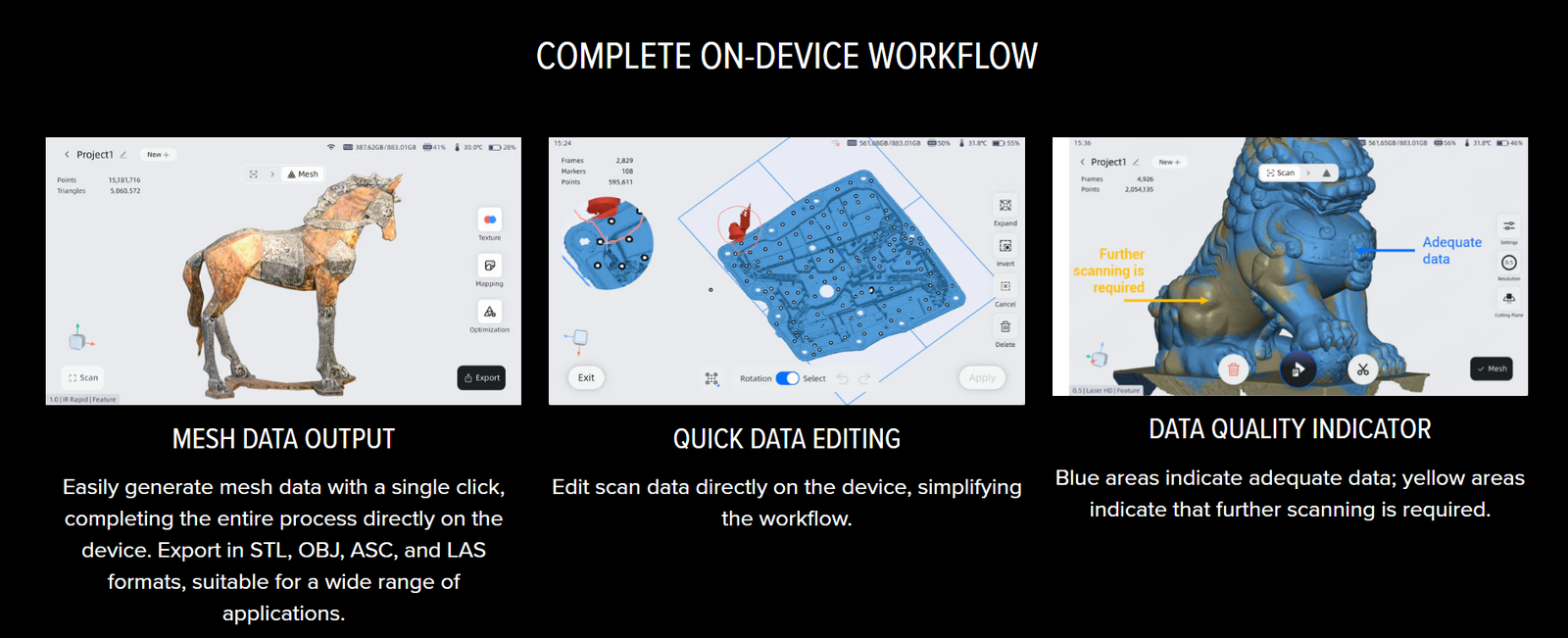

Complete on-device scan-to-mesh
Marker-free laser scans with texture

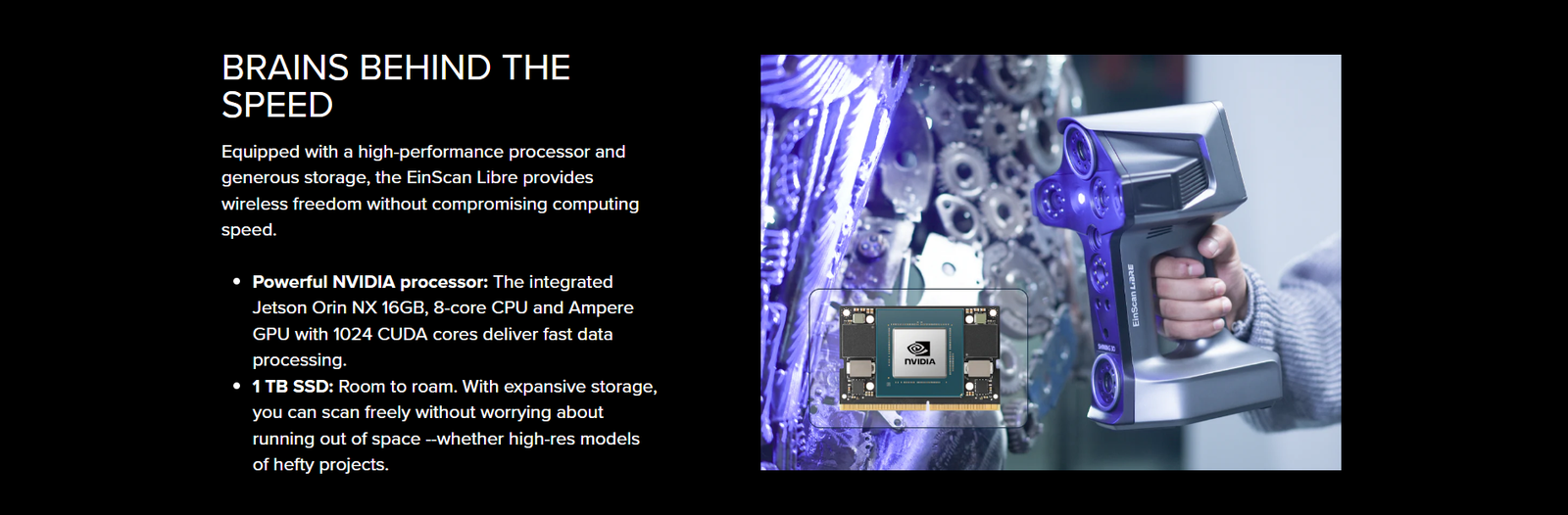

Powerful embedded computing by NVIDIA
FEATURES
SPECIFICATIONS
| EinScan Libre Technical Specifications | |||
|---|---|---|---|

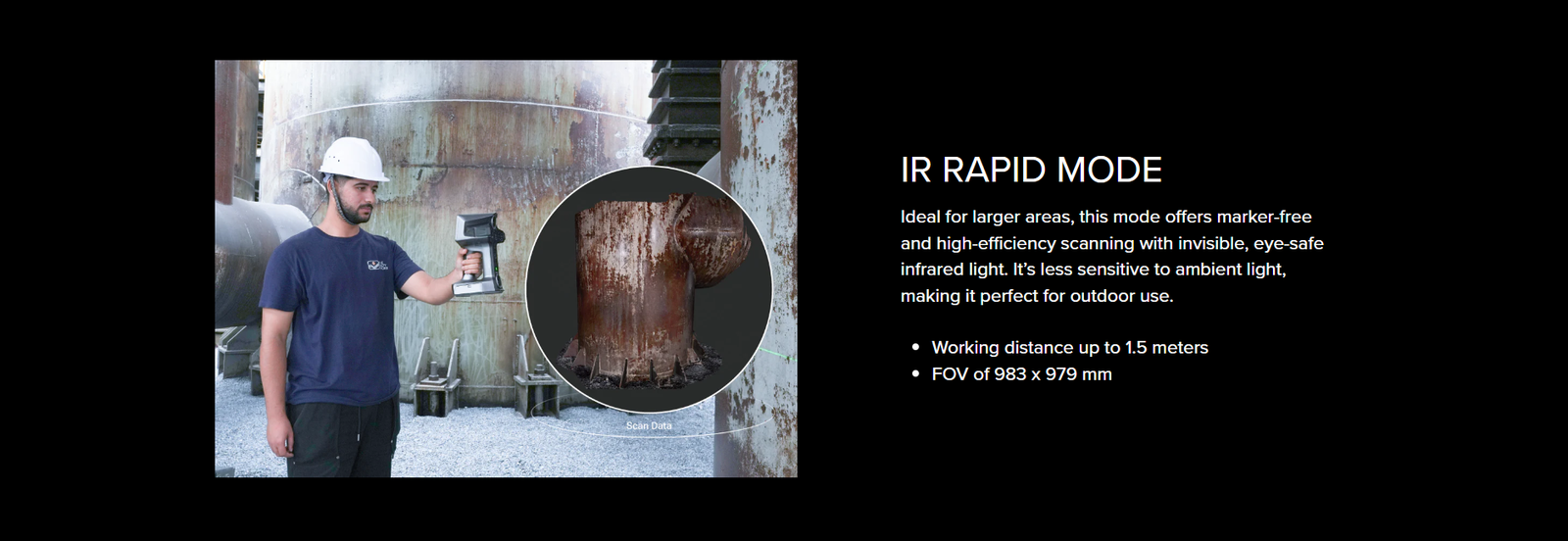

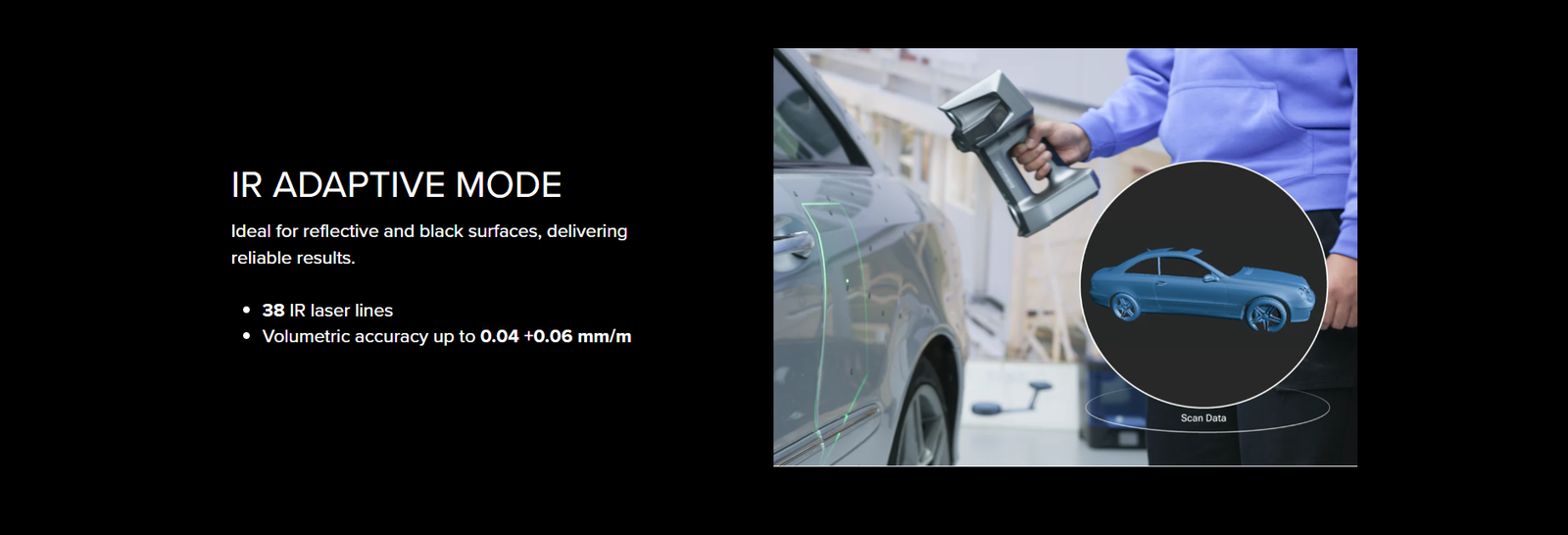

| Scan Mode/Light Source | IR Rapid: IR VCSEL | IR Adaptive: 38 IR laser lines | Laser HD: 101 blue laser lines |
| Resolution (Point Distance) | 0.5 ~ 10 mm | 0.5 ~ 10 mm | 0.5 ~ 3.0 mm |
| Scan Speed | 2,700,000 points/s | 1,900,000 points/s | 4,500,000 points/s |
| Field of View (FOV) | 370×470 – 983×979 mm | 370×470 – 779×835 mm | 165×200 – 382×450 mm |

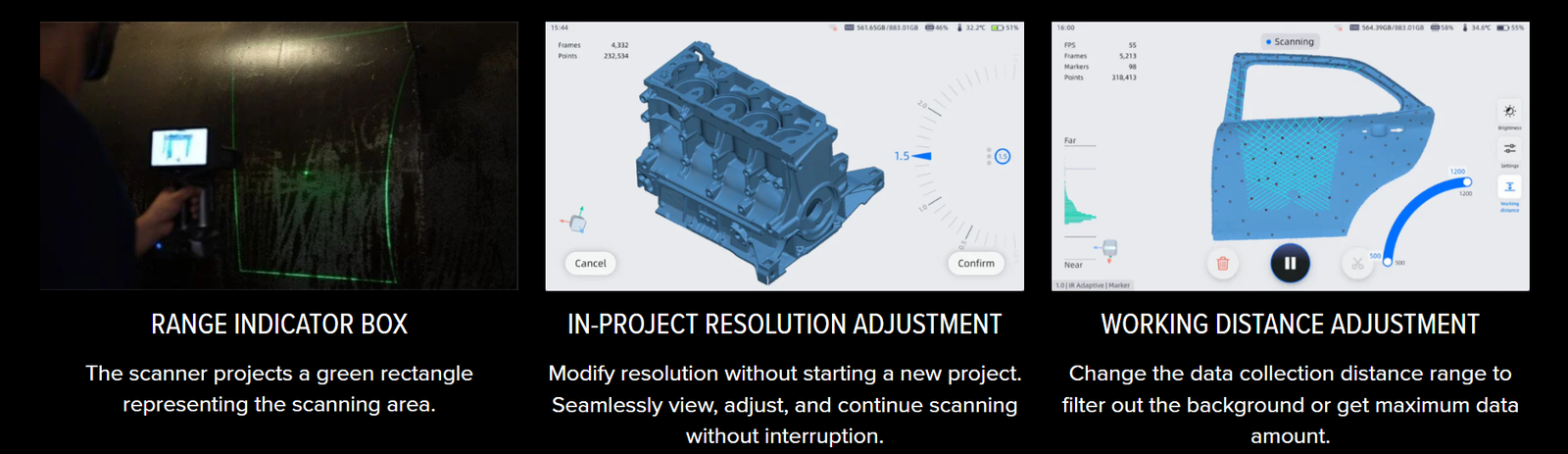

| Working Distance | 500 ~ 1500 mm | 500 ~ 1200 mm | 200 ~ 500 mm |
| Align Mode | Markers / Global Markers / Feature / Texture / Hybrid | Markers / Global Markers | Markers / Global Markers / Feature / Texture / Hybrid |
| 3D Camera Resolution | 5 MP | ||
| Color Camera Resolution | 48 MP | ||

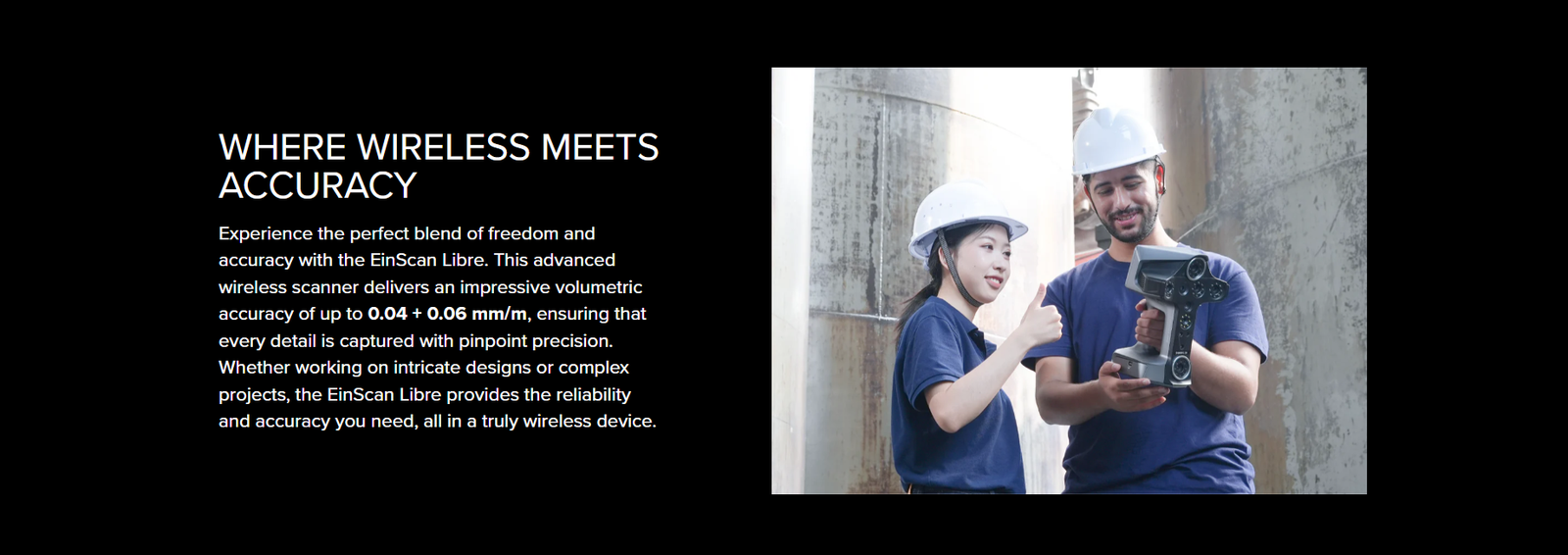

| Volumetric Accuracy | Up to 0.04 +0.06 mm/m | ||
| Output Formats | STL; OBJ; PLY; 3MF; ASC; LAS | ||

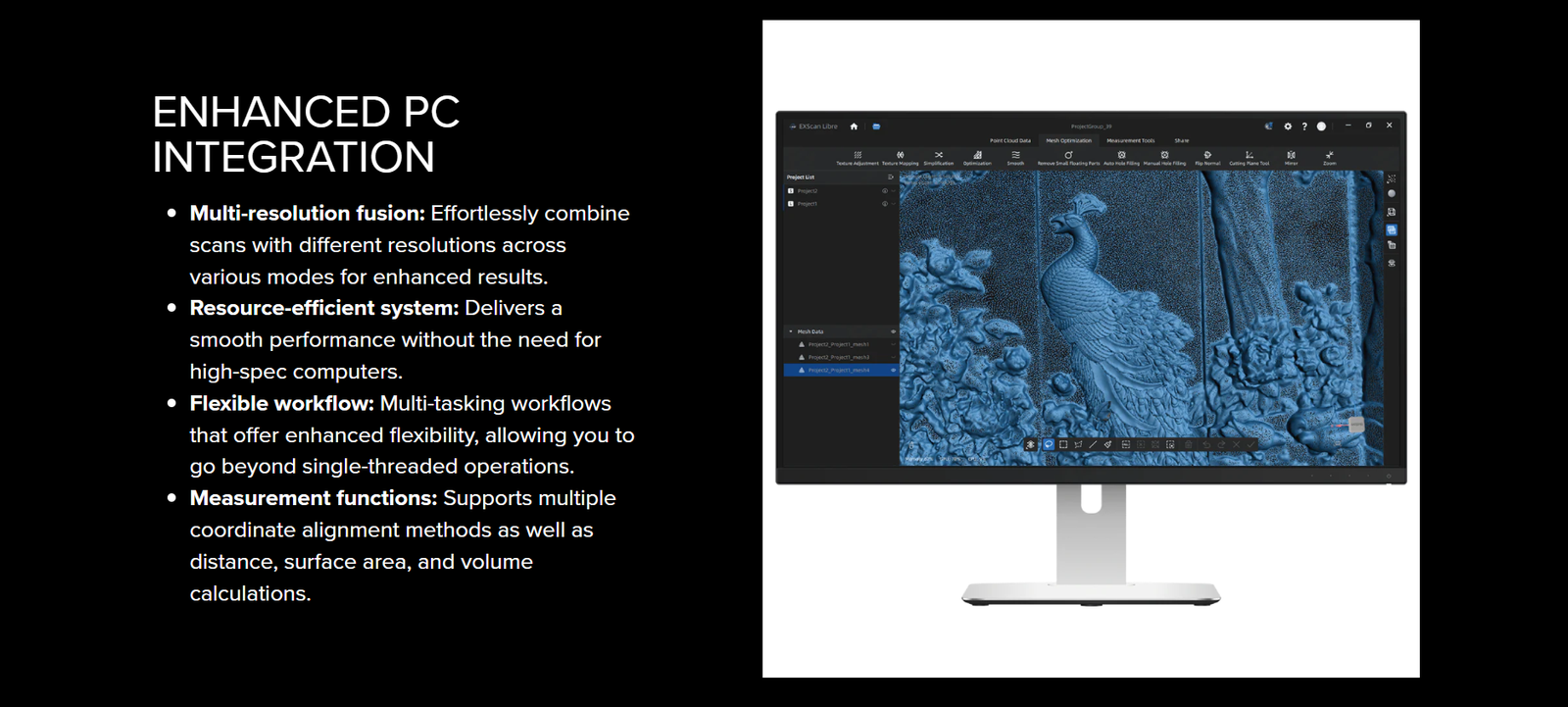

| Software | Device installed scanning software PC software: EXScan Libre |
||
| Laser Class | Class II (eye safe) | ||
| Hardware | Processor: NVIDIA Jetson Orin NX, 8-core Arm Cortex A78AE, Ampere GPU with 1024 CUDA cores, 100 TOPS Internal hard drive: 1 TB SSD Display: Built-in 5.5″ HD OLED touch screen Interface: Wi-Fi 6, USB-C, USB 3.0, Gigabit Ethernet Power Source: 2 rechargeable batteries with 3-hour scanning time Supports charging via USB-C power banks or 100W PD3.0 fast charge adapters Scanner weight: 1.8 kg (including battery), 1.6 kg (without battery) Scanner size: 162 x182 x 266 mm |
||
| Recommended Configuration for PC Program | CPU: intel i7-11700 or higher; GPU: NVIDIA GTX 1070 or higher; VRAM: 6GB or more; RAM: 32 GB or more; OS: Windows 10 or 11 (64-bit) |
||
WARRANTY
Warranty: 1-Year, Parts & Labor
