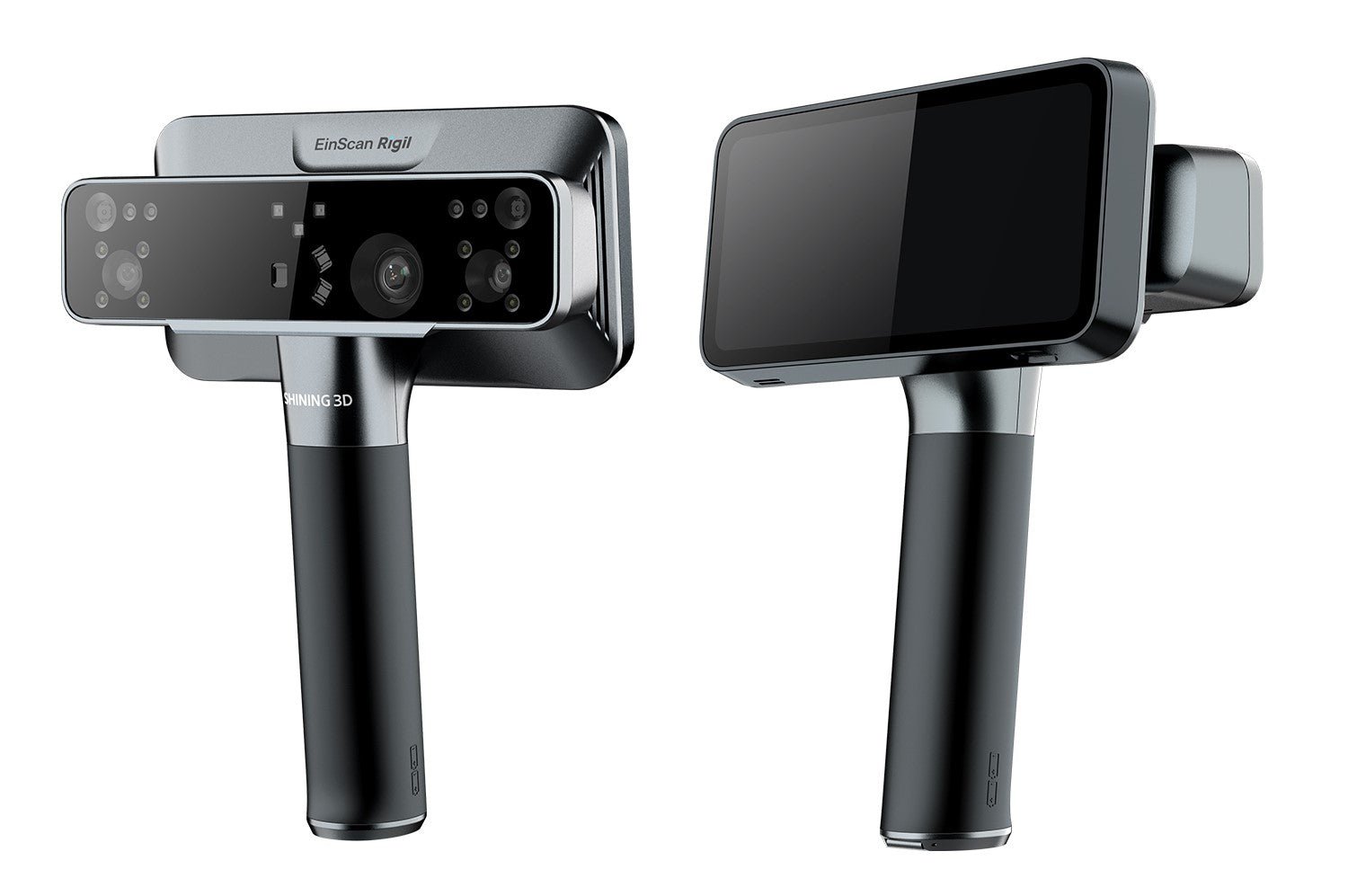

Afinia EinScan Rigil Wireless Handheld 3D Scanner
Original price was: $3,715.57.$2,229.34Current price is: $2,229.34.
(Blue Laser and Infrared), Markerless, Full Color
with Touchscreen display with rechargeable batteries
EinScan Rigil is the world’s first Tri-Mode 3D scanner with built-in computing, wireless solution and hybrid light technology. Rigil offers a fully integrated 3D scanning wireless workflow with three working modes that effectively eliminates the traditional compromise between computing power and flexibility. It provides high quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm. Its three types of light sources — 19 crossed blue laser lines, 7 parallel blue laser lines, and infrared VCSEL — which paired with two separate groups of tailored cameras to ensure versatile performance and peak efficiency for objects of wide-range of sizes and surface types
Features

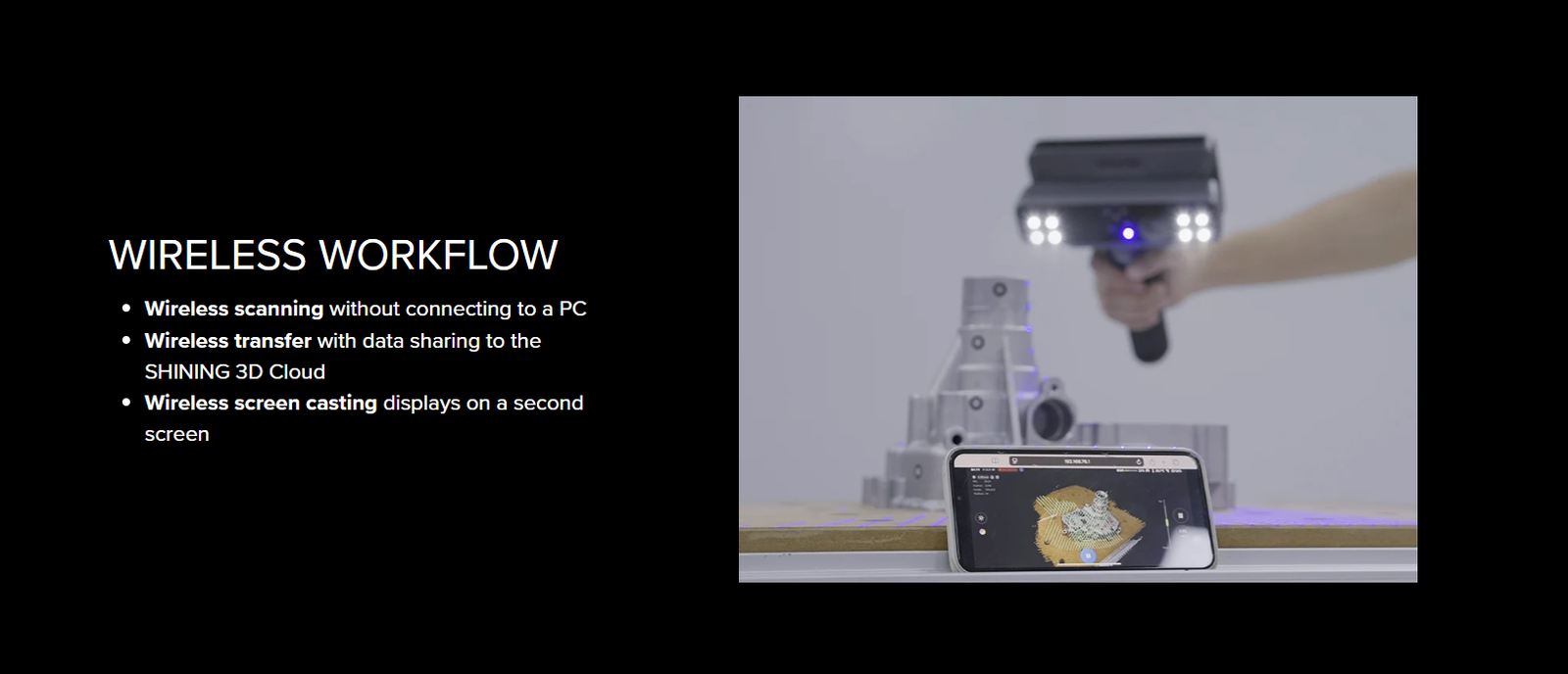

Wireless and Standalone

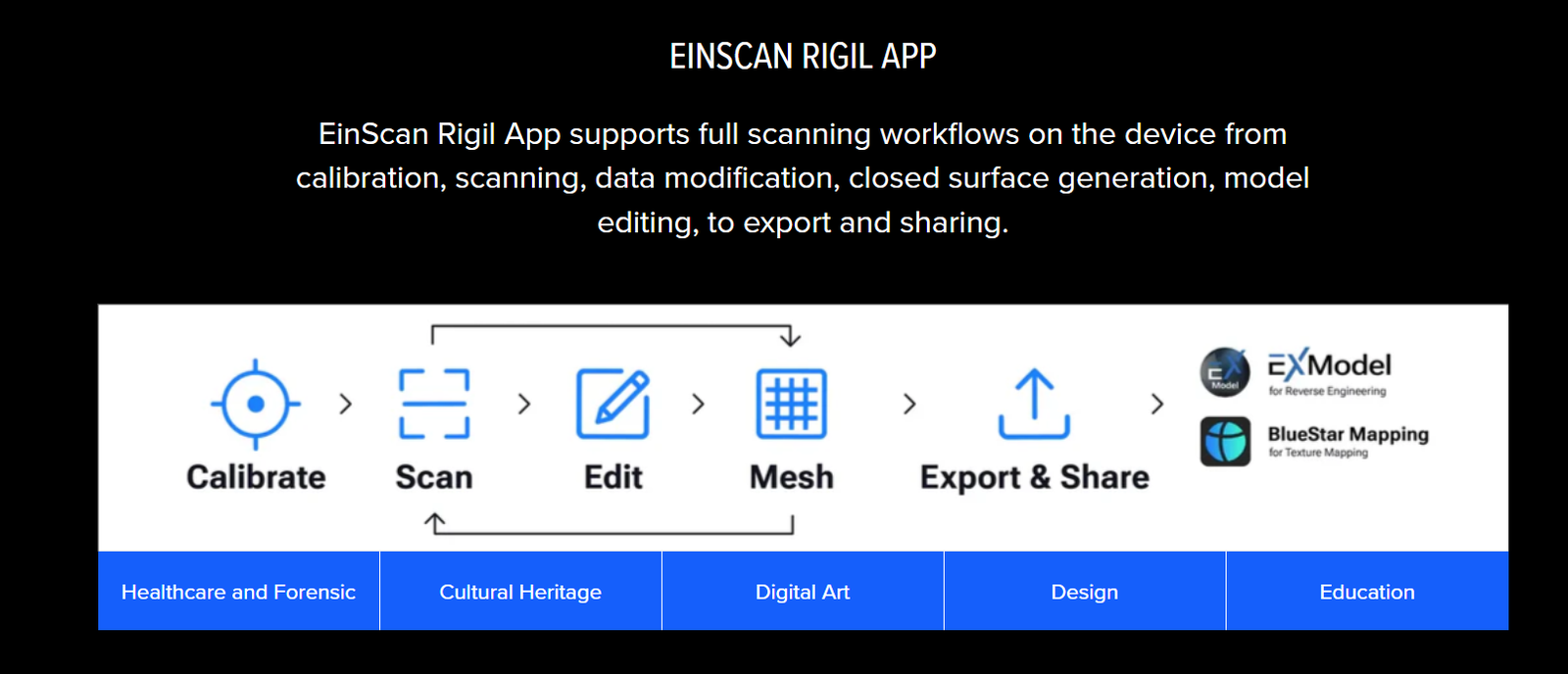

Complete on-device scan-to-mesh
Marker-free laser scans with texture
Powerful embedded computing by NVIDIA
Limited Warranty: 1-Year, Parts & Labor

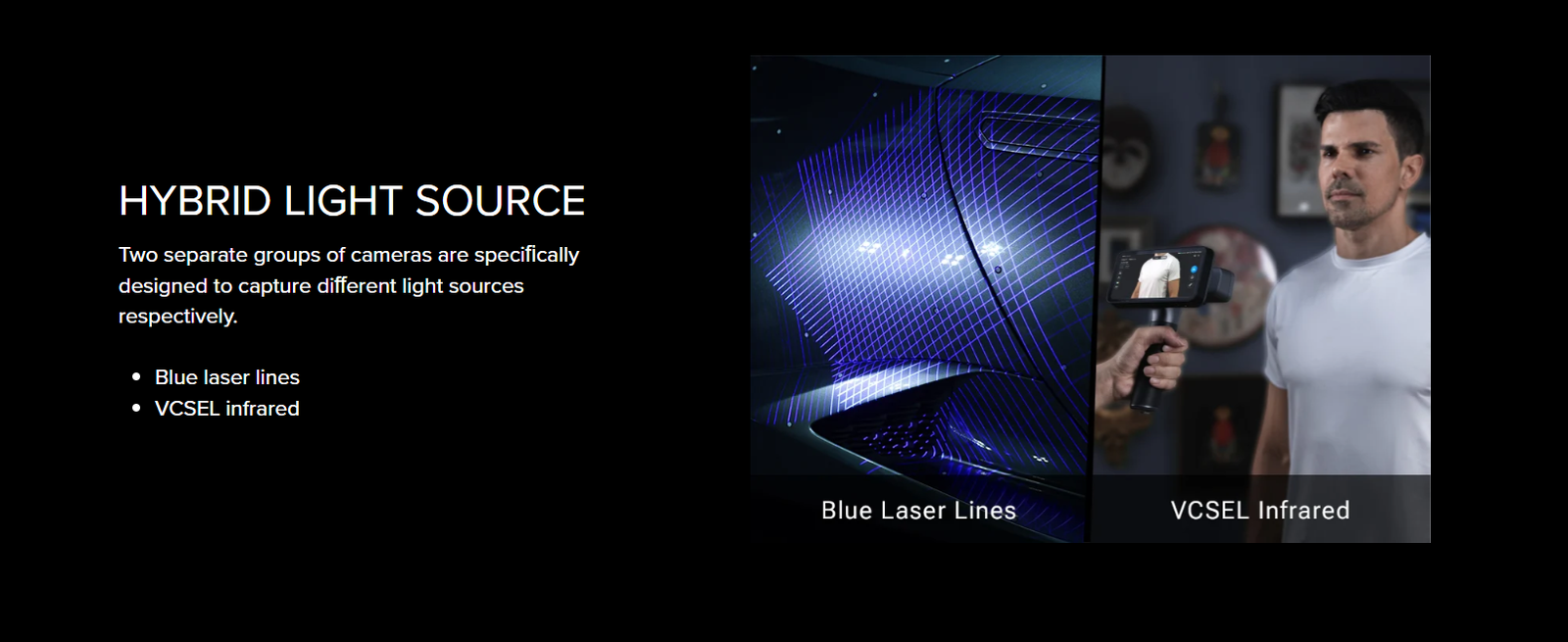

●Hybrid light resources in your hand

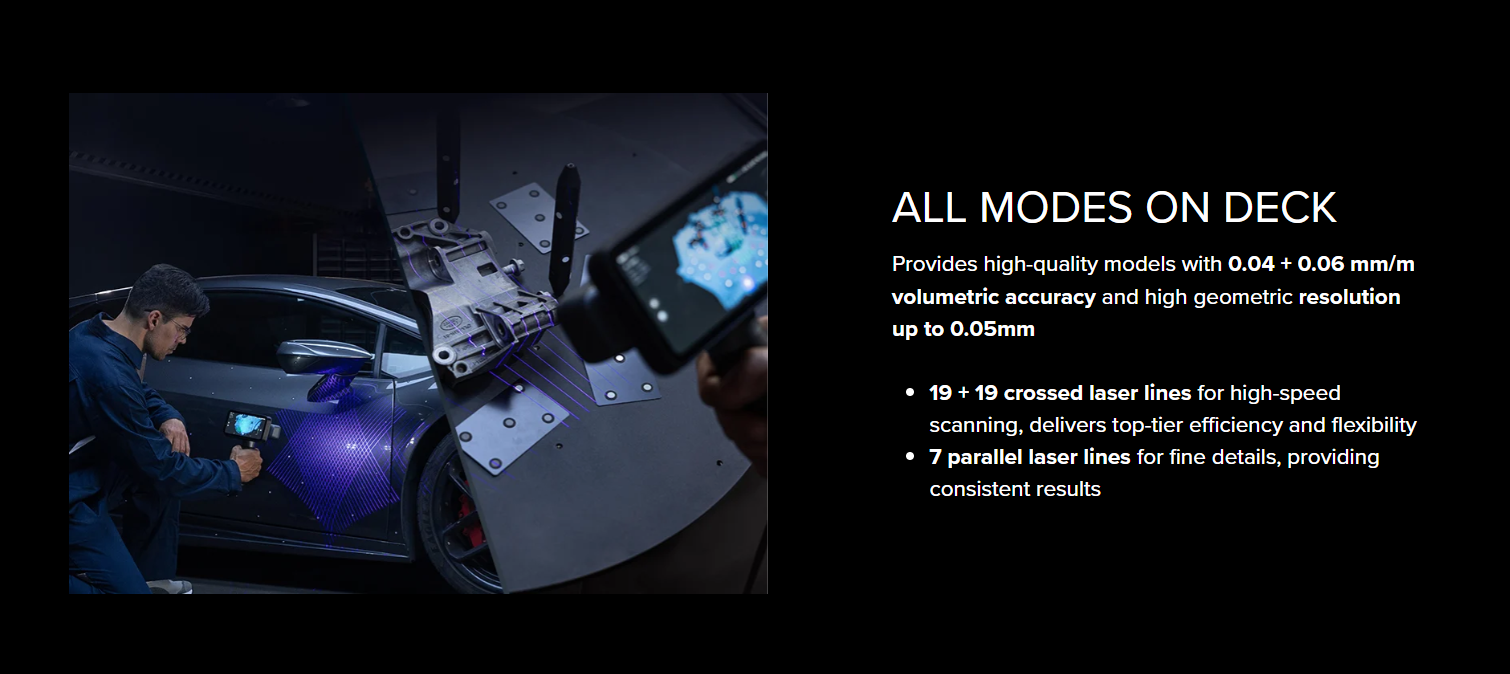

●High Volumetric accuracy 0.04+0.06 mm/m;
●Geometric Resolution up to 0.05 mm
●Superior adaptability to scan objects with dark or reflective metal surface without spray

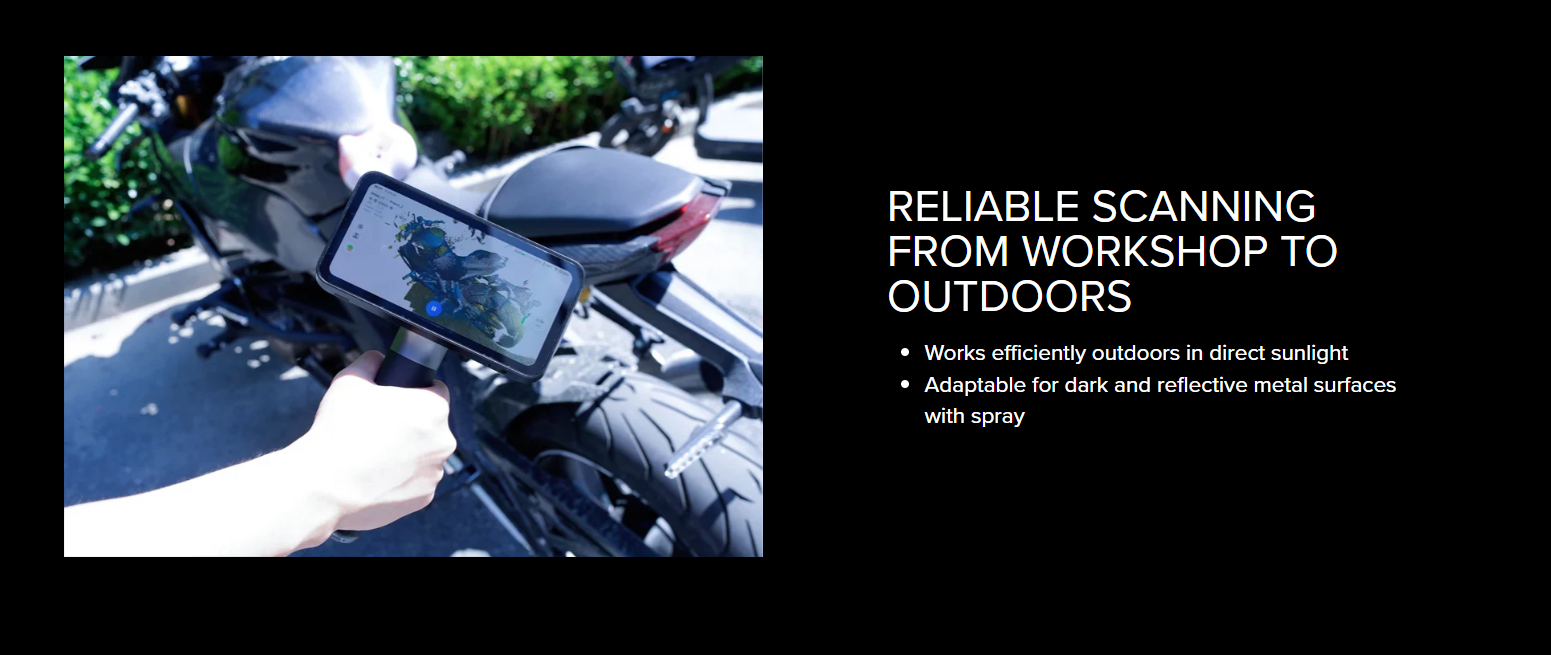

●Working efficiently in sunlight outdoors.

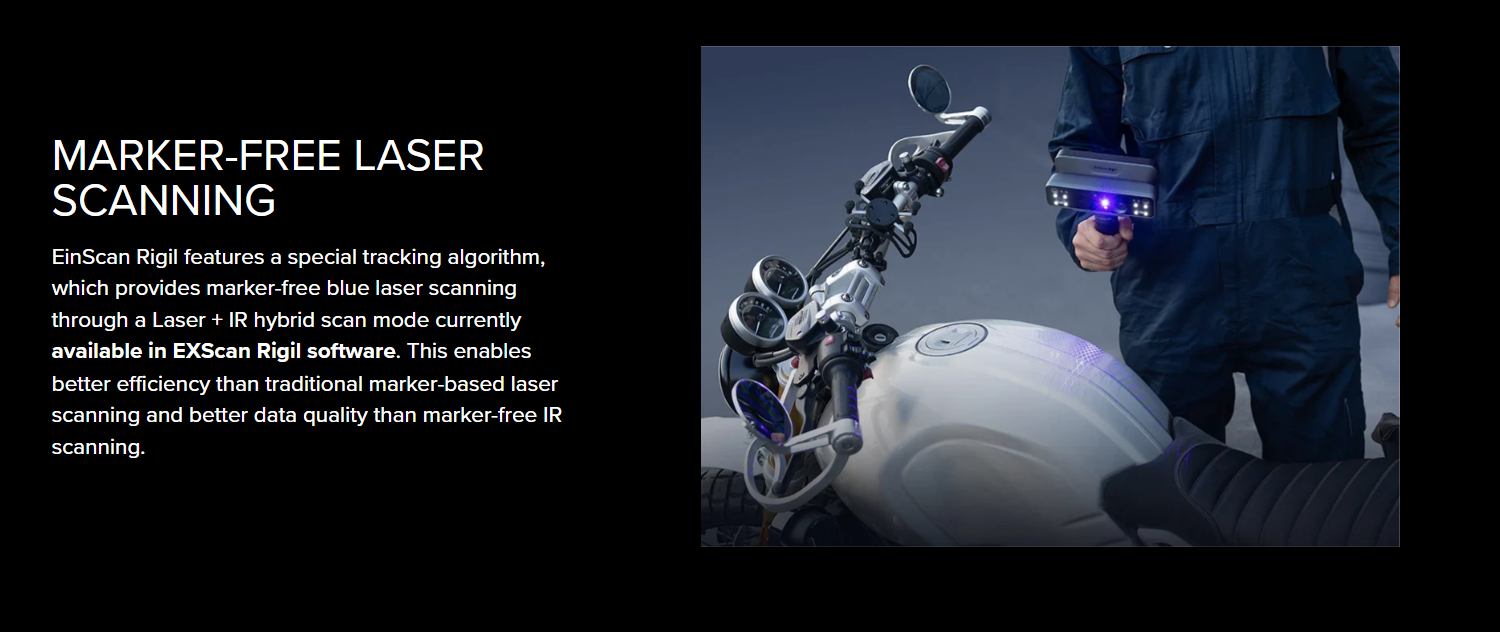

● Marker-Free Laser Scanning
● 5MP Full Color Texture Scanning

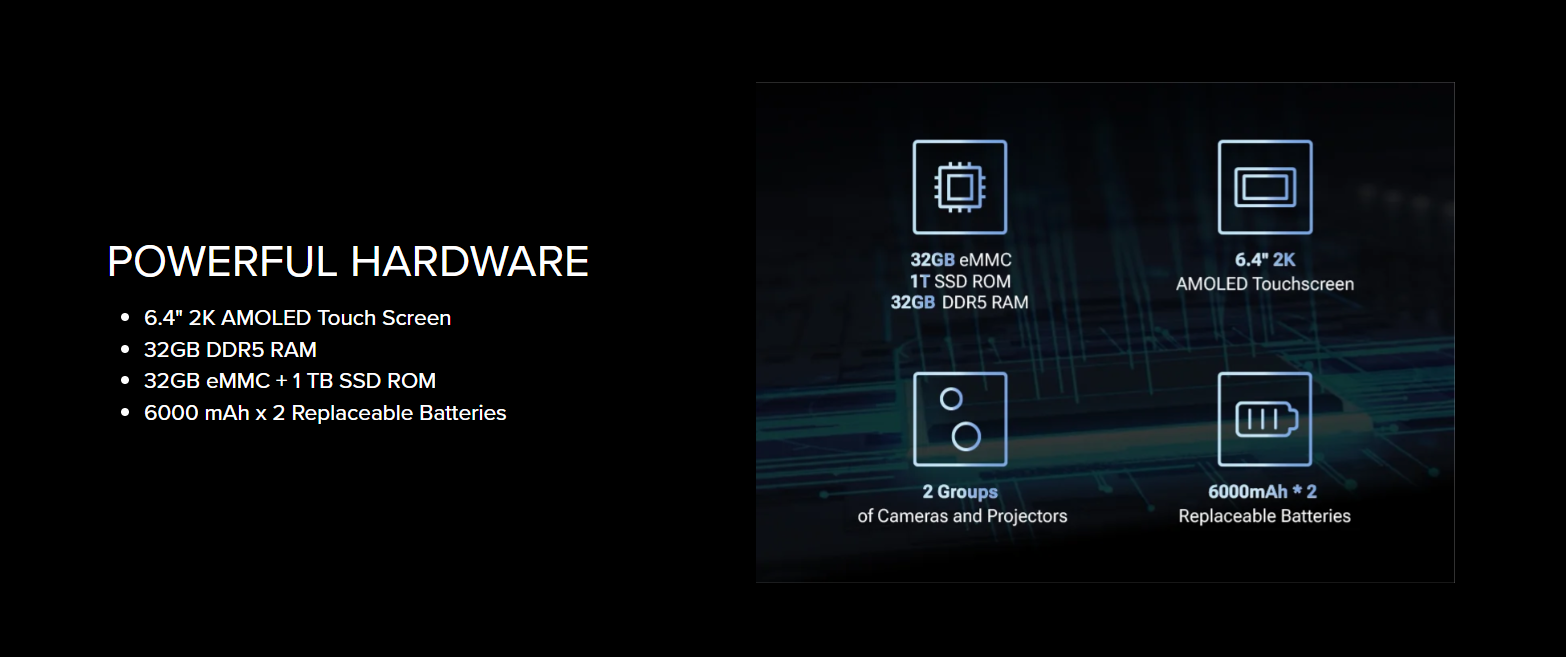

●All-In-One Powerful Hardware
Specifications
| EinScan Rigil | |||
|---|---|---|---|

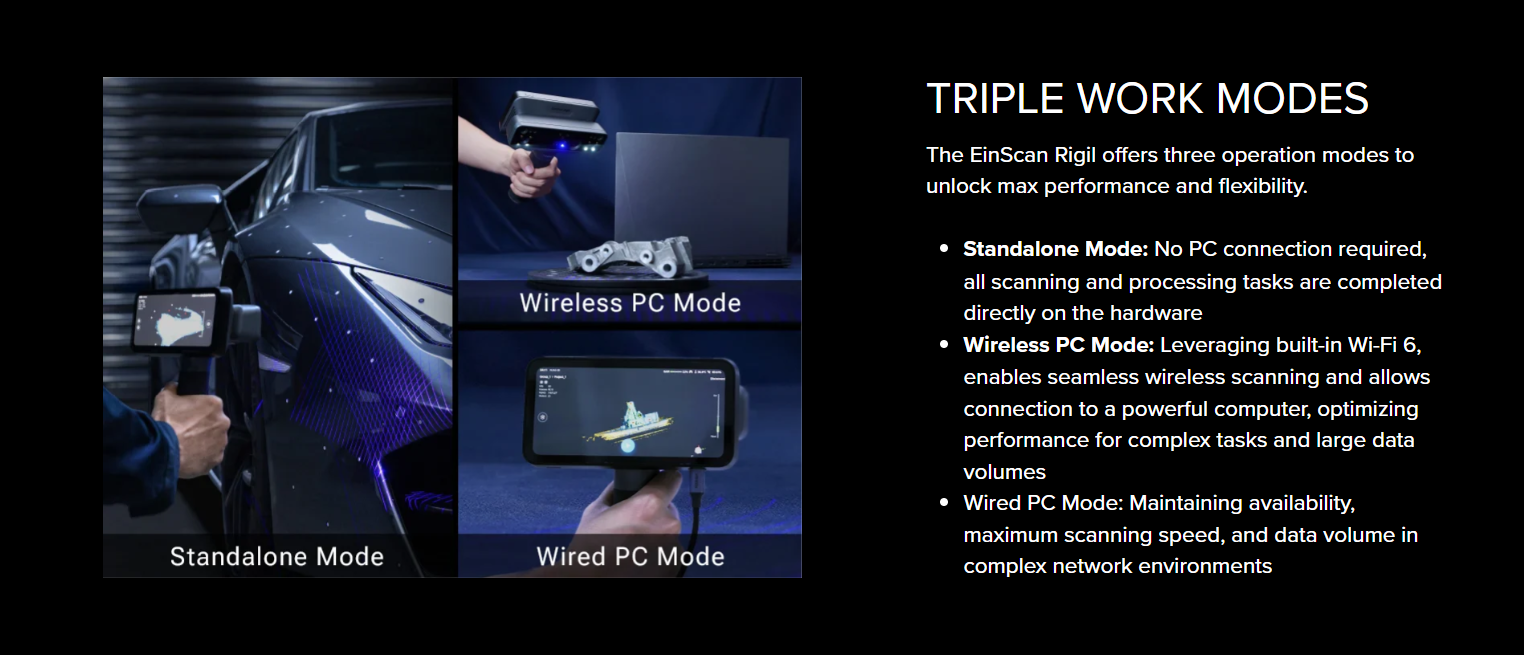

| Work Mode | Wireless Standalone For extra computing resource: PC-Wireless / PC-Wired |
||

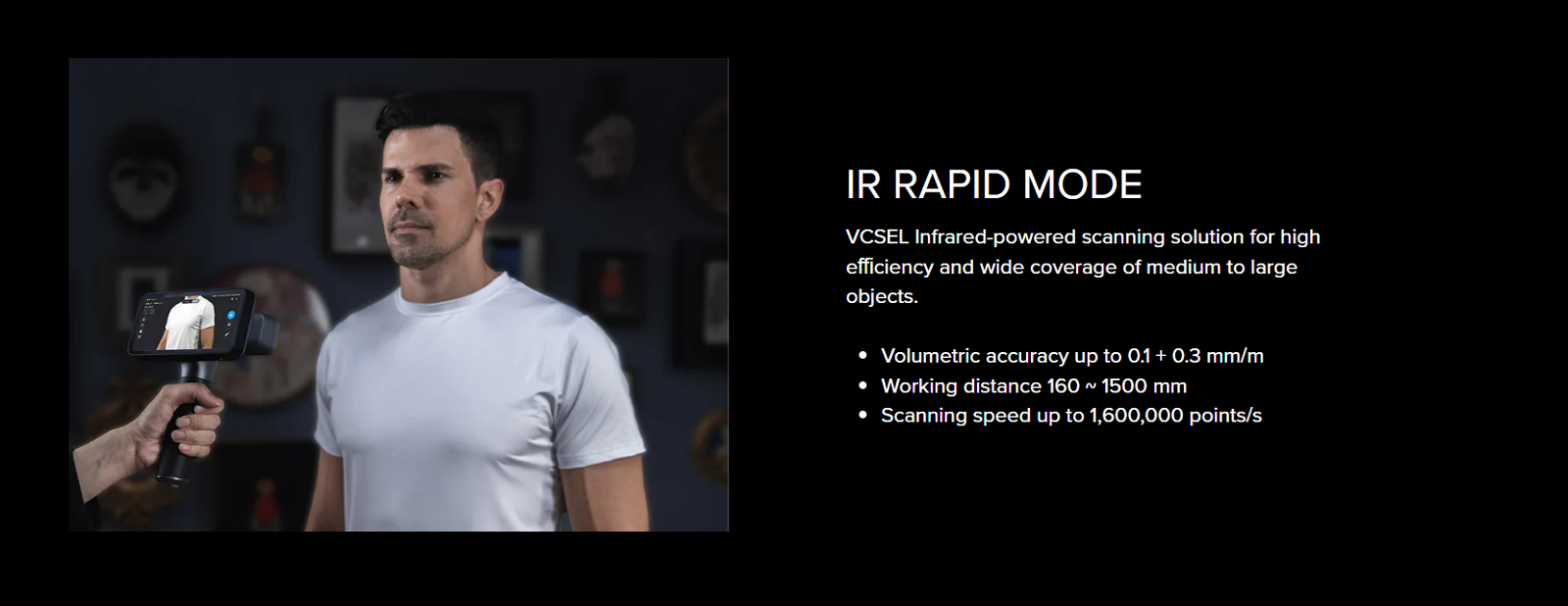

| Scan Mode | Laser HD | IR Rapid | |
| Light Source | 19 crossed laser lines | 7 blue laser parallel lines | IR VCSEL |
| Resolution | 0.05 ~ 10 mm | 0.2 ~ 10 mm | |
| Scanning Speed | 4,400,000 points/s | 940,000 points/s | 1,600,000 points/s |
| Working Distance | 170 ~ 550 mm | 160 ~ 1500 mm | |
| Alignment Mode | Global Markers / Markers / Features / Hybrid | Global Markers / Markers / Features / Texture / Hybrid | |
| Volumetric Accuracy | Up to 0.04 + 0.06 mm/m | Up to 0.1 +0.3 mm/m | |
| Camera Resolution | 3D: 2.3MP*2 1.3MP*2; Texture: 5MP | ||
| Output Formats | STL, OBJ, PLY, 3MF, ASC | ||
| Laser Class | Class II | / | |
| Hardware | CPU: 8 core, 2.4GHz; Hard Drive: 1T SSD ROM; 32GB DDR5 RAM; 6.4″ 2K AMOLED Touch Screen |
||
| Operation Conditions | Temperature -10°C ~ 40°C | ||
| Certifications | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 | ||
| Recommended Configuration for PC |
Win10/11, 64 bit; Graphics card: NVIDIA GTX106; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB |
||
| Interface & Power Source | USB Type-C Battery: 6000mA*2; Support 60W-PD3.0 Charger |
||
| Dimension | (H*D*W) 233x180x72.8 mm | ||
| Net Weight | 870g (batteries included) | ||

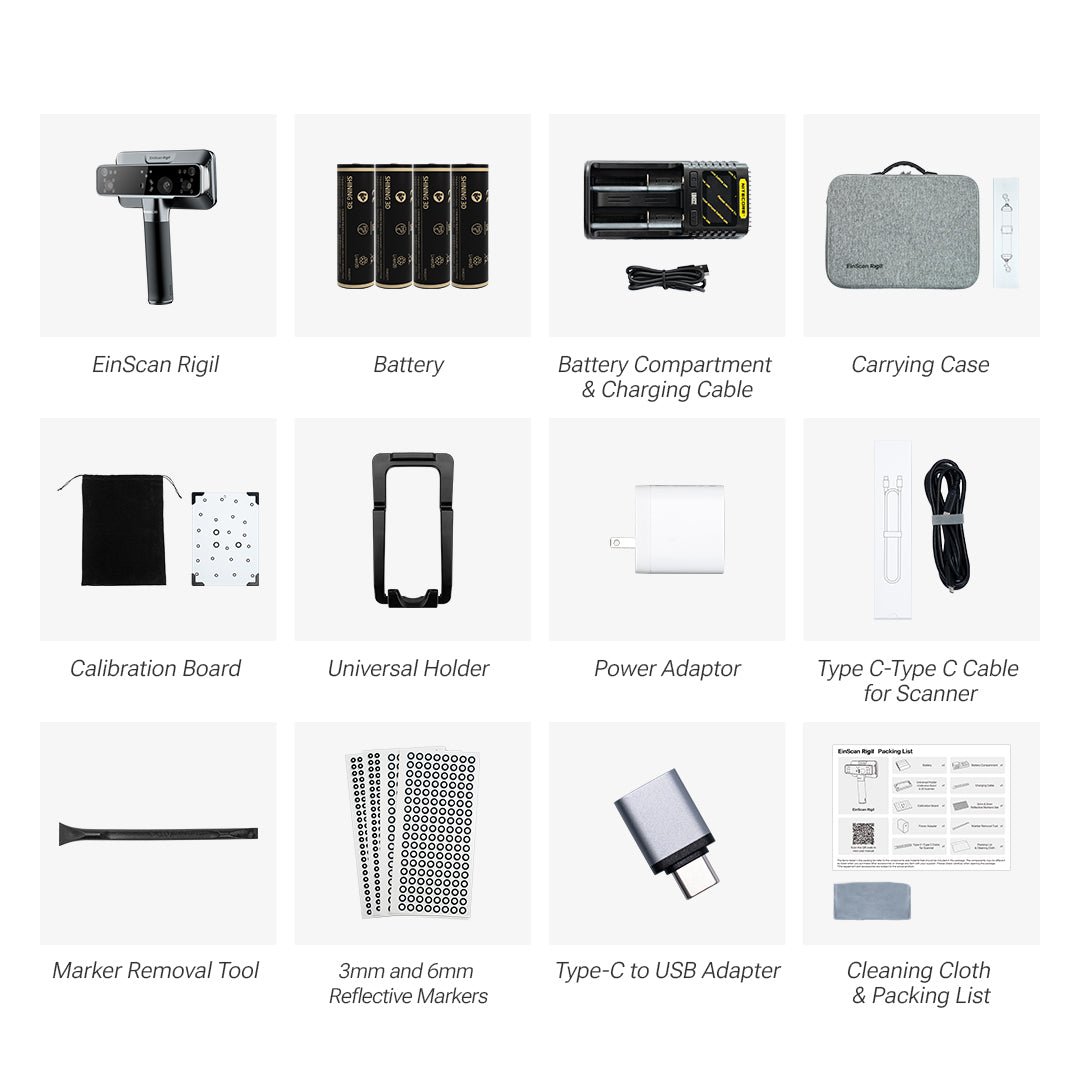

Packing List
