Aluminum Modular Dry Van Truck Trailer Ramp System w/2-Piece Support Stands – 5,000 lb. per Axle

Features

Serrated Rung Traction
Each flattened, welded rung is horizontally serrated to improve water run-off and enhance tire traction. The open-grid design allows debris, gravel, and mud to pass through easily, maintaining a clean, stable loading surface.

Technology & Specifications

• Made in the USA
• Length: 20 ft (two 10′ ramp sections per side)
• Width: 20 in
• Height: 3-1/4 in
• Weight: 380 lbs per system
• Minimum Height: 40 in
• Maximum Height: 54 in
• Maximum Capacity: 5,000 lbs per axle
• Surface Type: Serrated Rung
• Material: Aluminum

More Information

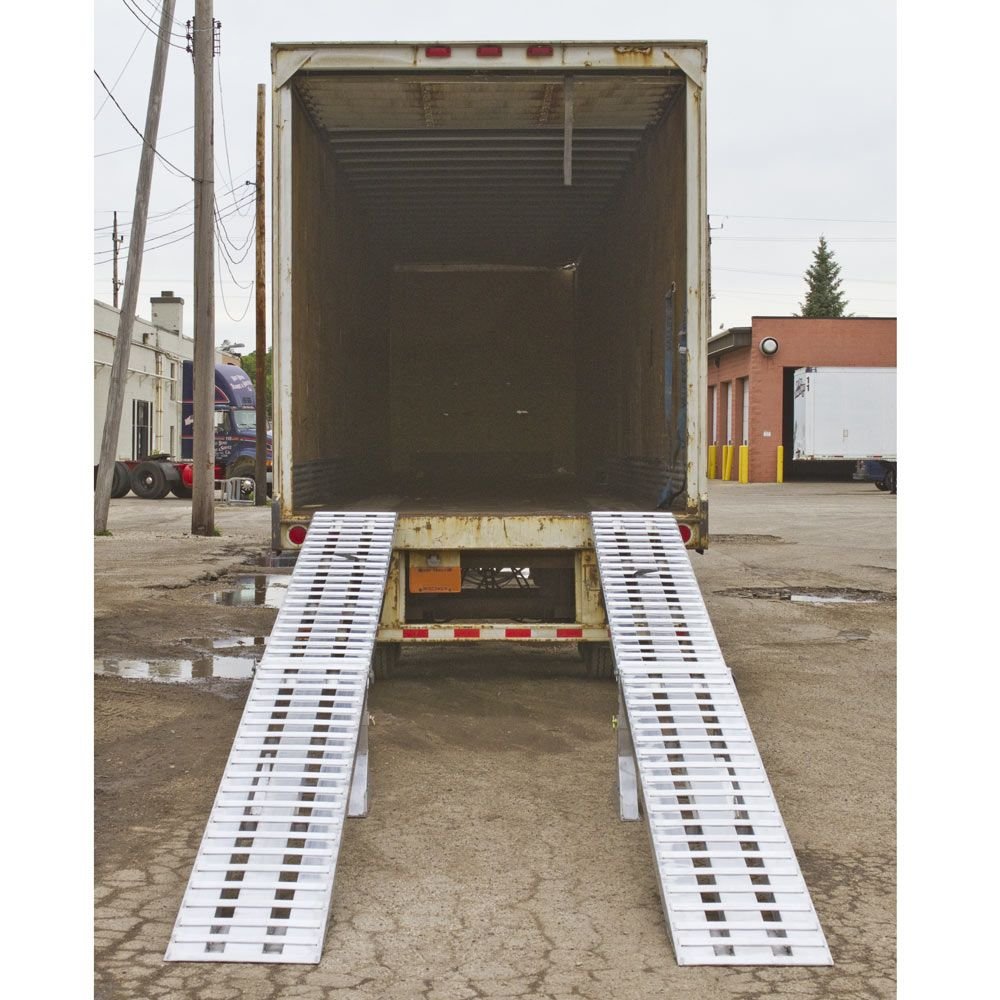

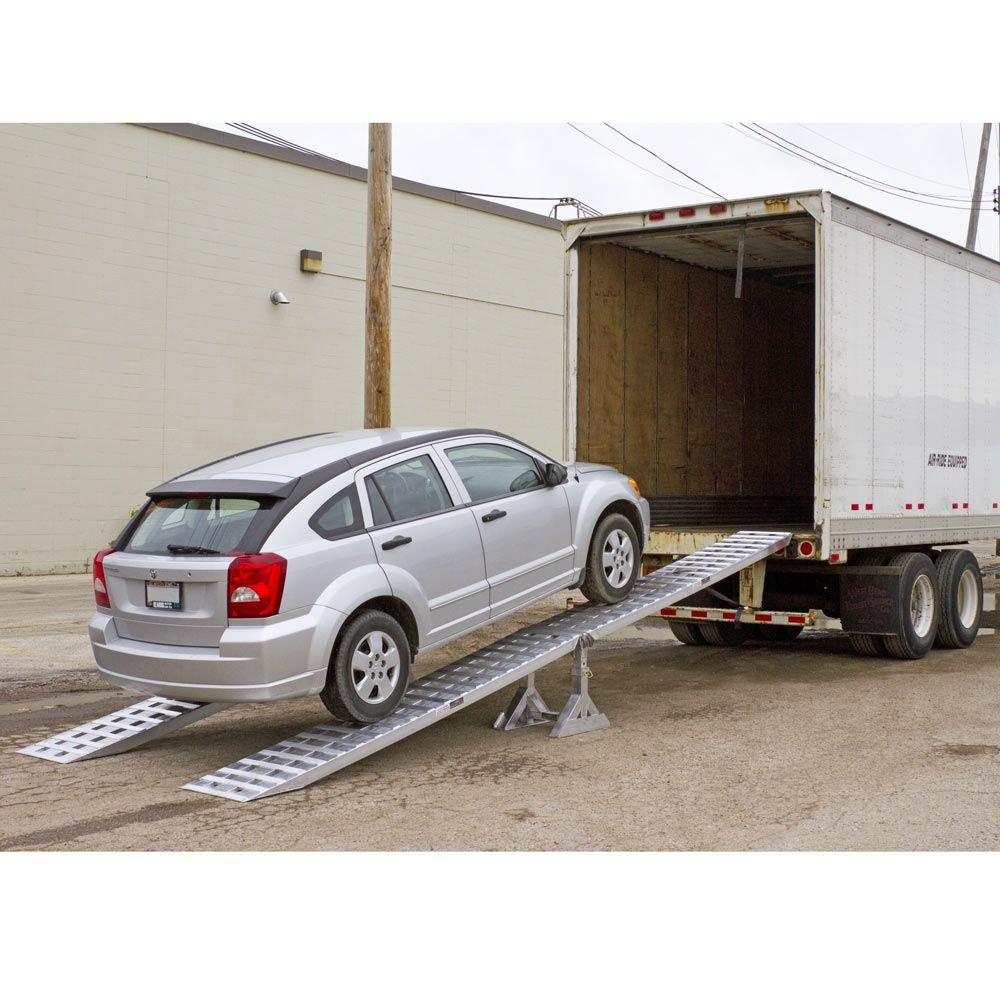

The HD Ramps Modular Truck Trailer Ramp System is designed for safe, efficient loading of vehicles such as cars, pickup trucks, ATVs, UTVs, and other wheeled equipment into box trucks, dry vans, or semi-trailers.

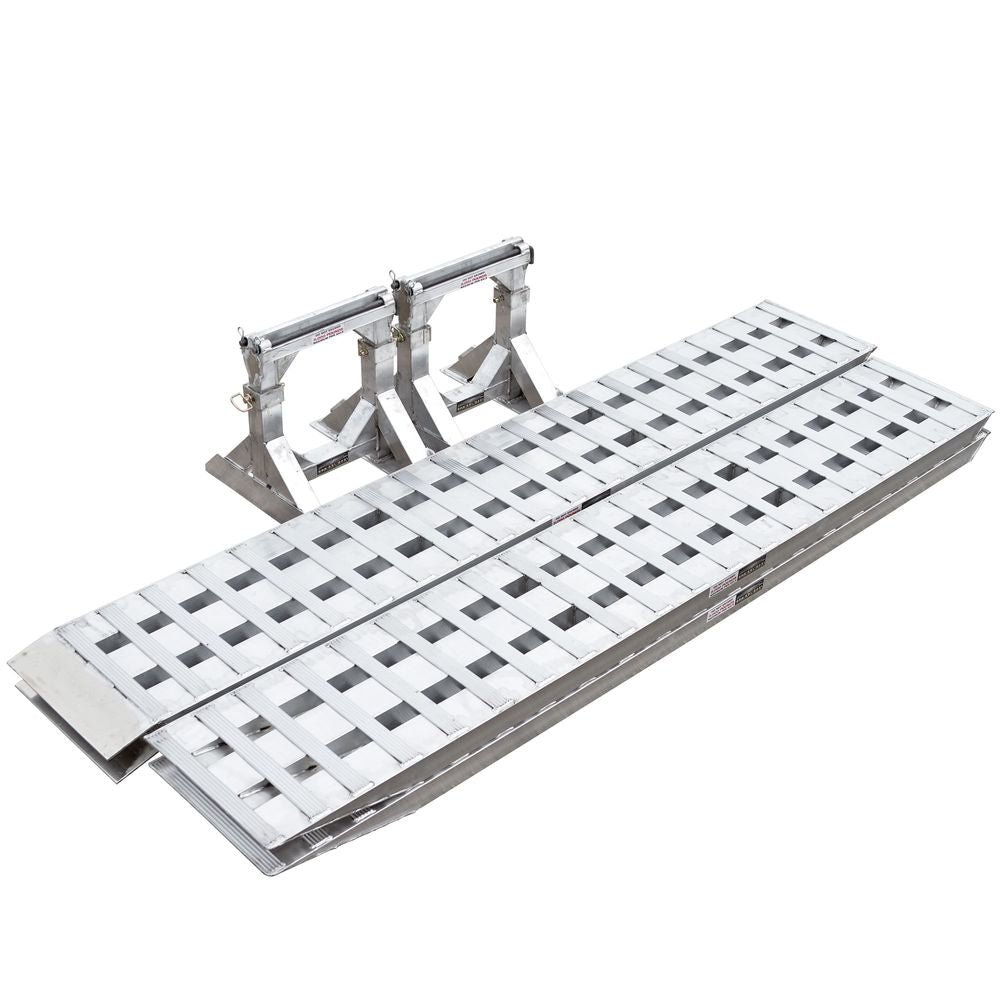

This lightweight yet heavy-duty aluminum system includes four 10′ ramps and two adjustable center support stands that create an optimal loading angle for a wide range of vehicles. The system supports up to 5,000 lbs per axle and is easy to handle while maintaining superior strength.

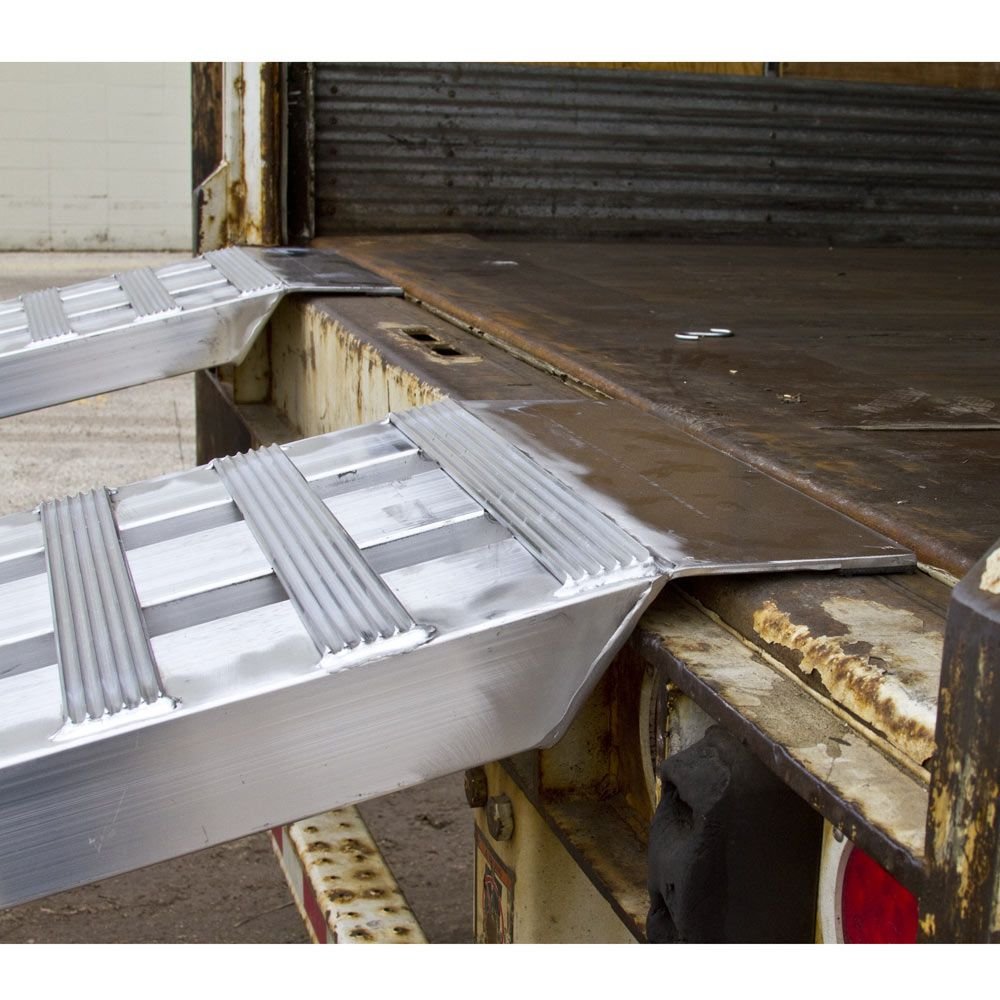

Each ramp features extra-wide serrated rungs for maximum traction, even in wet or muddy conditions. The plate end with rubber bonding ensures a secure top connection to the truck and minimizes slippage, while the knife foot design provides a smooth ground-to-ramp transition.

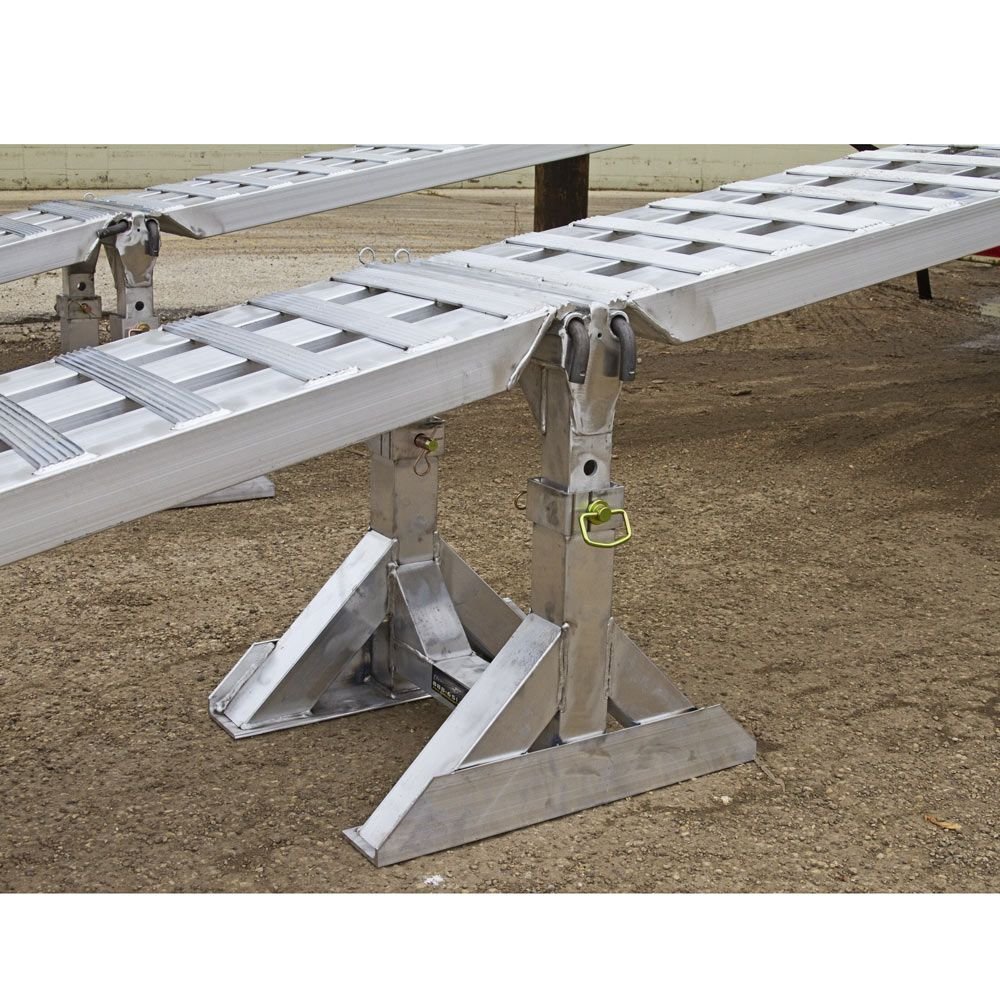

The pin-on end connectors securely attach the ramps to the support stands, keeping the system stable during loading. Additionally, two heavy-duty cam buckle straps are included to wrap around the ramps and anchor to the ICC bumper, preventing ramp kick-out and ensuring maximum safety.

Key Highlights:

• Ideal for loading cars, pickup trucks, and powersports vehicles into box trucks and dry vans
• Aluminum construction with serrated rungs for superior grip
• Includes two adjustable-height center stands
• Plate ends with rubber bonding for reduced slippage

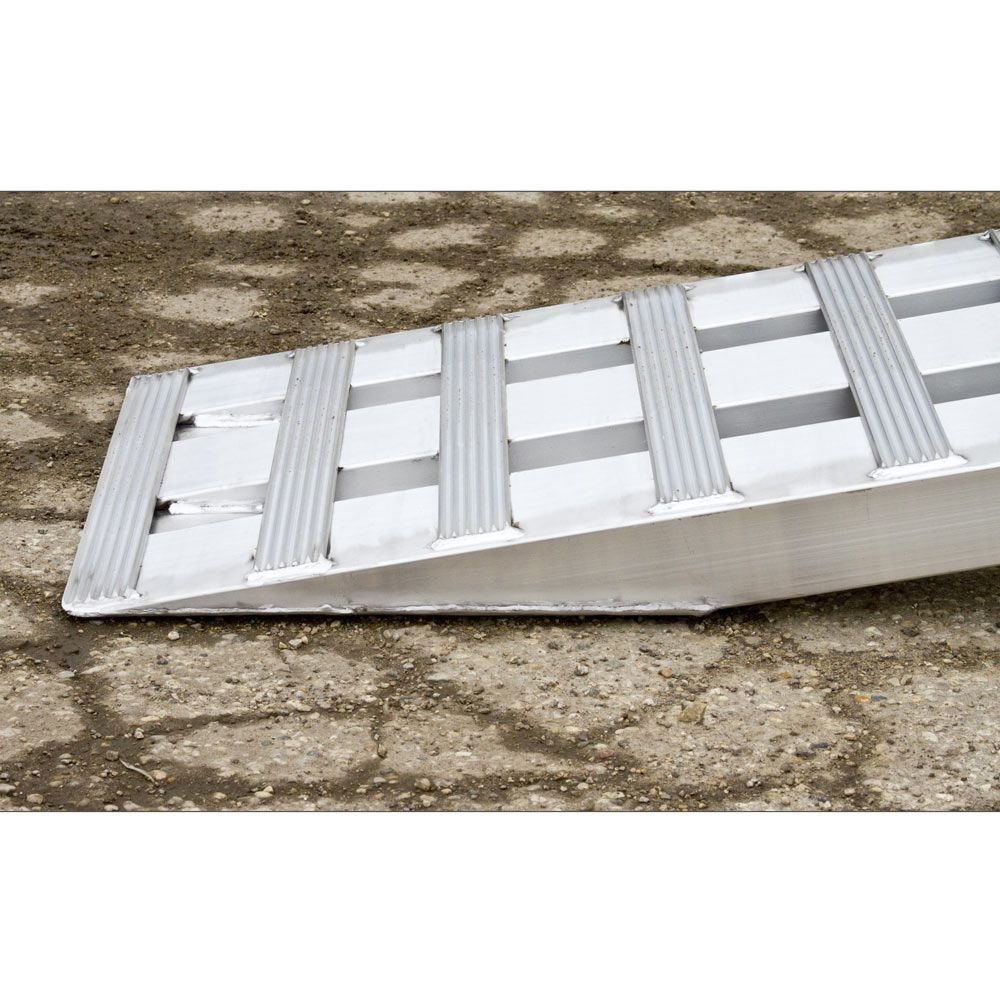

• Knife foot design for smooth ground contact

Usage Guidelines

• Not recommended for forklifts, skid steers, or steel track vehicles.
• Always verify your vehicle’s axle weight before use (typically, the front axle is heaviest due to the engine).
• Ensure ramps are properly secured before loading or unloading.

Warranty

This HD Ramps product is backed by a 5-year warranty and guaranteed to be free from defects at the time of purchase.
