Atlas 408SL 8,000 lb Portable 4-Post Storage Lift + FP8 8-Piece Floor Panel Combo

Description

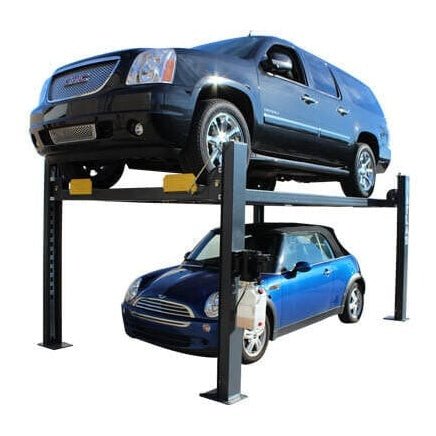

The Atlas 408SL is an 8,000-lb four-post storage lift built around the same column and runway standards as the commercial Atlas 412 and 414, packaged for hobbyists and collectors who want the heavier construction in a portable footprint. Bundled with the FP8 eight-piece floor panel set, the deck above a parked vehicle becomes continuous storage space — useful for tires, boxed seasonal items, parts, or dedicated overhead storage in a tight garage.

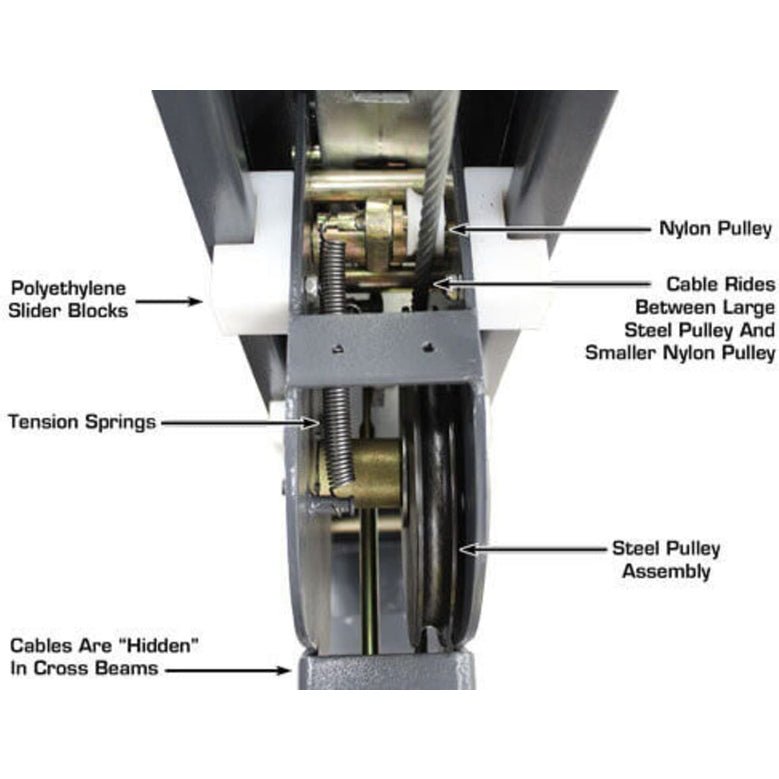

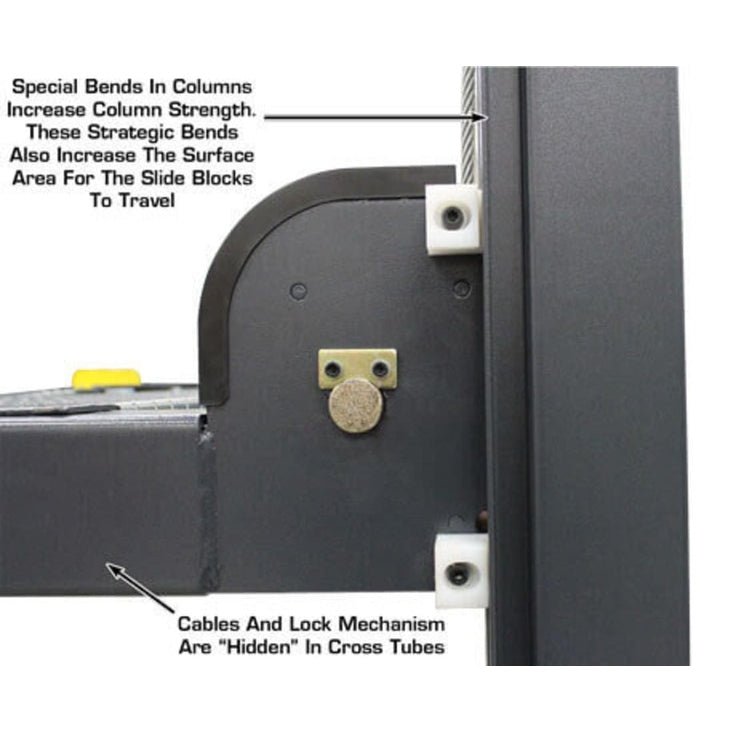

Each column carries two special bends that increase column strength and expand the surface area the slide block travels along. Horizontal cables run hidden inside the cross tubes, and professional-grade wheel covers shield the remaining cable runs and the double-lock safety system. A single-point lock release engages all four locks from one control. The 408SL weighs over 100 lbs more than other hobbyist lifts on the same column-and-runway configuration, with the extra mass concentrated in load-bearing steel.

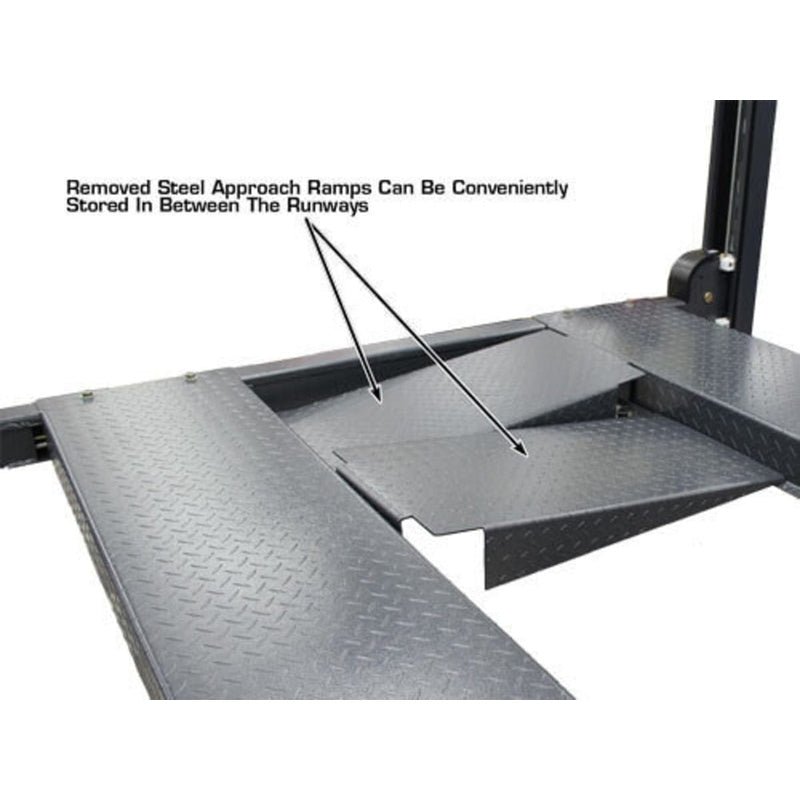

The included caster kit with polyurethane wheels lets you reposition the lift across the shop floor without dragging or scuffing the surface. Steel approach ramps, a steel jack tray, four plastic drip trays, and wheel stops ship in the box. The power unit can be mounted at any corner of the lift, runs on 110V with a 30-amp breaker (plug not included), and anchor bolts are optional and sold separately.

The FP8 floor panel set is an eight-piece kit — six middle sections plus two end sections — sized at 37.25″ wide x 19.5″ deep x 4″ tall per section, with 400 lb of capacity per section. The panels close the gap between the runways for a flat, continuous storage platform.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.

Features

408SL Lift

• 8,000 lb lifting capacity
• Free-standing, portable four-post design
• Diamond-plated steel runways
• Single-point lock release
• Columns with two special bends for added strength and increased slide-block surface area
• Larger column cross-section than standard hobbyist lifts
• Double-lock safety system
• Higher-quality powder coating in steel gray
• Horizontal cables hidden inside columns and cross tubes
• Commercial-grade wear blocks
• Power unit can be mounted at any corner
• Wider access between runways
• Caster kit with polyurethane wheels included
• Steel approach ramps included
• Steel jack tray included
• Four plastic drip trays included
• Wheel stops included
• Anchor bolts optional (sold separately)
• 110V electric operation, 30A breaker required (plug not included)
• Shipping weight: 1,965 lbs
• 2-year structural / 2-year hydraulic warranty (parts only)

FP8 Floor Panel Set

• Complete 8-piece set: 6 middle sections + 2 end sections
• 400 lb capacity per section
• Lightweight design
• Section dimensions: 37.25″ wide x 19.5″ deep x 4″ tall
• Closes the gap between the 408SL runways for full-deck storage above a parked vehicle

Specifications

Documents

• Atlas 408SL Manual (PDF)
• Atlas 408SL Cylinder Bleeding Procedure (PDF) — perform immediately after installation
