Atlas 412 12,000 lb Commercial 4-Post Lift
Price range: £2,866.74 through £3,269.94
Description

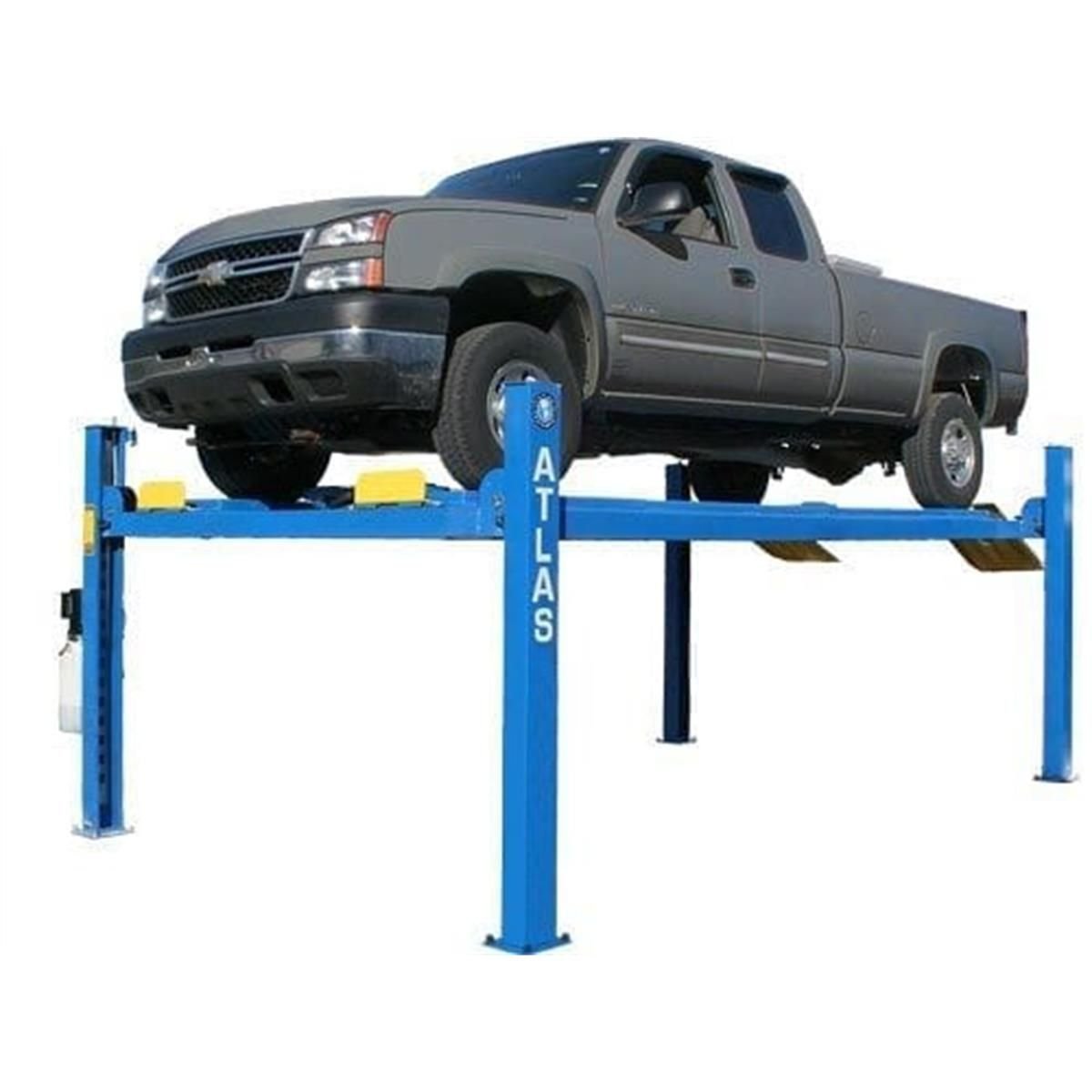

The Atlas 12,000 lb. Commercial Grade 4-Post Lift (Model 412) incorporates structural strength and refined design elements typically found on lifts priced significantly higher. Each Atlas 412 is tested to confirm reliable performance at its full rated capacity and has been manufactured to consistent, proven specifications for many years.

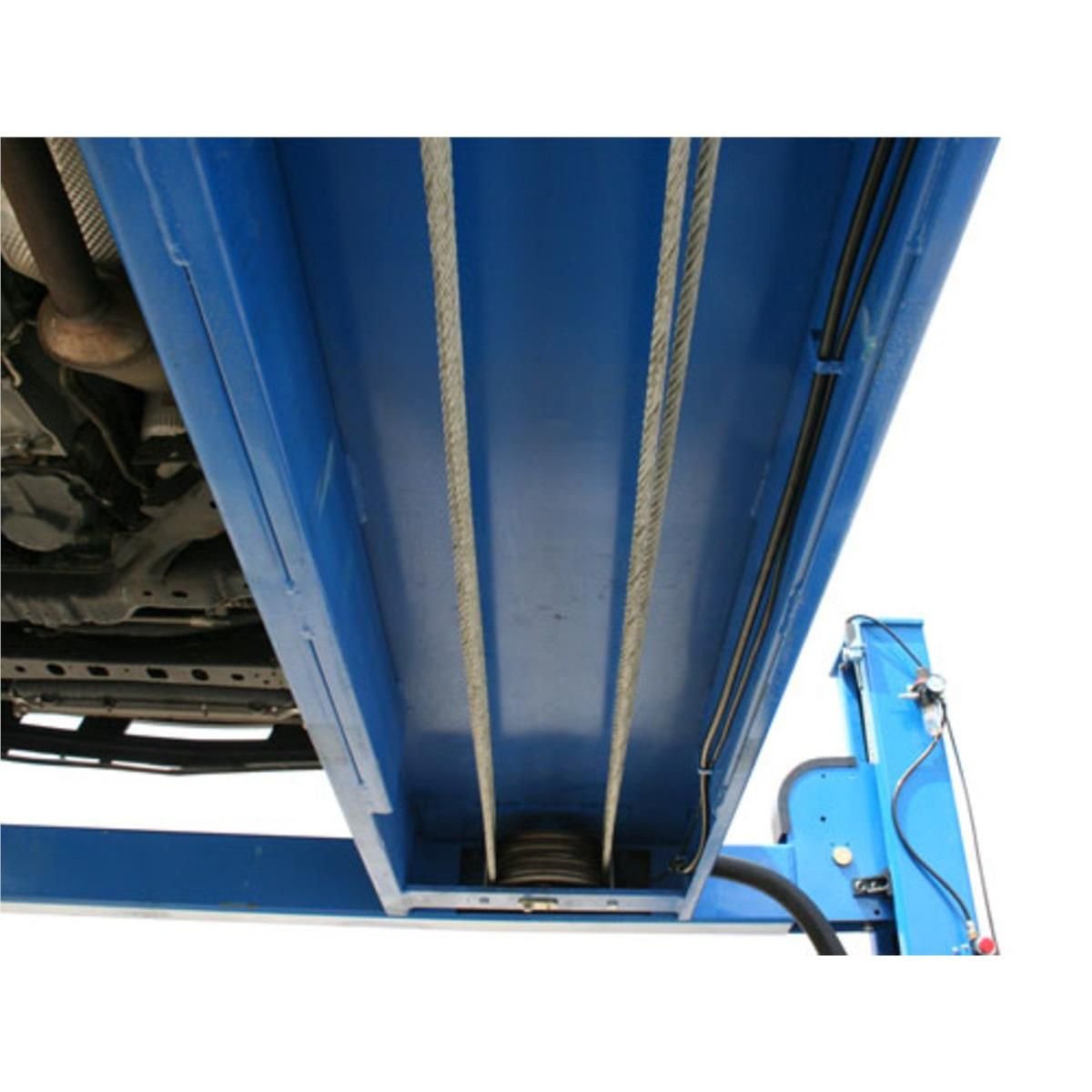

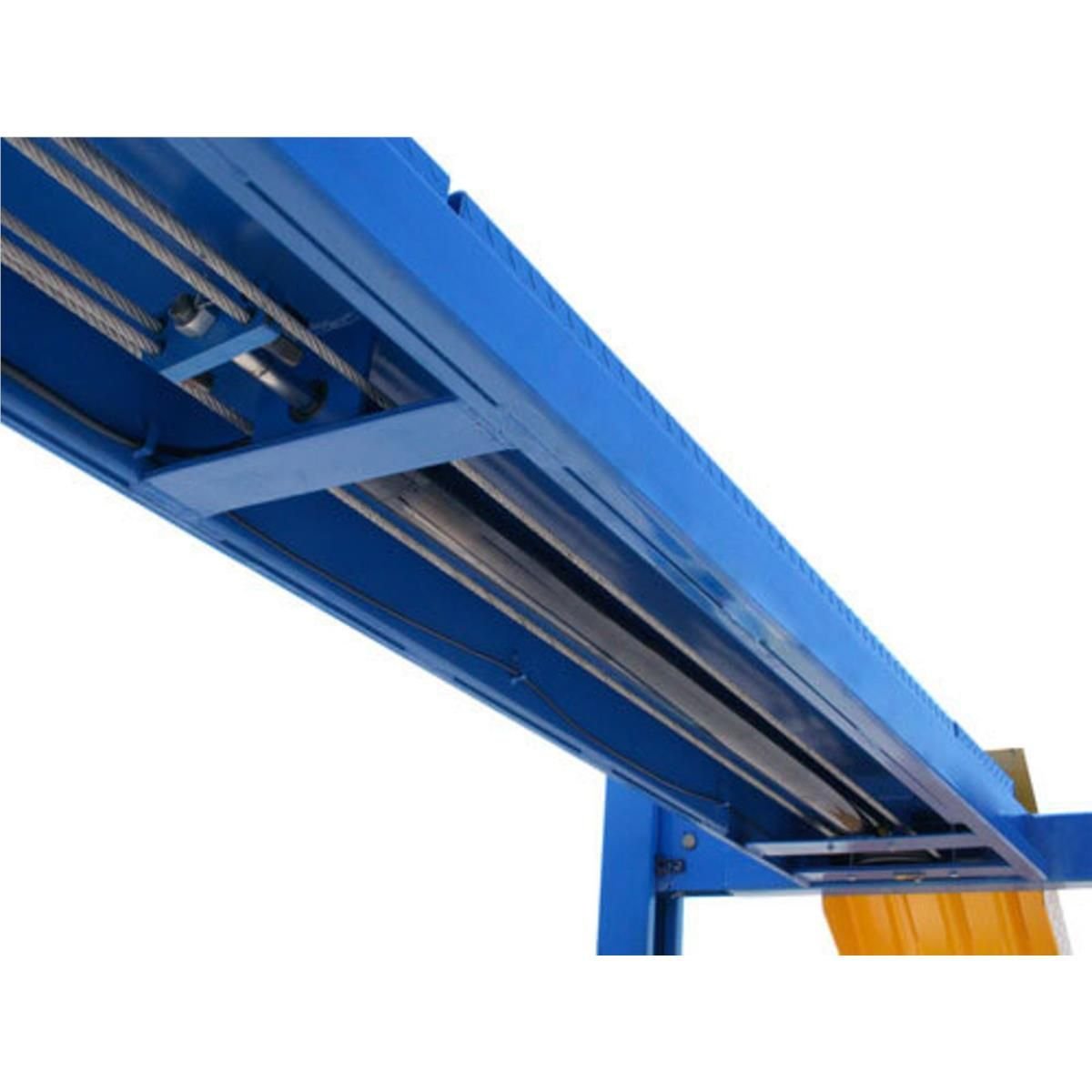

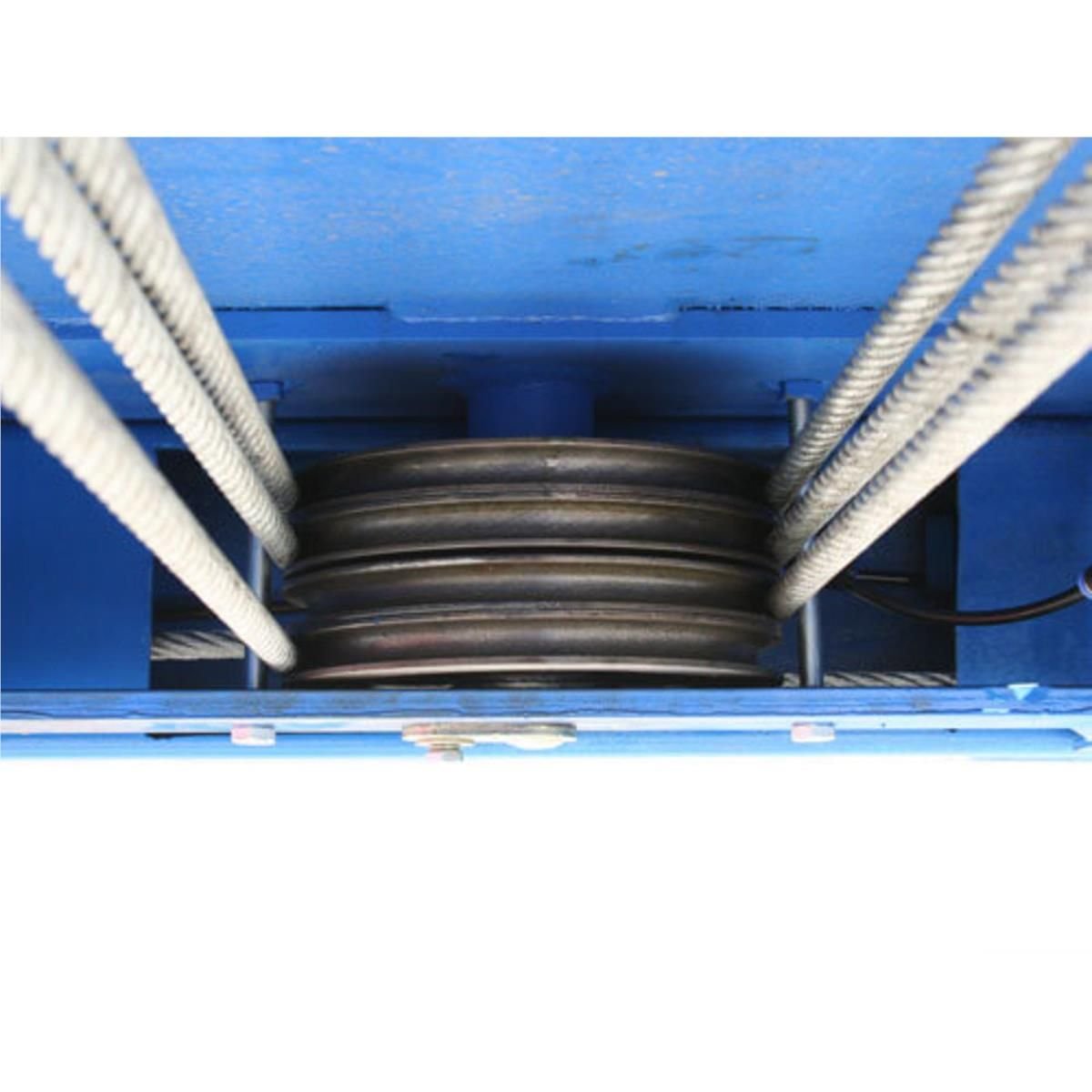

The Atlas 412 utilizes a high-strength cable lifting system combined with an oversized hydraulic cylinder mounted beneath the runway. The system is powered by a 220-volt (single-phase) power unit for smooth and controlled operation. Unlike older chain-driven systems with exposed hydraulic cylinders—which can be difficult to level and may contribute to vehicle door damage—the under-runway cylinder design promotes easier leveling and improved vehicle protection.

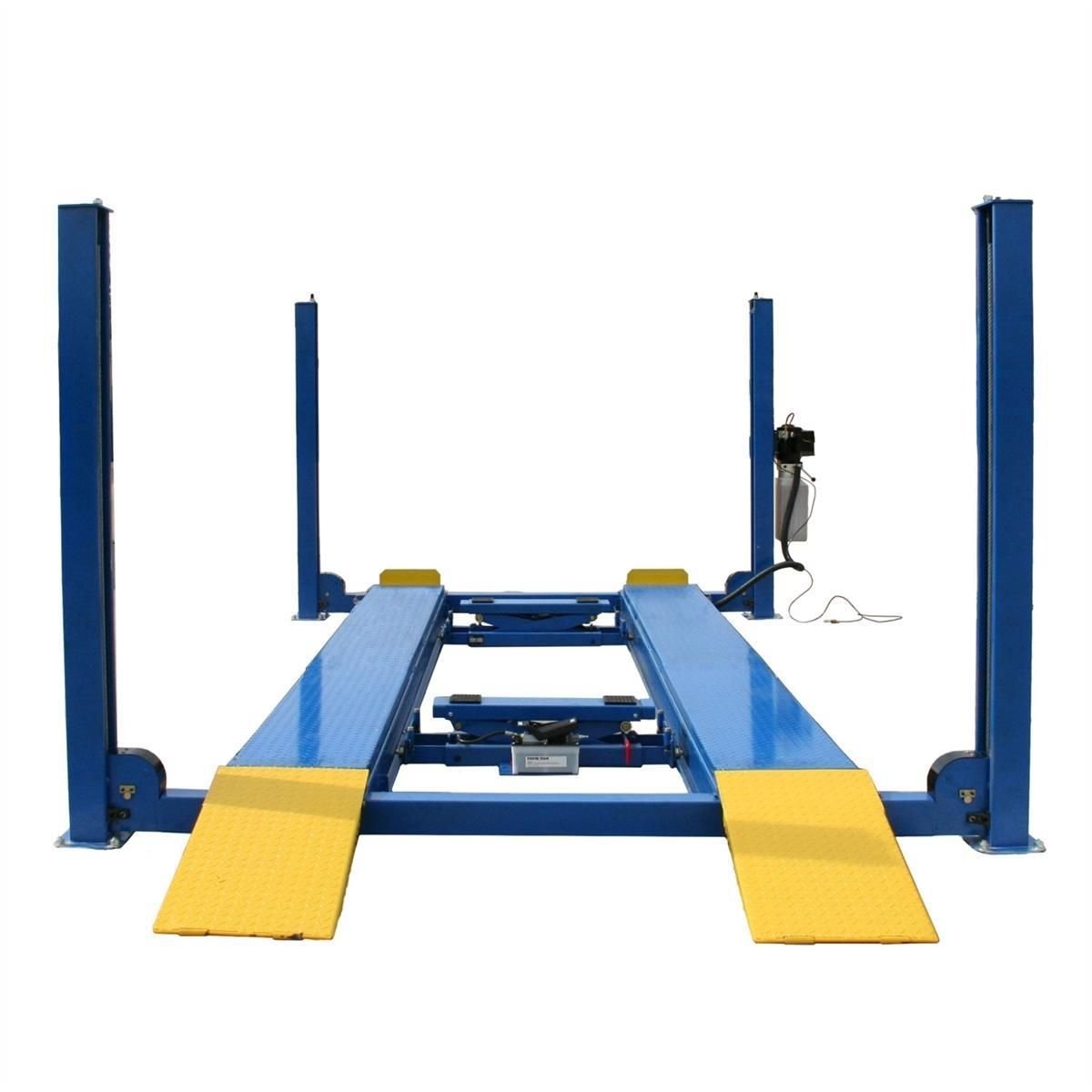

The Atlas 412 also includes integrated tracks between the runways, allowing compatibility with rolling bridge jacks such as the Atlas RJ6BK (sold separately). This feature expands the lift’s service capability for wheel, brake, and suspension work.
Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.
Features
- 12,000 lb. capacity
- Heavy-duty, commercial-grade construction
- Extra tall, extra wide, and extra long design
- Diamond-plated runways

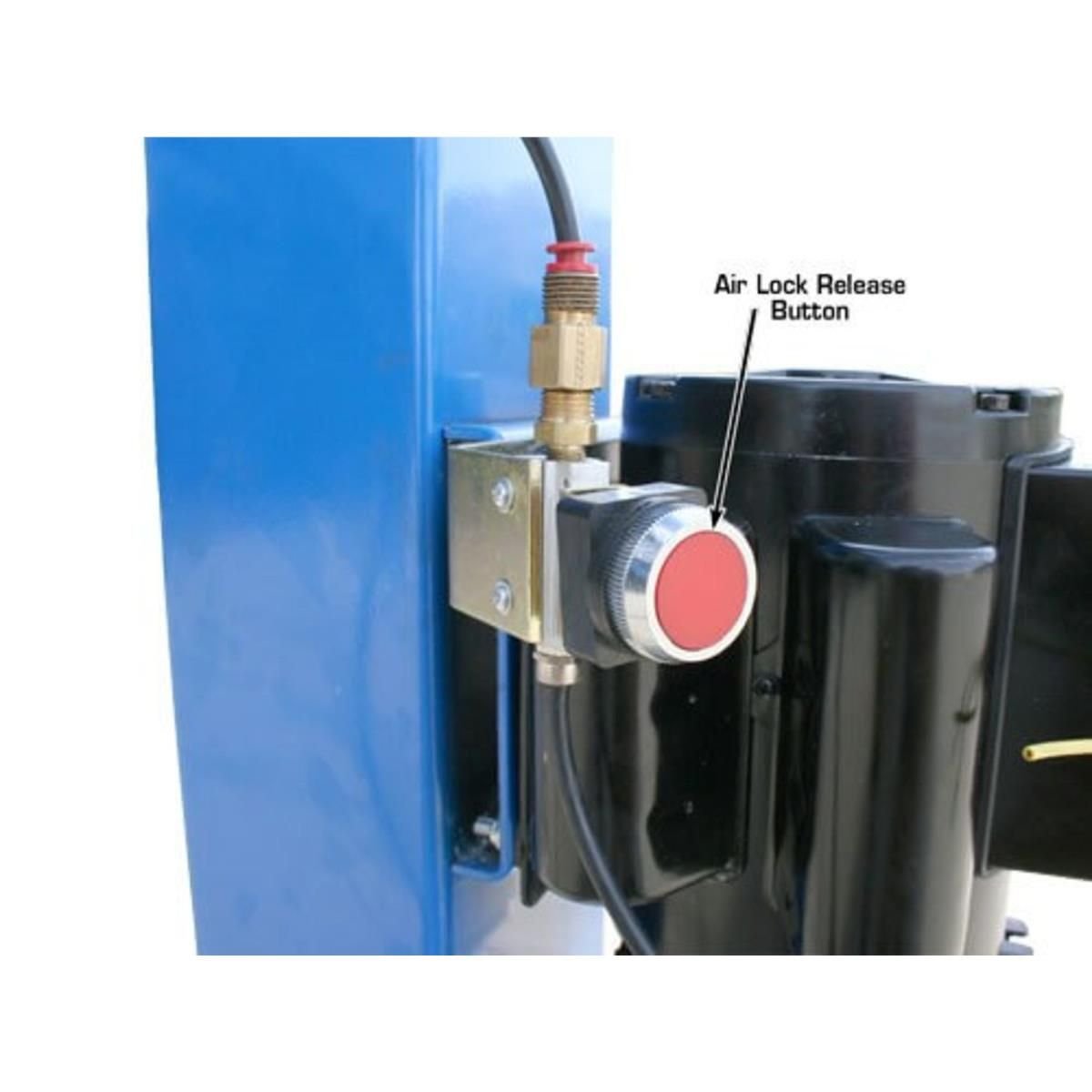

- Air-operated single-point lock release (external air supply required)
- Lock ladder design

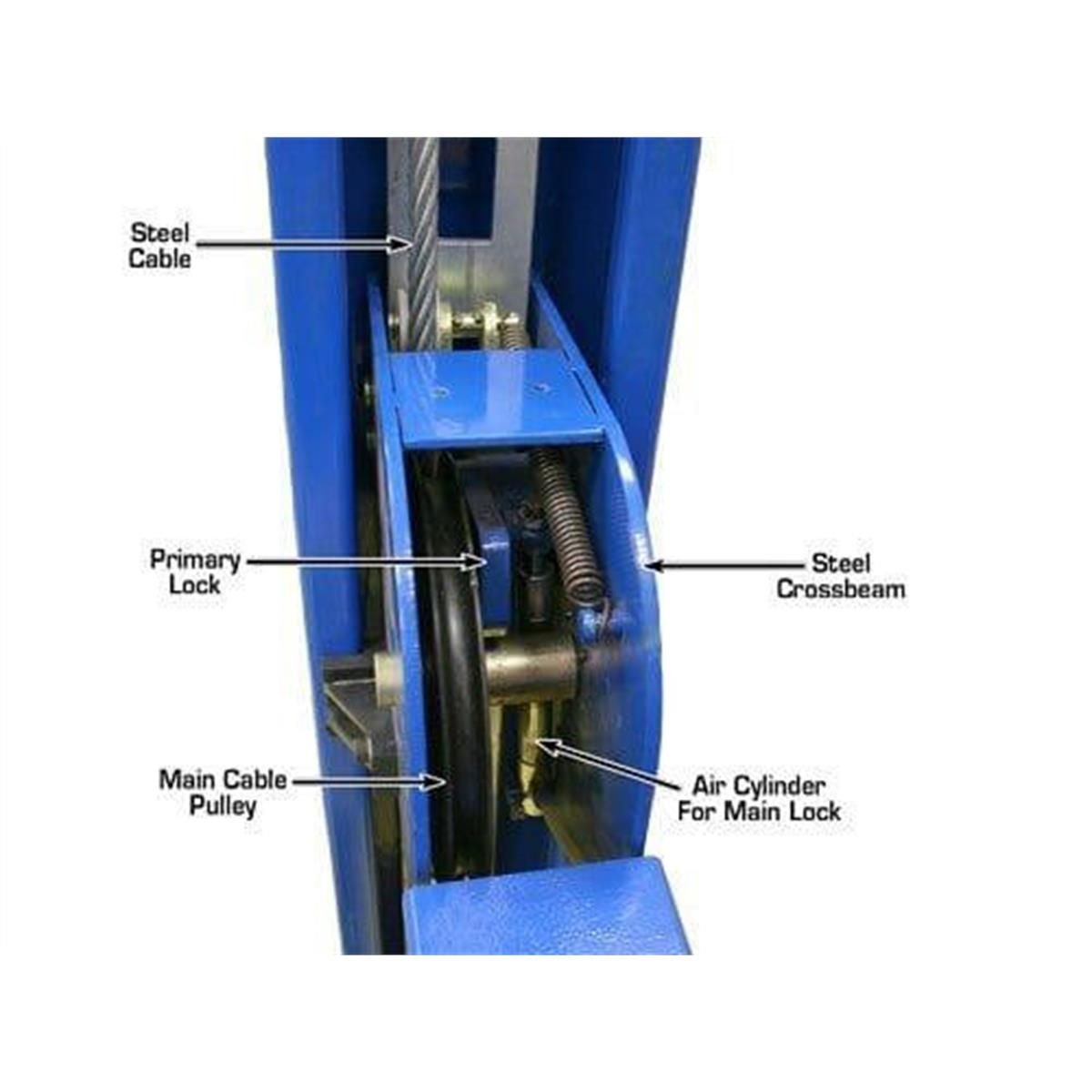

- Double-lock safety system
- Powder coat finish

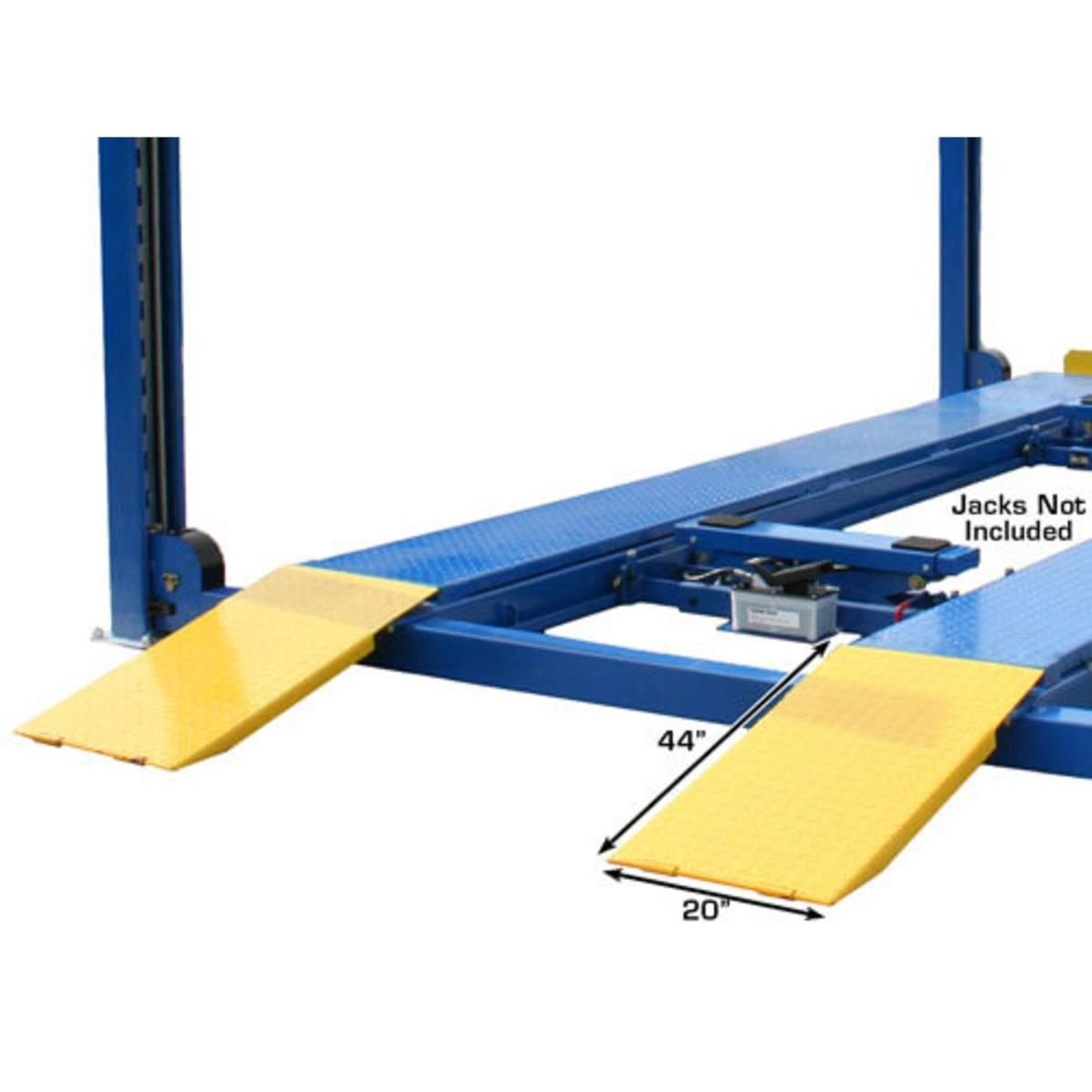

- Steel approach ramps included
- Additional drive-off ramps available (sold separately)
- Runway extensions available (sold separately)
- Mounting hardware included

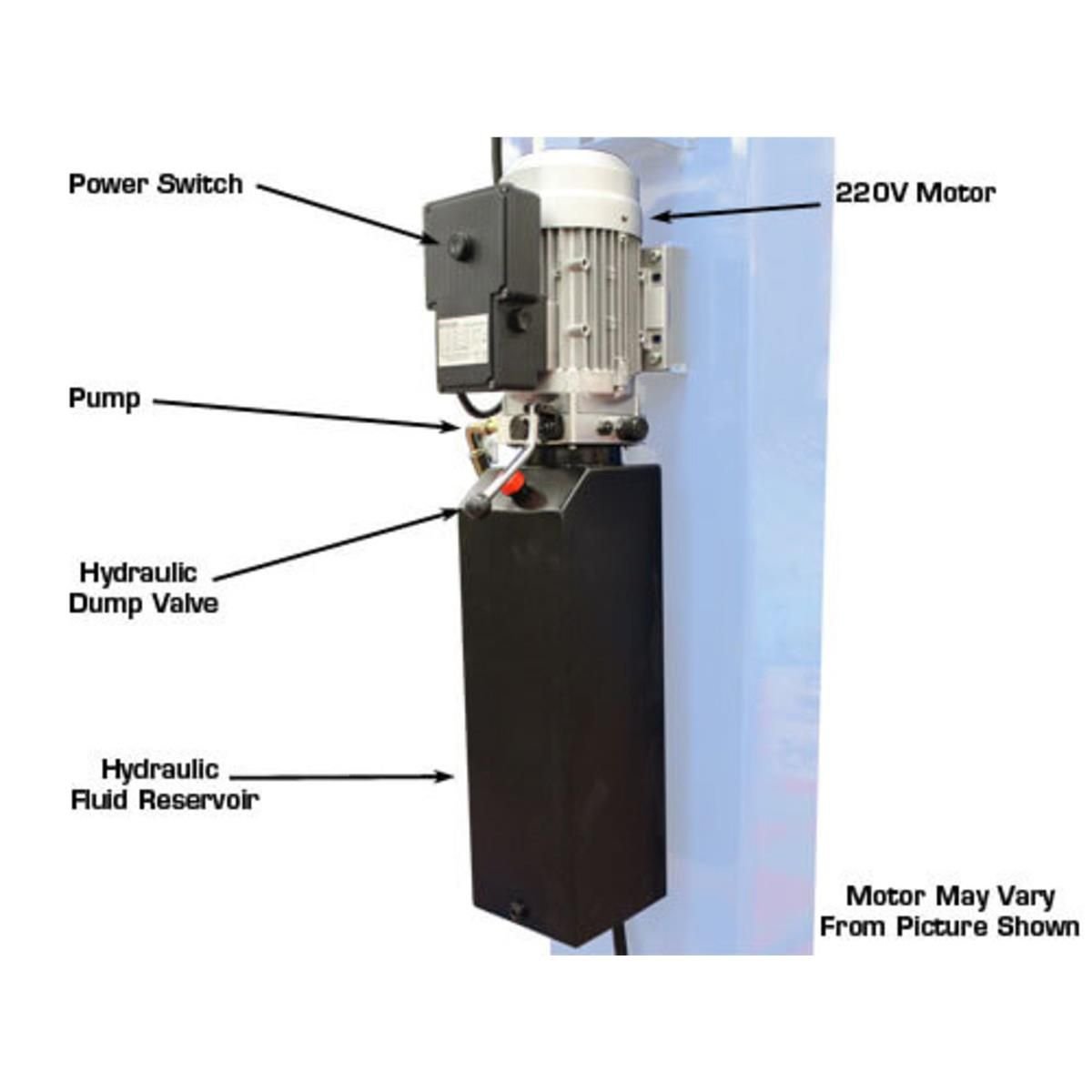

- 220 volt / single-phase electric operation (30 amp breaker required)
- Shipping weight: 2,800 lbs.
- 5-year structural – 2-year hydraulic warranty (parts only)
Specifications
Atlas ATTD-412 Specifications
| Specification | Details |
|---|---|
| Capacity | 12,000 lbs. |

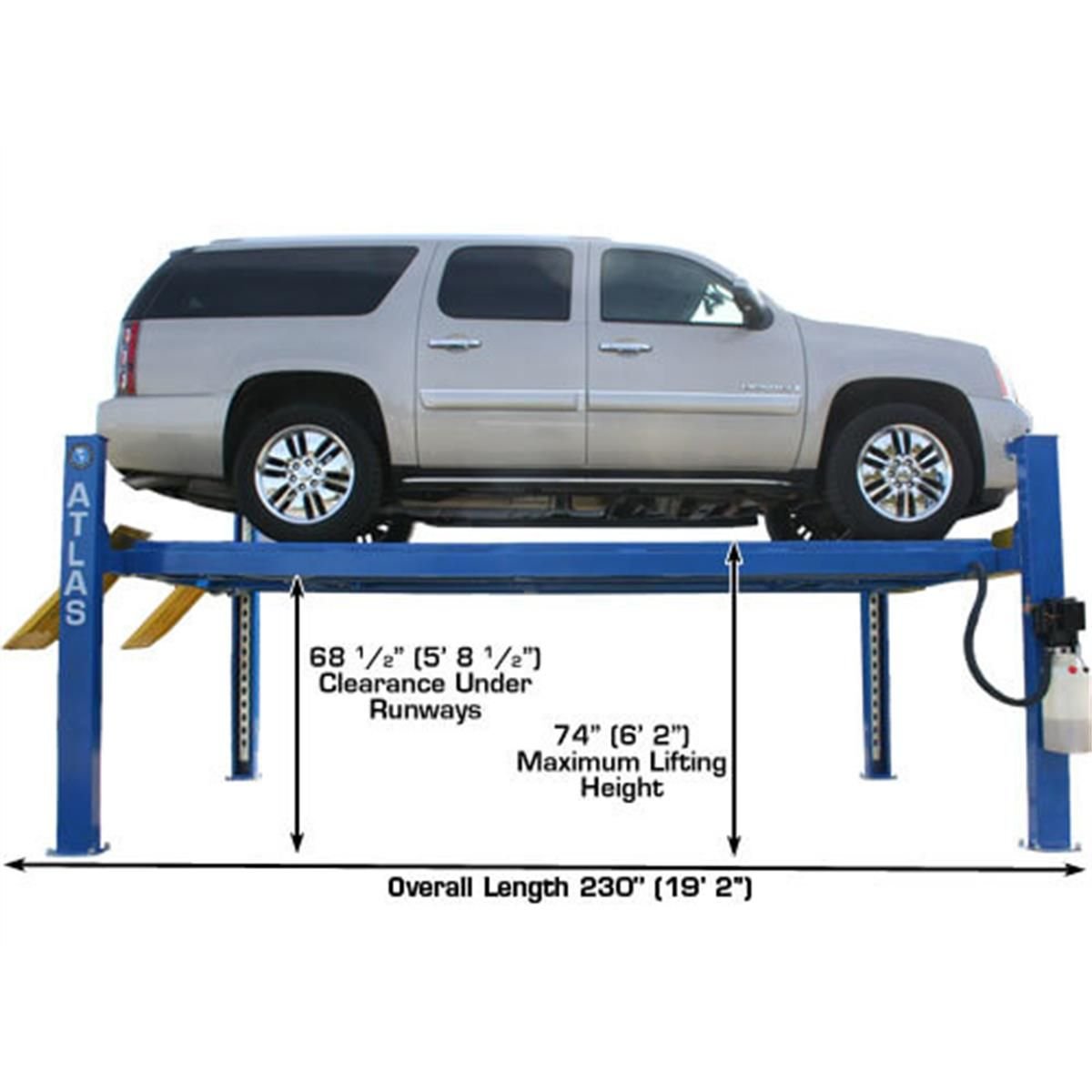

| Lifting Height | 77 3/4″ (6′ 5 3/4″) |
| Overall Width of Columns (Without Motor) | 126 1/4″ (10′ 6 1/4″) |

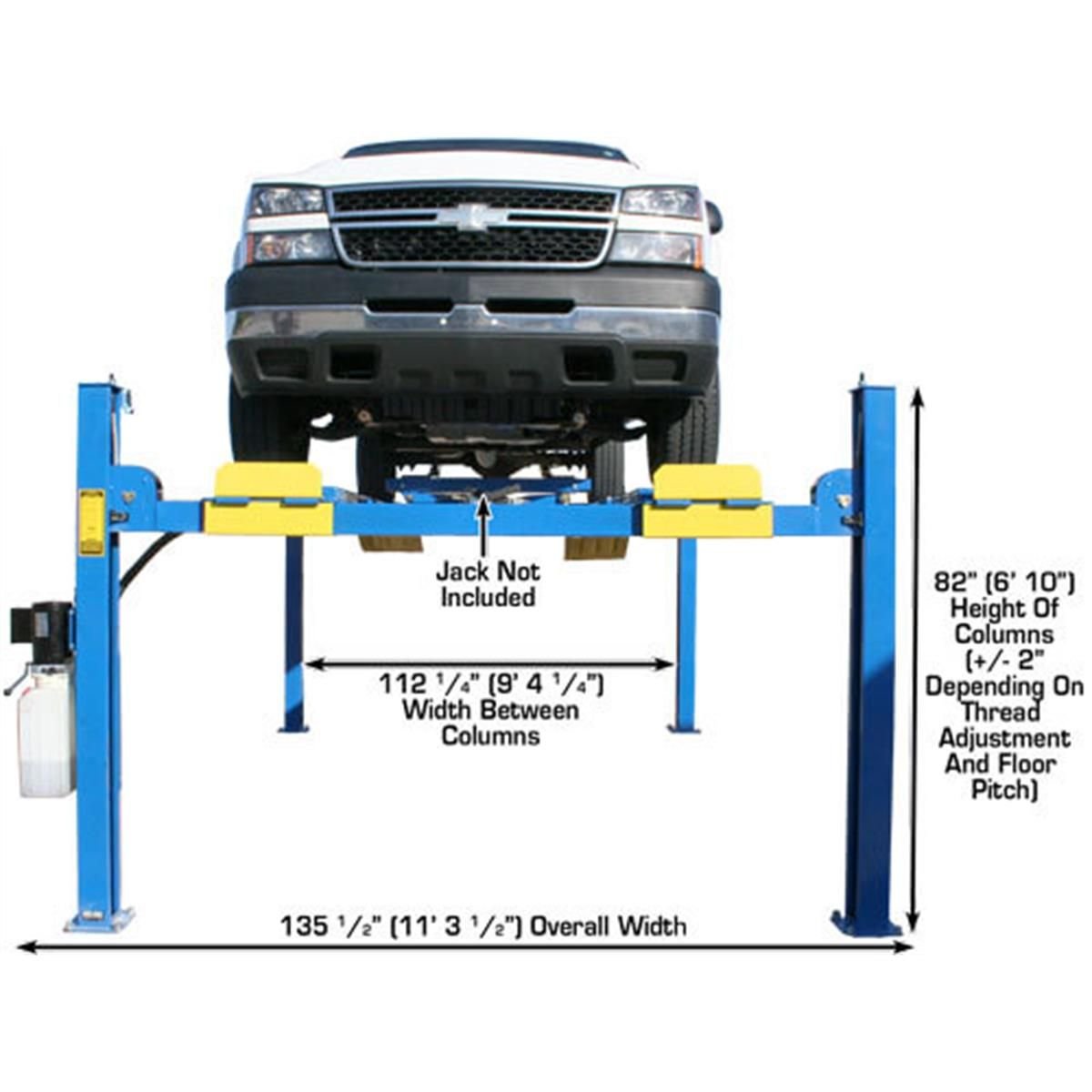

| Overall Width of Columns (With Motor) | 135 1/4″ (11′ 3 1/4″) |
| Overall Length with Approach Ramp | 236 1/2″ (19′ 8 1/2″) |
| Length Between Columns | 183 1/4″ (15′ 3 1/4″) |
| Runway Length | 194 1/2″ (16′ 2 1/2″) |
| Runway Width | 20″ |
| Runway Thickness | 7 1/2″ |
| Width Between Runways | 43 1/4″ (39 3/4″ with rail) |
| Outside Runway to Outside Runway | 83 1/4″ (6′ 11 1/4″) |
| Clearance Under Runways | 70 1/4″ (5′ 10 1/4″) |
| Clearance Between Columns | 112 5/8″ (9′ 4 5/8″) |
| Column Height | 89 3/4″ (7′ 5 3/4″) |
| Maximum Wheelbase | 185″ (15′ 5″) |
| Drive-Thru Clearance | 98″ (8′ 2″) |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 2,800 lbs. |
Installation Requirement:
Requires a minimum of 6″ thick concrete with a 3,000 PSI rating.
-
