Atlas FM9SL 9,000 lb In Ground Full-Rise Lift
Price range: $3,314.74 through $3,538.74
Atlas 9,000 lb. In-Ground Scissor Lift
The Atlas® FM9SL 9,000 lb. flush-mounted scissor lift is an ideal solution for service facilities seeking to maximize lift capacity within limited floor space. For shops that prefer a clean-floor appearance without above-ground columns or obstructions, the Atlas® FM9SL provides an efficient alternative. Unlike traditional in-ground lifts, this flush-mounted system requires minimal excavation, and the electric/hydraulic power unit remains easily accessible for routine maintenance.

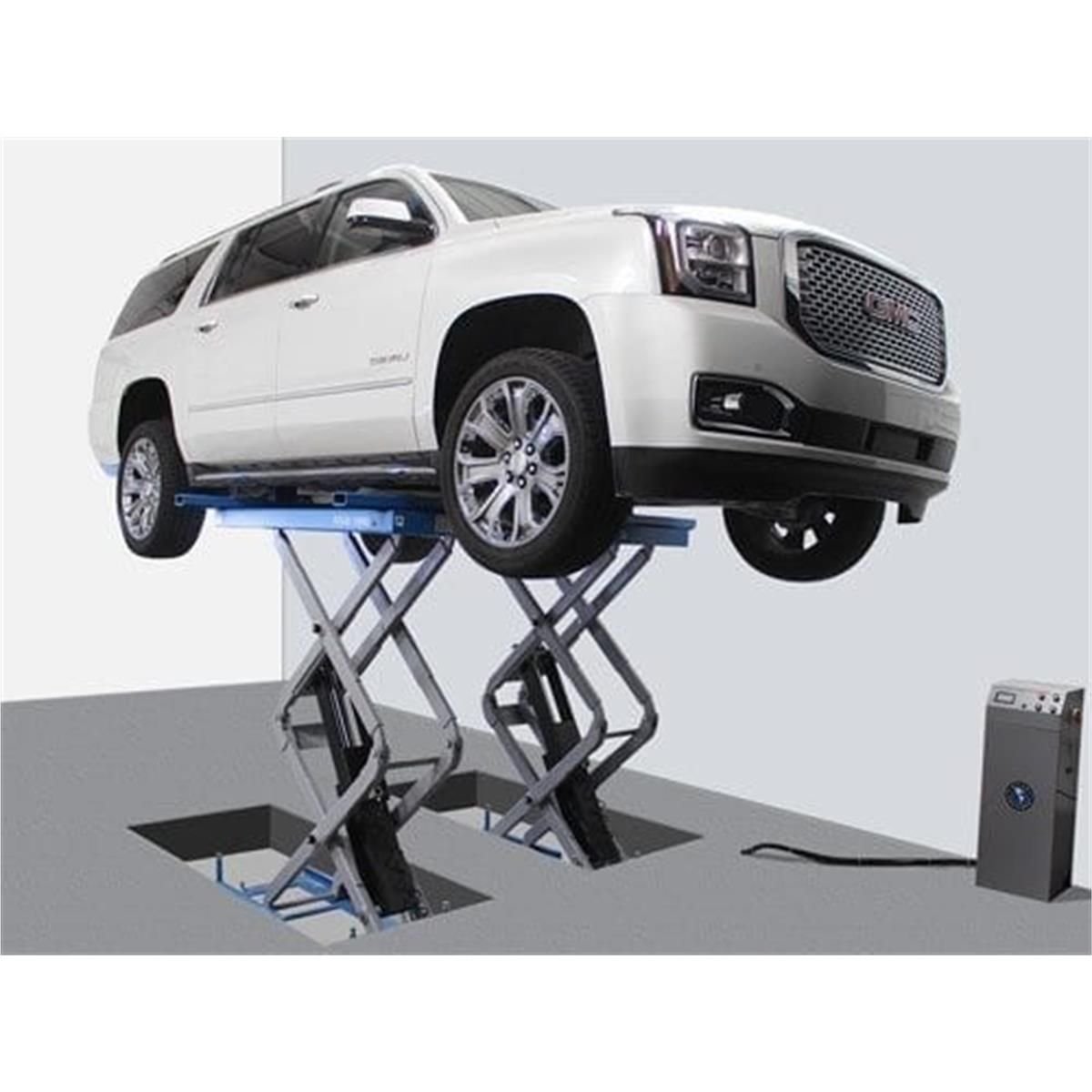

The flush-mounted platforms eliminate above-ground obstructions and can be driven over from any direction, allowing vehicles to be positioned even in confined work areas. The Atlas® FM9SL features both front and rear platform extensions, enabling it to accommodate long-wheelbase pickup trucks.

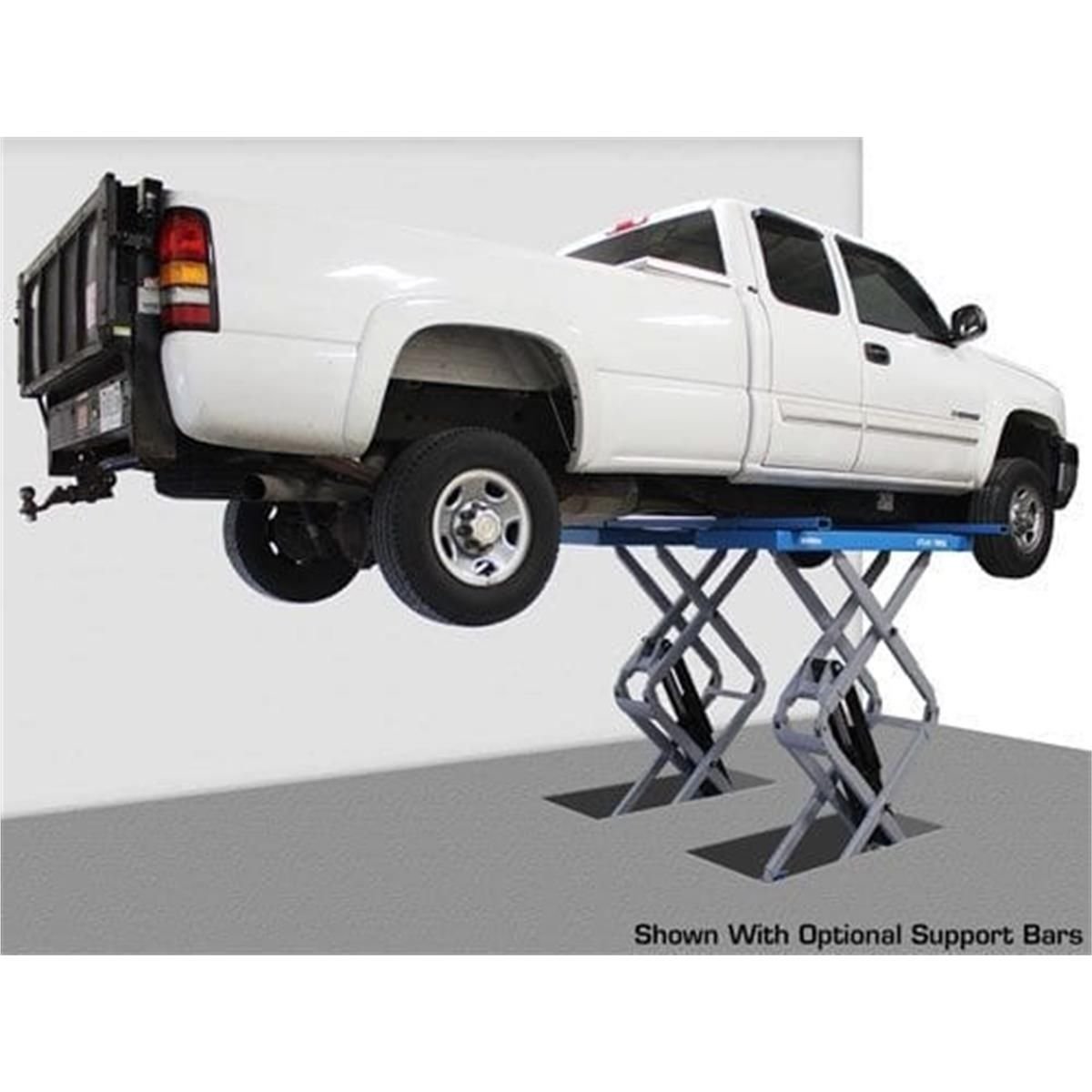

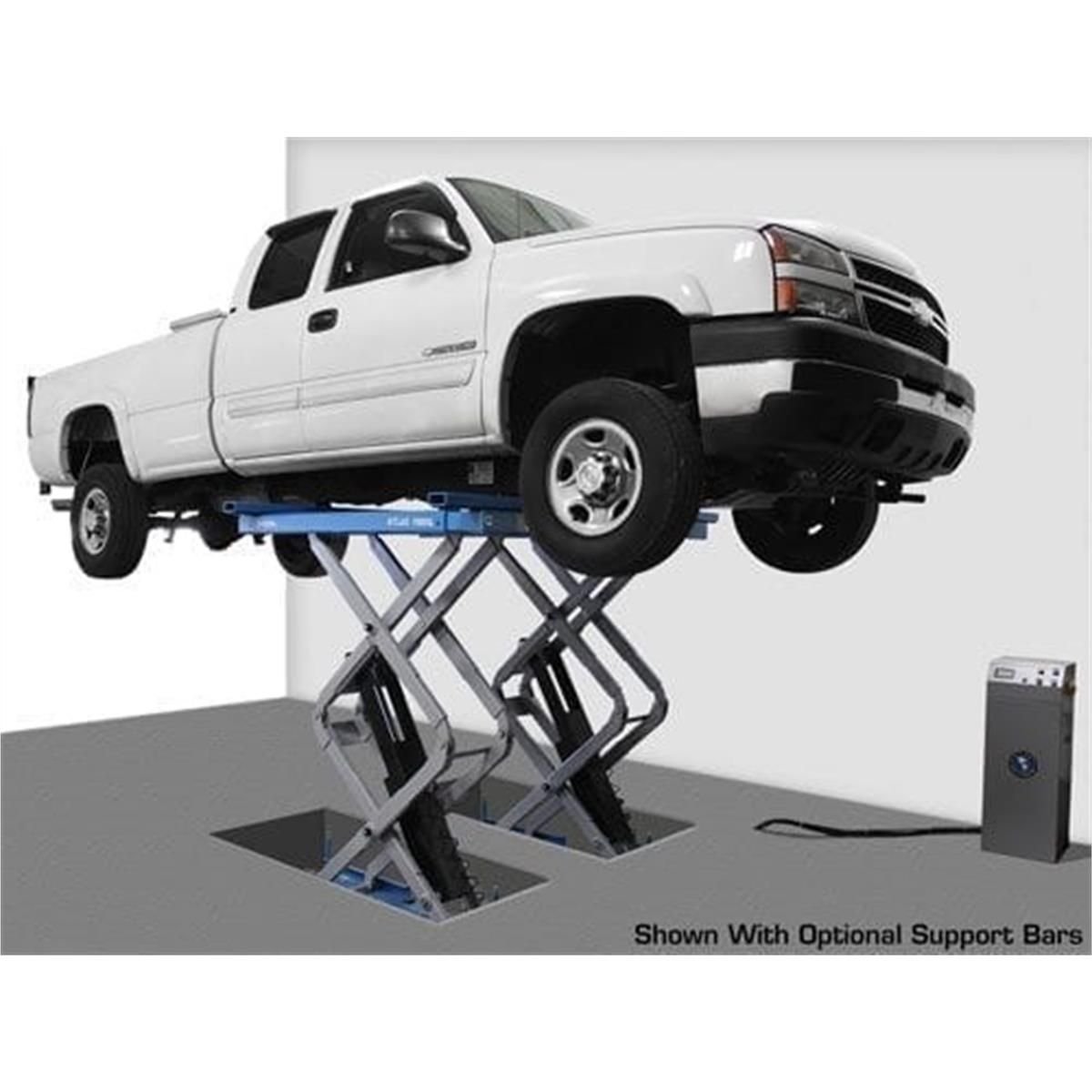

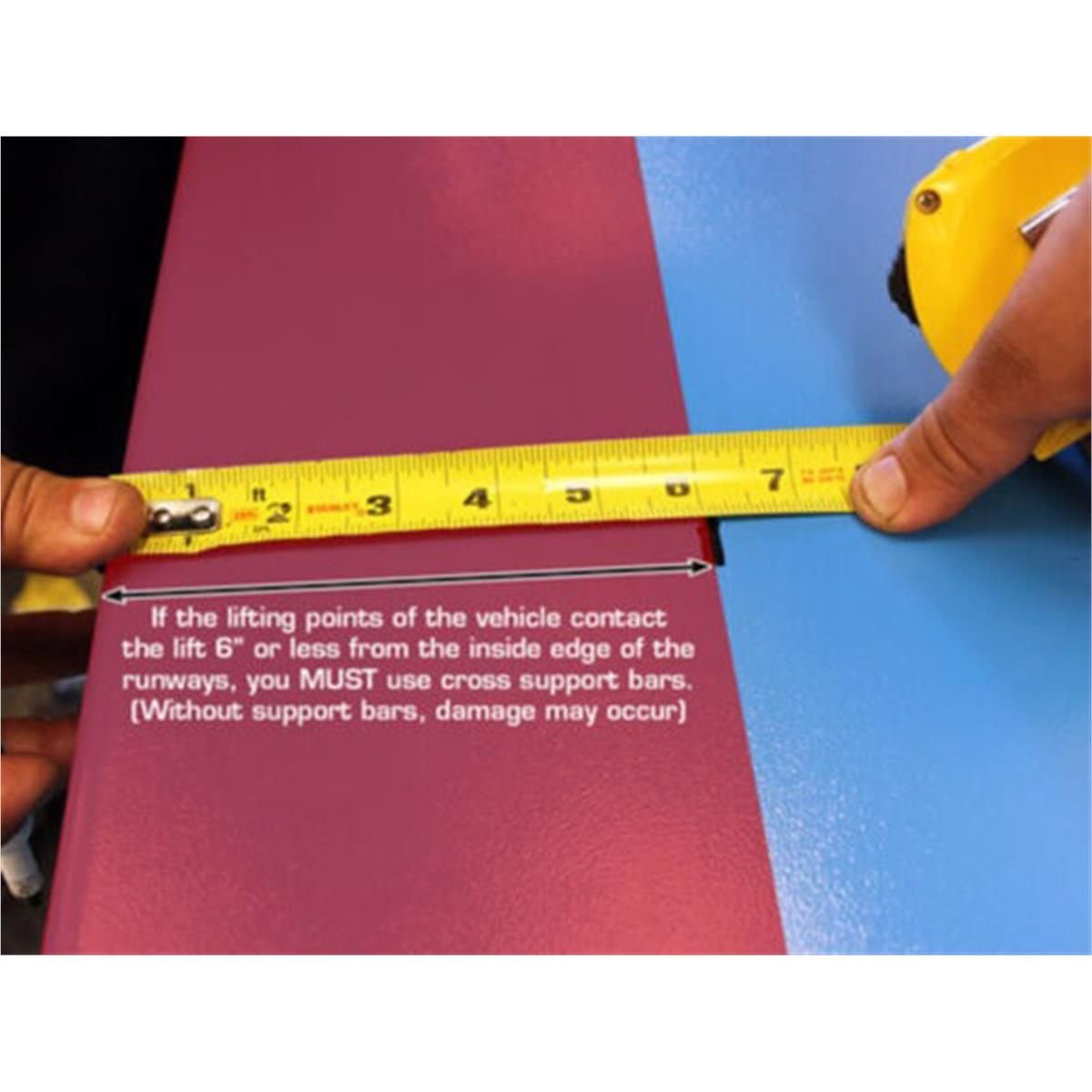

Because this scissor lift design is fully open (without front or rear cross-support bars to maintain platform alignment), operators must ensure that the vehicle frame is positioned at least 6 inches from the inside edge of each platform. Concentrating excessive weight closer than 6 inches to the inner platform edges may cause the platforms to angle inward (“pigeon toe”), potentially resulting in damage. An optional Atlas® scissor lift support bar kit is available to help distribute narrow-frame weight evenly across the lifting surface.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- 9,000 lb. Capacity
- Commercial-Grade Construction
- Full-Rise Lift
- Adjustable Platform Width
- Extendable Platforms (Front and Rear)
- No Above-Ground Obstruction
- CE Certified
- Air-Operated Single-Point Lock Release (External Air Supply Required)
- Open-Center Design

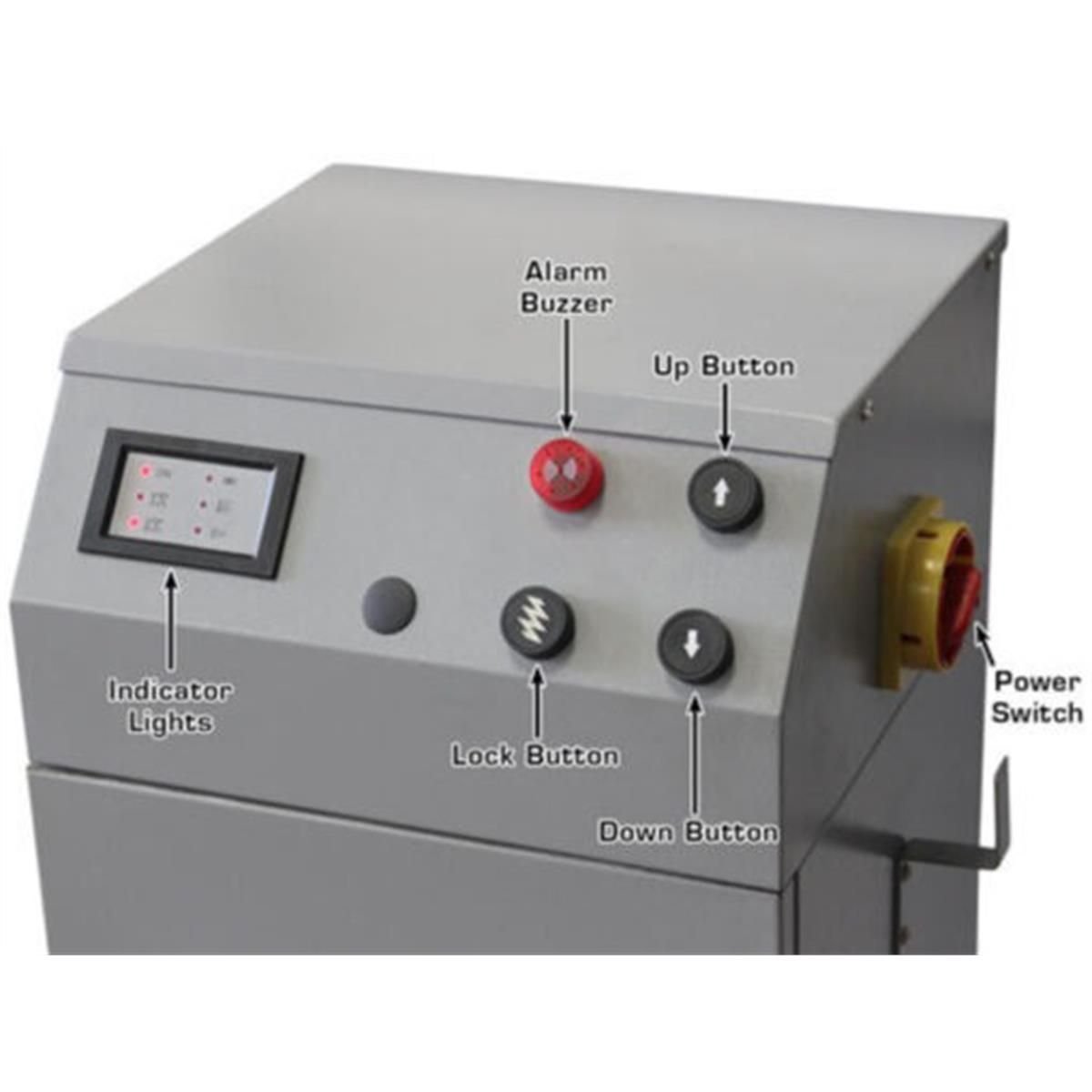

- Separate Self-Contained Control Unit
- Grease Zerk Fittings at Each Hinge Point

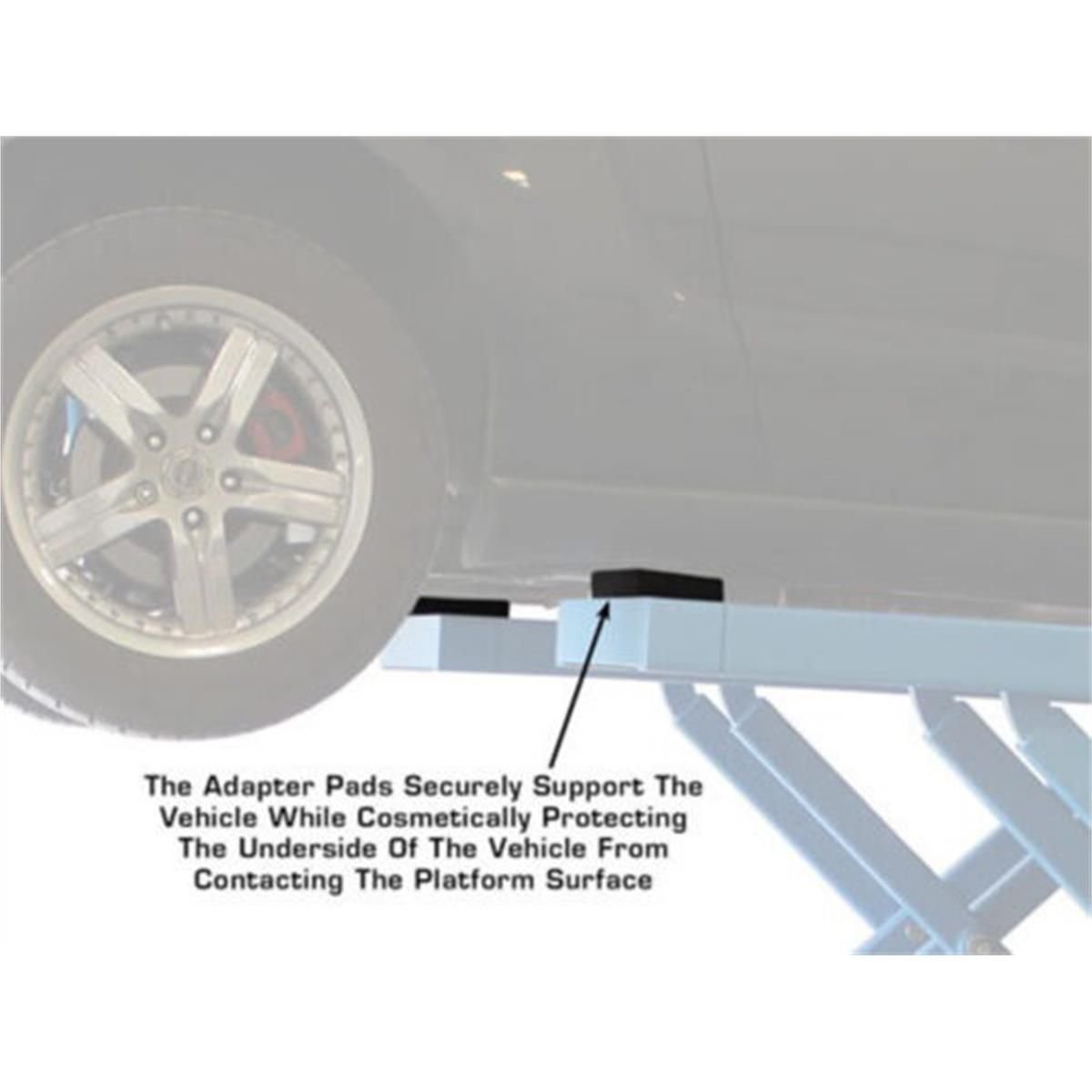

- Heavy-Duty Rubber Lifting Blocks Included
- Mounting Hardware Included
- 220 Volt / 1 Phase Operation (30 Amp Breaker Required)

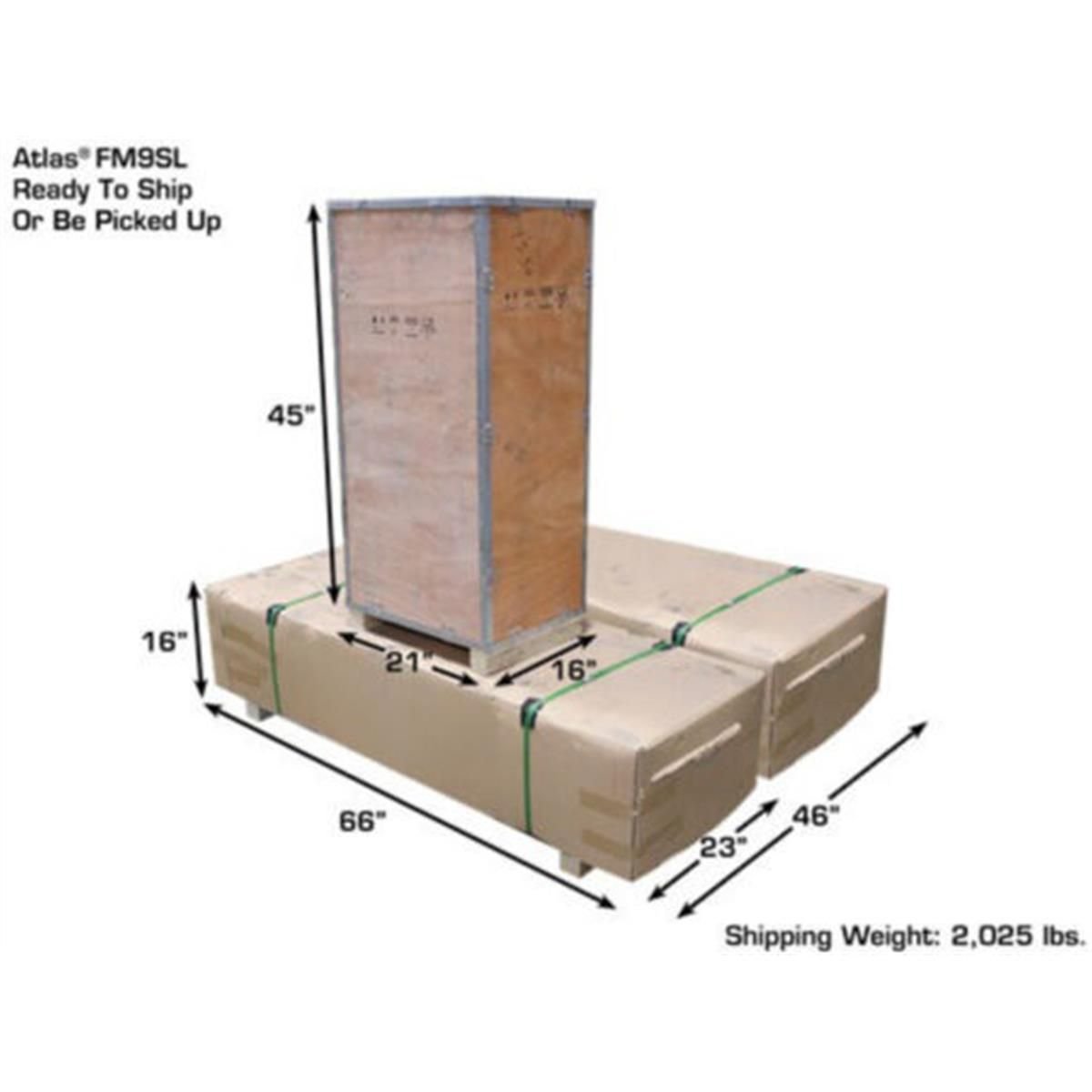

- Shipping Weight: 2,025 lbs.
- 1-Year Structural / 1-Year Hydraulic Warranty (Parts Only)
Specifications
Atlas® FM9SL Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 9,000 lbs. |
| Max Lifting Height Above Floor (With Standard Lifting Blocks) | 73 3/4″ (6′ 1 3/4″) |
| Max Lifting Height Above Floor (Without Standard Lifting Blocks) | 71″ (5′ 11″) |
| Overall Length (Extensions Out) | 80″ (6′ 8″) |
| Overall Length (Extensions In) | 64″ (5′ 4″) |

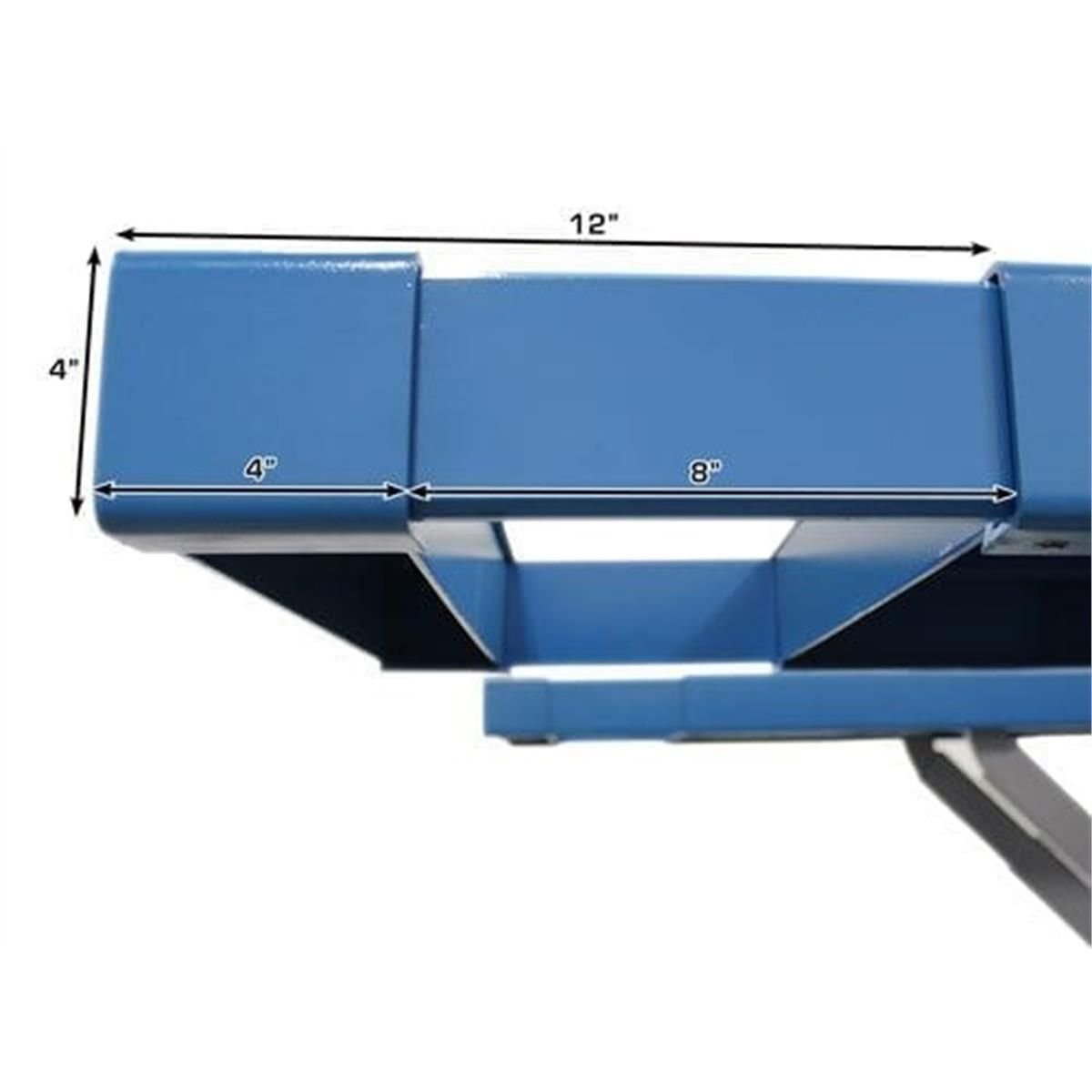

| Platform Width | 21″ |
| Platform Thickness | 4″ |
| Minimum Lowered Height (In-Ground) | 13″ |

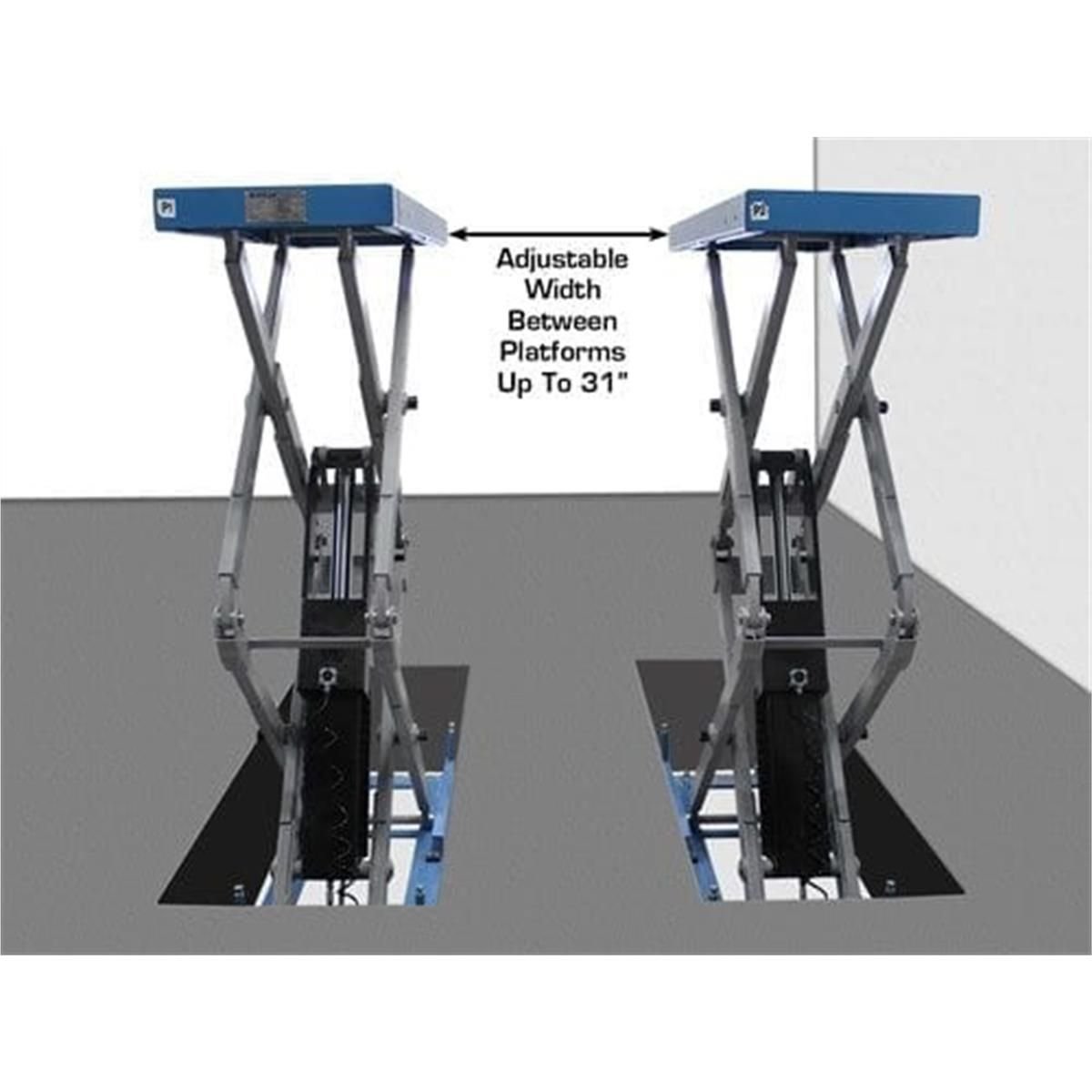

| Width Between Platforms | Adjustable up to 31″ |
| Air Requirement | 90–120 PSI |
| Power Unit | 220 Volt +/- 5% (209–231 volts), Single Phase 30 Amp Breaker Required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 2,025 lbs. |
