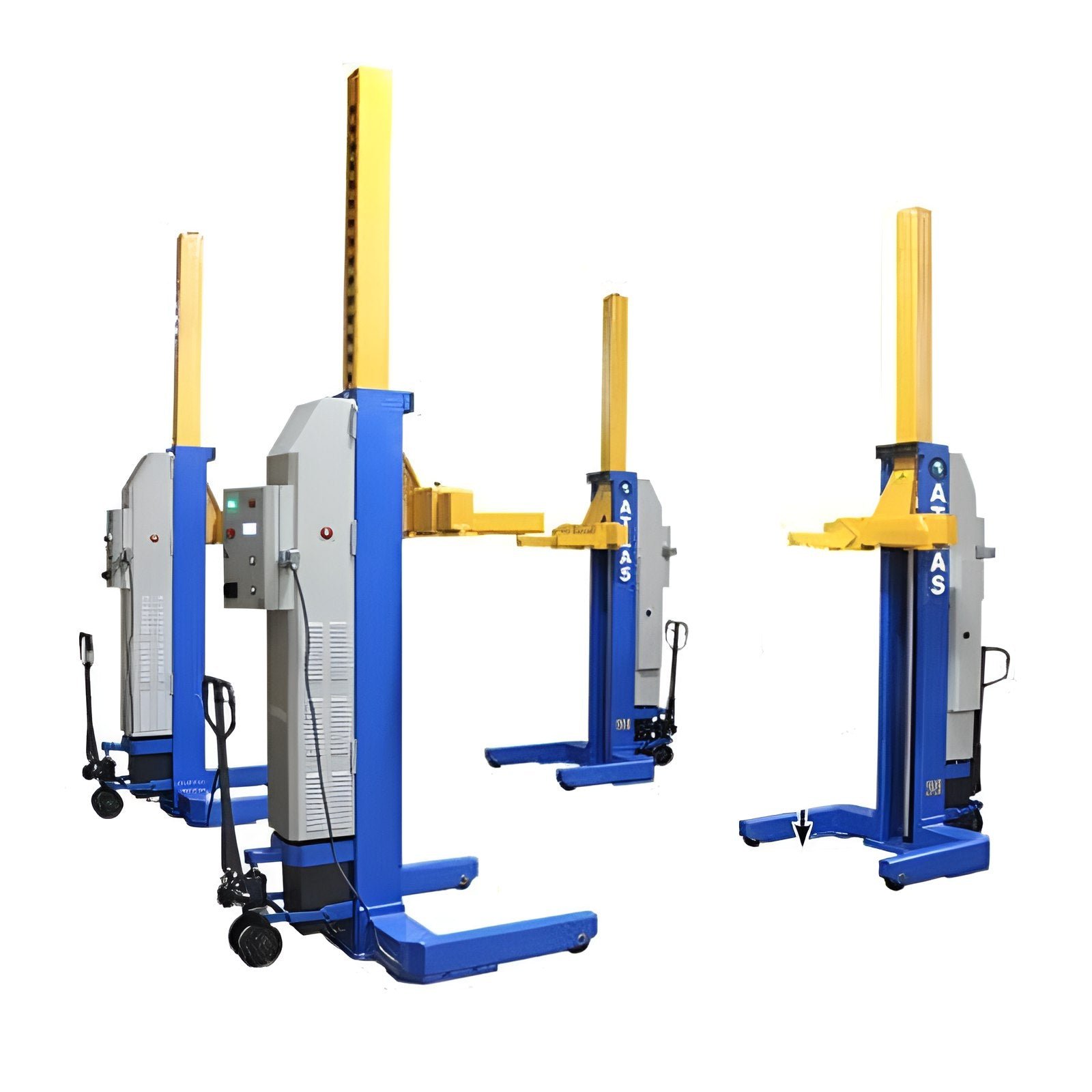

Atlas 18,500lb Mobile Column Lift, 4 Units, 24v Battery w/ Cable Communication, ALI Certified SKU ATEML-4034BC

Atlas 18,500lb Mobile Column Lift, 4 Units, 24v Battery w/ Cable Communication, ALI Certified SKU ATEML-4034BC

This system boasts an impressive 18,500 lbs lifting capacity per column – PER COLUMN! That’s an eye-watering 74,000 lbs capacity in total. Plus, you have the flexibility to add more columns as needed. Imagine effortlessly lifting vehicles with tire diameters from 19 to 44 inches, all while navigating through your shop with ease thanks to the hydraulic pallet jack systems. With DC motors powered by rechargeable batteries, you’ll get 10-20 lifts per charge, keeping your workflow smooth and uninterrupted. The LCD screens and emergency stop buttons ensure you’re always in control. Ready to revolutionize your heavy vehicle maintenance? The Maxima® ML4034BC is your ticket to profitability.

ML 4034BC Specifications:

• Capacity per Column: 18,500 LB.
• Motor: 2.2 Kw 24V DC motor with two batteries per column
• Max. Lifting Height: 67″ (5′ 7″)
• Overall Height: 145″ (12′ 1″)
• Resting Height: 88 1/2″ (7′ 4 1/2″)
• Width: 43 1/2″ (3′ 7 1/2″)
• Length: 55 1/2″ (4′ 7 1/2″)
• Column Width: 13 1/4″
• Warranty: 2 Year Limited
• Max Tire Diameter: 44″
• Min Tired Diameter: 19″
• Shipping Weight (For Four Columns): 6,800 LB. each
• Shipping Weight Per Column: 1,700 LB. each
• Shipping Dimension per Column: 49″ Length x 47″ Width x 89″ Height

ATEML-4034BC Special Features:

• ALI CERTIFIED
• Lift Qty: 4
• Simultaneous operation of all columns
• LCD screen shows exact lifting height of each column
• Electronic system ensuring synchronization of all columns
• Double-safety guaranteed by both hydraulic flow control and mechanical locks
• Portable columns make your work easy and comfortable
• Can be Expanded from a four (74,000 lb. capacity) column system to a six (111,000 lb. capacity) or eight (148,000 lb. capacity) column system
• Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
• Emergency stop button on every column
• Four 32′ column connecting cables included
• 2.2 Kw 24V DC motor with two batteries per column
• 2 Year Limited Warranty
• Lifting capacity per column: 18,500
• Weight per column: 1,700 lbs
• Shipping Weight (for four columns): 6800 lbs
• Want more capacity?
  • Atlas 16,500lb Mobile Column Lift System, 6 Units, 24v Battery w/ Cable Communication, ALI Certified SKU ATEML-6045BC

ML-4034BC Manual

   Atlas ML-4034BC Manual
