Atlas PRO-9D 9,000 lb Overhead 2-Post Lift
Price range: £1,334.59 through £1,468.99
Description
The Atlas® PRO-9D two-post above-ground lift is an excellent solution for smaller commercial repair facilities or home garage owners seeking premium quality at an exceptional value. Standing 12 feet tall, the Atlas® PRO-9D delivers a true 9,000 lb. lifting capacity, providing reliable performance at a competitive price point.

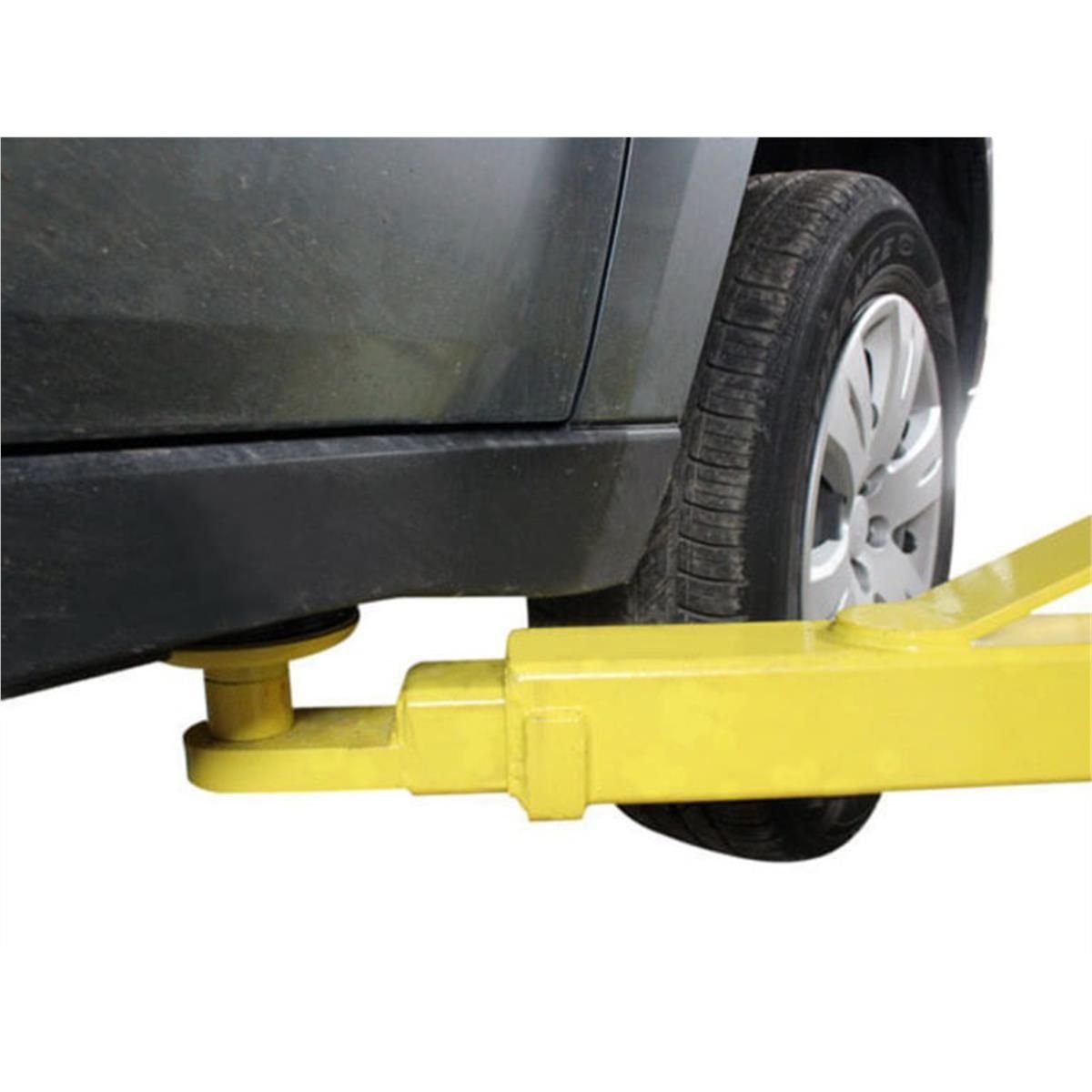

The Atlas® PRO-9D features symmetric columns with specially engineered arms that can be configured in either symmetric or asymmetric positions. This dual-configuration arm design offers a very low lift pad height within the EZ-metric arm setup, enabling operators to position the arms under low-clearance vehicles as well as heavier pickup trucks with confidence.
Equipped with dual direct-drive cylinders, the PRO-9D utilizes a lifting system with fewer moving components, enhancing durability and ensuring long-term, dependable service.
Features
- 9,000 lb capacity
- Overhead, open-floor design

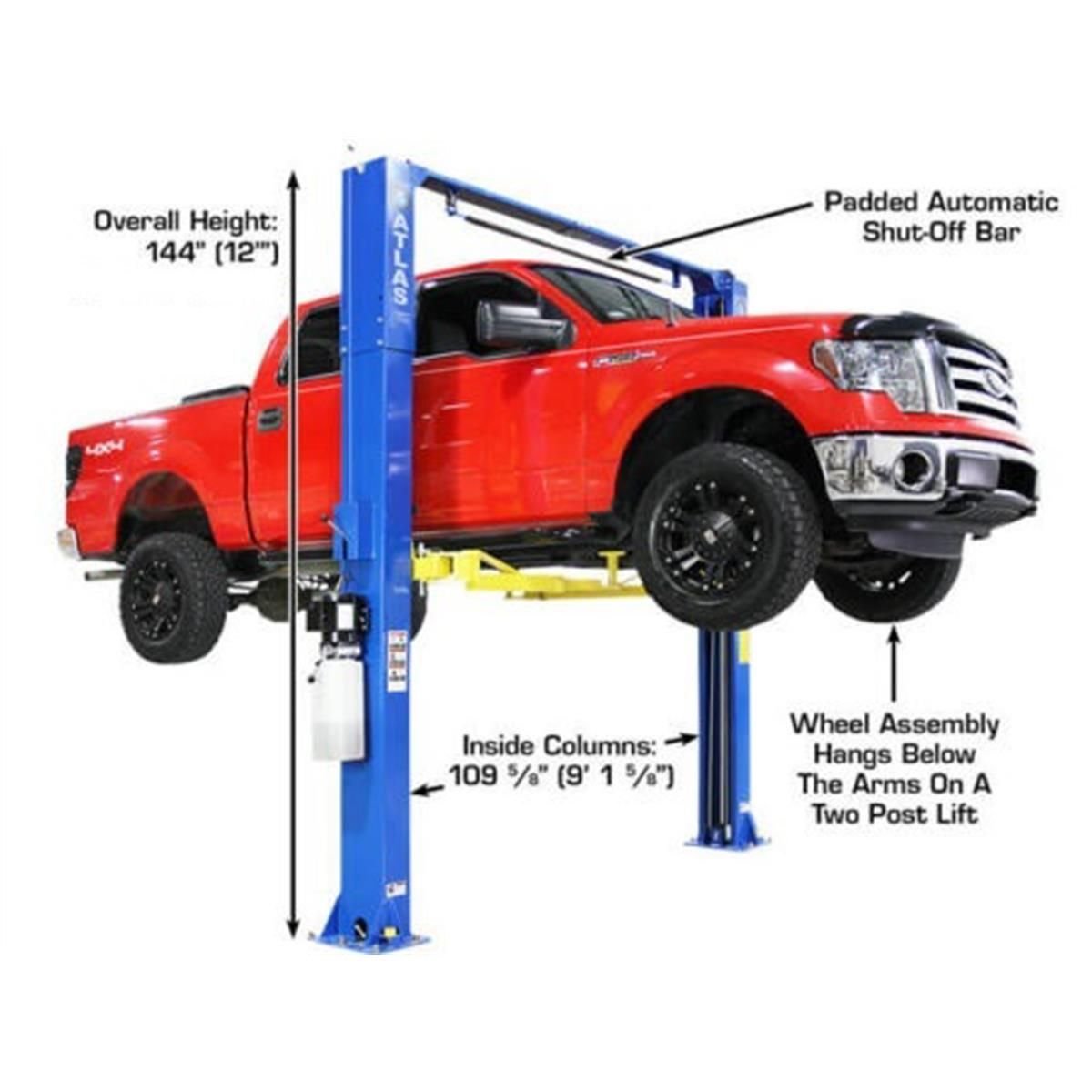

- Overall height: 144″ (12′)

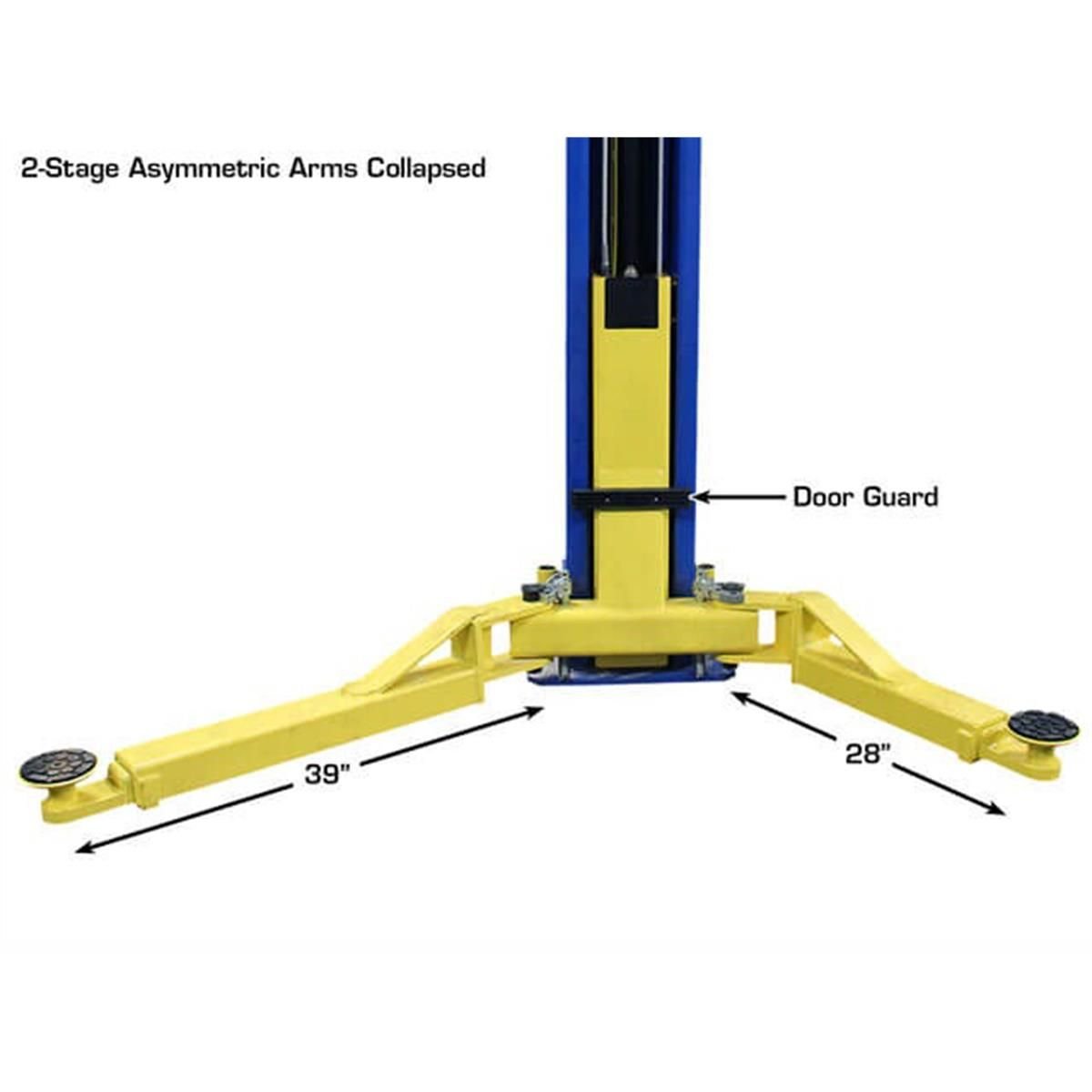

- Asymmetric/symmetric arm configuration

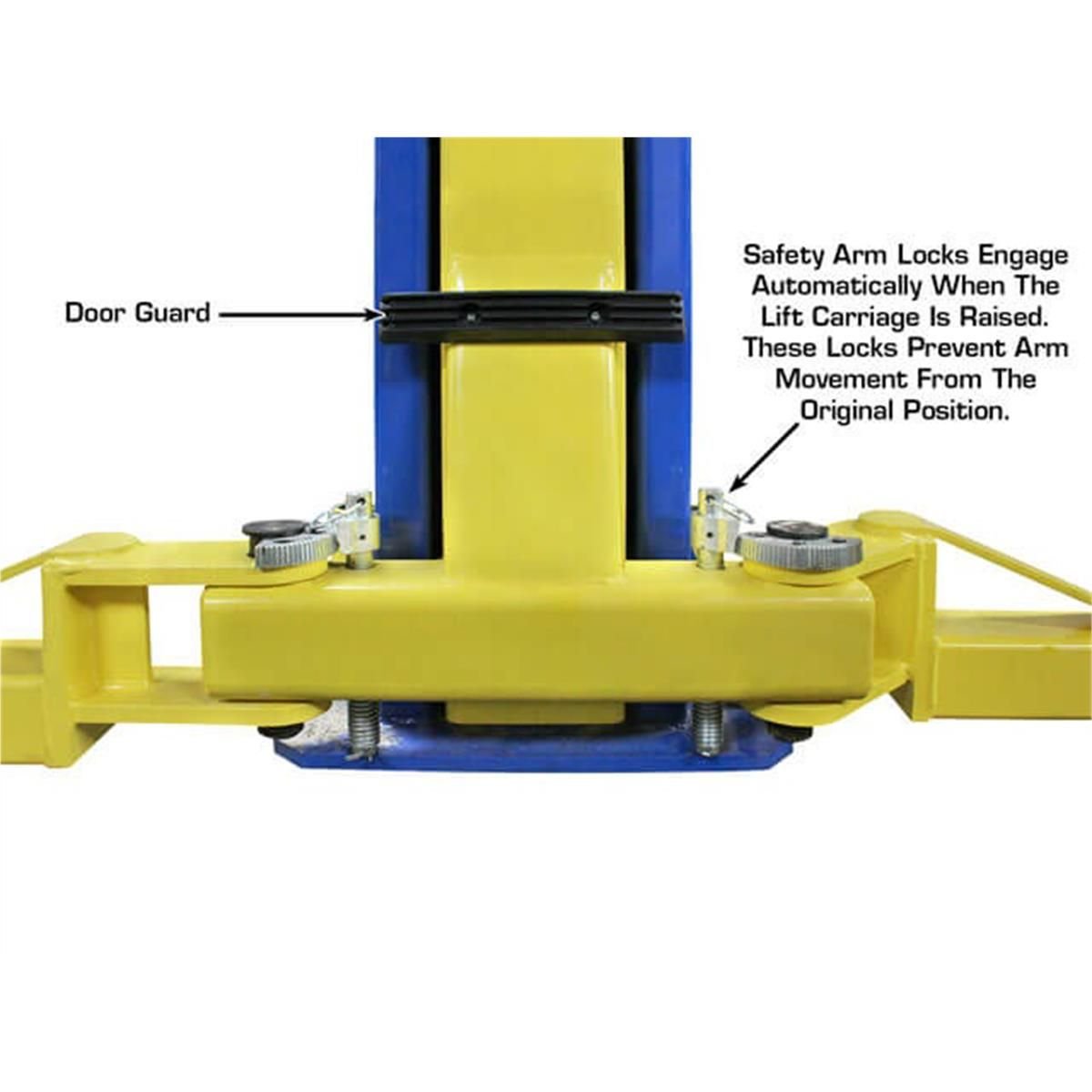

- Automatic arm restraints

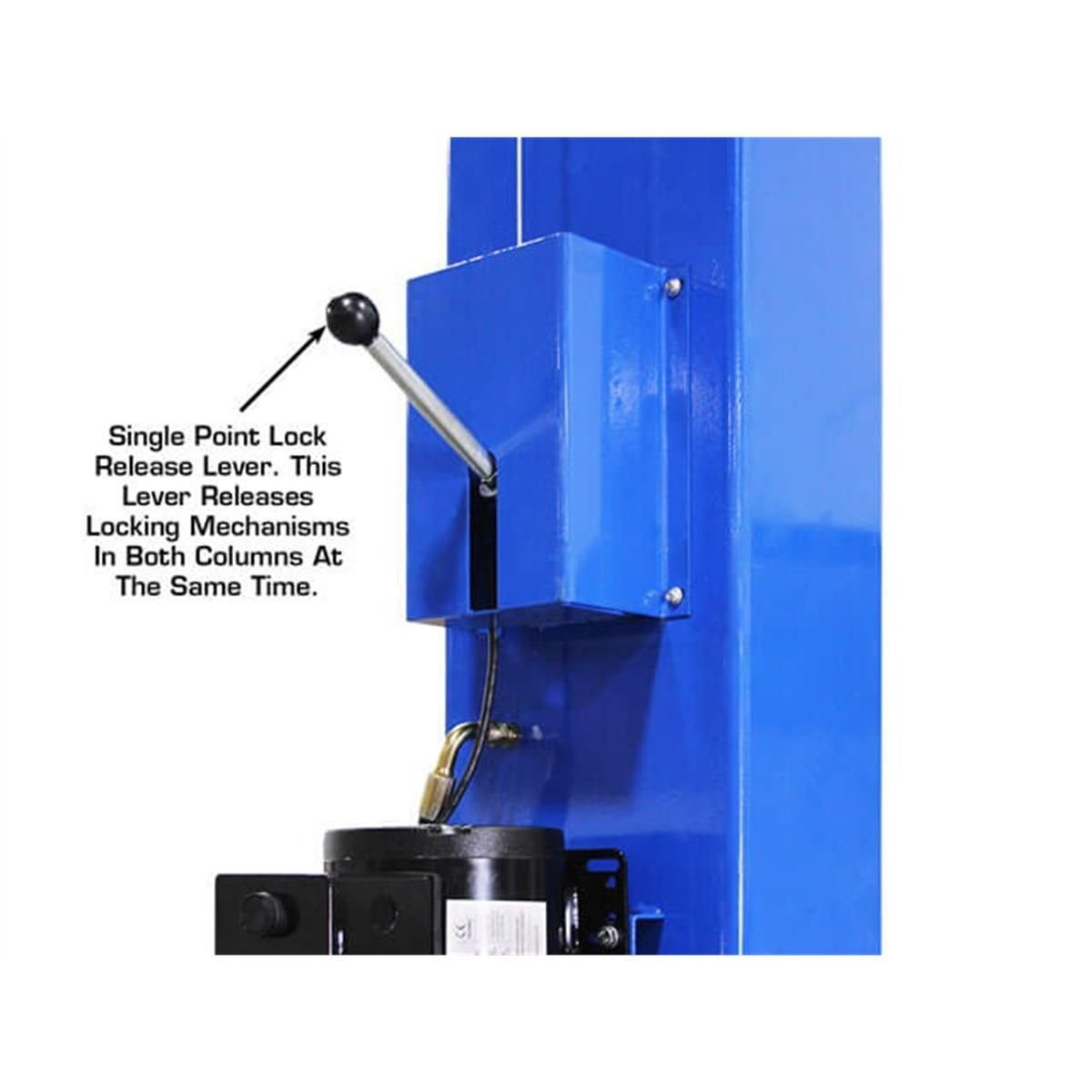

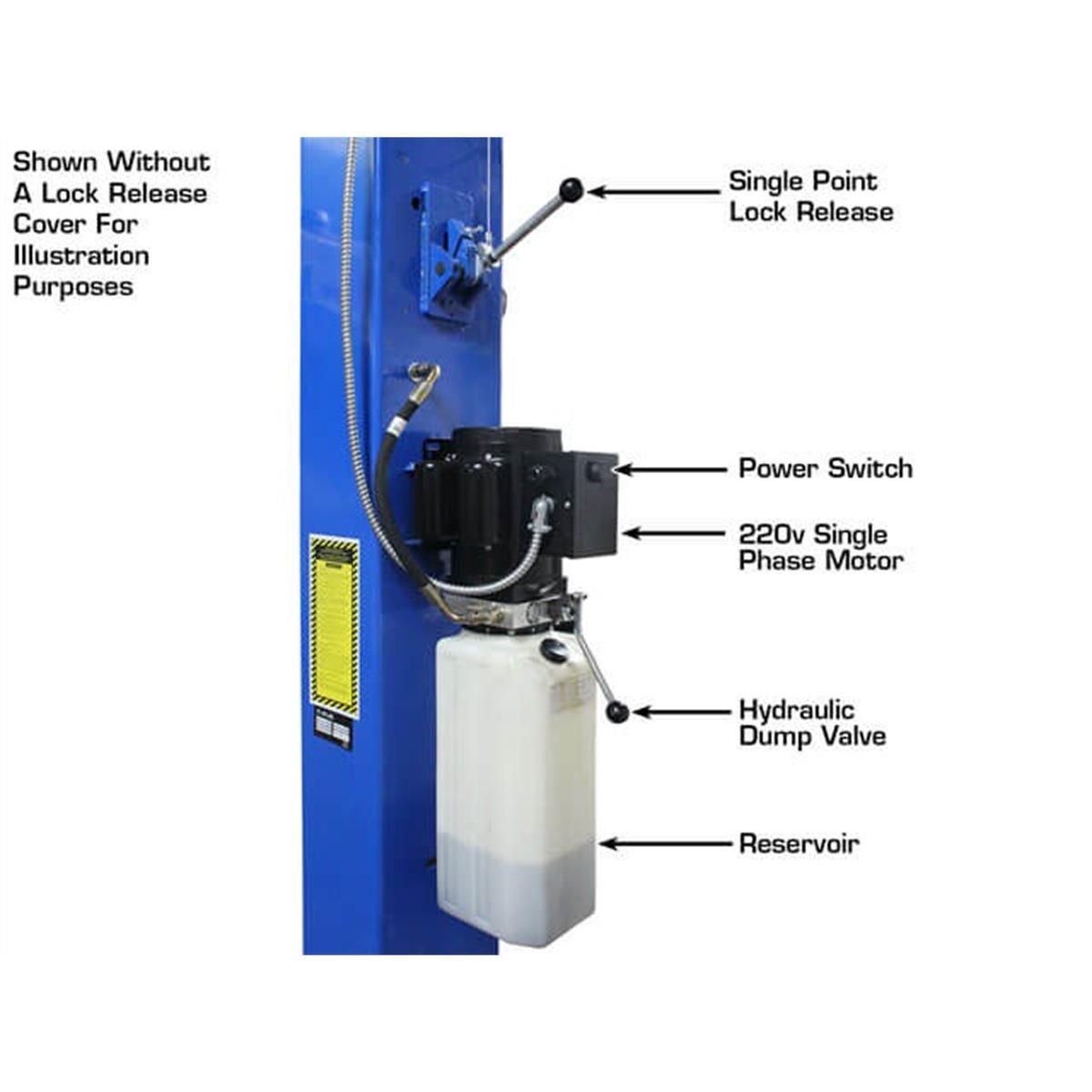

- Single-point lock release
- Rubber guards on carriages

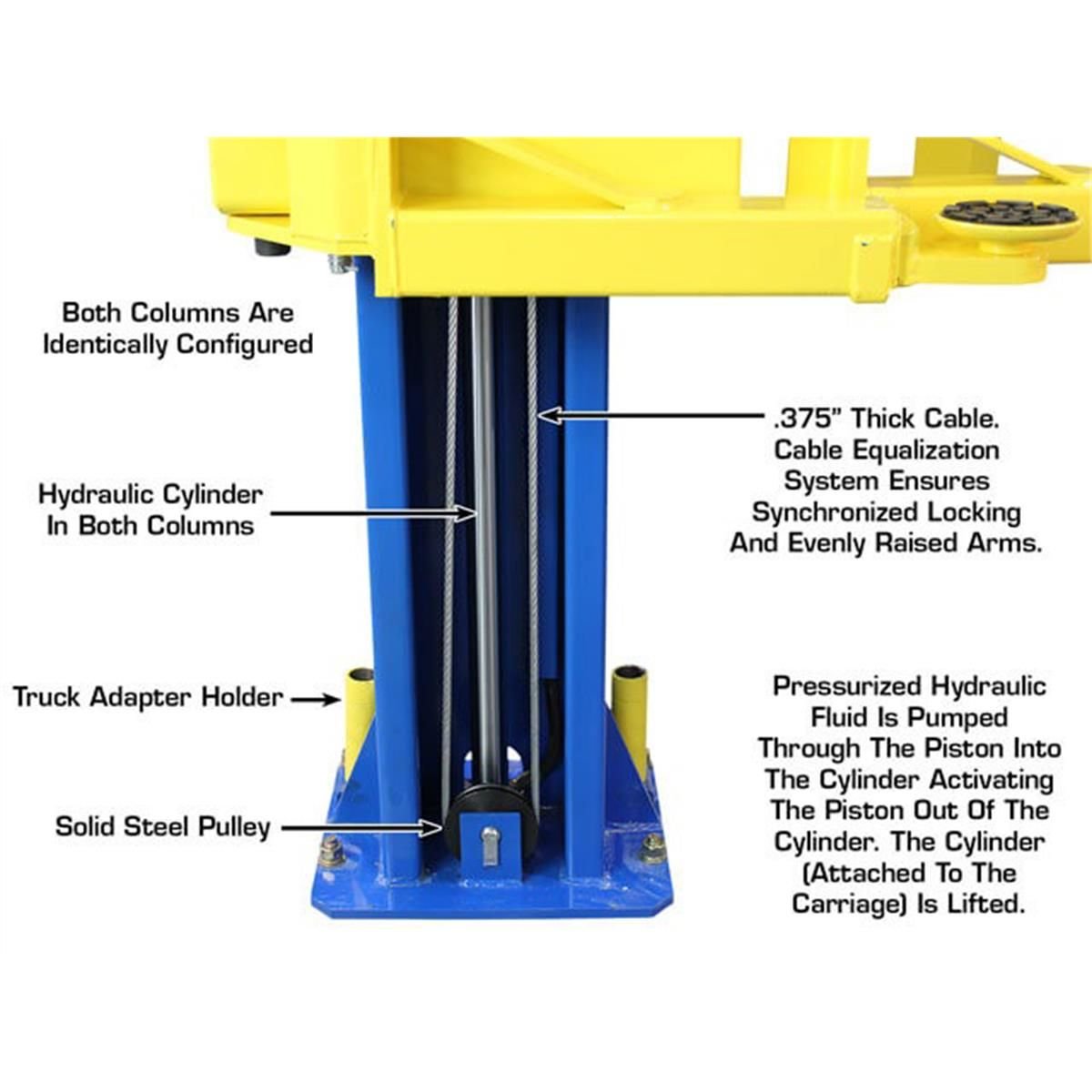

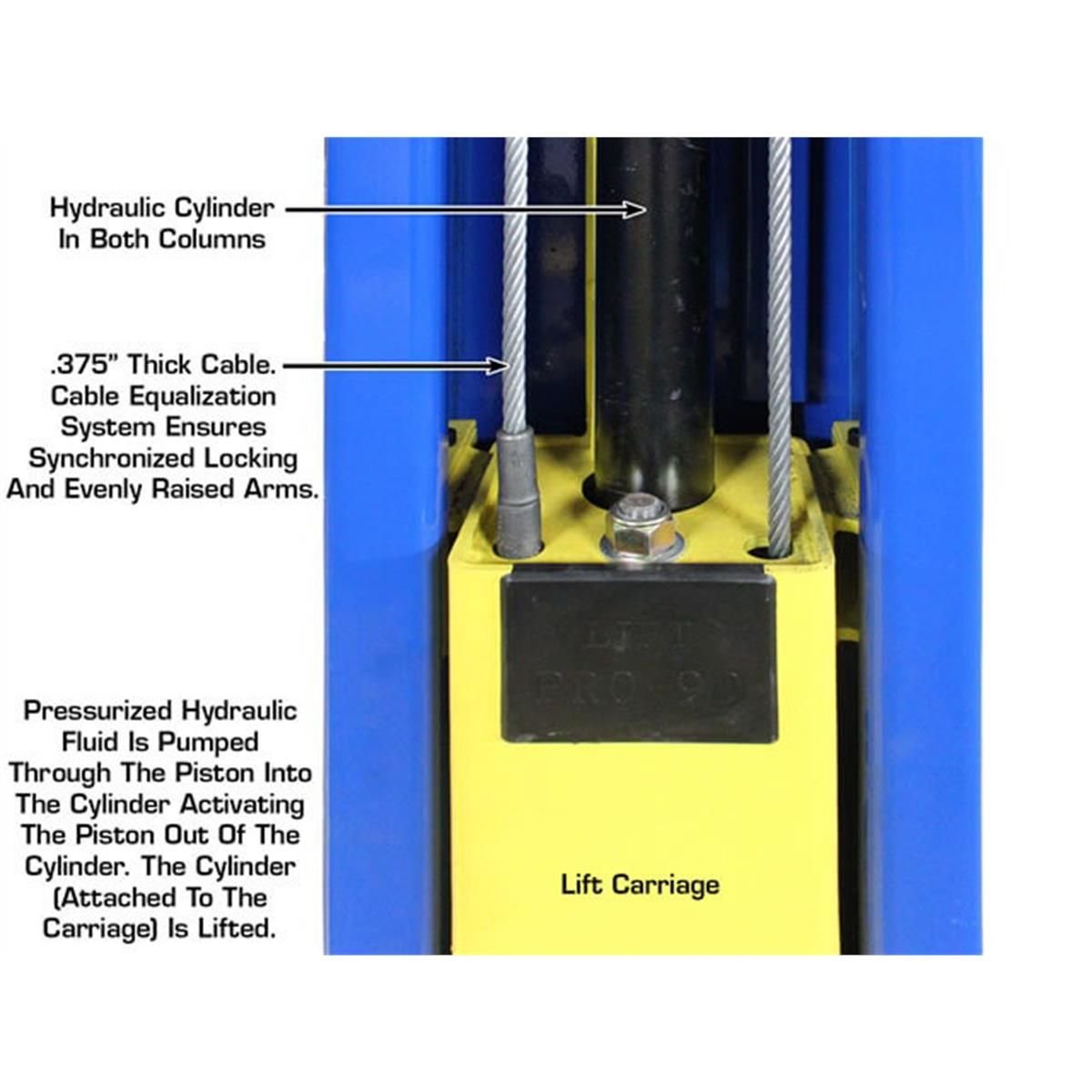

- Dual direct-drive cylinders
- Powder coat finish

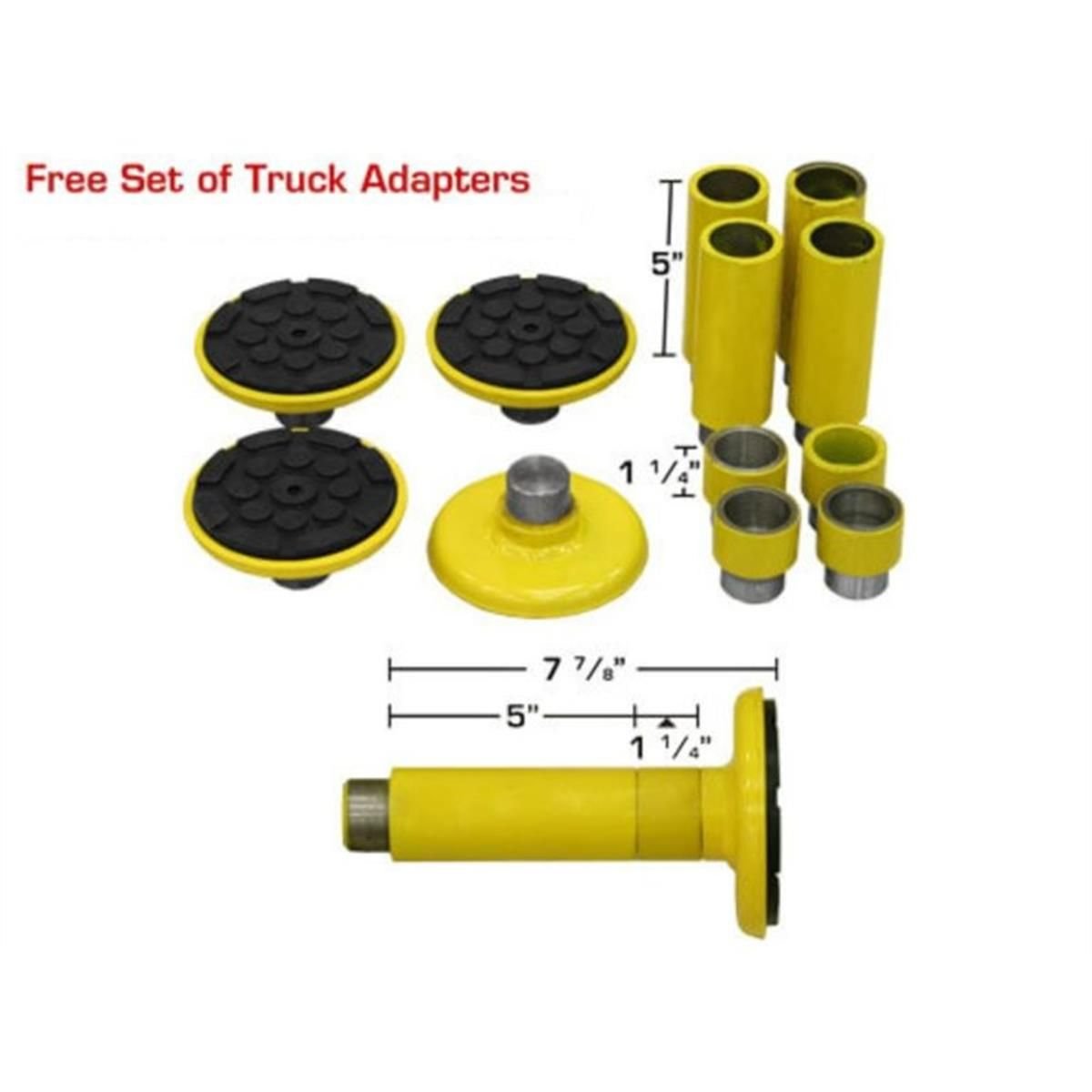

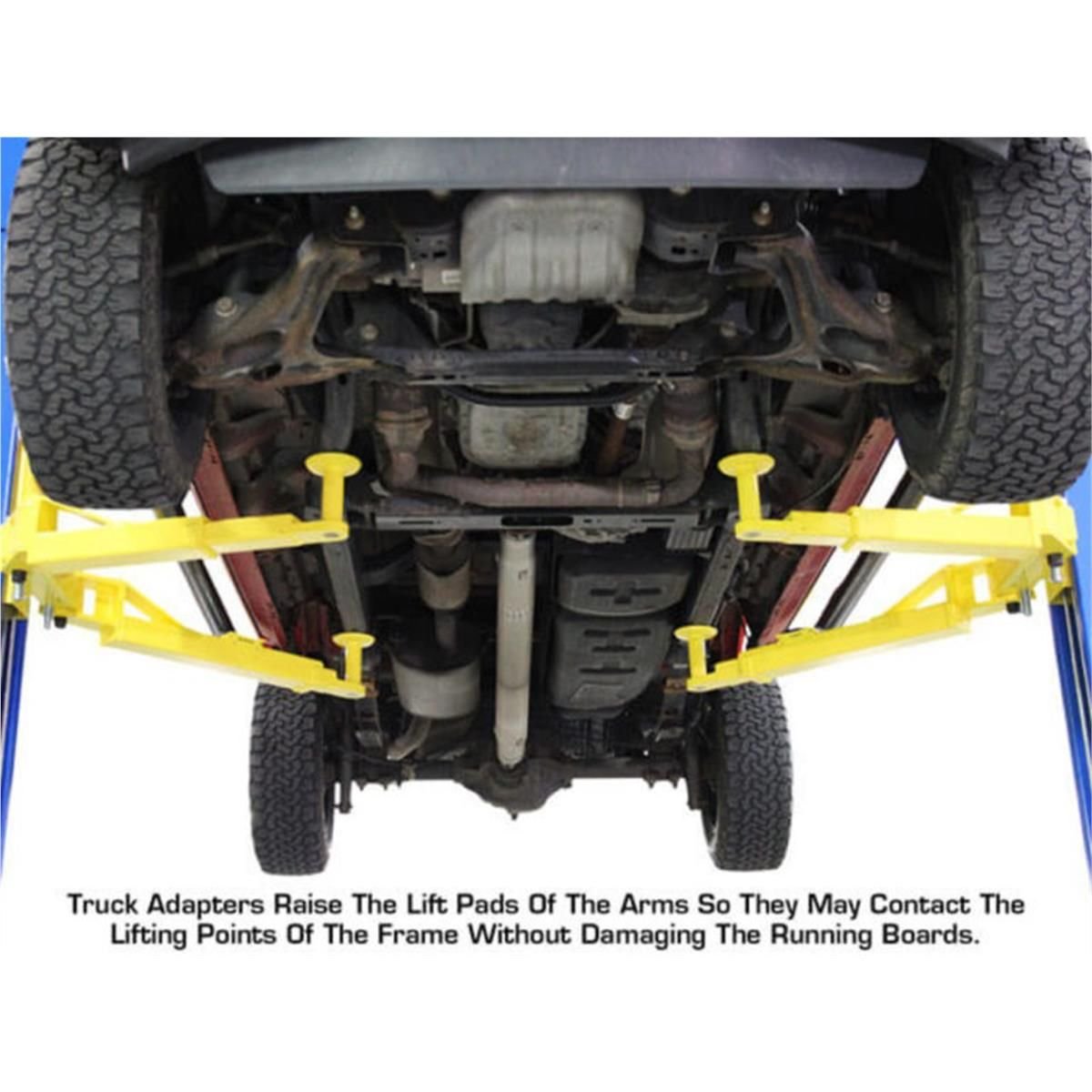

- Free 8-piece truck adapter set

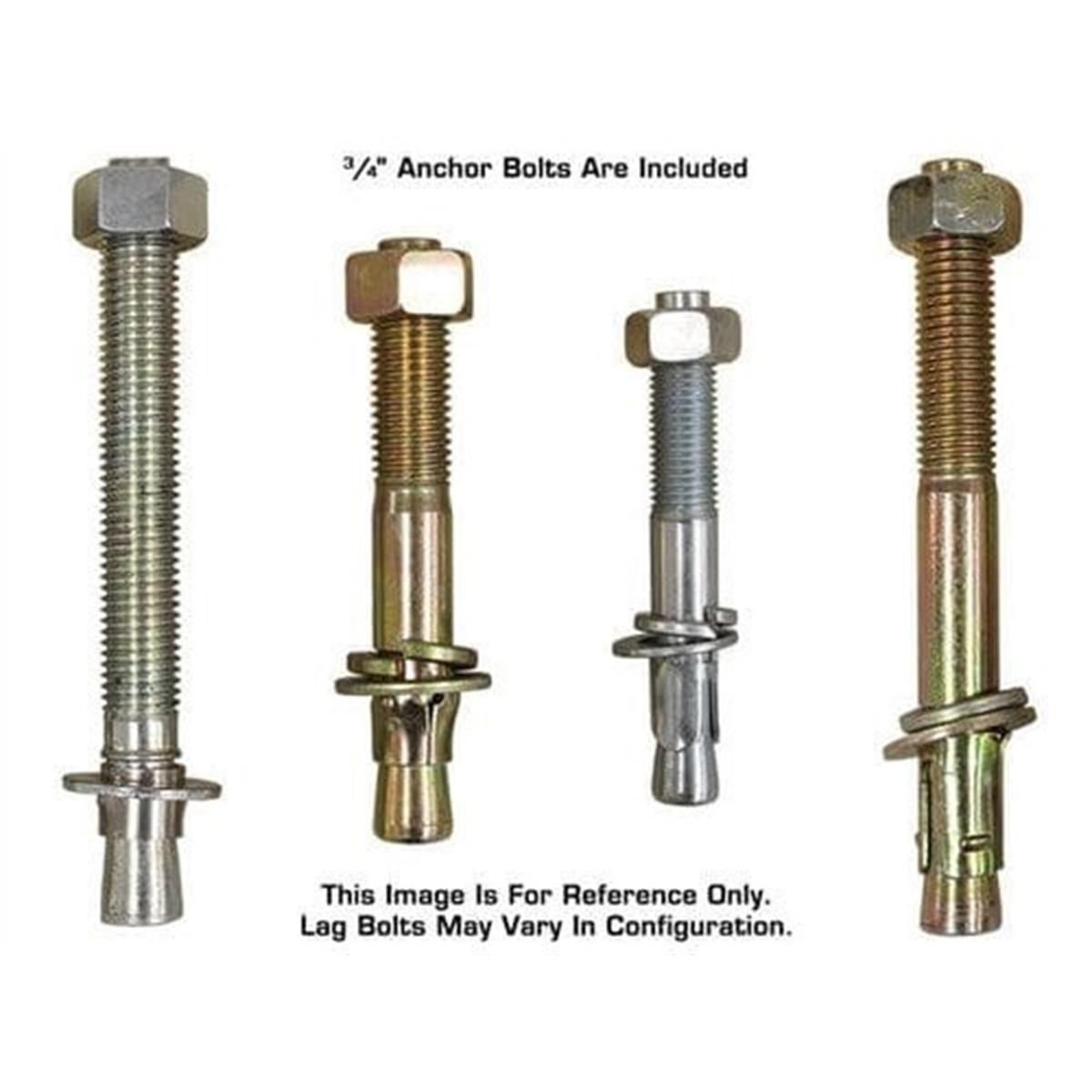

- Mounting hardware included

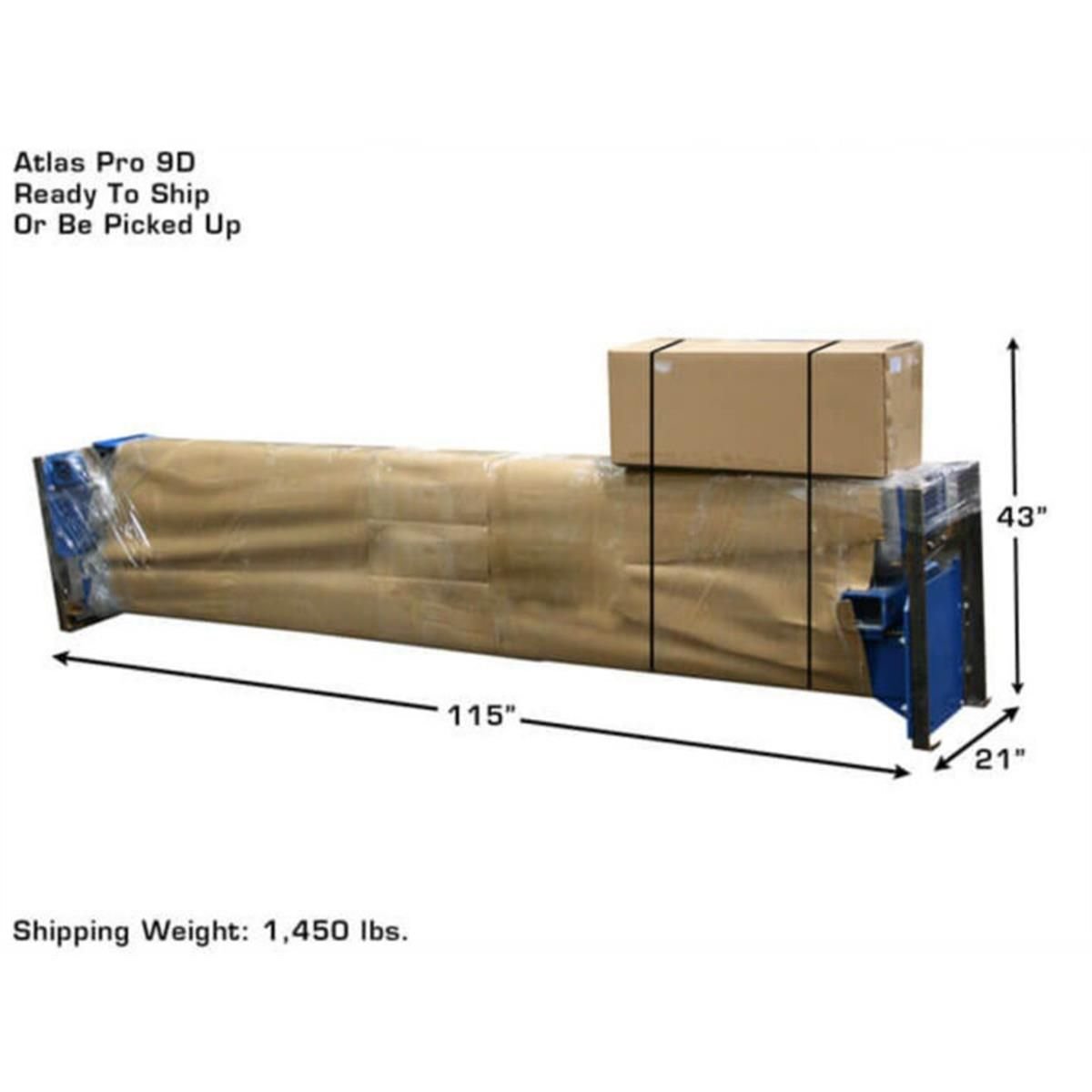

- Shipping weight: 1,450 lbs.
- 5-year structural warranty, 2-year hydraulic/power warranty
Specifications
Atlas® PRO-9D Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 lbs |

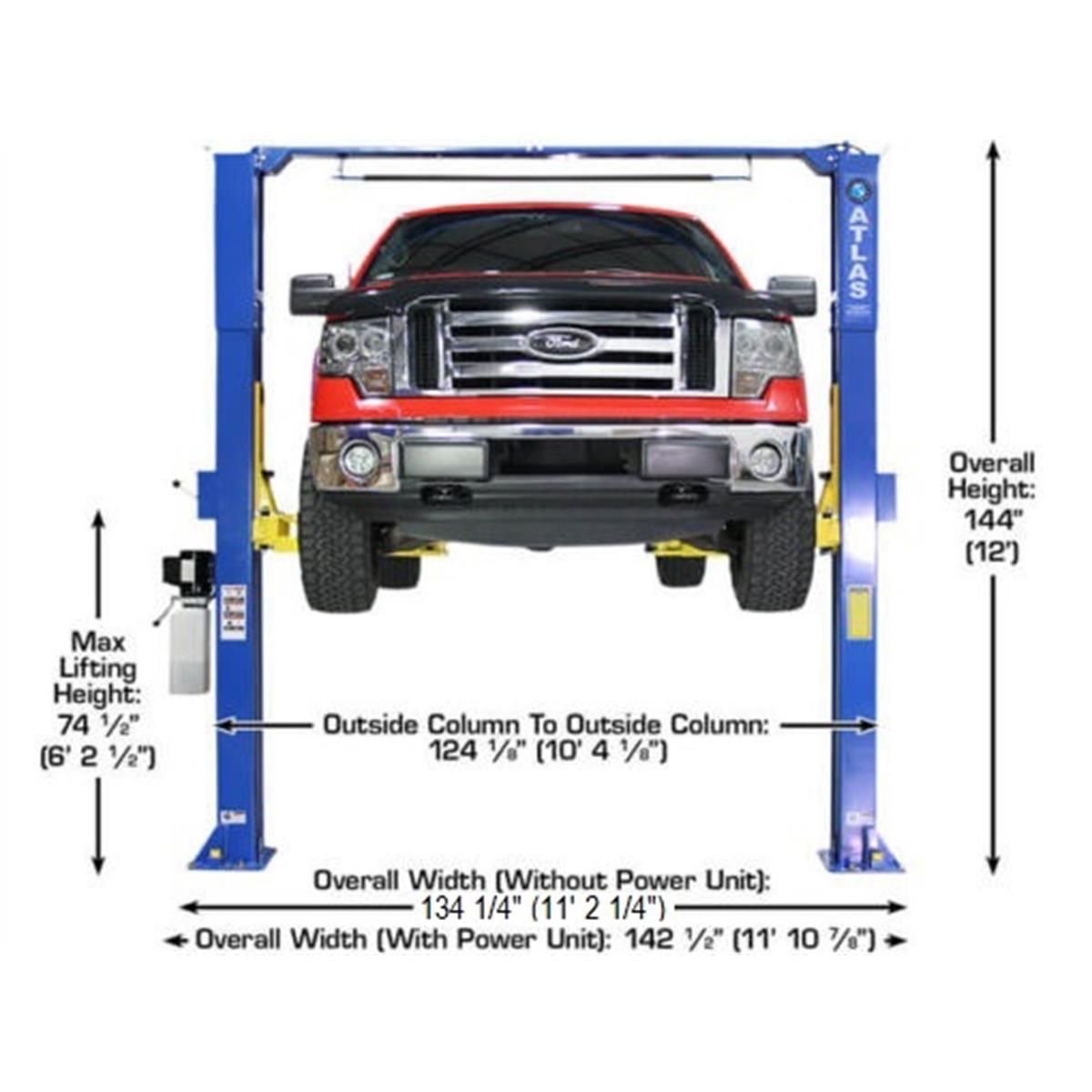

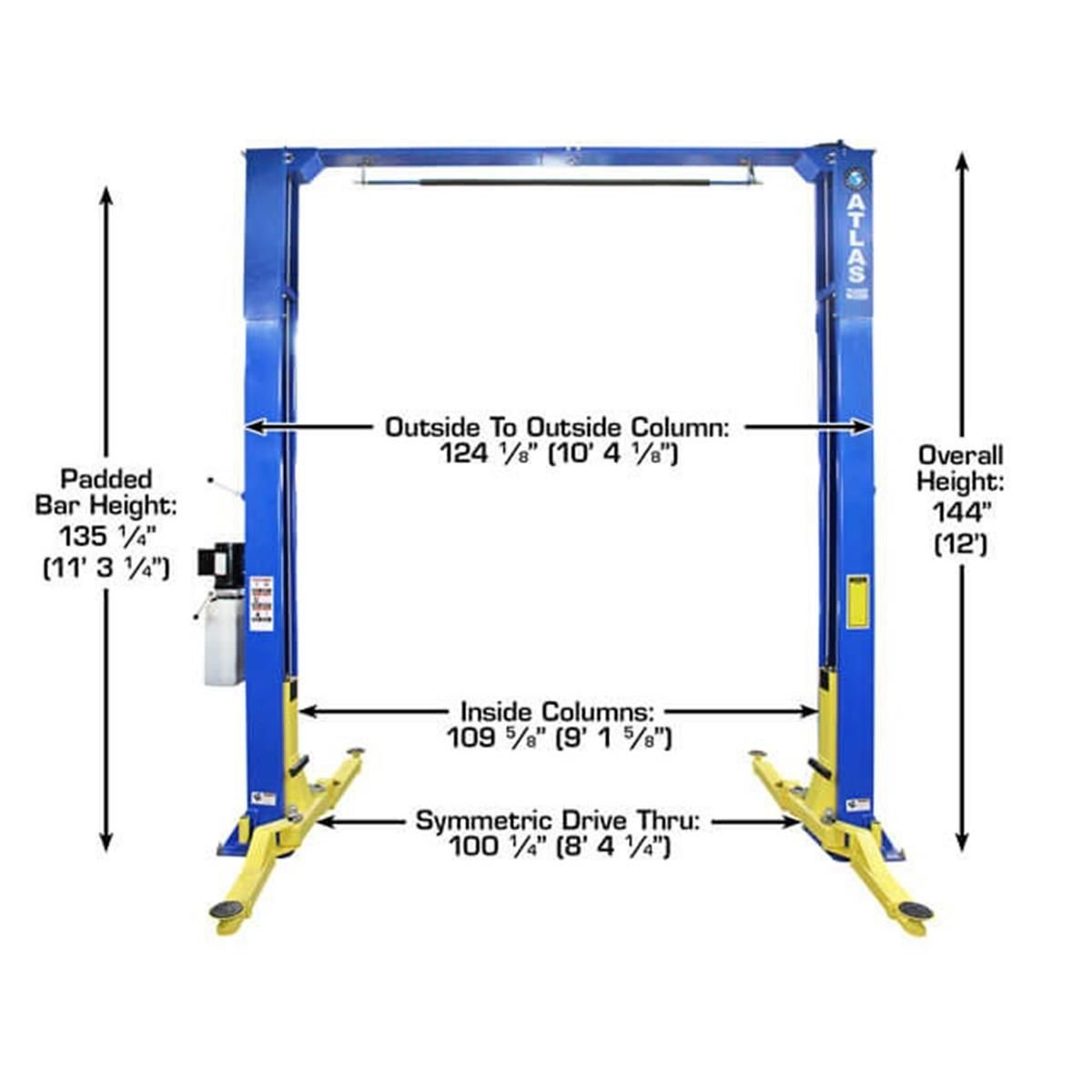

| Overall Height | 144″ (12′) |
| Overall Floor Width | 134 1/2″ (11′ 2 1/2″) |
| Outside Column to Outside Column | 124 7/8″ (10′ 4 7/8″) |
| Maximum Lift Height (Without Adapters) | 68″ |

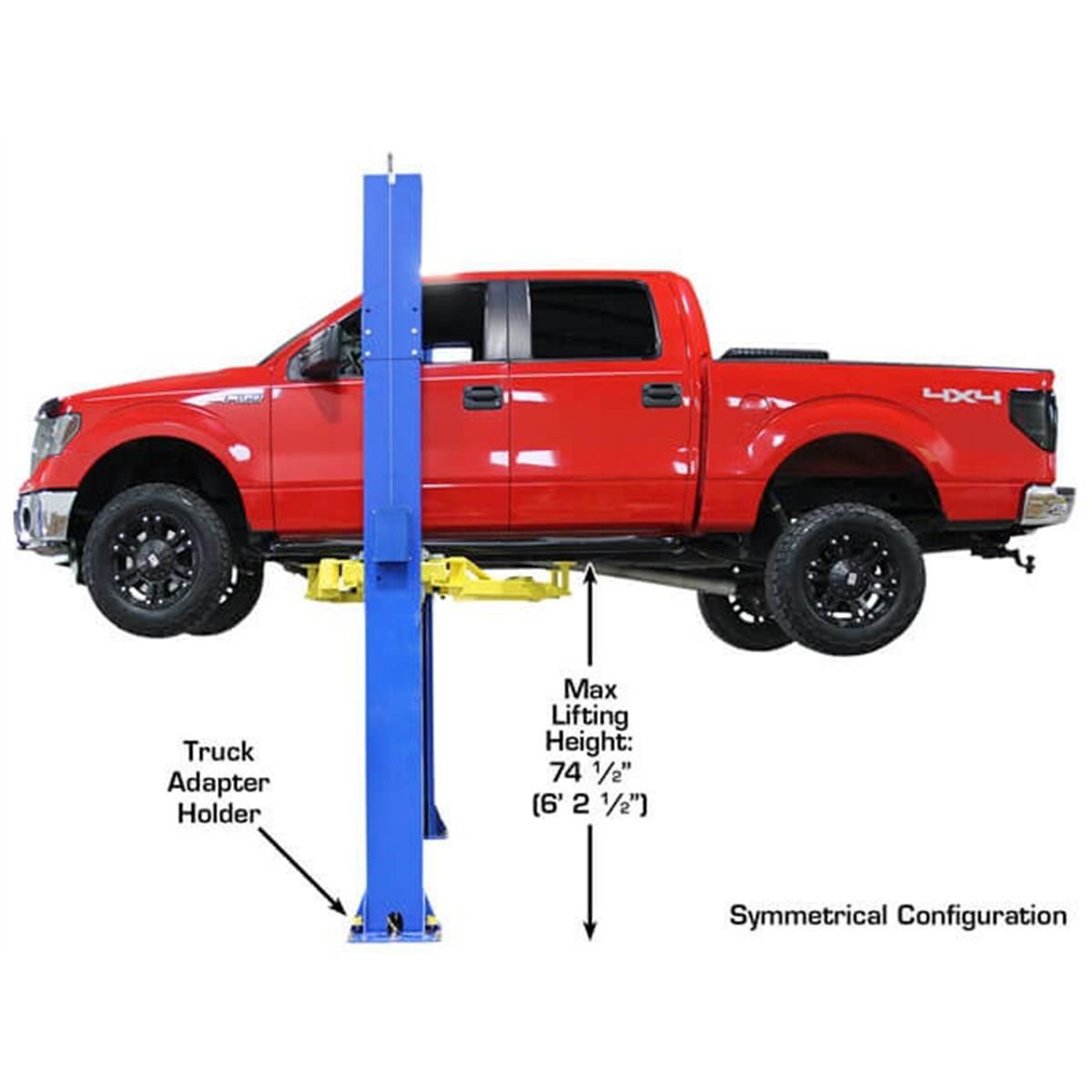

| Maximum Lift Height (With Adapters) | 74 1/4″ |
| Minimum Arm Height | 4 1/2″ |
| Inside Column Width | 110″ (9′ 2″) |

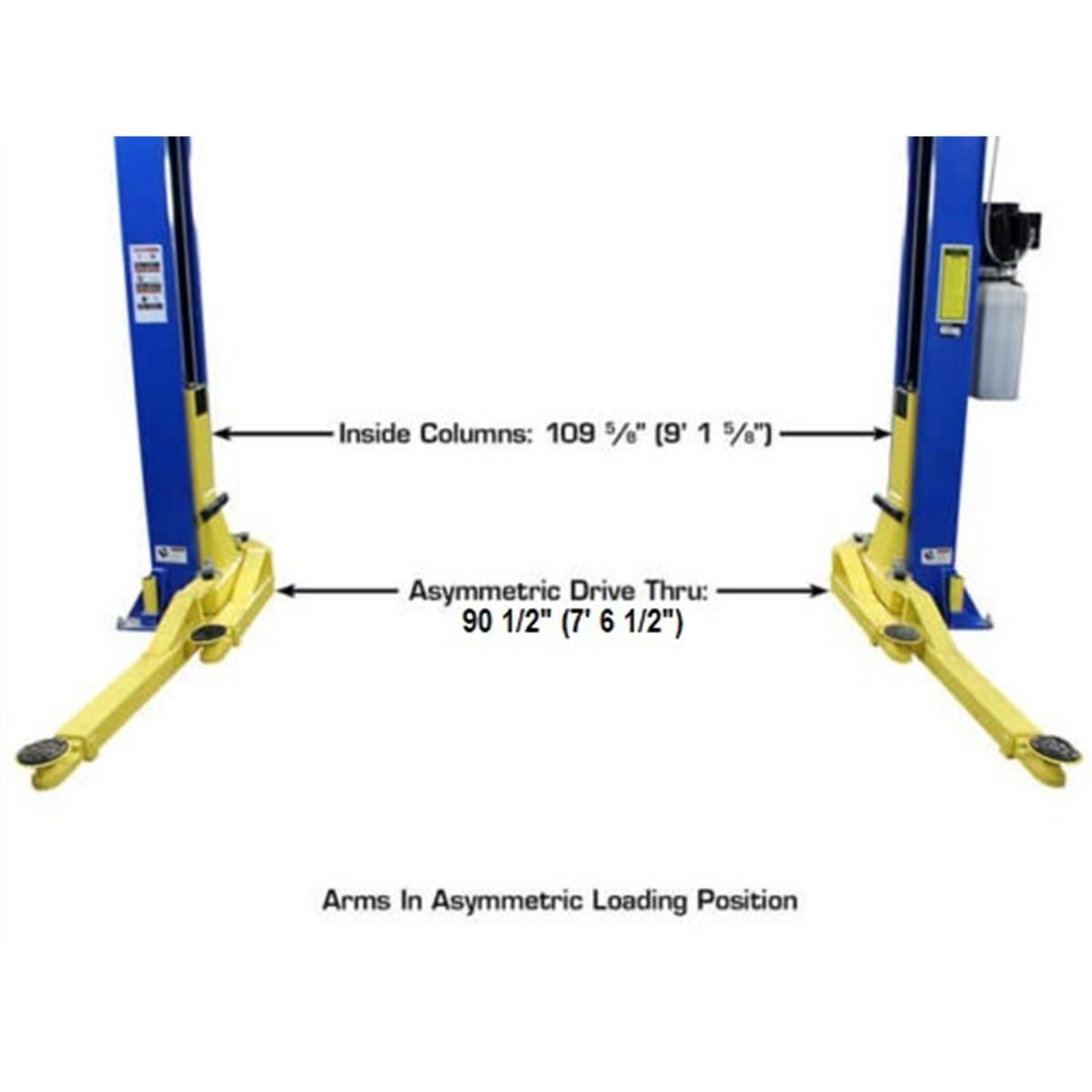

| Drive-Thru Clearance | 100″ (8′ 4″) symmetric / 90 1/2″ (7′ 6 1/2″) asymmetric |
| Column Size | 7 1/4″ × 11″ |
| Column Steel Thickness | 5 mm |
| Base of Lift | 14 1/4″ × 18″ |
| Motor / Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 1,450 lbs |

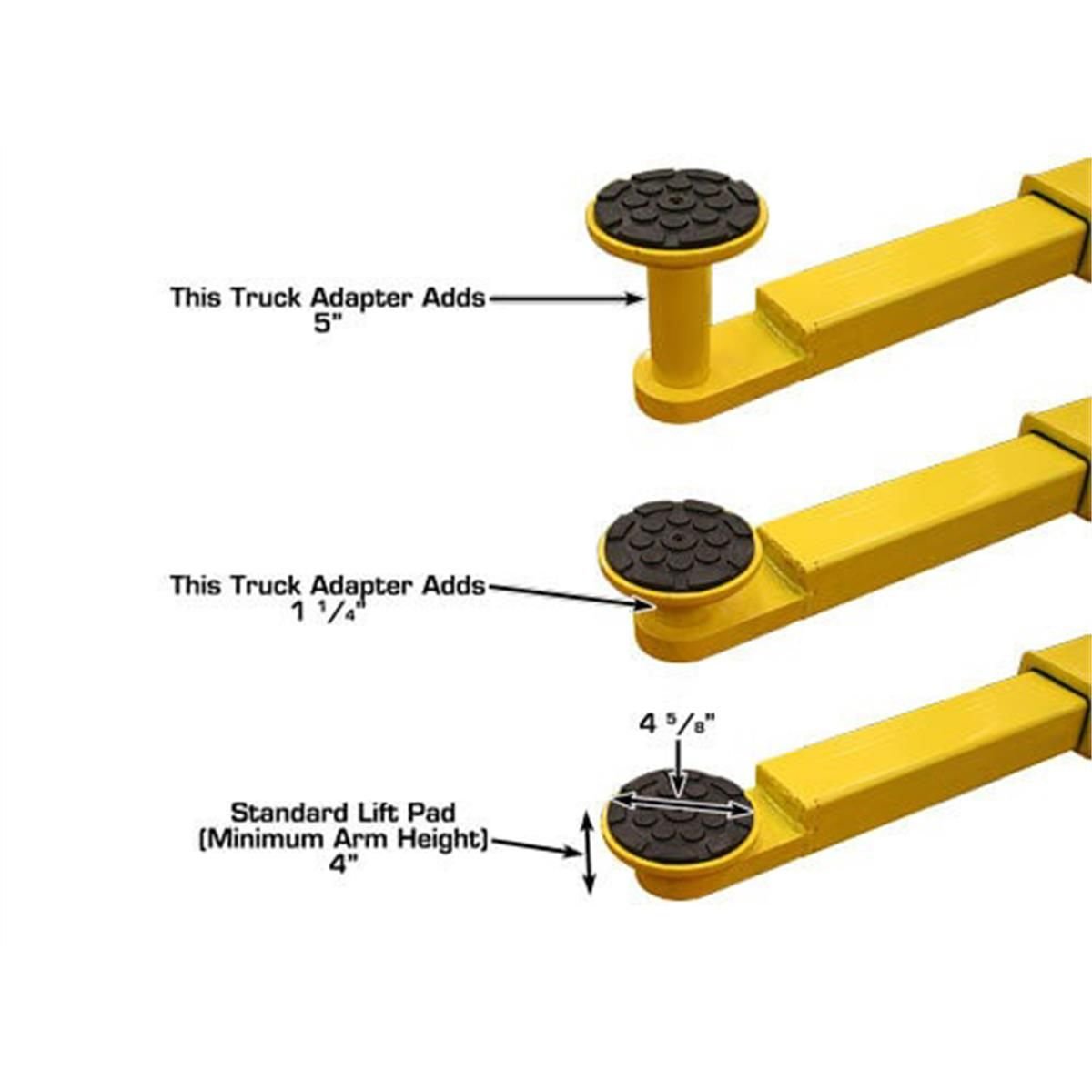

| Adapter Heights | 4 each: 1.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
Installation Requirement:
Requires a minimum of 4″ thick concrete with a 3,000 PSI rating.
