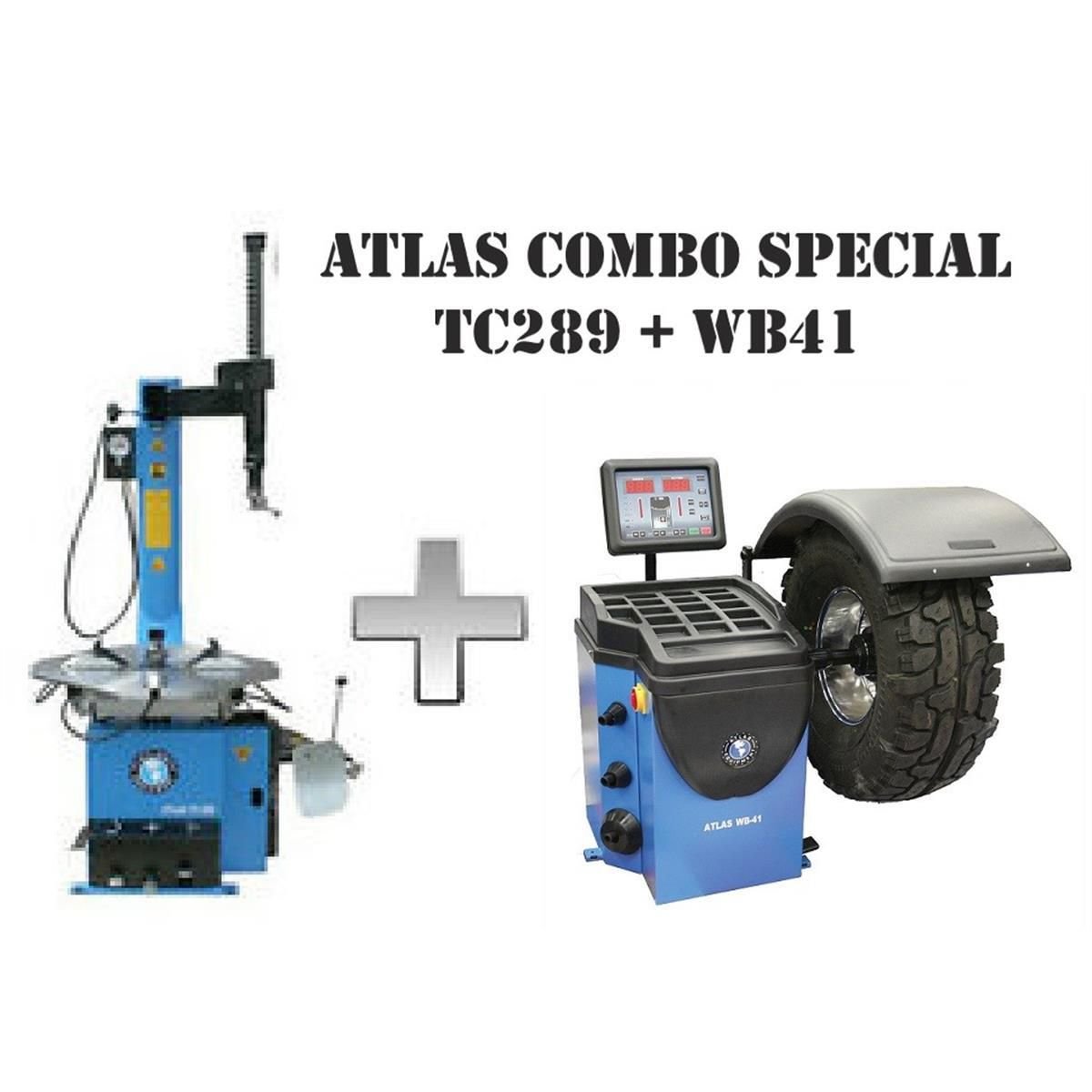

Atlas TC289 Tire Changer + WB41 Wheel Balancer Combo Package
Price range: £2,105.15 through £2,284.34
Description
This combination package includes the Atlas® TC289 rim-clamp, swing-arm tire changer and the Atlas® WB41 computerized spin balancer. It is well suited for farms, homeowners, and shops of all sizes that require dependable tire changing and balancing equipment. Both units operate on 110 volts, are CE approved, and are backed by the Atlas® 1-year parts-only warranty.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features

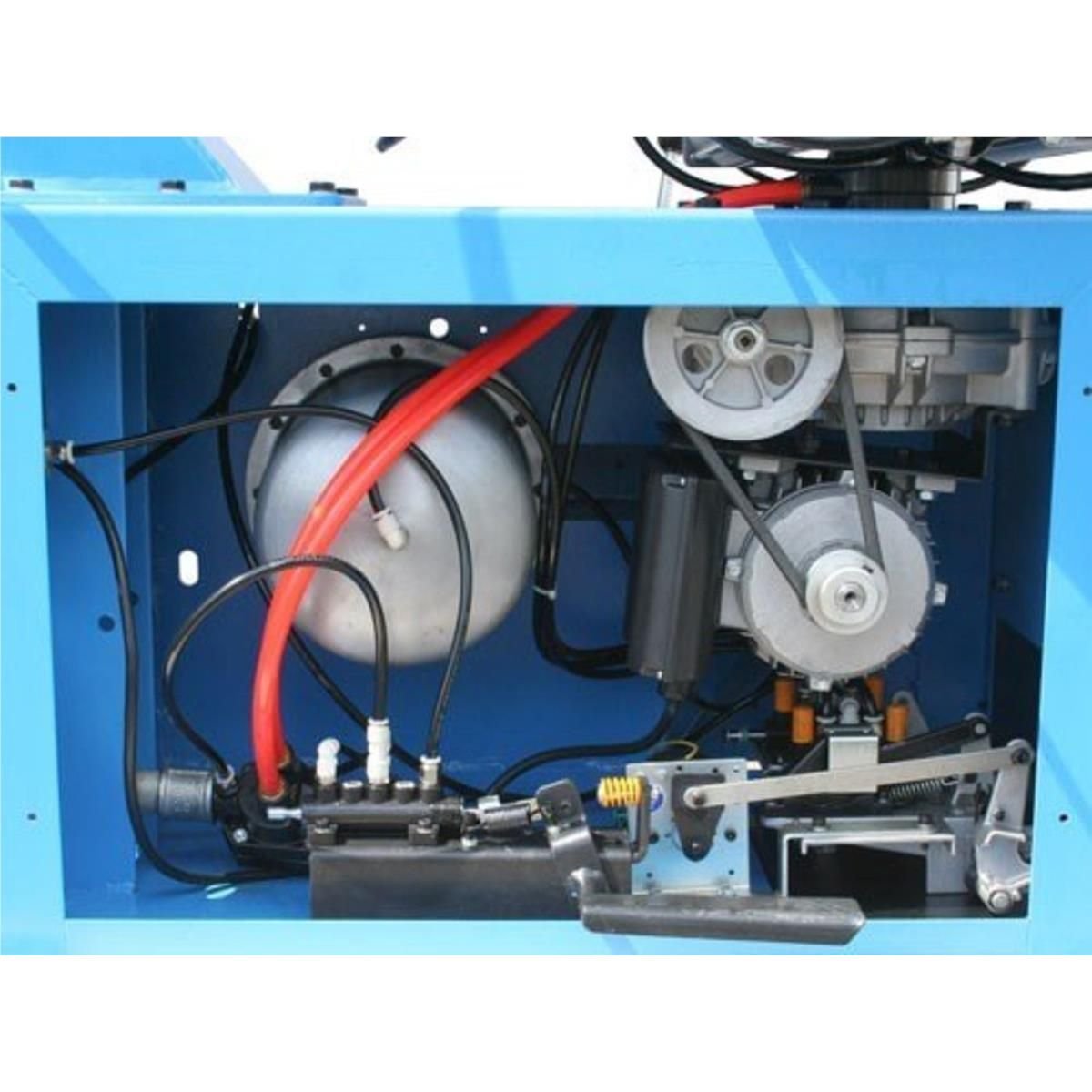

TC289 Tire Changer
- Rim Clamp / Swing Arm Tire Changer
- Extra-Large Turntable for Increased Clearance
- Built-In “Beadblaster”
- Adjustable Bead Breaker Plate
- Adjustable Jaws with Three Mounting Positions
- Oiler, Filter, and Regulator Included (External Air Supply Required)

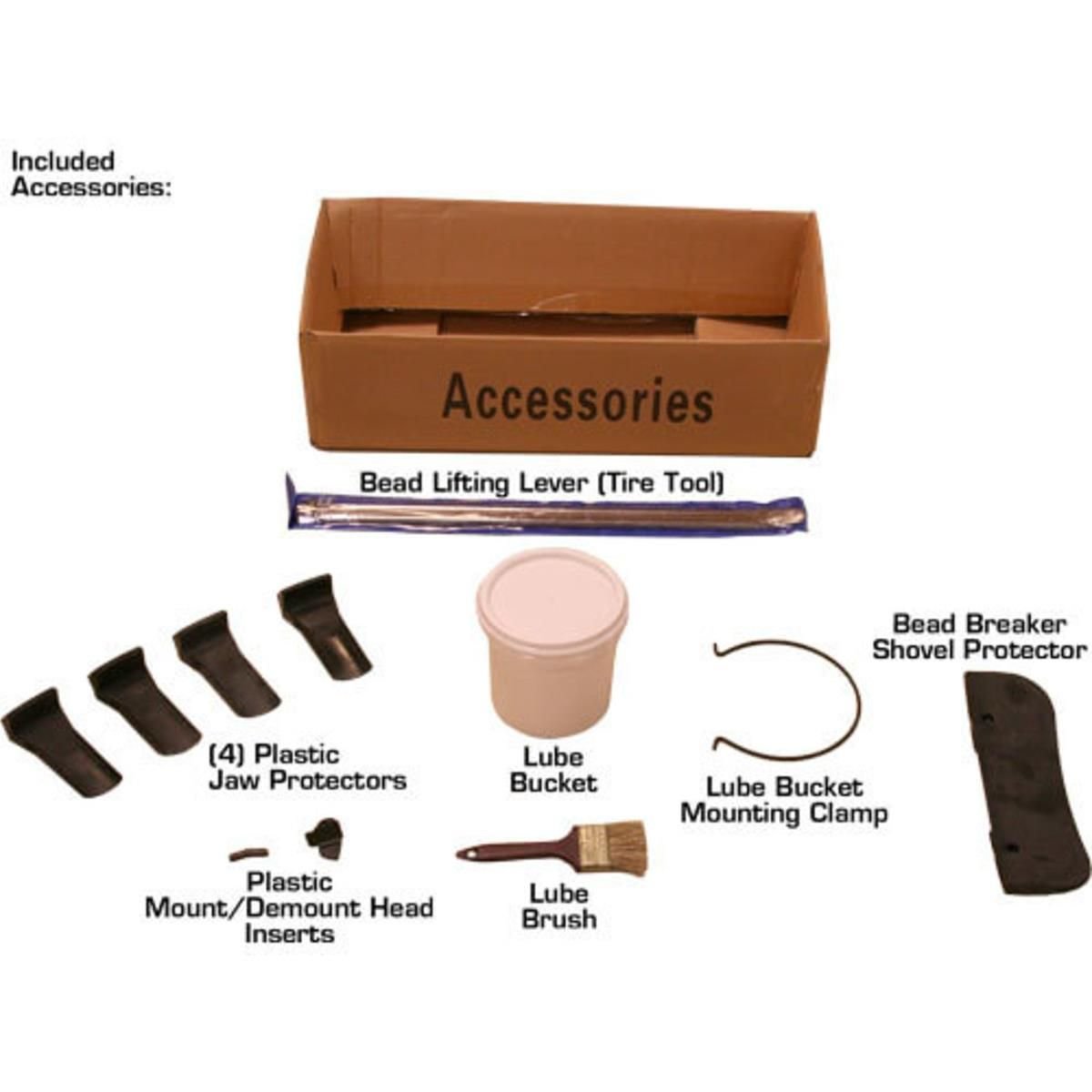

- Plastic Protectors Included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box with Gauge Included

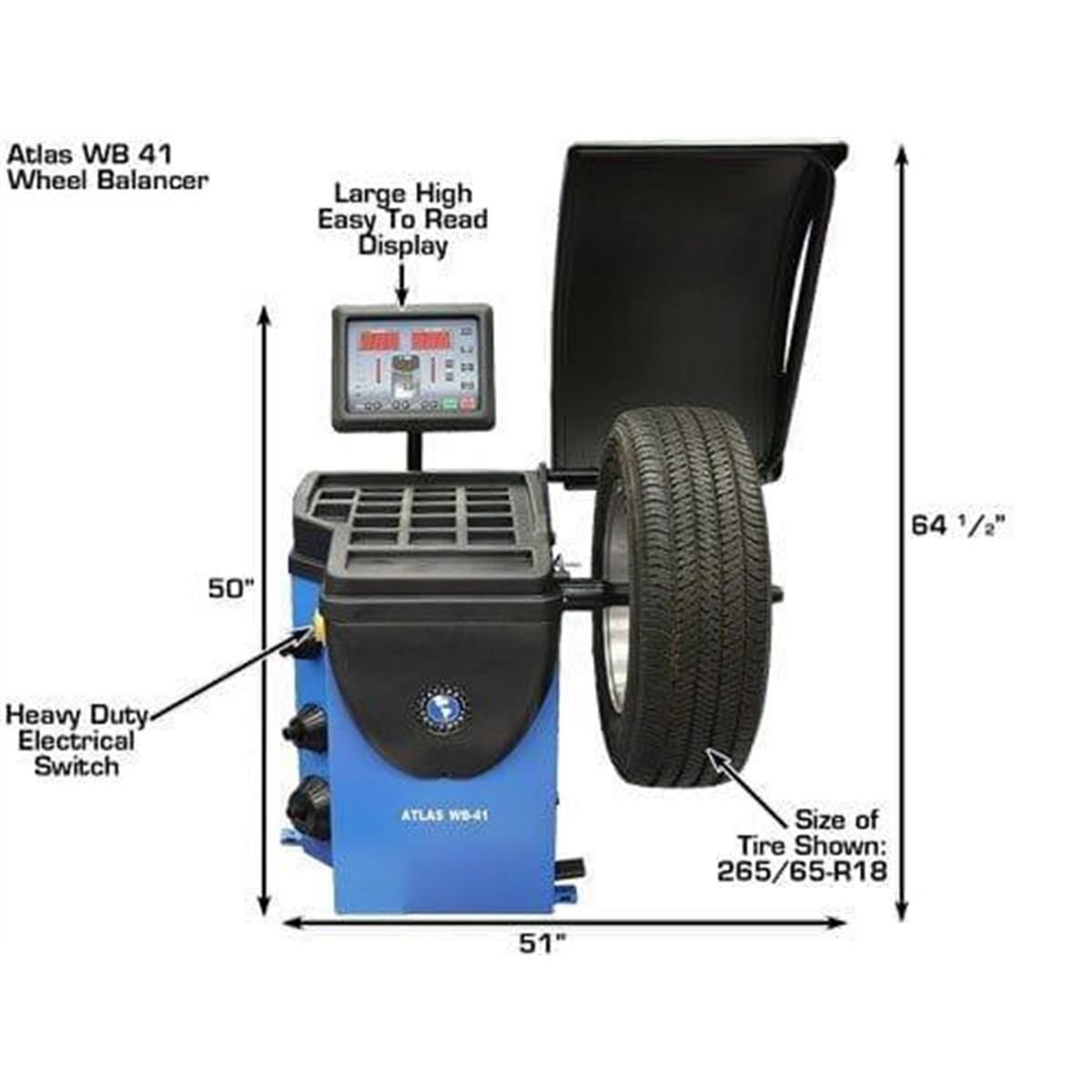

WB41 Wheel Balancer
- Computer-Controlled Spin Balancer

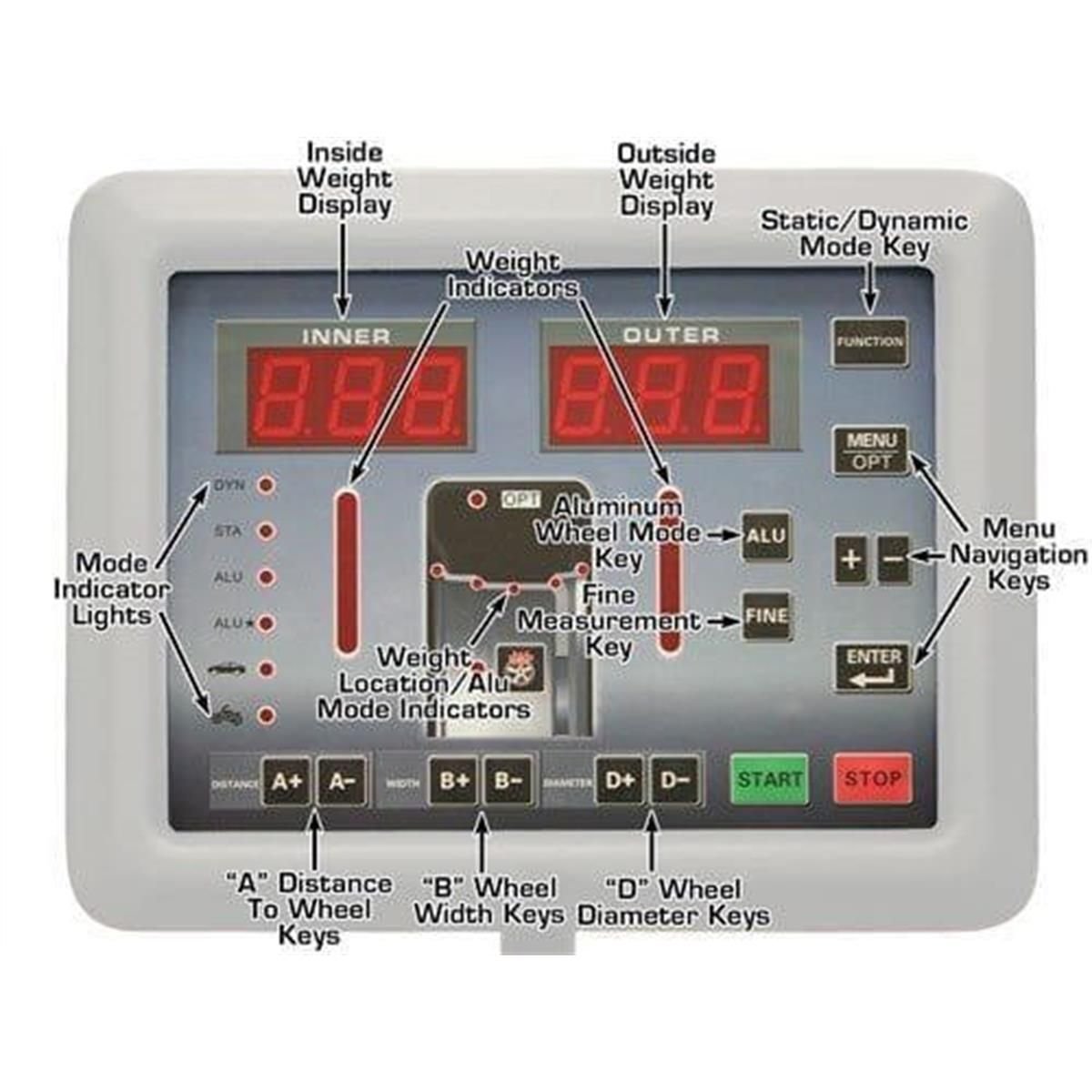

- Raised, Easy-to-Read Display
- Large Wheel Weight Tray
- Static and Dynamic Balancing Modes
- Rapid Optimization (OPT)
- Self-Diagnosis and Self-Calibration
- Display in Grams or Ounces; Millimeters or Inches

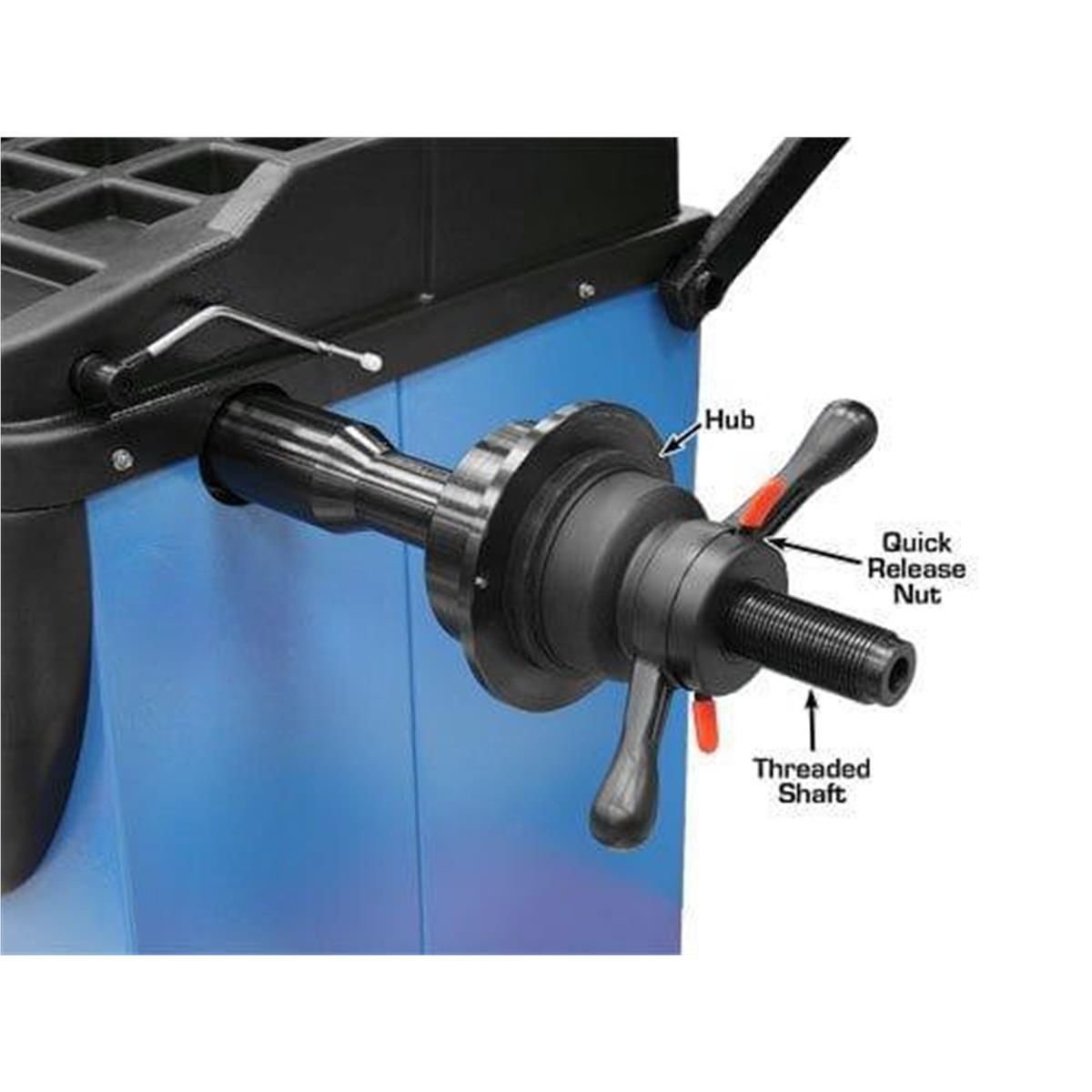

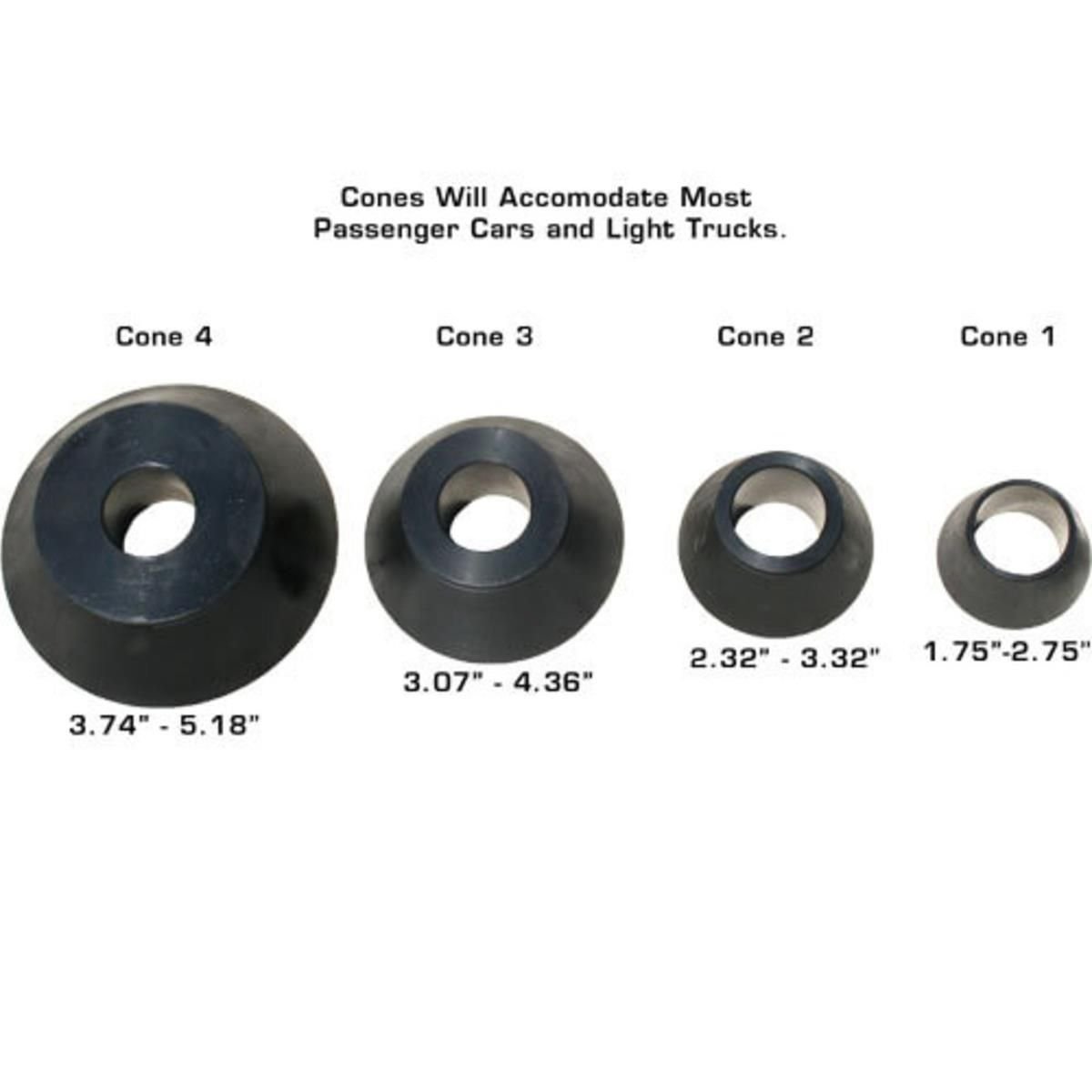

- Includes Four Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, and Wheel Measuring Calipers
Specifications
Atlas® TC289 Specifications
| Specification | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |
| External Locking Rim Dimension (3 Positions) | 1) 11 7/8″ – 26″ 2) 12 7/8″ – 27″ 3) 13 3/4″ – 28″ |
| Internal Locking Rim Dimension (3 Positions) | 1) 13 7/8″ – 27 7/8″ 2) 14 5/8″ – 28 7/8″ 3) 15 5/8″ – 29 7/8″ |
| Maximum Tire Diameter | 47″ |
| Maximum Wheel Width (Bead Breaker) | 18″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110 Volt |
| Shipping Weight | 620 lbs. |
Atlas® WB41 Specifications
| Specification | Details |
|---|---|
| Max Tire Diameter | 39″ (3′ 6″) |
| Rim Sizes (Cars and Light Trucks) | 10″ – 32″ |
| Rim Width | 1 1/2″ – 20″ |

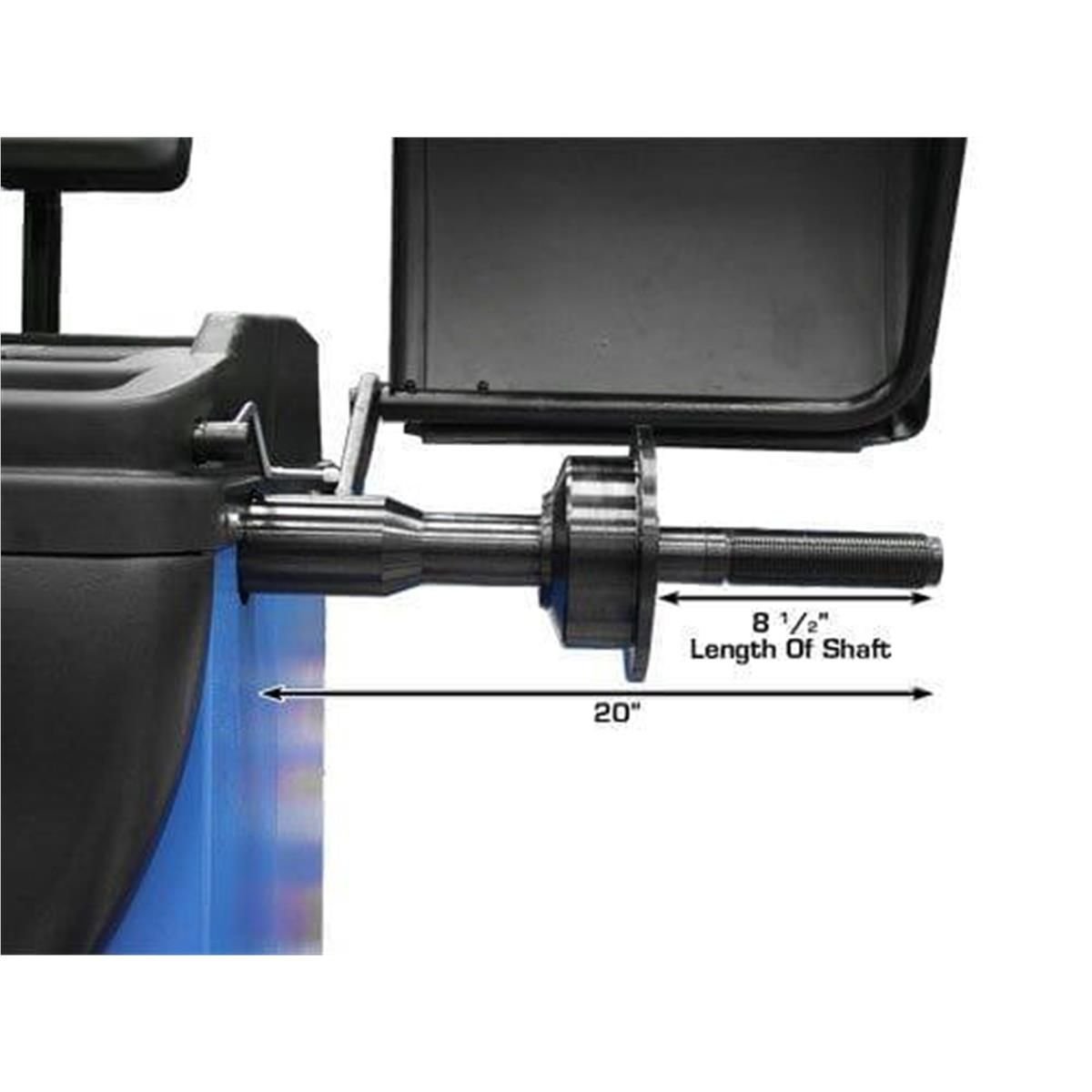

| Shaft Size | 40 mm |
| Max Wheel Weight | 150 lbs. |
| Balancing Speed | 150 RPM |
| Data Entry | Manual Entry (All Dimensions) |
| Measurements | Standard or Metric |
| Accuracy | 1 Gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110 Volt |

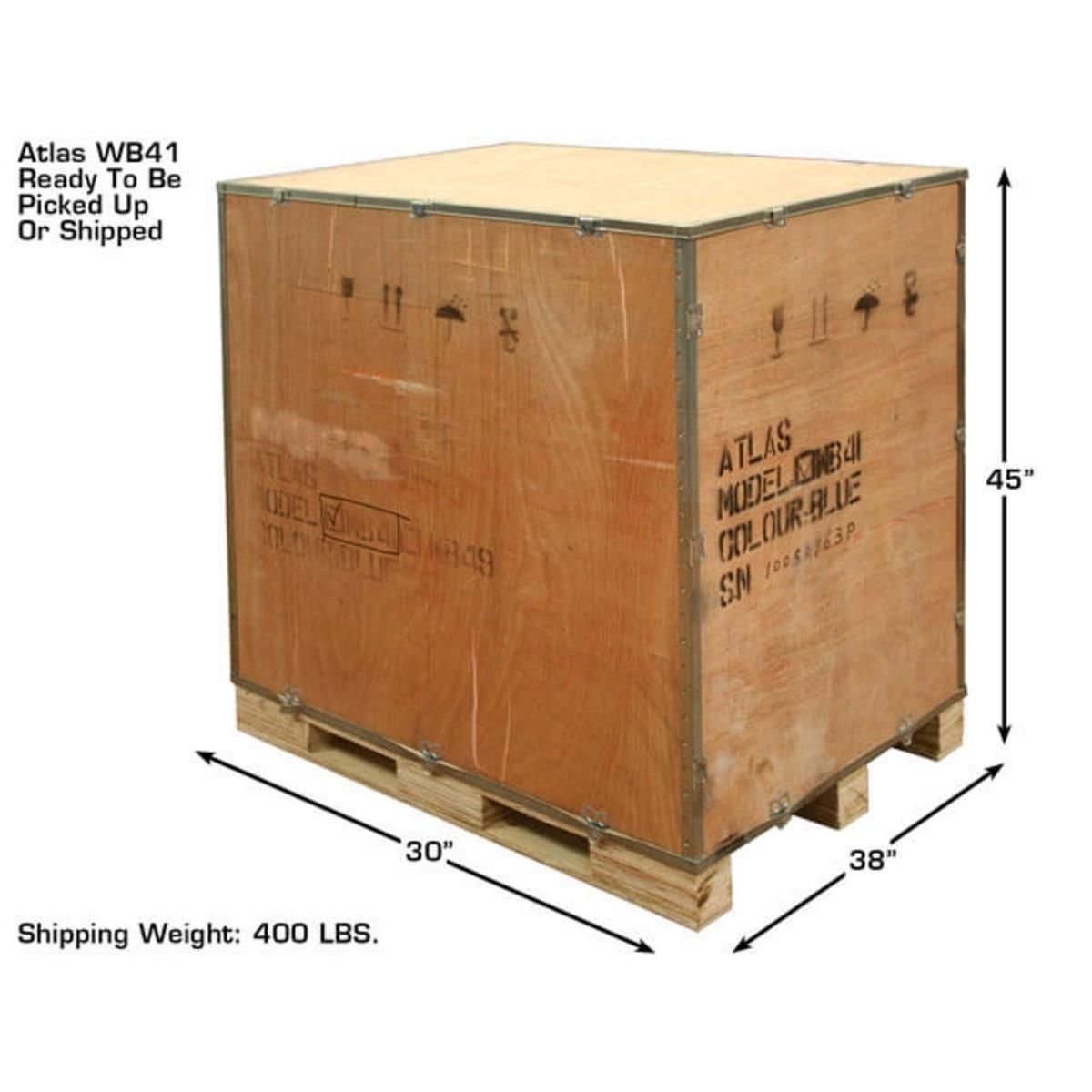

| Shipping Weight | 400 lbs. |
