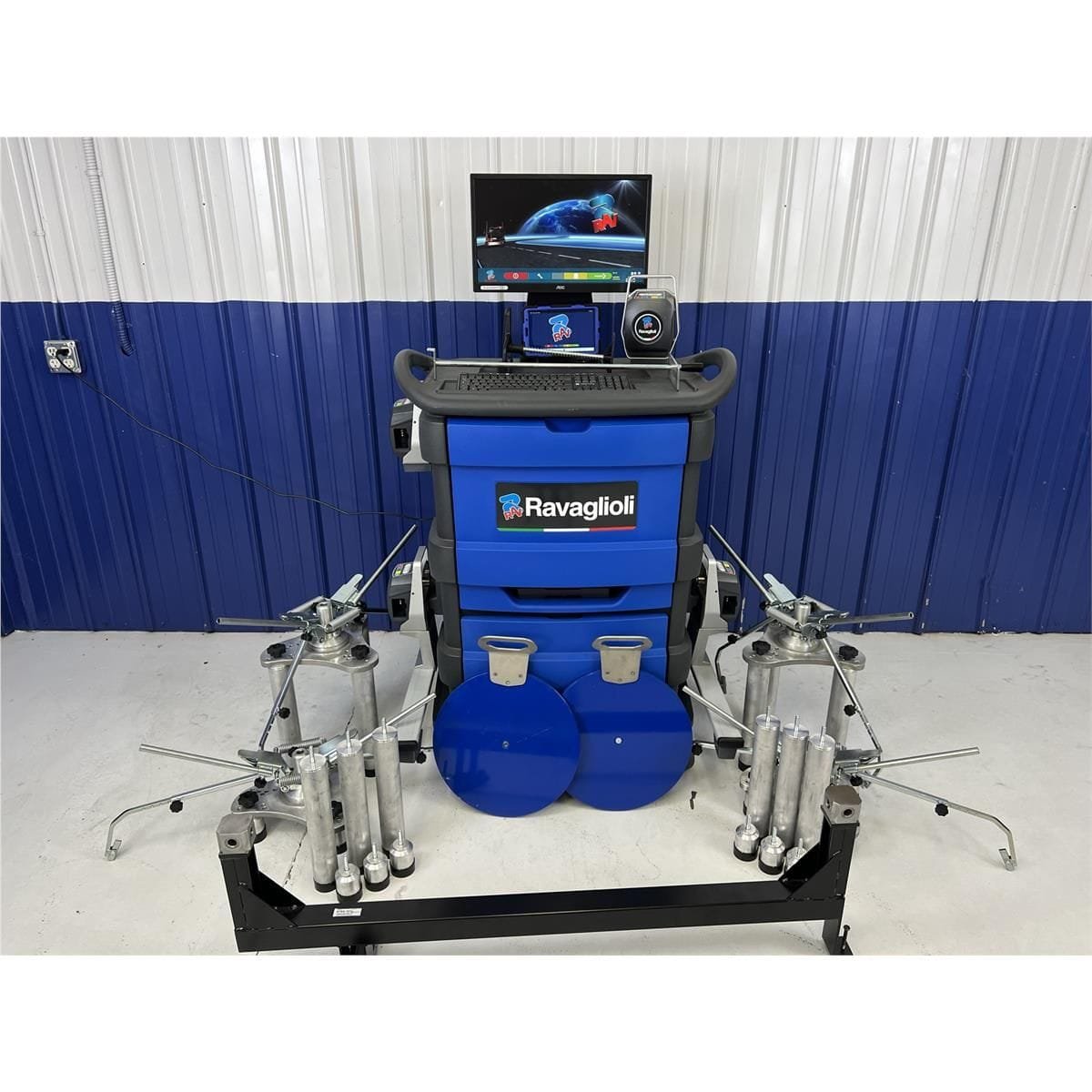

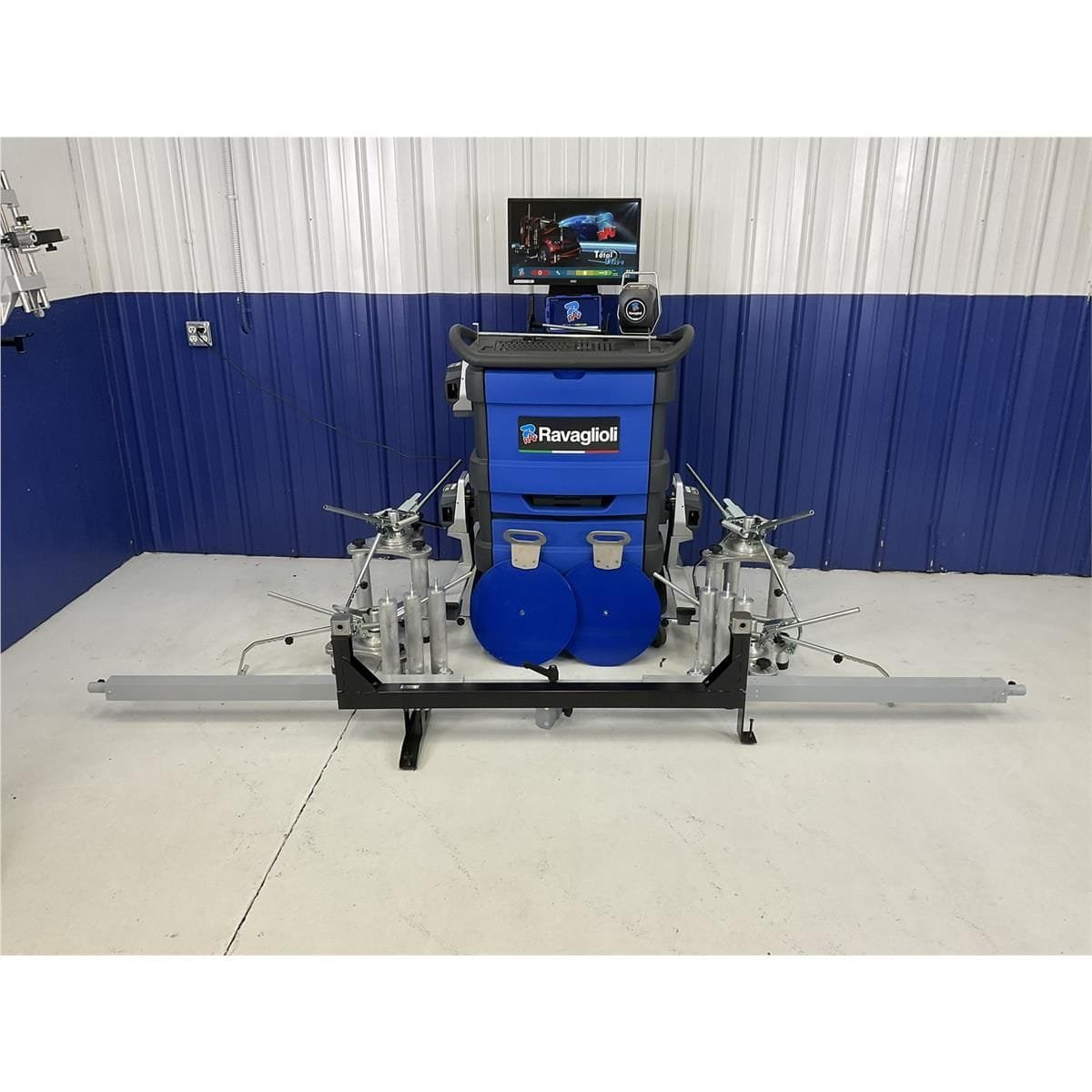

Atlas TD8060NA Heavy-Duty Truck Alignment System with Ravaglioli Express Cabinet
Original price was: £30,148.87.£16,581.88Current price is: £16,581.88.
Description
The Atlas TD8060NA heavy-duty truck alignment system is the Ravaglioli “Express” aligner — a fully equipped, portable system for aligning trucks, trailers, coaches, buses, and multi-axle vehicles. No roll-back operation, 4 Bluetooth 8CCD sensor heads, and a full-size modular cabinet with a 24″ monitor and Windows 10 PC let one technician align long wheelbases without rolling the vehicle off the bay.
The system is built by Ravaglioli, one of Europe’s longest-established alignment-equipment manufacturers, and backed by U.S.-based service and support. Each of the four sensor heads is a fully functional remote control, and a four-side measuring path supports collision measurement and calibration tracking on top of standard alignments. The TEQ-LINK app exports printouts and workflow reports so the shop can hand documentation to fleet customers.

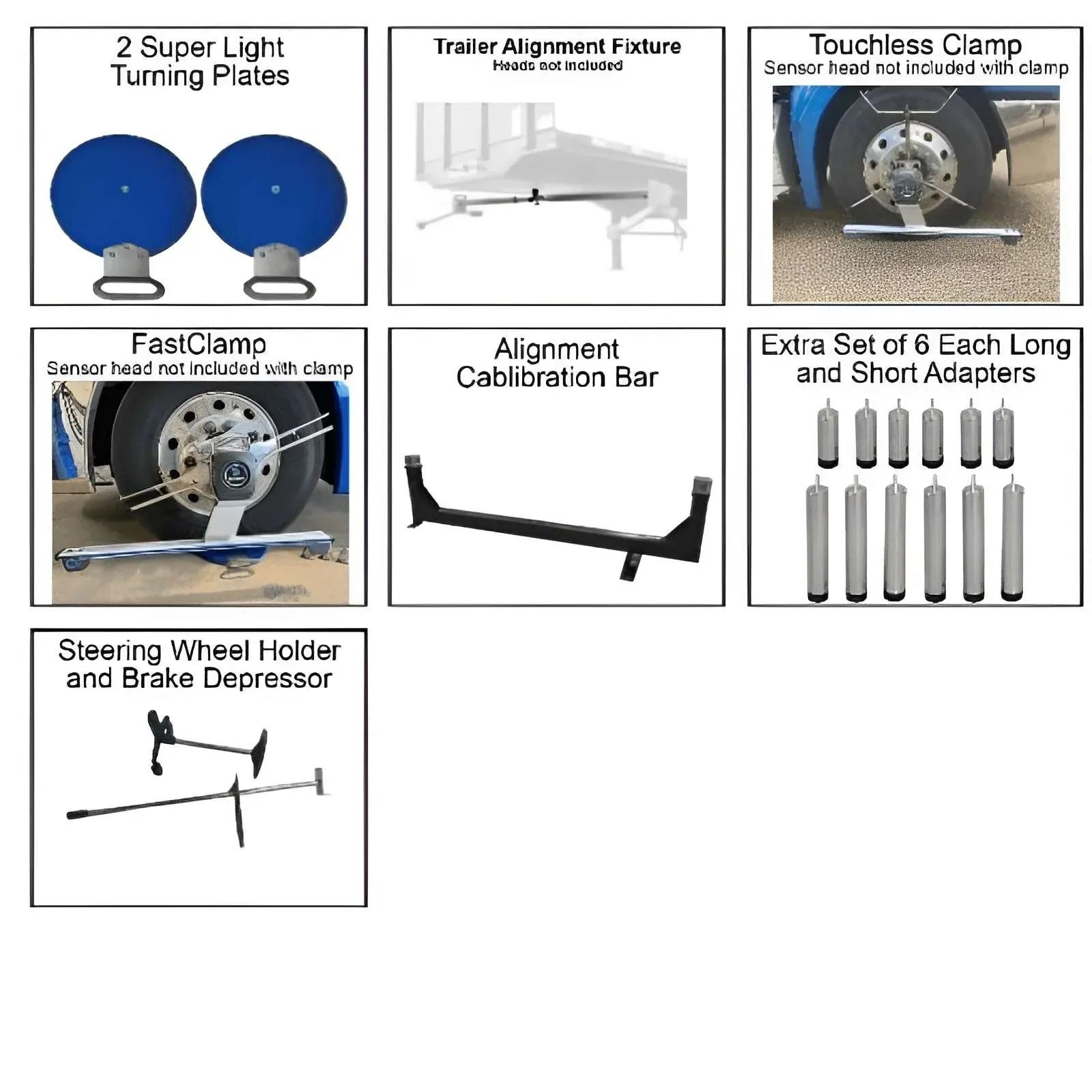

What’s Included

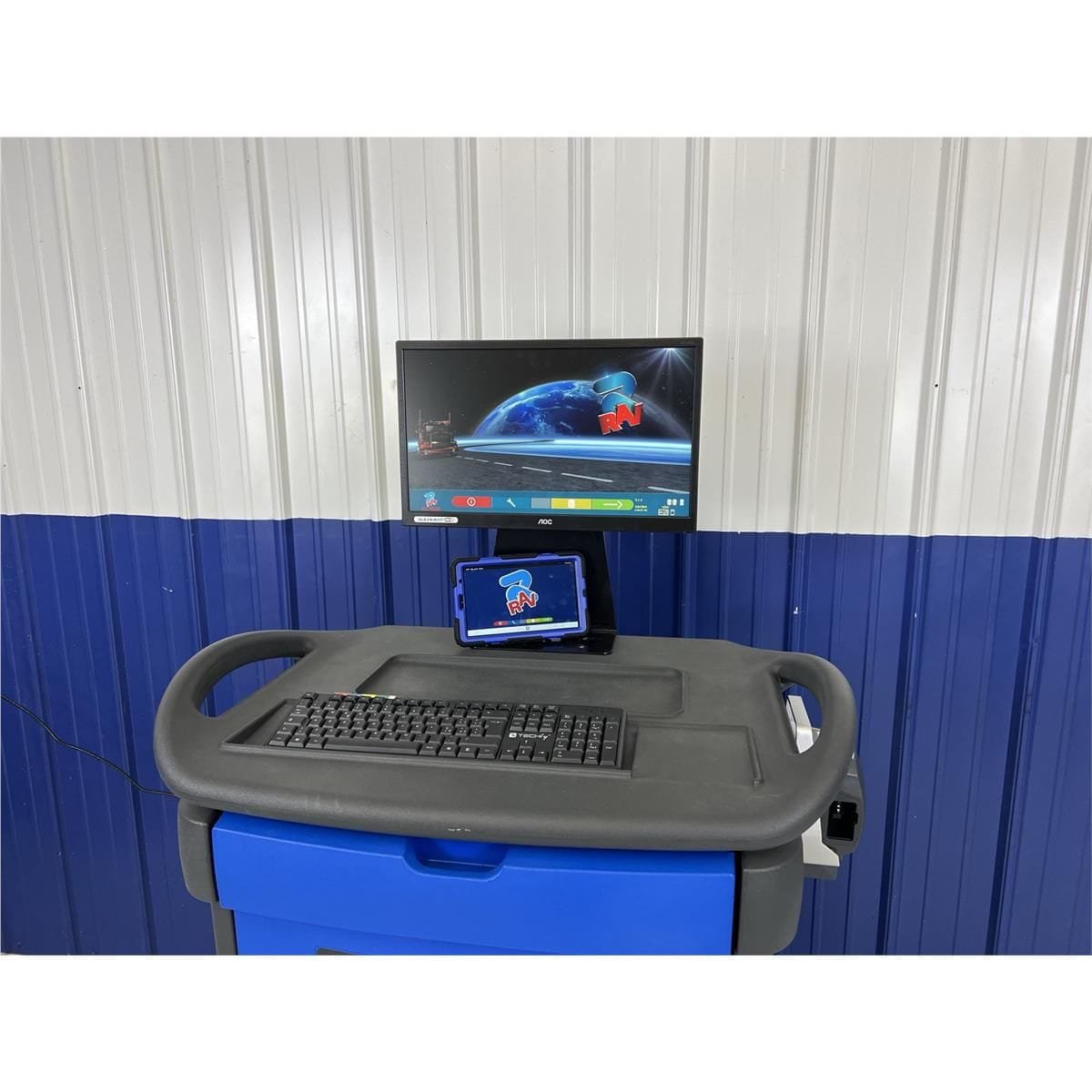

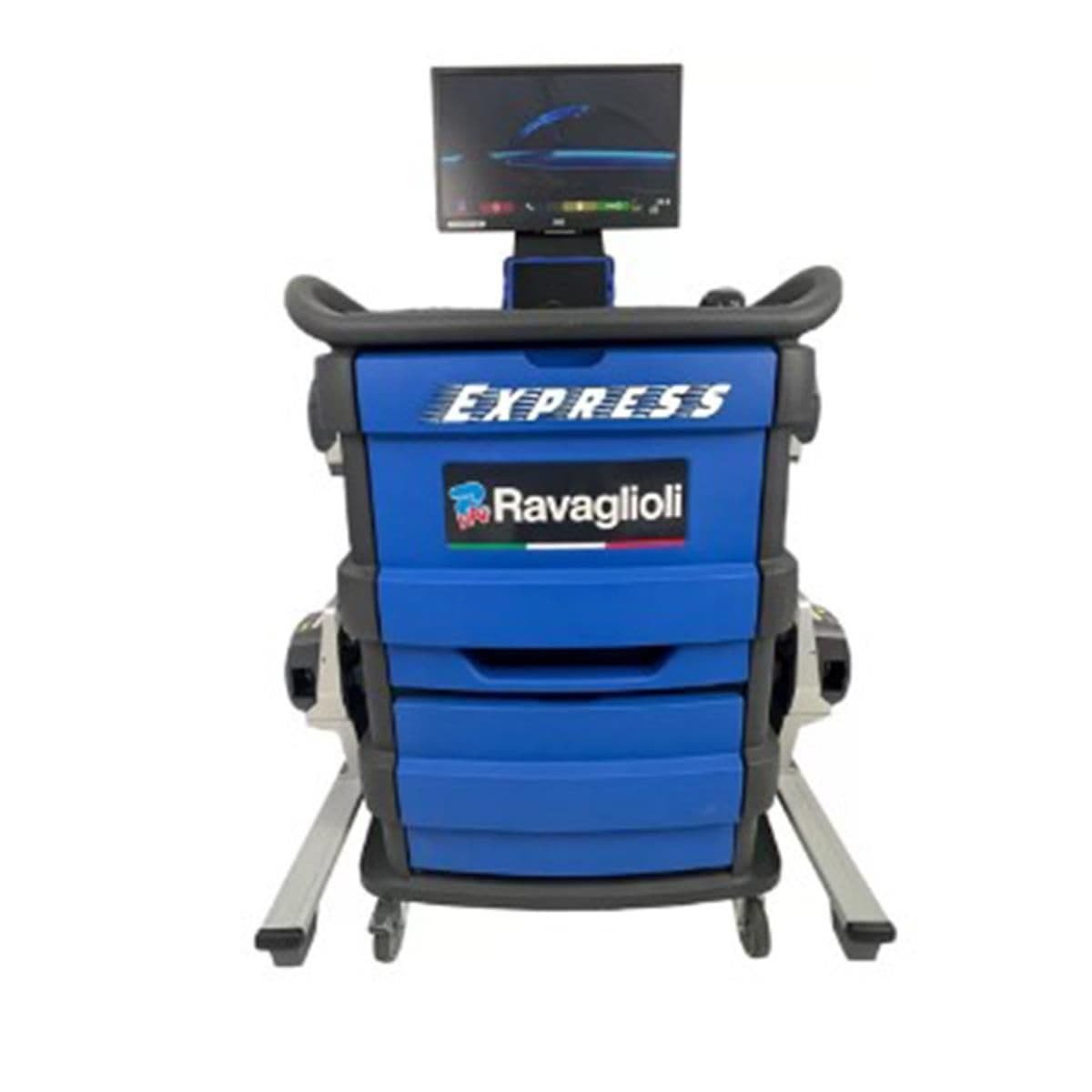

- Ravaglioli “Express” full-size modular cabinet with 24″ monitor
- Windows 10 PC with mouse, keypad, and printer
- Smart tablet remote control / viewer
- 4 Bluetooth 8CCD sensor heads — each functions as a remote control
- 4 wheel clamps (choice of touchless or fast-clamp)
- Pair of superlight alloy alignment turntables
- Calibration package
- Trailer alignment package
- 1 brake pedal depressor
- 1 steering wheel lock
- TEQ-LINK app access
Features
- No roll-back truck and trailer alignment
- WiFi operation with Bluetooth data transmission between sensor heads
- Two-head steer axle mode for faster front-end-only jobs
- Premium alignment software covering heavy-duty and light-truck vehicles
- Vast vehicle database with free software updates (vehicle specifications updates not included)
- Four-side measuring path supports collision measurement and calibration tracking
- Easily portable between bays
- Made in Europe; supported by U.S. service and remote technical support
Specifications
| Atlas TD8060NA Heavy-Duty Truck Alignment System | |
|---|---|
| Manufacturer | Ravaglioli |
| System Type | “Express” heavy-duty truck and trailer aligner |
| Vehicle Coverage | Trucks, trailers, coaches, buses, multi-axle vehicles, light-duty trucks |
| Sensor Heads | 4 Bluetooth 8CCD sensor heads (each acts as remote control) |
| Wheel Clamps | 4 included; choice of touchless or fast-clamp |
| Turntables | 1 pair, superlight alloy |
| Cabinet | Full-size modular with 24″ monitor |
| Computer | Windows 10 PC, mouse, keypad, printer |
| Remote Control | Smart tablet viewer |
| Connectivity | WiFi operation, Bluetooth data transmission |
| App | TEQ-LINK (printout export, workflow reports) |
| Calibration Package | Included |
| Trailer Alignment Package | Included |
| Steering / Brake Tools | 1 steering wheel lock, 1 brake pedal depressor |
| Software Updates | Free; vehicle specifications updates not included |
| Warranty | 2-year limited parts |
| Country of Origin | Made in Europe |
| Warranty excludes wear items and consumables, damage from abuse or neglect, and onsite service visits. | |
Shipping & Delivery
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.
Documents
Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
