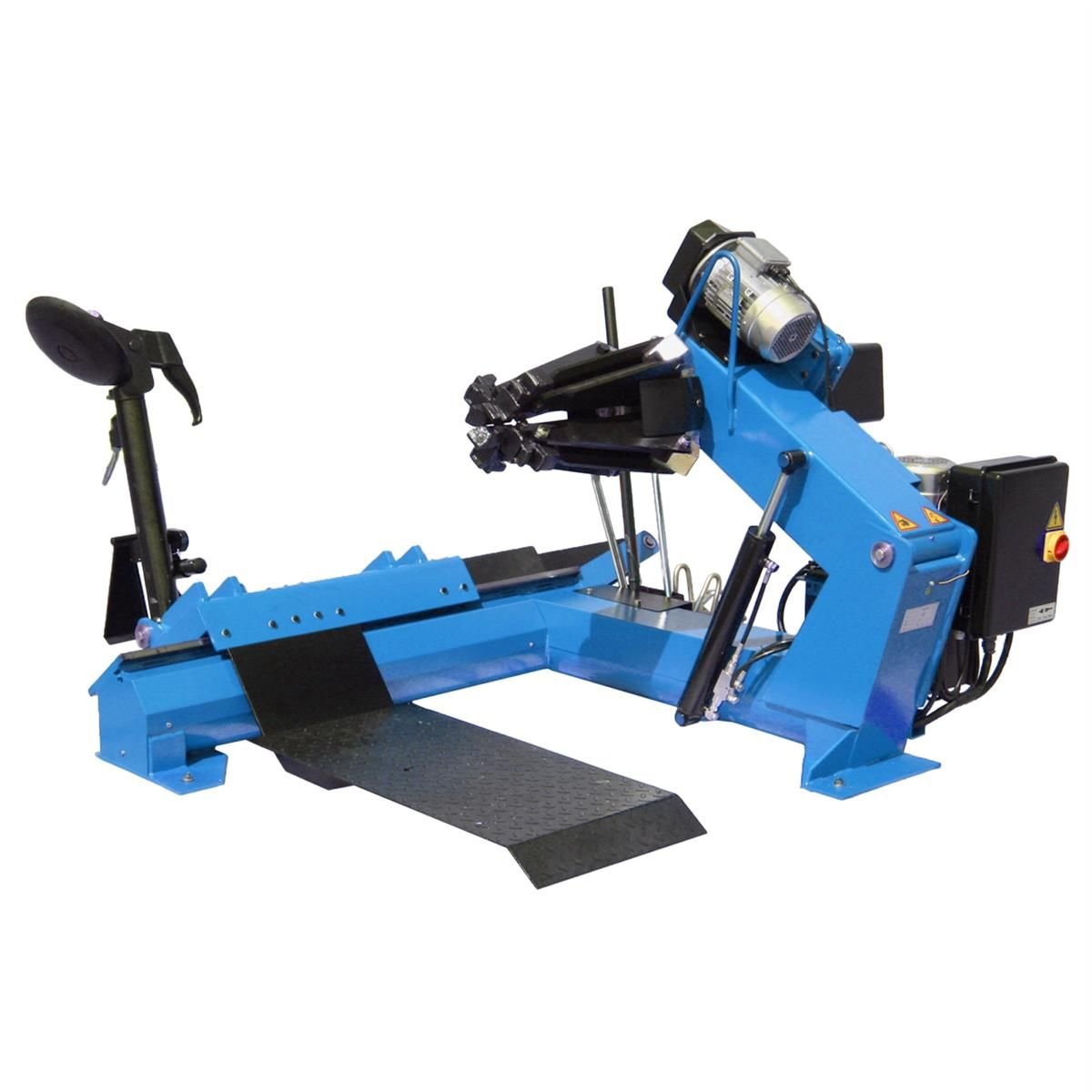

Atlas TTC303 Large Truck Tire Changer
Price range: £4,748.33 through £4,972.34
Description
The Super Duty Atlas® TTC303 truck tire changer is engineered to service rim sizes ranging from 14 inches to 56 inches (with extensions) and tire diameters exceeding 90 inches. It can easily handle tires up to 42 inches wide. This model has been distributed worldwide for several years and was developed through a collaboration between a highly respected Italian wheel service manufacturer and a leading Asian wheel service equipment producer.
The Atlas® TTC303 is built specifically for high-volume truck tire operations that require consistent performance, durability, and reliability.
This machine is capable of servicing off-road tires, agricultural tires, super single tires, and skidder tires with ease. It is an ideal solution for large truck tire centers performing high-volume work on standard over-the-road wheel assemblies while also needing the capability to service agricultural and off-road assemblies.
Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.
Features
- Super-duty truck tire changer
- 220 volt, 1-phase electric operation
- Handles rims from 14″ to 56″ and tire diameters over 90″
- Accommodates tires up to 42″ in width
- Bead breaker
- Mount/demount head
- Electric/hydraulic self-centering four-jaw chuck
- Five rim locking positions
- Wired mobile control unit
- Heavy-duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included
- 1-year parts-only warranty
Specifications
Atlas® TTC303 Specifications
| Rim Clamping Range | 14″ – 46″ |
|---|---|
| Max Clamping Size with Extensions | 56″ |
| Max Wheel Weight | 3,300 lbs. |
| Max Tire Diameter | 90 1/2″ (7′ 6 1/2″) |
| Max Tire Width | 42″ (3′ 6″) |
| Clamping Power | 13,173 lbs. |
| Operating Pressure | 0–1885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 5,930 lbs. |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single-piece frame with solid floor plate |
| Hydraulic Motor Power | 2 HP, 220V ±5% (209–231 volts), 1 phase, 30 amp breaker required |
| Chuck Motor Power | 2 HP, 220V ±5% (209–231 volts), 1 phase, 30 amp breaker required |
| Shipping Weight | 1,800 lbs. |
