Description

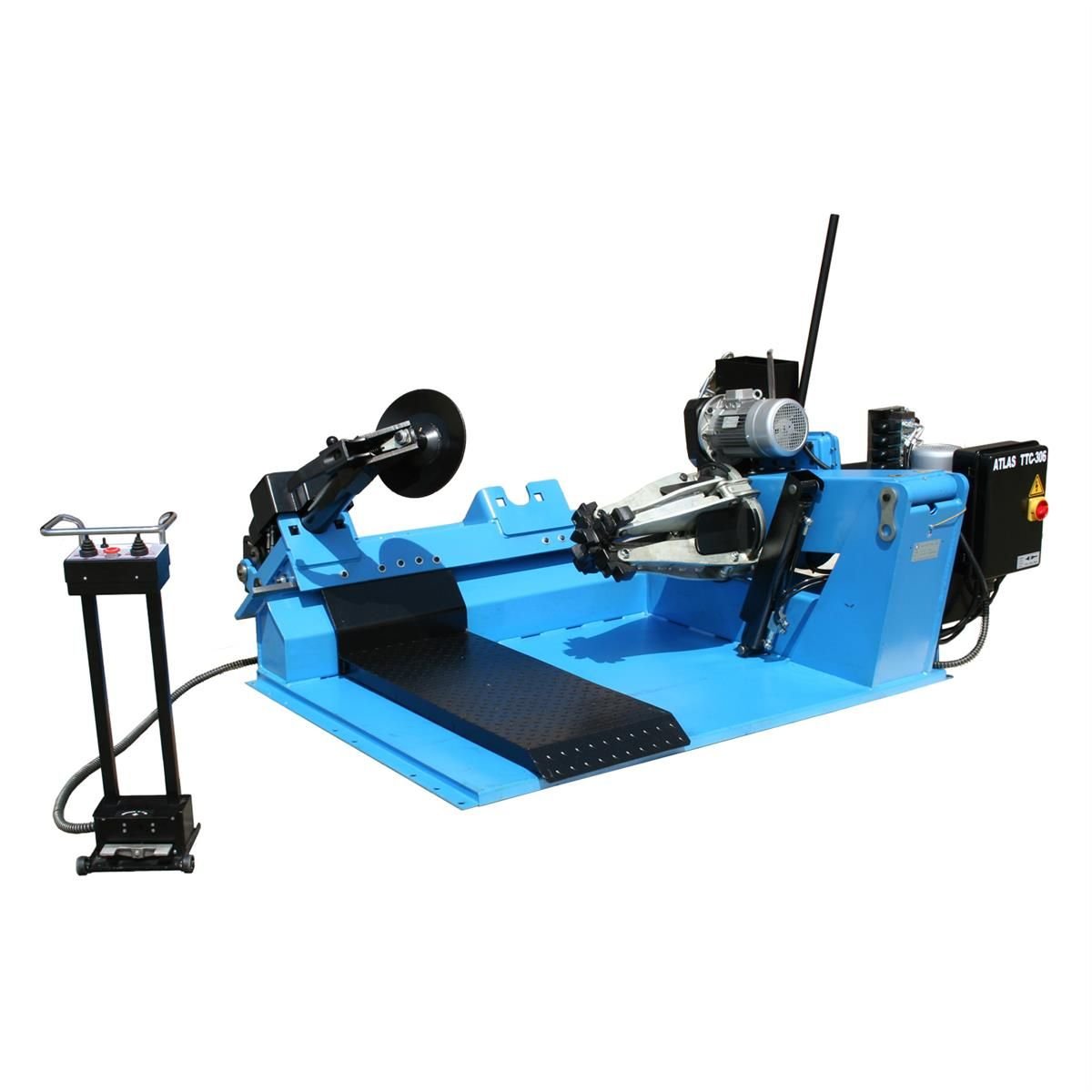

The Atlas® TTC306 builds upon the Atlas® TTC303 platform with several upgraded features. A remote control system allows the operator to automatically position the bead breaker disc and mount/demount head. This heavy-duty truck tire changer is engineered to service rim sizes from 14″ to 56″ and tire diameters exceeding 97″. It can handle tires up to 53″ in width, making it well suited for agricultural and earthmoving applications. The Deluxe TTC306 offers capabilities comparable to truck tire changers priced above $20,000.
Standard operation is managed through a wired remote console, with an optional wireless configuration available. The wireless upgrade eliminates cords on the shop floor and allows the control console to be positioned anywhere within the service area.
This model has been distributed globally, incorporating design elements developed through a previous collaboration between a respected Italian wheel service manufacturer and a leading Asian equipment producer.
The Atlas® TTC306 is intended for high-volume truck, agricultural, and mining tire facilities that require dependable, heavy-duty equipment. It is ideal for commercial truck tire centers servicing over-the-road assemblies while also demanding the capacity to handle agricultural and off-road wheel assemblies. The TTC306 efficiently manages off-road, agricultural, super single, and skidder tires.
Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.
1Features
- Deluxe automated truck tire changer
- 220 volt, 3-phase electric
- 2-speed hydraulic chuck with 5 rim locking positions
- Automatic movement and positioning of bead tool, carriage, and chuck arm
- Handles rims from 14″ to 56″ and tire diameters over 97″
- Accommodates tires up to 53″ wide
- Integrated bead breaker
- Mount/demount head included
- Electric/hydraulic self-centering four-jaw chuck
- Five rim locking positions
- Wired mobile control unit (wireless optional)
- Heavy-duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included
- Clamping extensions included
- 1-year parts-only warranty
Specifications
Atlas® TTC306 Specifications
| Specification | Details |
|---|---|
| Rim Clamping Range | 14″–46″ |
| Max Clamping Size with Extensions | 56″ |
| Max Wheel Weight | 3,968 lbs |
| Max Tire Diameter | 98″ (8′ 2″) |
| Max Tire Width | 42″ (3′ 6″) |
| Clamping Power | 13,173 lbs |
| Operating Pressure | 0–1885 PSI |
| Acoustic Pressure | < 70 dBA |
| Bead Breaker Force | 5,930 lbs |
| Tool Arm Positioning | Automatic |
| Tool Head Positioning | Automatic |
| Construction | Single-piece frame with solid floor plate |
| Hydraulic Motor Power | 3 HP, 220V (+/- 5% 209–231V), 3-phase, 30 amp breaker required |
| Chuck Motor Power | 3.5–4 HP, 220V (+/- 5% 209–231V), 3-phase, 30 amp breaker required |
| Shipping Weight | 2,260 lbs |
