Atlas WB41 Computerized Wheel Balancer
Price range: $940.35 through $1,029.95
Description
The Atlas® WB41 is the “big brother” of our highly popular Atlas® WB11. While it accommodates the same range of wheels as the WB11, the WB41 offers added benefits, including a raised display for improved visibility and ease of operation, along with a larger, more convenient wheel weight tray.
The Atlas® WB41 is designed to be both straightforward and advanced. Nearly all electrical components are configured as “plug and play,” making maintenance simple and part replacement quick when required.

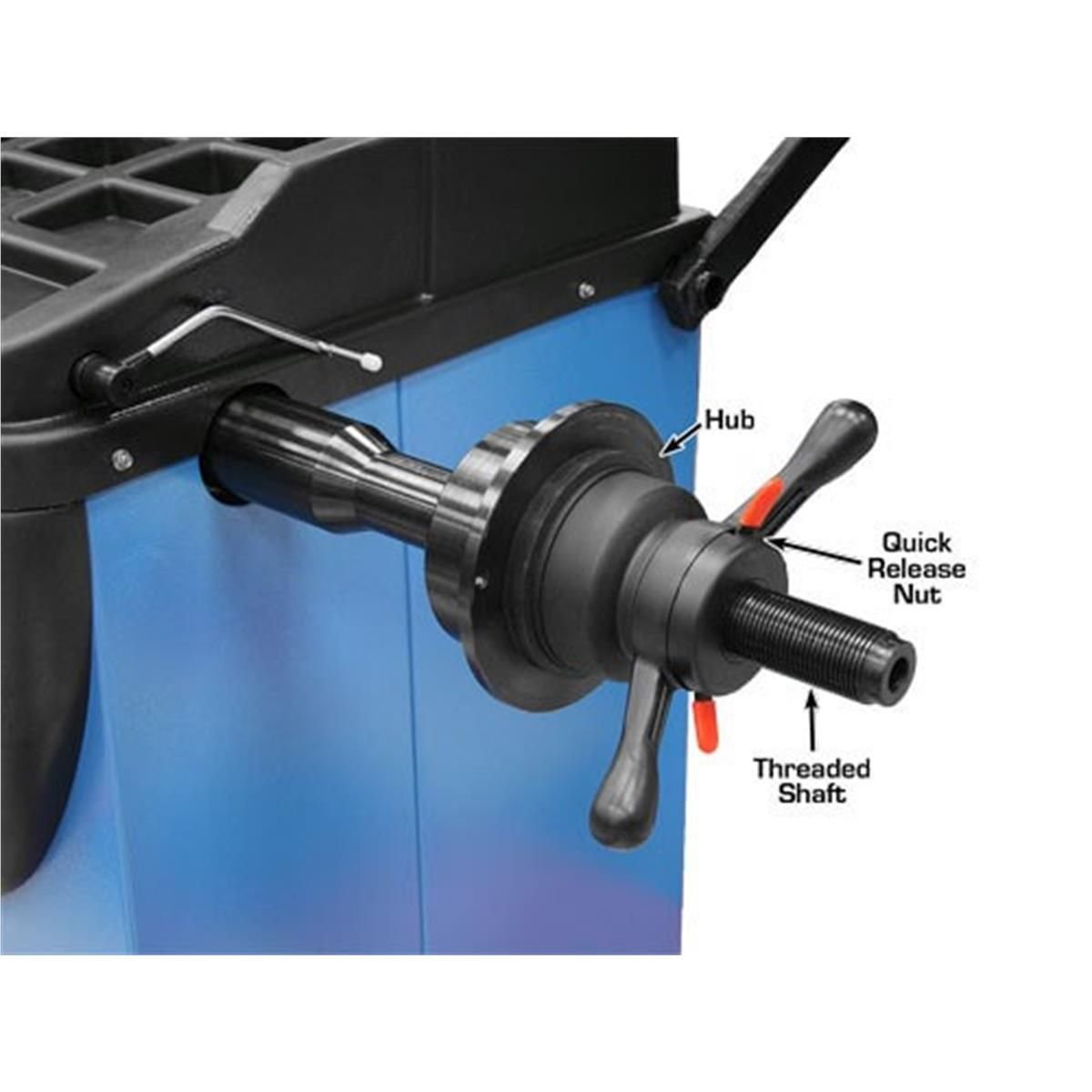

Equipped with a self-diagnostic system, the Atlas® WB41 identifies issues and displays error codes, allowing operators to perform necessary adjustments or repairs directly in their own shop. There is no need to rely on costly service technician visits. Its user-friendly design and serviceability make the WB41 an excellent option for professional tire shops. The machine handles a wide variety of wheels, supporting rim diameters up to 32″. It comes standard with a quick-release nut for secure wheel mounting and includes four cones to fit center holes ranging from 1.75″ to 5.18″. For larger center holes and wheels with greater offset, a Light Truck Adapter Kit—consisting of a larger cone and spacer—is available separately.
The Atlas® WB41 can accurately balance wheel assemblies weighing up to 150 lbs. While many balancers advertise a 150 lb capacity, there is a significant difference between a shaft merely supporting a 150 lb wheel assembly and a balancer precisely balancing a 150 lb wheel assembly.
Please note: If ordering an Atlas item, your delivery location must be able to accommodate a 53′ truck.
Features
- Computer controlled motorized spin balancer
- Raised, easy-to-read display
- Large wheel weight tray
- Automatic and pedal-operated brake
- Automatic start/stop when hood is lowered or raised
- Static and dynamic balancing modes
- Rapid optimization (OPT)
- Self-diagnosing and self-calibrating system
- Superior stability when measuring imbalance between planes
- Displays in grams or ounces, and in millimeters or inches
- No anchor-down installation required
- Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
- Replacement parts and wear items always available
- 1-year parts-only warranty
Specifications
Atlas® WB41 Specifications
| Specification | Details |
|---|---|
| Max Tire Diameter | 39″ (3′ 6″) |
| Rim Sizes (Cars and Light Trucks) | 10″–32″ |
| Rim Width | 1 1/2″–20″ |
| Shaft Size | 40mm |
| Max. Wheel Weight | 150 lbs. |
| Balancing Speed | 150 rpm |
| Data Entry | All dimensions manual |
| Measurements | Standard or metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110 volt |
| Shipping Weight | 400 lbs. |
