Autel IAASUPG All-Systems ADAS Upgrade Package for IA1000, IA900 & IA700 (LDW, AVM, RCW, ACC, BSM, FCW)

Description

The Autel IAASUPG All-Systems ADAS Upgrade Package adds comprehensive ADAS calibration capability to the Autel IA1000, IA900, and IA700 calibration frames. Once installed, the host frame can run lane departure warning, around-view monitoring, rear cross-traffic warning, adaptive cruise control, blind-spot monitoring, and forward collision warning calibrations across a broad domestic, Asian, and European vehicle range — without standing up a separate calibration platform for each system.

The package consolidates LDW I, LDW II, and LDW III patterns and targets, AVM and RCW calibration mats, radar calibrators for ACC, BSM, and FCW, Honda LaneWatch BSM camera tooling, night vision calibrators for VAG, GM, and Mercedes, and lidar calibrators for VW, Audi, and Toyota into one upgrade. Every component is covered by a 1-year limited warranty.

Features

• Compatible with Autel IA1000, IA900, and IA700 calibration frames — extends an existing Autel ADAS platform rather than replacing it.
• LDW coverage across three pattern generations (LDW I, LDW II, LDW III) for Honda/Acura, Hyundai/Kia, Mazda, Mercedes, Mitsubishi, Nissan/Infiniti, Subaru, Toyota/Lexus, VW/Audi/Porsche, and Alfa Romeo.
• AVM (around-view monitor) calibration mats for Cadillac, Honda, Hyundai/Kia, Mitsubishi, Nissan/Infiniti, and VW.
• RCW (rear cross-traffic warning) mats for Mercedes, Nissan, and VW.
• Radar calibrators for ACC, BSM, and FCW — includes an ACC reflector, Continental plate, corner reflector with stand, Doppler box, Hitachi plate, and VW ADR plate.
• Honda LaneWatch BSM camera calibration target and stand.
• Night vision calibrators for VAG/GM and Mercedes vehicles.
• Lidar calibrators for VW/Audi and Toyota vehicles.

Compatibility

The IAASUPG is an upgrade kit, not a standalone calibration system. It installs onto an existing Autel IA1000, IA900, or IA700 calibration platform; the host frame, software, and tablet are required separately.

Vehicle coverage by capability:

• LDW I, II, III: Alfa Romeo, Honda/Acura, Hyundai/Kia, Mazda, Mercedes, Mitsubishi, Nissan/Infiniti, Subaru, Toyota/Lexus, VW/Audi/Porsche
• AVM mats: Cadillac, Honda, Hyundai/Kia, Mitsubishi, Nissan/Infiniti, VW
• RCW mats: Mercedes, Nissan, VW
• Honda LaneWatch BSM: Honda/Acura
• Night vision: VAG, GM, Mercedes
• Lidar: VW, Audi, Toyota

What’s Included

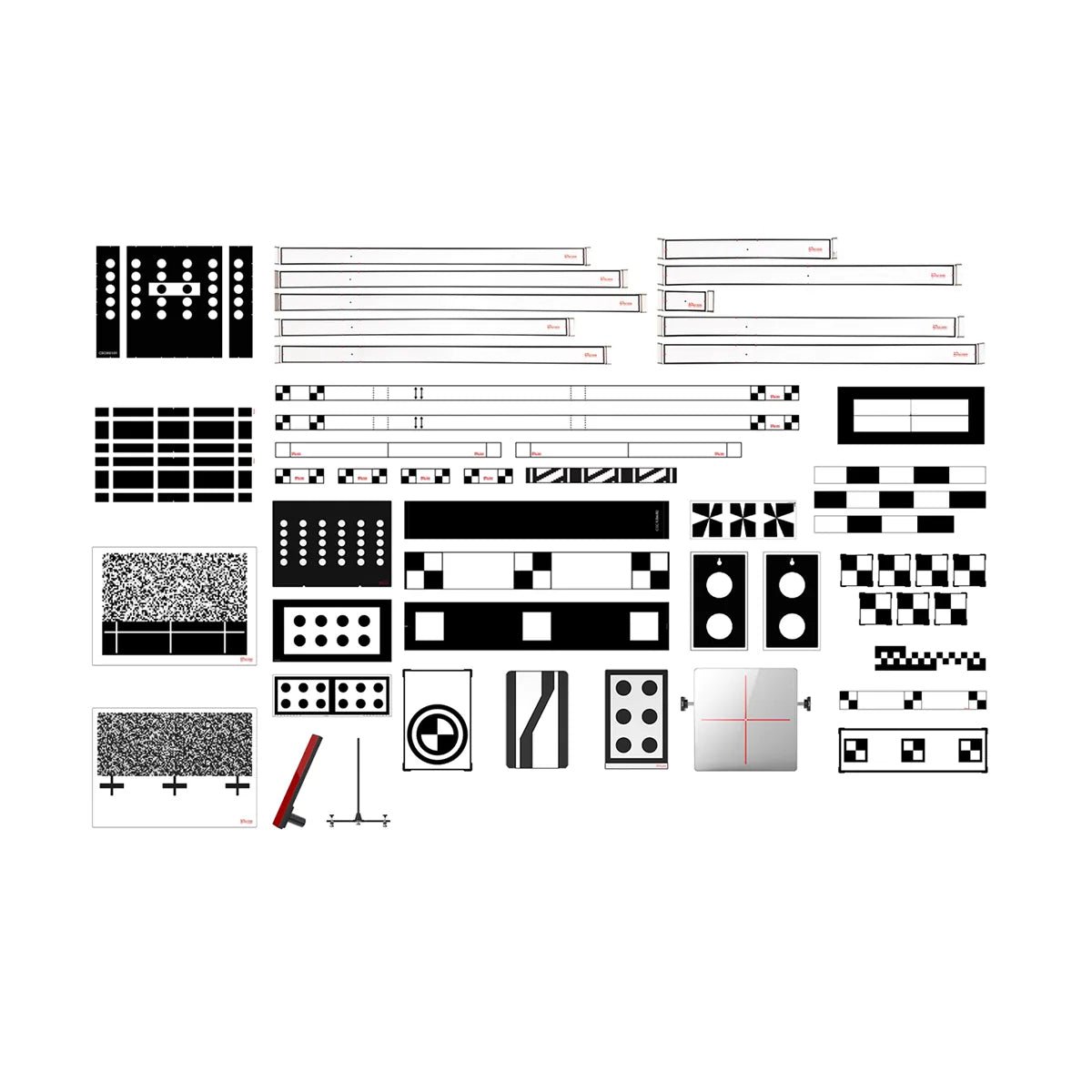

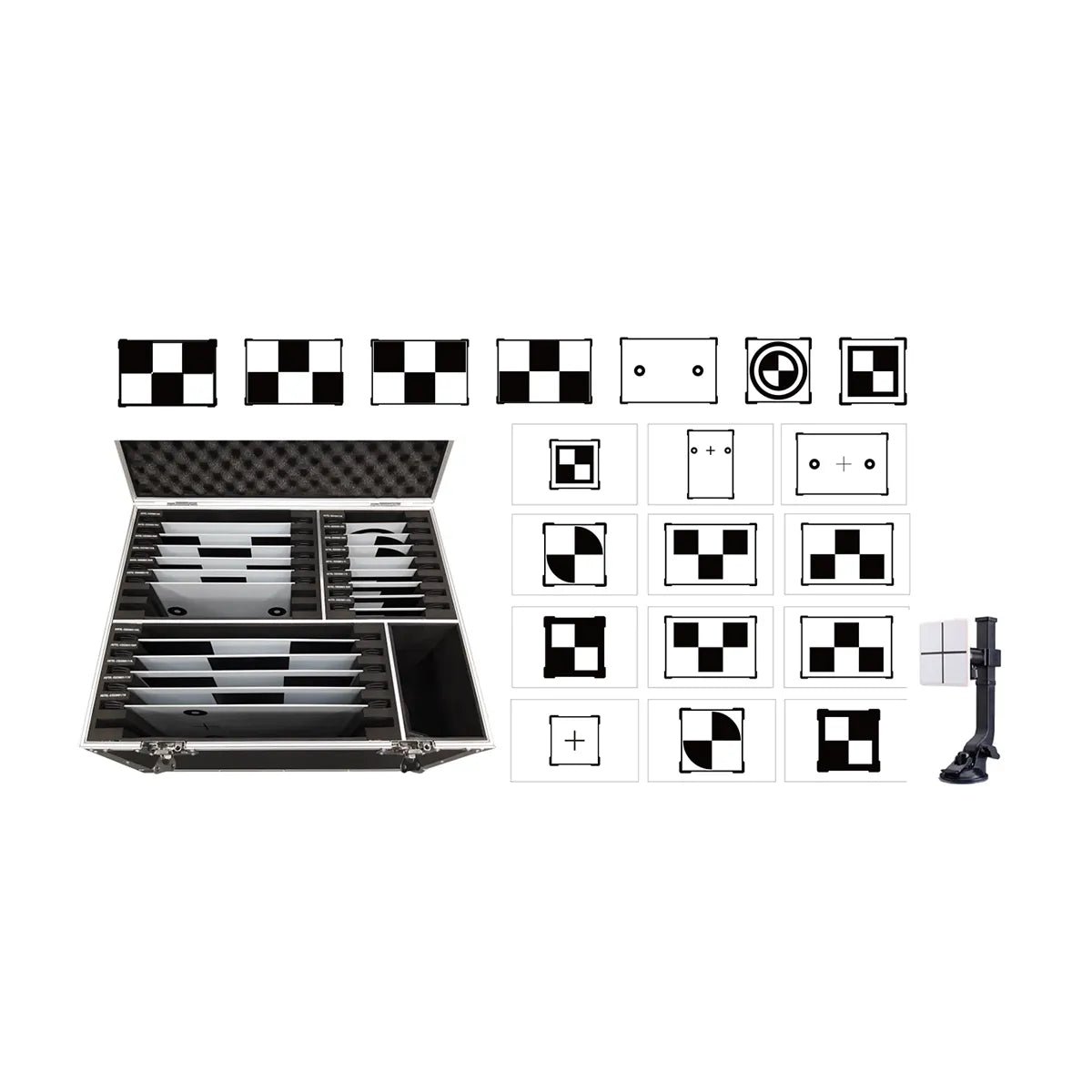

LDW patterns and targets

• LDW I: Alfa Romeo (CSC601-10), Honda/Acura (CSC0601), Hyundai/Kia (CSC0601-09), Mazda (CSC0601-12), Mercedes (CSC0601-02), Mitsubishi (CSC0601-22), Nissan/Infiniti (CSC0601-06LR), Subaru (CSC0601-14), Toyota/Lexus (CSC0601-11), VW/Audi/Porsche (CSC601-01)
• LDW II: Honda/Acura (CSC0601-08LR), Hyundai/Kia (CSC0601-07), Mazda (CSC0601-13LR), Mercedes (CSC0601-19), Nissan (CSC0601-03LR), Subaru (CSC0601-17), Toyota/Lexus (CSC0601-15)
• LDW III: Honda/Acura (CSC0601-24-1), Hyundai/Kia (CSC0701-23), Toyota/Lexus (CSC0601-25)

AVM calibration mats

• Cadillac (CSC1004-06)
• Honda (CSC1004-02, -03)
• Hyundai/Kia (CSC1004-04)
• Mitsubishi (CSC1004-09)
• Nissan/Infiniti (CSC1004-11)
• VW (CSC0804-01)

RCW calibration mats

• Mercedes (CSC1006-01, -02)
• Nissan (CSC1006-03, -05)
• VW (CSC0806-01)

Radar calibrators (ACC, BSM, FCW)

• ACC Reflector (CSC0602-01)
• Continental Plate (CSC0602-02)
• Corner Reflector and Reflector Stand (CSC0802-01 / CSC0800)
• Doppler Box (CSC0605-01)
• Hitachi Plate (CSC0802-08)
• VW ADR Plate (CSC0602-08)

BSM camera calibration

• Honda LaneWatch target and stand (CSC0805-02 / CSC0802)

Night vision calibrators

• VAG/GM (CSC0603-01)
• Mercedes (CSC0803-01)

Lidar calibrators

• VW/Audi (CSC0602-04)
• Toyota (CSC0802-04)

Warranty

Package components are covered by a 1-year limited warranty.

FAQ

Is this a complete calibration system on its own?

No. The IAASUPG is an upgrade package that adds capability to an existing Autel IA1000, IA900, or IA700 calibration frame. The host frame, software, and tablet are required separately.

What does “All Systems” mean here?

It refers to coverage across the major ADAS sub-systems calibrated by this kit: LDW (lane departure warning), AVM (around-view monitor), RCW (rear cross-traffic warning), ACC (adaptive cruise control), BSM (blind-spot monitoring), and FCW (forward collision warning).

Does this cover both domestic and import vehicles?

Yes. The package includes patterns, mats, radar calibrators, and specialty plates for domestic, Asian, and European brands listed under Compatibility above.

Are LDW I, II, and III all included?

Yes. All three LDW pattern generations are included, with vehicle-specific targets for each generation listed under What’s Included.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
