Autel MaxiSYS ADAS MAS20 All Systems 2.0 Mobile Calibration Package with MA600 Frame

Description

The Autel MaxiSYS ADAS MAS20 is the All Systems 2.0 mobile calibration package built around the foldable MA600 frame. The kit covers eight ADAS system categories — LDW, ACC, LIDAR, RADAR, Night Vision, RCW, Lane Watch, and AVM — with the targets, patterns, reflectors, and brackets a calibration shop needs to handle the makes Autel currently supports across US, Asian, and European vehicles.

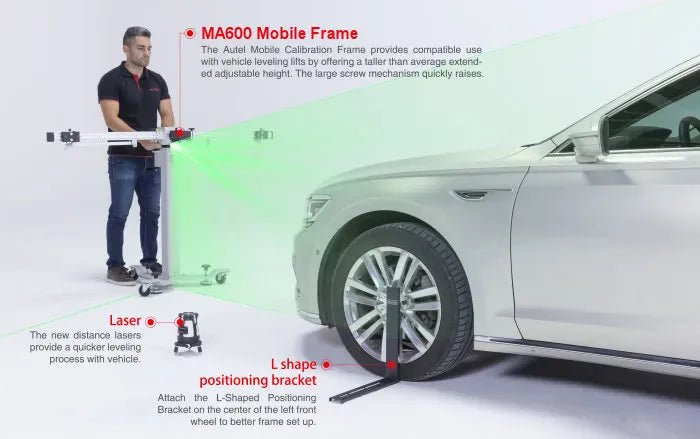

The MA600 frame folds for transport and sets up with a five-line laser-assisted positioning system, so one technician can stage the frame next to a vehicle in as little as two minutes. The package includes the ADAS software upgrade that unlocks calibration on a compatible MaxiSYS tablet — the tablet itself is not bundled, and the list of compatible models is published below under Compatibility.

MAS20 buyers also receive virtual setup and onboarding training conducted by an Autel ADAS expert. In-shop training is not included with this package.

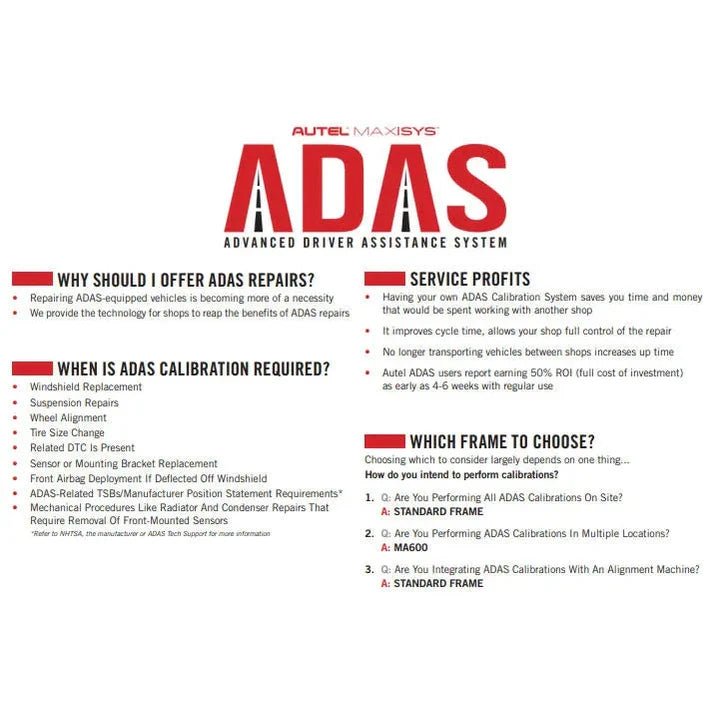

For shops calibrating across multiple locations, mobile glass-replacement work, or a service truck setup, the MA600’s compact fold-and-roll footprint is what separates the MAS20 from a fixed-frame ADAS bay. Autel positions the MA600 specifically for multi-location calibration work; a stationary in-shop frame remains the recommendation when calibrations always happen at the same bay or when the calibration system needs to integrate with an alignment machine.

Features

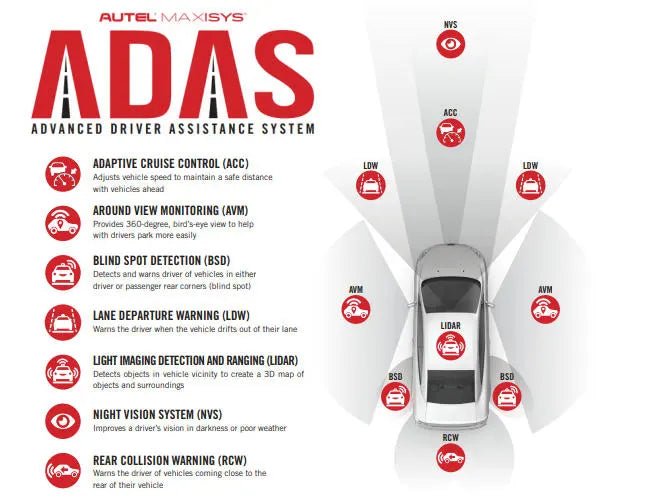

Eight ADAS system categories in one kit

MAS20 ships with patterns, targets, reflectors, and components covering Lane Departure Warning (LDW), Adaptive Cruise Control (ACC), Light Imaging Detection and Ranging (LIDAR), Radio Detection and Ranging (RADAR), Night Vision (NV), Rear Collision Warning (RCW), Honda Lane Watch (LW), and Around View Monitoring (AVM) calibrations.

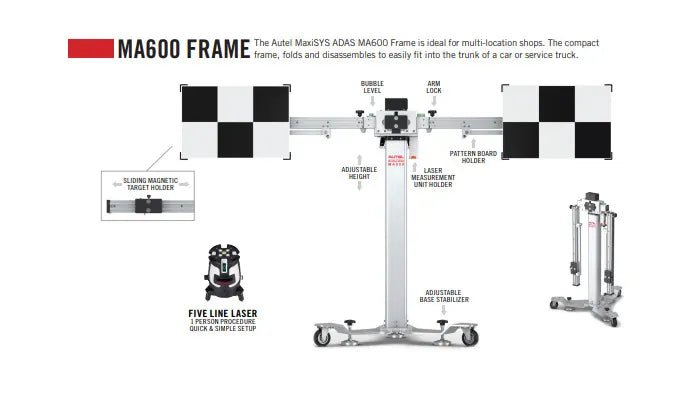

Foldable MA600 frame designed for mobile work

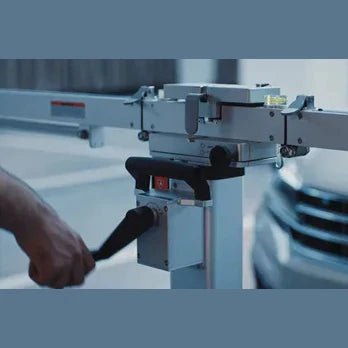

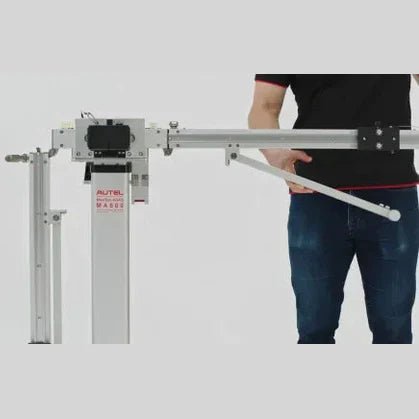

The MA600 frame folds and disassembles for transport in a service truck or car trunk and reassembles next to the vehicle. The five-line laser with adjustable base stabilizers handles frame centering, and the adjustable-height column accommodates taller vehicles and lift-assisted calibrations.

One-person setup in as little as two minutes

Laser-assisted frame placement, sliding magnetic target holders, and the adjustable arm-lock geometry let a single technician center the frame, set the height, and load the correct target pattern without a second pair of hands.

OE-level coverage for US, Asian, and European vehicles

Targets and patterns included in the MAS20 cover current LDW pattern sets for Alfa Romeo, Honda, Volkswagen, Mercedes-Benz, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, and Toyota/Lexus. The full list of vehicle-brand coverage by system appears under Compatibility.

Virtual onboarding training included

Every MAS20 purchase includes virtual setup and onboarding training delivered by an Autel ADAS expert. In-shop training is not included — shops that want hands-on training in their own bay should plan for that separately.

Compatibility

Compatible MaxiSYS tablets (sold separately)

Per Autel’s MA600 documentation, the package is compatible with the following MaxiSYS tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, and MSADAS. All tablet models except MSADAS require an additional one-time purchase software application upgrade. Tablets with previously active ADAS application software will not be compatible with the MA600.

LDW pattern/target coverage

Alfa Romeo, Honda, Volkswagen, Mercedes-Benz, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus.

LIDAR calibration coverage

Volkswagen/Audi, Lexus, Toyota.

Night Vision calibrator coverage

Volkswagen, Mercedes-Benz, GM.

RCW pattern/package coverage

Volkswagen, Nissan, Mercedes-Benz.

AVM pattern/system coverage

Hyundai/Kia, Nissan, Mitsubishi, Toyota, Volkswagen, Honda, GM.

Lane Watch

Honda Lane Watch target with target stand.

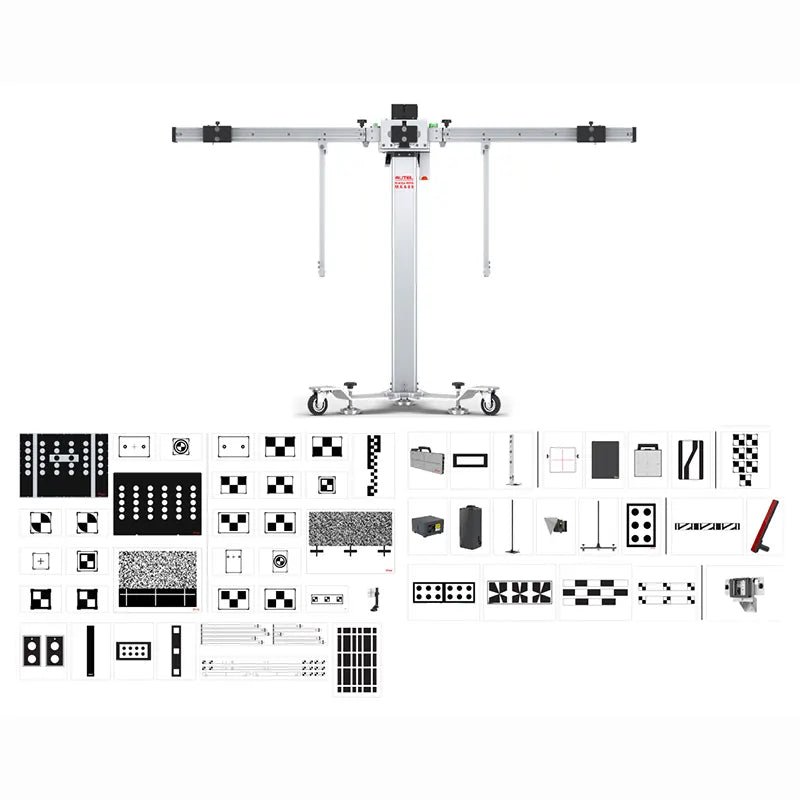

What’s Included

• MA600 mobile calibration frame with five-line laser positioning system
• ADAS Software Upgrade (loads on a compatible MaxiSYS tablet — tablet not included)
• LDW patterns and targets for the vehicle brands listed under Compatibility
• ACC Reflector Package, Doppler Reflector, Radar Plate, Continental Radar package, Corner Reflector, and Hitachi Radar Plate
• Night Vision Calibrator package for Volkswagen, Mercedes-Benz, and GM
• LIDAR Calibration components for Volkswagen/Audi, Lexus, and Toyota
• RCW patterns and package for Volkswagen, Nissan, and Mercedes-Benz
• Honda Lane Watch target and target stand
• AVM patterns and systems for Hyundai/Kia, Nissan, Mitsubishi, Toyota, Volkswagen, Honda, and GM
• Virtual setup and onboarding training conducted by an Autel ADAS expert
• One-Year Limited Warranty

Warranty

Autel covers the MAS20 with a One-Year Limited Warranty. The detailed warranty terms — including covered and excluded damage, proof-of-purchase requirements, and the out-of-warranty repair process — are documented in the User Manual PDF linked in the Documents section.

FAQ

Do I get a MaxiSYS tablet with the MAS20?

No. The package includes the ADAS software upgrade but not the tablet itself. The upgrade installs on a compatible MaxiSYS tablet (MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, or MSADAS).

What training comes with the MAS20?

Virtual setup and onboarding training delivered by an Autel ADAS expert. In-shop training is not included.

Which ADAS systems can the MAS20 calibrate?

LDW (Lane Departure Warning), ACC (Adaptive Cruise Control), LIDAR (Light Imaging Detection and Ranging), RADAR (Radio Detection and Ranging), NV (Night Vision), RCW (Rear Collision Warning), LW (Honda Lane Watch), and AVM (Around View Monitoring). See Compatibility for the supported vehicle brands under each system.

Is the MA600 frame portable enough for mobile glass and calibration work?

Yes — the frame folds for transport and the five-line laser-assisted positioning system is designed for one-person setup in as little as two minutes per the Autel MA600 documentation. The frame disassembles to fit the trunk of a car or a service truck.

Does the MAS20 work with my existing MaxiSYS tablet that already has ADAS software?

No. Per Autel’s MA600 documentation, tablets with previously active ADAS application software will not be compatible with the MA600. The MAS20 ADAS software upgrade installs on a compatible tablet that does not already have an active ADAS application.

What’s the warranty?

One-Year Limited Warranty. See the Warranty section above and the User Manual PDF in Documents for the full terms.

Documents

Manuals and brochures

• MaxiSYS ADAS MA600 User Manual
• ADAS MA600 Calibration Toolset User Manual
• MaxiSYS MA600 2-Page Brochure
• MaxiSYS MA600 All Systems Brochure
• MA600 CORE2 Flyer
• ADAS Comparison Chart

Optional expansion package spec sheets

The MAS20 covers the All Systems 2.0 baseline. The following expansion-package documents describe optional add-on kits that extend coverage to additional vehicle brands, sensors, and storage configurations — contact Autel or refer to the comparison chart above before ordering.

• ADASAVM1 Expansion Package
• ADASCAL2 Expansion Package
• ADASUPGRADE Expansion Package
• MA600CAL1 Expansion Package
• MA600CAL3 Expansion Package
• MA600CAL4 Expansion Package
• MA600CASE Expansion Package
• MA600LDW3 Expansion Package
• MA600NV1 Expansion Package
• MA600RAD1 Expansion Package
• MS906PROADAS Expansion Package
• MS909ADAS Expansion Package
