Autel Maxisys MS919 Intelligent Diagnostic Scanner with Topology Module Mapping

Autel MaxiSYS MS919 Advanced Diagnostic Tablet – Professional Automotive Diagnostic Tool

The Autel MaxiSYS MS919 Advanced Diagnostic Tablet is a cutting-edge, Android-based automotive diagnostic system engineered for professional mechanics, workshops, and automotive technicians who demand precision, speed, and full-system vehicle analysis. Built with powerful hardware and industry-leading diagnostic capabilities, the MS919 delivers advanced vehicle communication, testing, and analysis in one comprehensive solution.

Powerful Hardware Configuration

The MS919 is engineered with premium hardware to ensure fast, stable, and efficient diagnostics:

• Display: 9.7-inch high-resolution touchscreen
• Operating System: Android 7.0
• Processor: Octa-core CPU (2.3GHz Quad + 1.7GHz Quad)
• Storage: 128GB internal memory
• Wireless Connectivity: Up to 50 meters (164 feet) range
• Fast Data Processing: Improved diagnostic speed by up to 30%

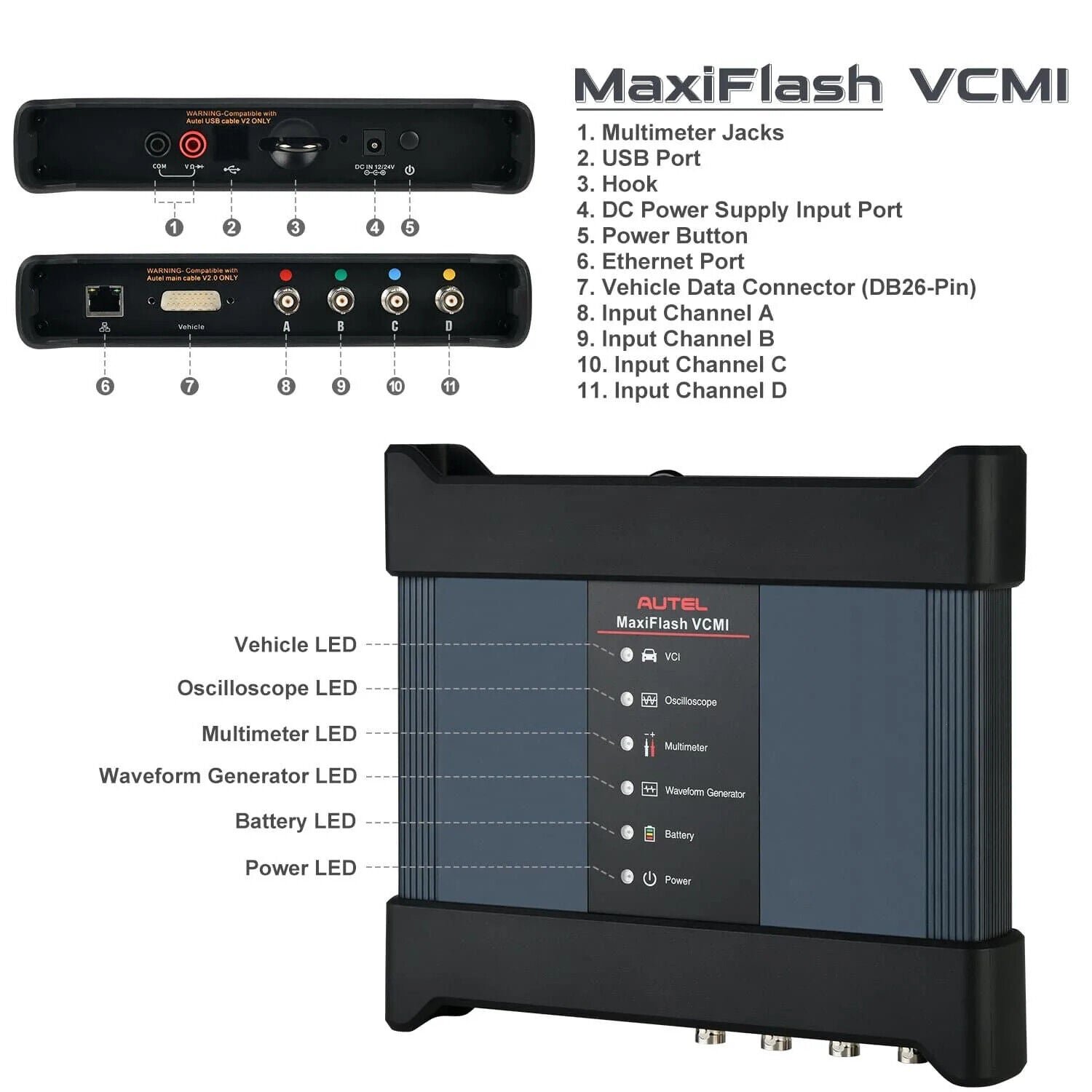

MaxiFlash VCMI – 5-in-1 Advanced Measurement Tool

The included MaxiFlash VCMI transforms the MS919 into a complete diagnostic lab by integrating five essential tools:

Integrated Functions:

• Oscilloscope (4-channel)
• Waveform Generator
• Multimeter
• CAN BUS Tester
• VCI (Vehicle Communication Interface)

Oscilloscope Capabilities:

• 20MHz bandwidth
• Up to 80MS/s sampling rate
• Built-in guided tests and waveform presets
• Extensive waveform library for accurate diagnostics

This allows technicians to perform real-time component testing and signal analysis with high precision.

Intelligent Diagnostics & Repair Guidance

The MS919 introduces next-generation intelligent diagnostics, providing guided workflows to reduce troubleshooting time.

Key Intelligent Features:

• OE Technical Service Bulletins (TSB) – eliminates unnecessary inspection
• Repair Assist – prioritizes DTCs and guides repair steps
• DTC Analysis – explains fault codes, causes, and solutions
• Repair Guidance – visual instructions with videos and images
• Component Measurement – deep analysis using oscilloscope tools

Supported Brands (Intelligent Diagnostics):

BMW, GM, Jaguar Land Rover (JLR), Ford, Chrysler, Fiat (FCA), Porsche, Volkswagen, Audi

Note: Intelligent diagnostics are not available for all models. VIN check is recommended.

Ideal For

• Professional mechanics
• Automotive diagnostic specialists
• Advanced repair workshops
• Auto electricians
• Performance tuning experts

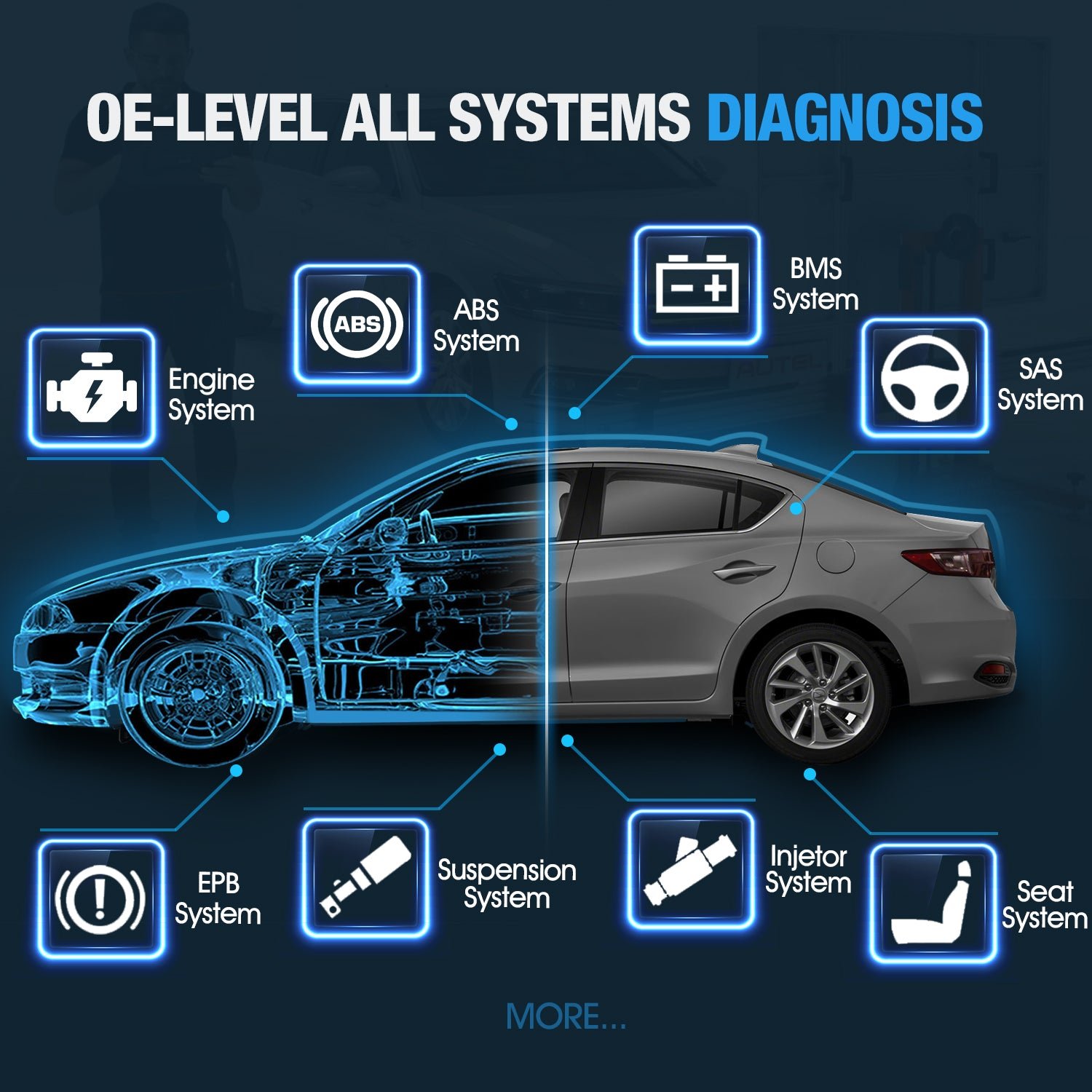

OE-Level Full System Diagnostics

The MS919 delivers complete system diagnostics for modern vehicles:

• Supports 95% of vehicles after 2000
• Covers 85% of vehicles after 2019
• Read and clear DTCs (Diagnostic Trouble Codes)
• View live data streams
• Retrieve ECU information
• Perform active tests and system analysis

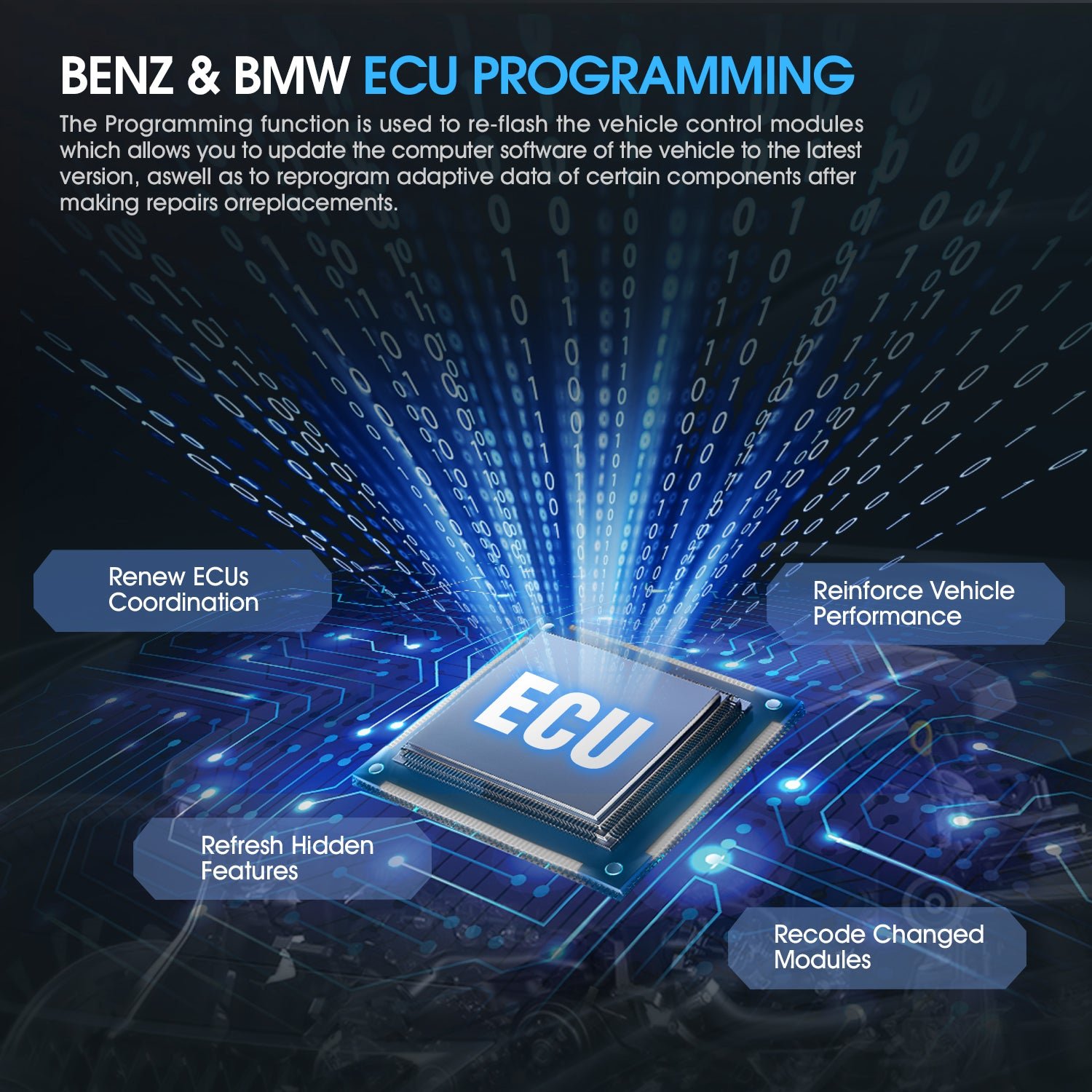

Advanced ECU Programming (J2534 Pass-Thru)

The built-in J2534 ECU programming function allows:

• Programming new or replacement ECU modules
• Updating firmware and software
• Fixing drivability and emission issues

Supported Programming:

• BMW & Mercedes-Benz (Benz) only
• Not supported for other brands

VIN verification is required before purchase.

Bi-Directional Control & Active Tests

The MS919 supports bi-directional control, allowing technicians to send commands directly to vehicle systems.

Active Test Functions:

• Solenoid testing
• Pump motor activation
• Relay and switch control
• Actuator testing

This helps identify faults quickly by verifying component functionality in real time.

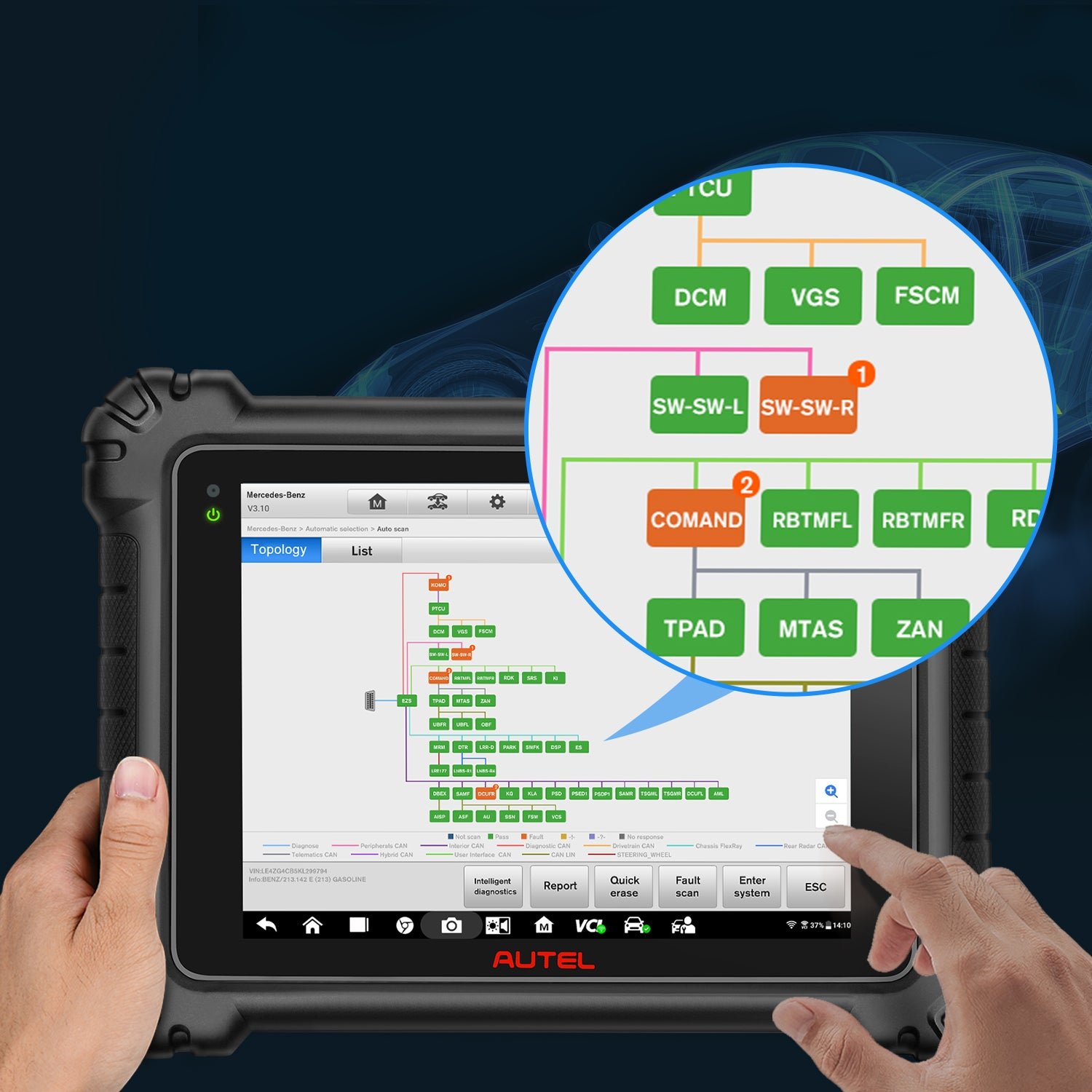

CAN BUS Topology Mapping

The System Topology Mapping feature provides a visual CAN BUS network layout:

• Displays all modules in a color-coded tree structure
• Shows ECU communication status
• Helps quickly locate faults and communication issues

Supported Brands:

BMW, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota, Jaguar, Land Rover, Mercedes-Benz, Hyundai, Kia, Volvo, PSA

30+ Advanced Service Functions

The MS919 supports 30+ maintenance and service functions, including:

• Oil Reset
• EPB (Electronic Parking Brake)
• SAS (Steering Angle Sensor)
• DPF Regeneration
• BMS (Battery Management System)
• ABS Bleeding
• Throttle Relearn
• Injector Coding
• Transmission Adaptation
• And more professional service functions

Extensive Vehicle Coverage

• Covers US, European, and Asian vehicles
• Compatible with post-2000 vehicles (95% coverage)
• Supports latest models up to modern vehicle systems
• Ideal for passenger cars, SUVs, and light commercial vehicles

Advanced Diagnostic Capabilities

• DTC-specific testing options for precise fault detection
• Sensor-specific diagnostics for accurate troubleshooting
• Built-in component location diagrams
• Probe guidance for correct connection during testing

Key Benefits:

• All-in-one diagnostic + measurement solution
• Advanced oscilloscope and waveform analysis
• Intelligent step-by-step repair guidance
• Fast and accurate OE-level diagnostics
• Professional-grade tool for automotive workshops

Powerful Performance & Advanced Hardware

The MaxiSYS MS919 features a 9.7-inch touchscreen display (1536 x 2048 resolution) powered by Android 7.0 operating system, ensuring smooth navigation and an intuitive user interface. It is equipped with a Samsung Exynos8895V octa-core processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) and 128GB onboard memory with 4GB RAM, delivering fast processing speeds and seamless multitasking for complex diagnostics.

This advanced diagnostic tablet includes a rechargeable 15000mAh lithium-polymer battery, providing up to 8 hours of continuous use, making it ideal for long workshop sessions without interruption.

MaxiFlash VCMI – Advanced 5-in-1 Diagnostic & Testing Tool

At the core of the MS919 is the MaxiFlash VCMI, a powerful 5-in-1 communication and testing device that enhances diagnostic capabilities beyond traditional scanners. It supports:

• VCI (Vehicle Communication Interface)
• 4-Channel Oscilloscope
• Waveform Generator
• Multimeter
• CAN BUS Tester

This advanced system provides wireless communication between the tablet and vehicle and supports the latest communication protocols, including:

• DoIP (Diagnostics over Internet Protocol)
• D-PDU
• Mega CAN
• CAN FD

Advanced Diagnostics & Intelligent Features

The MS919 is designed with intelligent diagnostic tools to improve efficiency and accuracy:

• Dynamic Topology Module Mapping – Color-coded full system status screen for supported vehicles
• Oscilloscope Preset Guided Tests & Component Tests
• Built-in Waveform Library for signal comparison and analysis
• Enhanced Diagnostic Reports – PreSCAN & PostSCAN functionality
• License Plate Reader for quick vehicle identification
• ScanVIN Technology – Barcode and text recognition via camera
• Secure Gateway Access – Authorized FCA SGM access with AutoAuth account

Connectivity & Interface Options

The MaxiSYS MS919 ensures seamless connectivity with multiple options:

• Dual Wi-Fi Connection (Wi-Fi x2: 802.11 a/b/g/n/ac 2×2 MIMO)
• Bluetooth v2.1 + EDR
• GPS Integration
• USB 2.0 Ports (Two USB Host Type A, One USB Mini Device)
• HDMI 2.0 Output
• SD Card Support (Up to 256GB)

Camera, Sensors & Multimedia Features

• Rear Camera: 16 Megapixel with autofocus and flashlight
• Front Camera: 5 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio:
  • Built-in Microphone
  • Dual Speakers
  • 3.5mm stereo headset jack

Battery, Power & Environmental Specifications

• Battery Capacity: 15000mAh 3.8V lithium-polymer
• Continuous Usage: Up to 8 hours
• Charging: 12V AC/DC adapter (0°C to 45°C)
• Input Voltage: 12V/3A adapter
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)

Design, Dimensions & Build Quality

• Dimensions (WxHxD): 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
• Weight: 1.66kg (3.66lb.)

Built with durability and portability in mind, the MS919 is suitable for professional workshop environments.

Comprehensive Vehicle Communication Protocol Support

The Autel MaxiSYS MS919 supports a wide range of advanced automotive protocols, ensuring compatibility with various vehicle brands and systems:

• DoIP
• PLC J2497
• ISO-15765
• SAE-J1939
• ISO-14229 UDS
• SAE-J2411 Single Wire CAN (GMLAN)
• ISO-11897-2
• ISO-11897-3
• SAE-J2819 (TP20)
• TP16
• ISO-9141
• ISO-14230
• SAE-J2610 (Chrysler SCI)
• UART Echo Byte
• SAE-J2809 (Honda Diag-H)
• SAE-J2740 (GM ALDL)
• SAE-J1567 (CCD BUS)
• Ford UBP
• Nissan DDL UART with Clock
• BMW DS2
• BMW DS1
• SAE J2819 (VAG KW81)
• KW82
• SAE J1708
• SAE-J1850 PWM (Ford SCP)
• SAE-J1850 VPW (GM Class2)

What’s Included

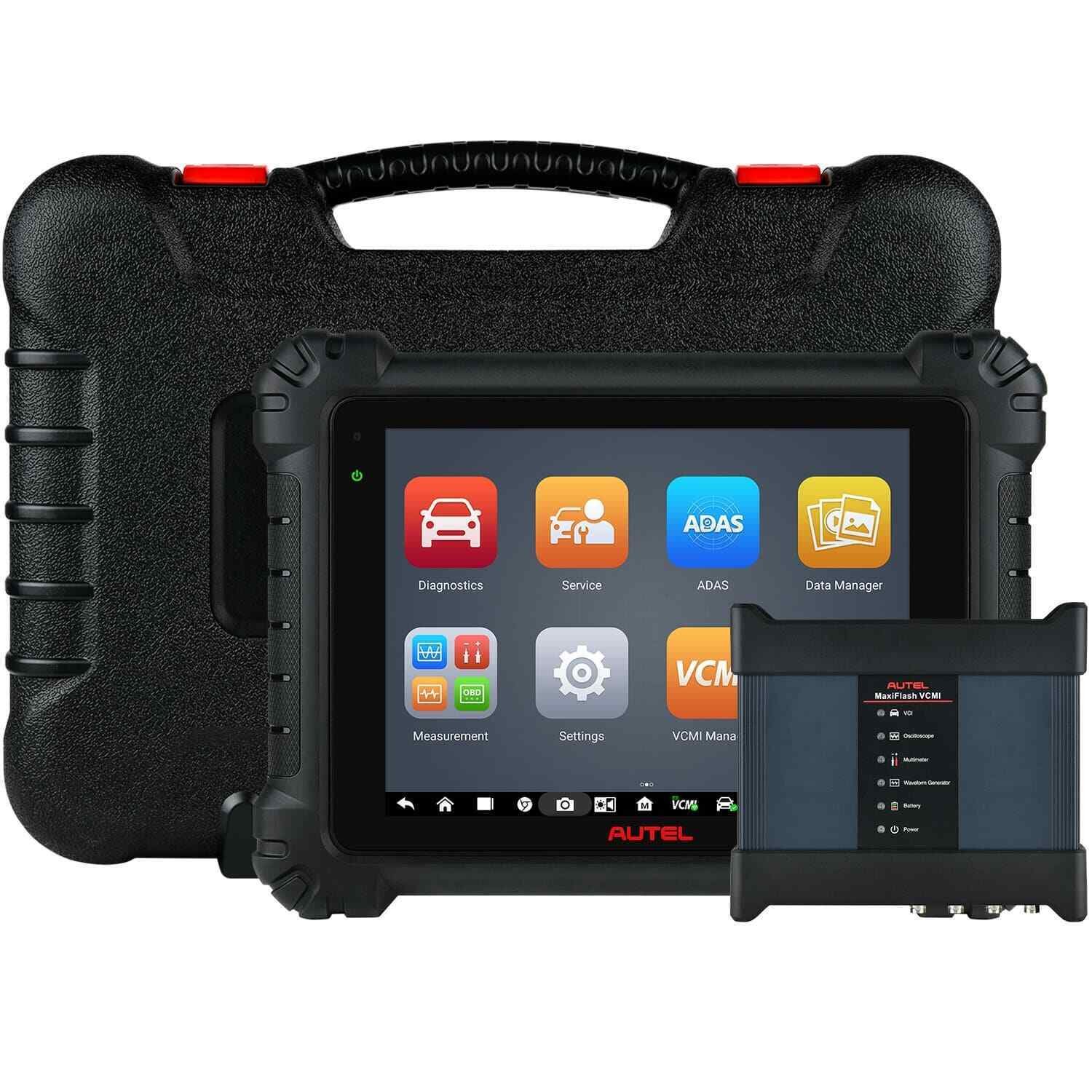

• MaxiSYS MS919 Diagnostic Tablet
• MaxiFlash VCMI Device
• Cables & Scope Connectors
• Carrying Case
• 1-Year Warranty
• 1-Year Software Subscription
