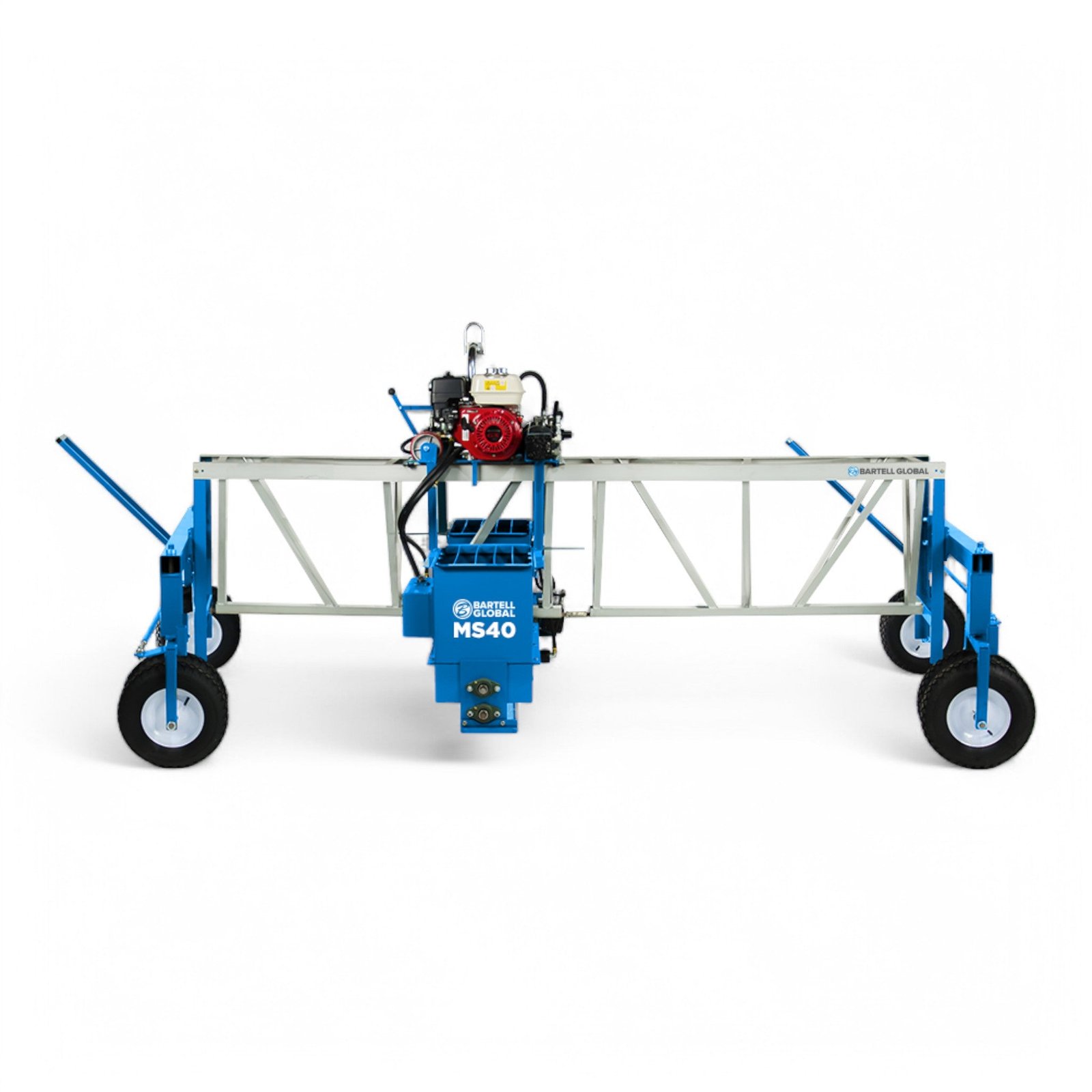

Bartell MS40 Material Spreader – Precision Spreading for Dry Shake Hardeners & Surface Toppings

The Bartell MS40 Material Spreader is designed for fast, accurate, and easy application of dry shake hardeners, reflective toppings, and color additives. Perfect for large concrete slab pours and decorative surface projects, the MS40 improves productivity and ensures even coverage while giving operators full control. Its modular build allows quick adaptation to different project sizes, saving both time and materials.

FEATURES & BENEFITS

• MODULAR SECTION LENGTHS: Available in 2.5′, 5′, and 10′ (0.7 m, 1.5 m, 3 m) increments, enabling coverage from 10′ (3 m) to 75′ (23 m) depending on your project needs.
• CONTROLLED MATERIAL DISPENSING: Adjust flow from 2 ounces to 3 pounds (0.05 to 1.4 kg) per square foot to reduce waste and apply toppings with accuracy.
• LIGHTWEIGHT FRAME STRUCTURE: Each bridge section weighs just 7 lbs (3.2 kg) per foot, allowing for easy handling, setup, and repositioning without heavy machinery.
• HYDRAULIC AGITATION HOPPER: Weighing 308 lbs (140 kg), the hopper keeps material moving steadily and avoids clogs or clumps for uniform distribution.
• SEPARATE FLOW CONTROL: Flow rate operates independently from travel speed, enabling consistent application regardless of movement pace.
• VARIABLE HOPPER HEIGHT: Adjustable from 2″ to 18″ (5.0 cm to 45.7 cm) above the slab for precise placement across various surfaces and topping types.
• TOOL-FREE LENGTH MODIFICATIONS: Bolt-together design allows for quick length adjustments on-site using standard tools—no special equipment necessary.
• EVEN APPLICATION GUARANTEED: Precision metering valve helps distribute material evenly, maximizing the efficiency of each topping bag used.
• SUITABLE FOR TRAP ROCK: Engineered to accommodate a wide range of topping materials, including durable trap-rock finishes.

SPECIFICATIONS

• Engine: Honda GX160
• Total Reach: Up to 75′ (23 m)
• Hopper Capacity: 4.5 ft³ (127 L)
• Engine Power: 5.5 hp
• Max Load Capacity: 600 lbs (272 kg)
• Discharge Height Range: 2″ (5 cm) to 18″ (122 cm)
• Hopper Weight: 385 lbs (175 kg)
• 2.5′ (70 cm) Section Weight: 18 lbs (8 kg)
• 5′ (1.5 m) Section Weight: 32 lbs (28 kg)
• 10′ (3 m) Section Weight: 61 lbs (28 kg)
• Wheel Assembly Weight: 270 lbs (123 kg)
• Trap Rock Ready: Yes

Note: Projects spanning over 50 ft (15.24 m) require the use of a 4-wheel adapter (included in the price)

The MS40 provides unmatched flexibility, precision, and productivity for applying concrete toppings. With its modular system, hydraulic agitation, and precise flow control, it’s built to deliver professional, reliable results while cutting down on labor and product waste. Whether you’re enhancing decorative surfaces or pouring industrial-grade slabs, the MS40 ensures optimal material placement every time.
