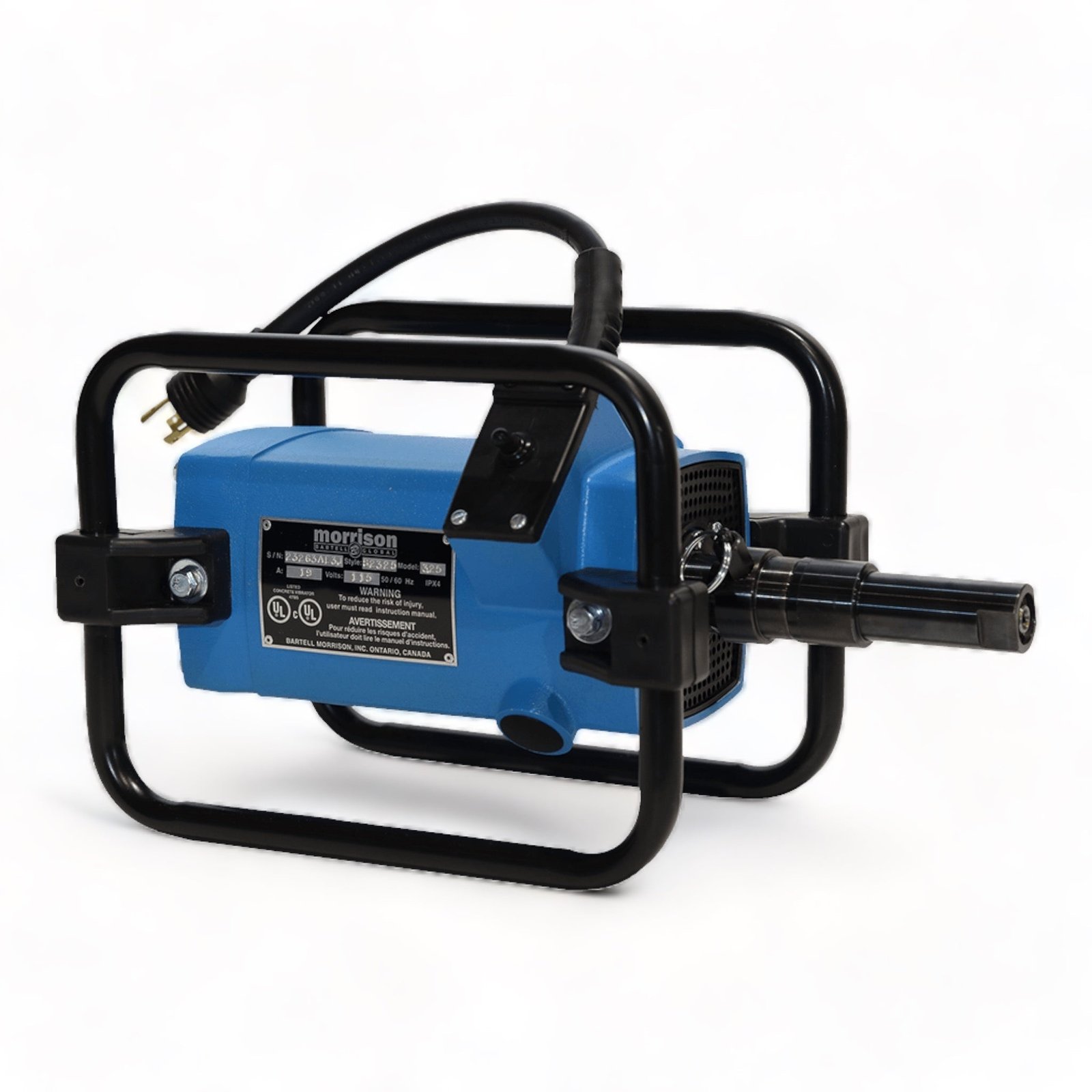

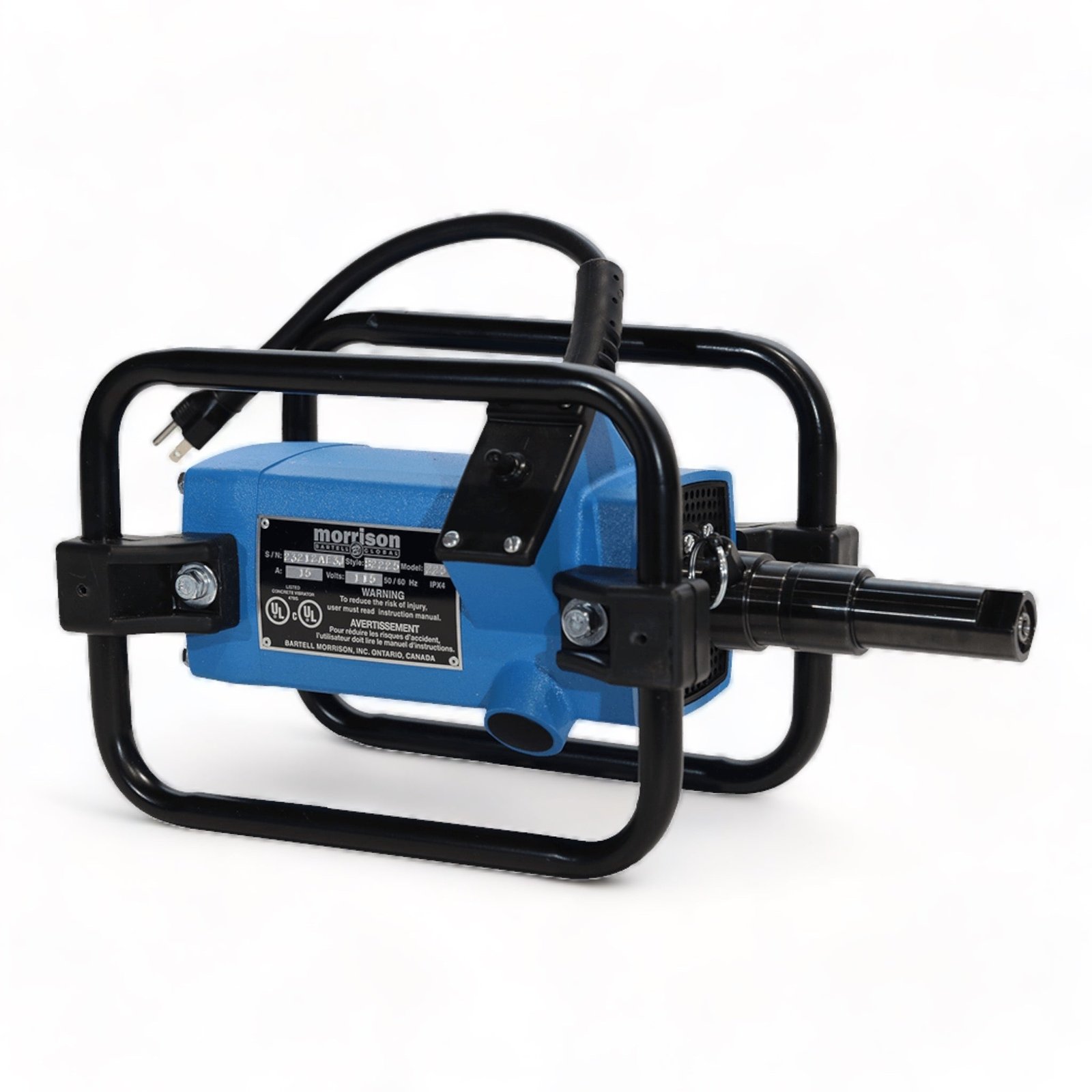

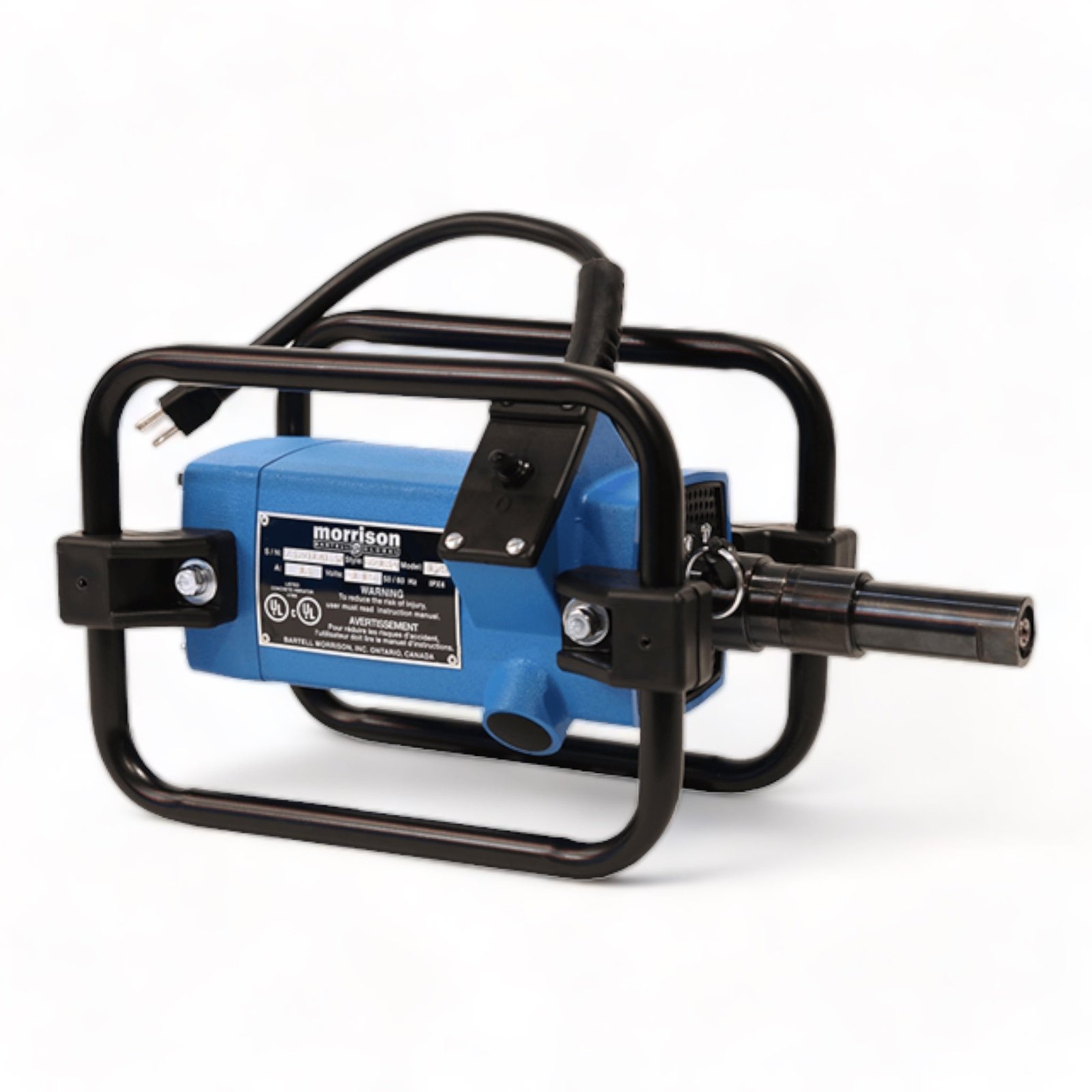

Bartell S2MVM Electric Concrete Vibrator Motor

Bartell Global’s range of Morrison electric vibrators includes three powerful models, tailored for different job sizes. From the compact S2MVM134 designed for small-scale tasks with heads up to 1.75″, to the S2MVM225—known as the most adaptable motor available, capable of operating heads up to 2.5″—and finally the heavy-duty S2MVM325, engineered for the most demanding jobsite conditions.

FEATURES

• Equipped with “quick release” shafts for fast and hassle-free changes
• Compatible with head sizes from 3/4″ to 2-1/2″
• Available shaft lengths range from 2 ft to 21 ft

AVAILABLE OPTIONS

• S2MVM134 – Ideal for smaller projects using heads up to 1.75″
• S2MVM225 – Highly versatile motor capable of running heads up to 2.5″
• S2MVM325 – A high-powered unit designed for heavy-duty applications

Specs

1.75 HP WITH QUICK RELEASE

• Power: 1.75 hp (1.2 kW)
• Amps: 15
• Voltage: 110V
• Weight: 17 lbs (7.7 kg)
• Max Head Size (Steel): 1.75″

2.25 HP WITH QUICK RELEASE

• Power: 2.25 hp (1.7 kW)
• Amps: 17
• Voltage: 110V
• Weight: 19 lbs (8.6 kg)
• Max Head Size: Steel: 2″ | Rubber: 1.875″ / 2.75″ short

3.25 HP WITH QUICK RELEASE

• Power: 3.25 hp (2.4 kW)
• Amps: 19
• Voltage: 110V
• Weight: 25 lbs (11.3 kg)
• Max Head Size (Steel): 2.5″
