Portable Toilet with Fan-shaped Door Shower
Original price was: £5,001.90.£3,001.14Current price is: £3,001.14.

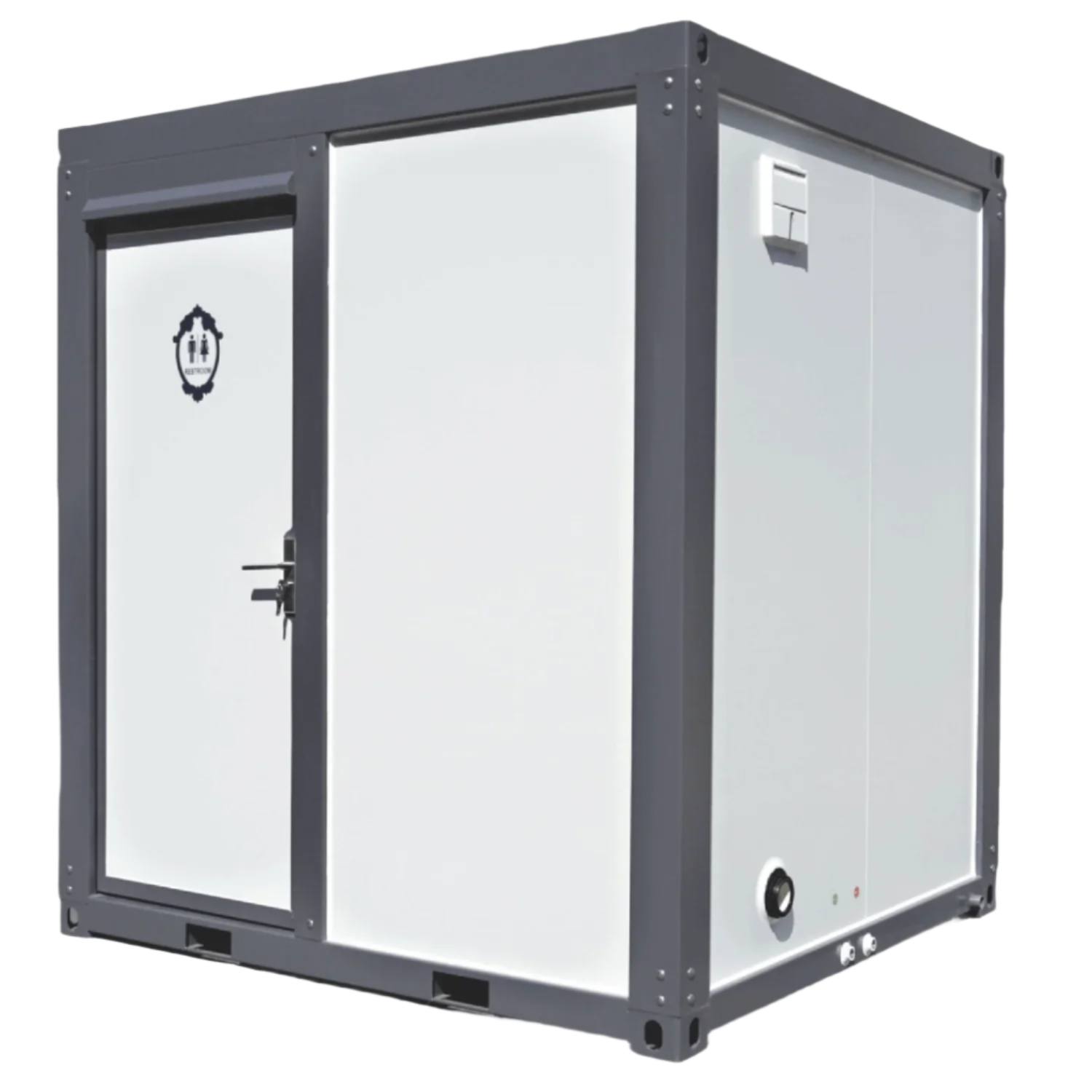

Bastone Portable Toilet with Fan-shaped Door Shower
The Bastone Portable Toilet with Fan-shaped Door Shower is the ultimate solution for outdoor camping and activities. Its compact and ingenious design combines multiple functions in one unit, providing a toilet, sink, and shower within a transportable, standalone mobile bathroom. Designed for convenience and simplicity, it is perfect for outdoor adventures.
Specification
| Description | Specifications |
| Model | Mobile Toilets with shower-Fan-shaped Door |
| Dimension (LxWxH) | 85″x76″x93″ |

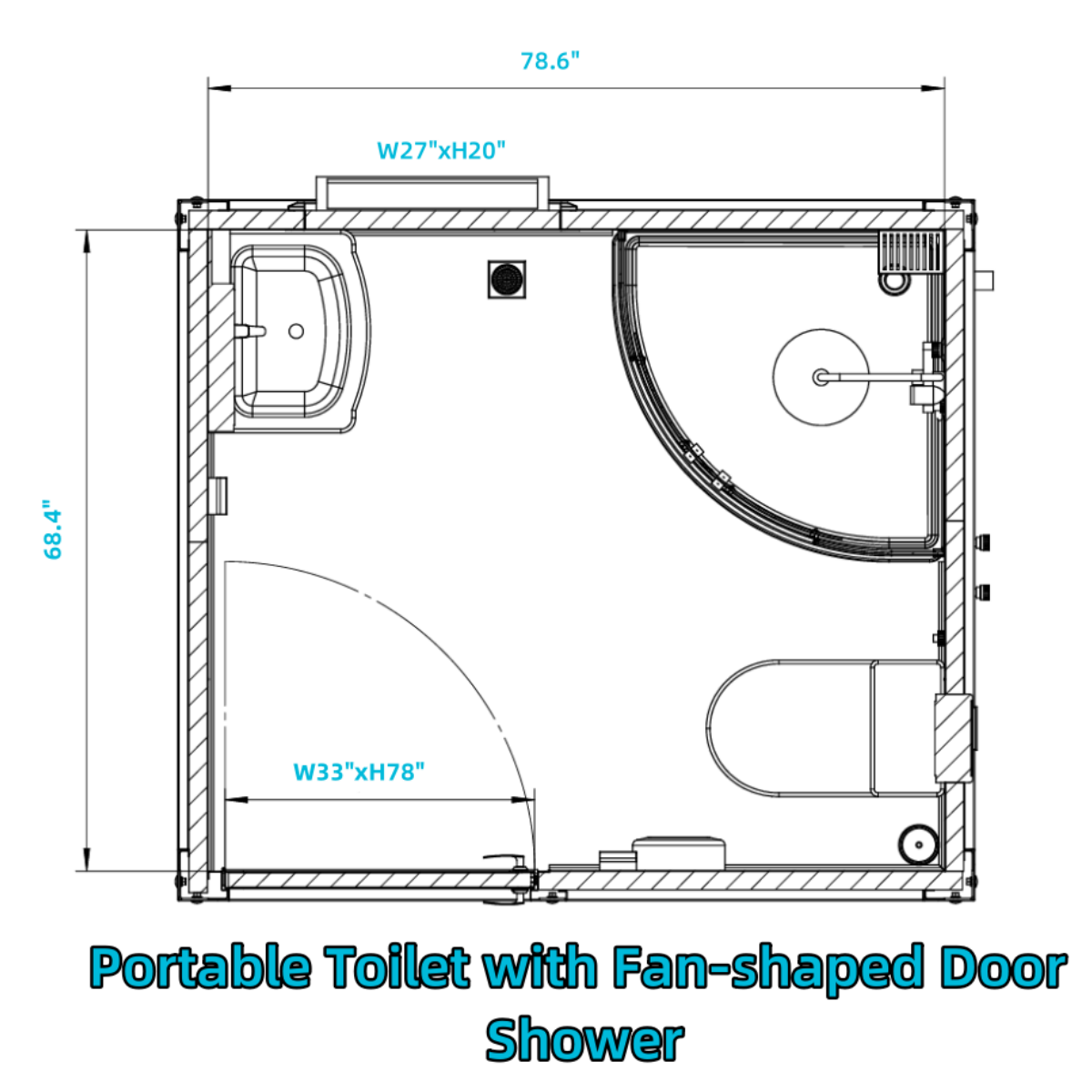

| Interior Dimension (LxW) | 78.6″x68.4″ |
| Door Size | W 33″ x H 78″ |
| Net Area | 37.3 ft² |
| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |

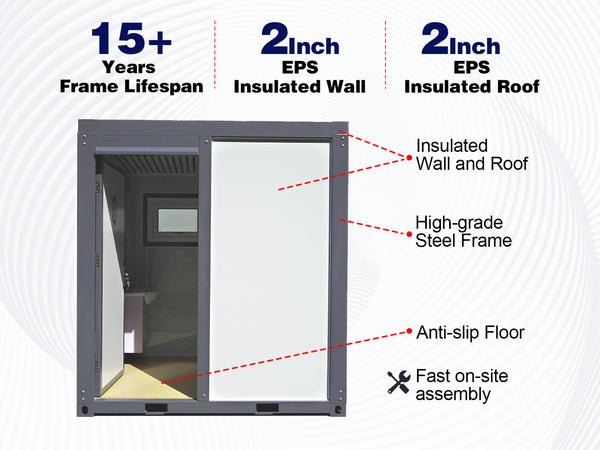

| Roof Material | 2-inch EPS fire-resistant & insulated roof panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 7.09~8.27 |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |
| Wiring Instructions | White Wire: Neutral Wire Black Wire: Live Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature | 14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7″x H3″ Distance between forklift pocket: 28″ |
| Lifespan | 15+ Years |
| Warranty | 1 Year |
Set Up

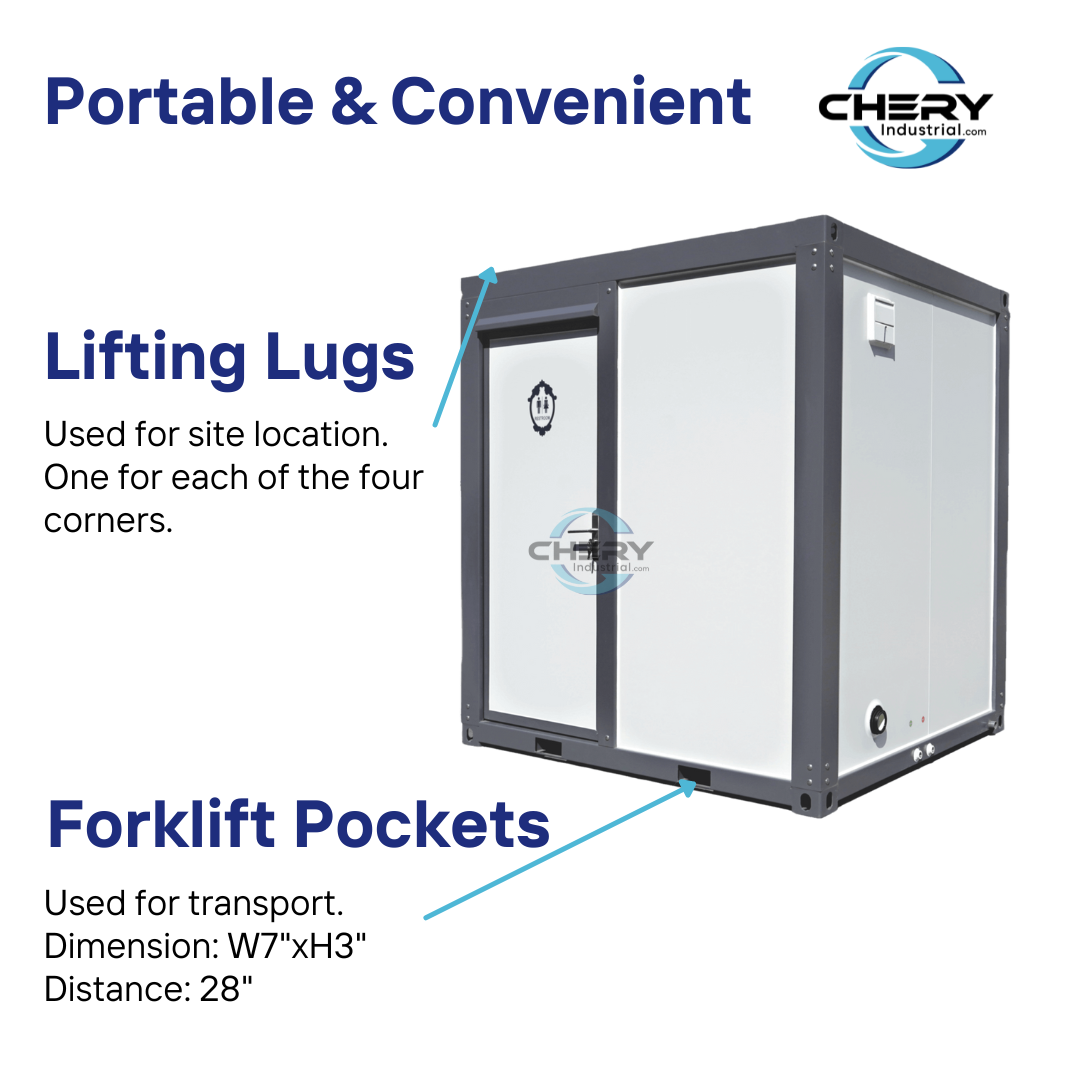

- Equipped with 4 lifting lugs on top and a forklift slot on the bottom
- Requires unloading using a crane or forklift
Footing Options
- Concrete slab or pads
- Compacted ground
- Concrete or steel stumps
Note: The finished surface must be level. Consulting a qualified professional is recommended.
Important Notes
- A licensed electrician must supply and install all wiring

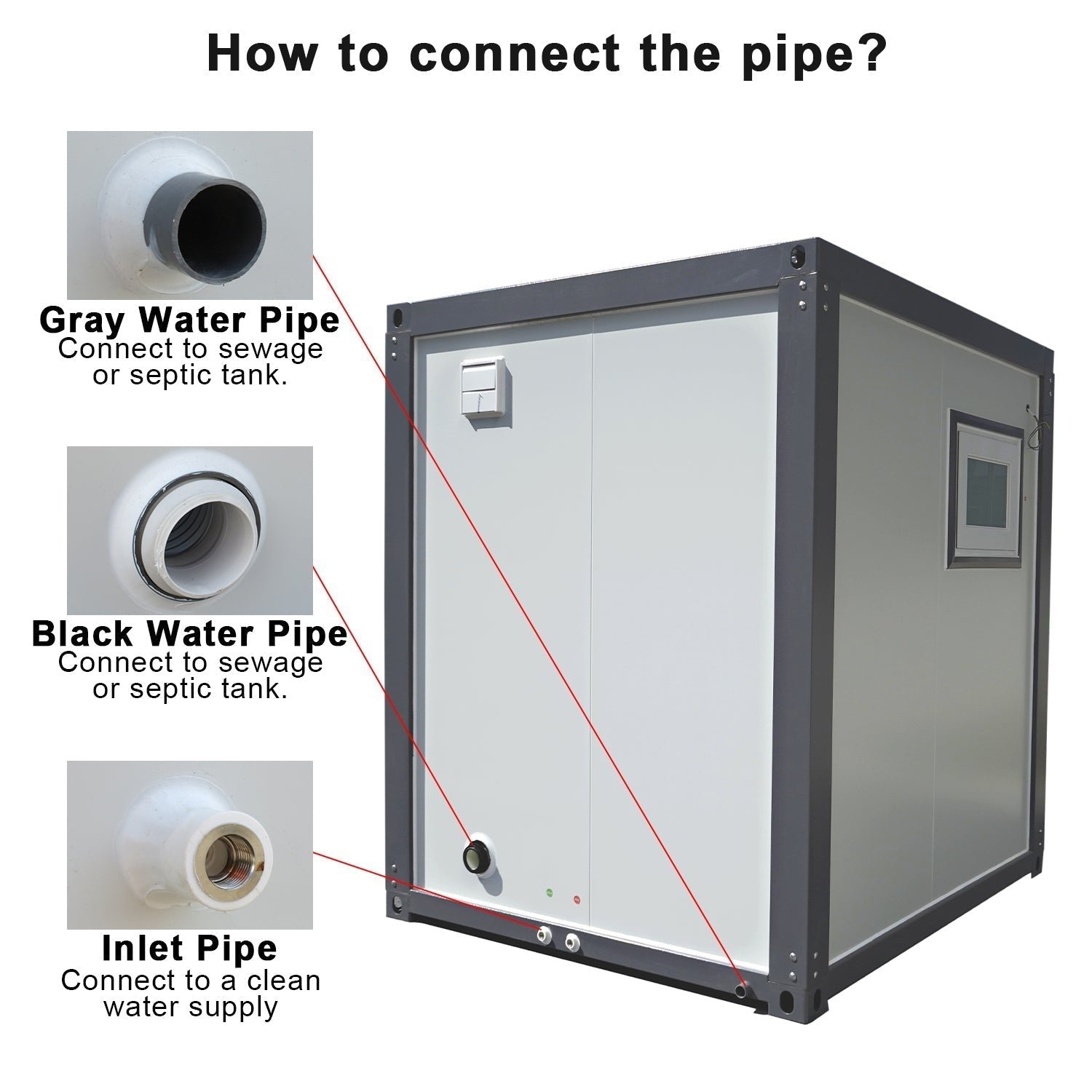

- Use thread seal tape for all pipe connections, not glue
- Portable restrooms require city water or well pump water
- All sewage must be connected to the city sewer system or a simple septic system
- For construction site use: connect toilets to the sanitary sewer and cold water to the pipe system; hot water should connect to the heating burner. Otherwise, external tanks may be required
- Concrete floors: use twist-n-lock anchors at all four corners, secured with wire rope to the top corners
- Soil floors: use 20–28 inch ground nails at all four corners, secured with wire rope to the top corners

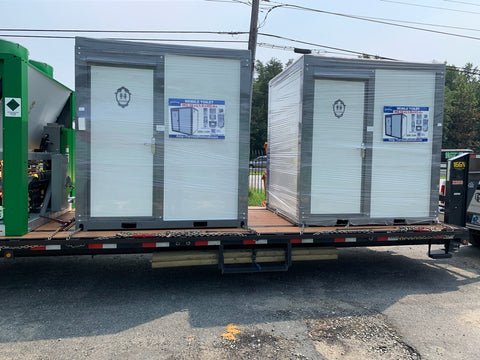

Unloading reference

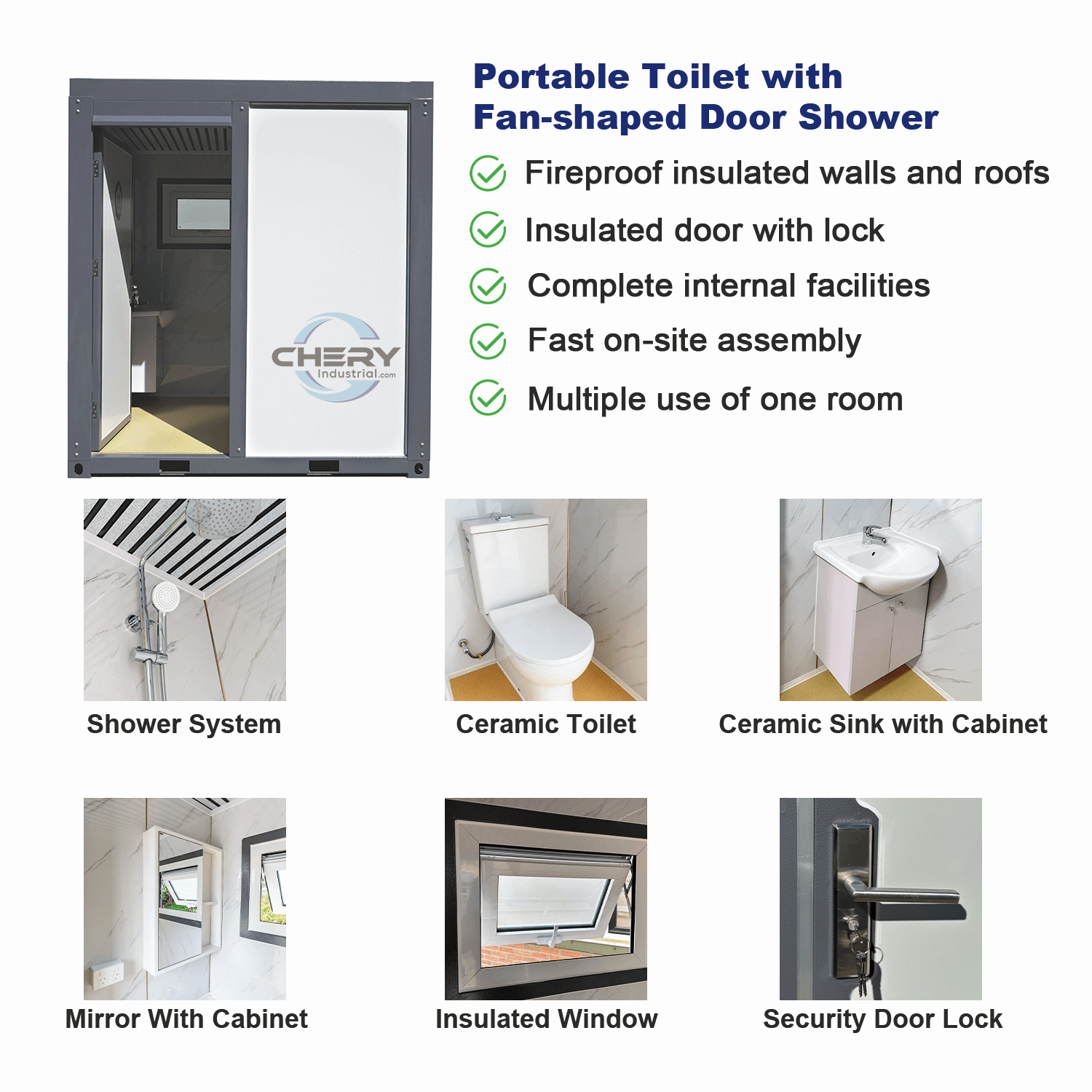

Features
- Toilet with ceramic bowl & tank
- Ceramic vanity sink with faucet
- Shower fixtures and paper dispenser
- Power outlet with dual USB, 110V electric vent fan, and internal light

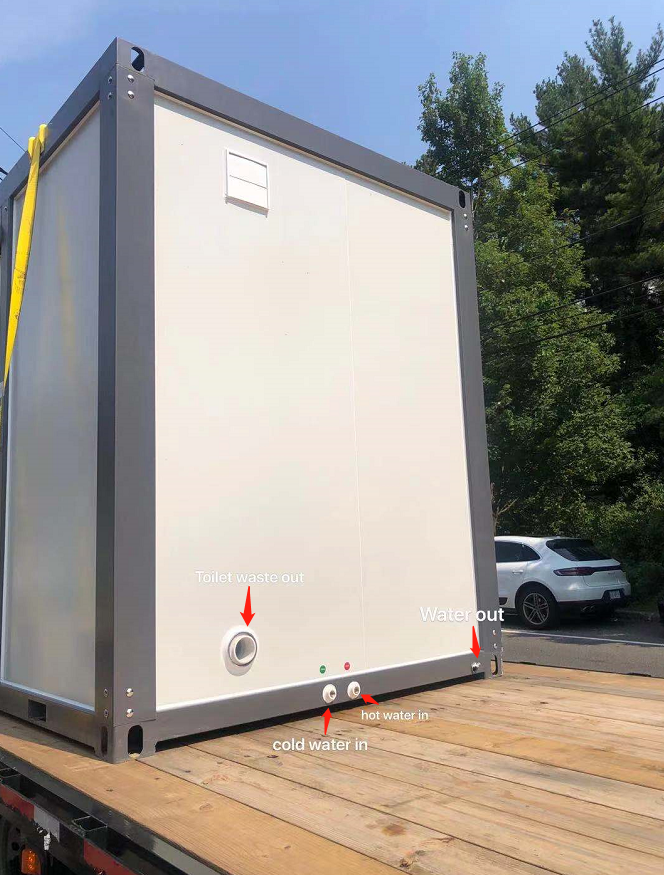

- 1/2″ female inlet ports for hot & cold water
- 3″ black water/waste exhaust flexible hose (fits 3″ PVC pipe for waste)
- 1″ PVC water outlet exhaust port for sink & shower
- Power breaker, locking door with keys, hinged window
- Visual Men/Women signage, lifting eyes, and forklift pockets
Package Size
- Dimensions (L×W×H, inch): 85 × 76 × 93
- Weight (lb): 1,576
- A forklift or equivalent is required for unloading
