BendPak 5210194 Telescoping Arm Kit for P9000 Series

BendPak 5210194 Telescoping Arm Kit for P9000 Series

The 5210194 optional lift arm kit increases versatility by increasing the contact pad reach. Features four adjustable arms with stackable contact pad adapters for fast, easy and safe lifting of vehicles using manufacturer designated lift points.

Heavier-Duty Low-Rise Lift Arm Kit

Increase your low-rise lift capabilities with the 6000AK arm kit. Designed to fit BendPak’s P-9000LT and P-9000LTF low-rise pit lifts, these 9,000-lb. capacity adapters instantly extend the reach of your lift’s runways.

Finding difficult-to-reach lifting points has never been easier! The 6000AK Arm Kit attaches easily to each lift ramp so you can reach challenging contact points on your frame. With new telescoping arms, each 6000AK lifting arm can be extended up to 18” past the edge of the platform, extending to a full 41.5” in length. The rotating pin design makes for quick installation and rotates smoothly, giving you the power to position the lifting arm anywhere under your vehicle.

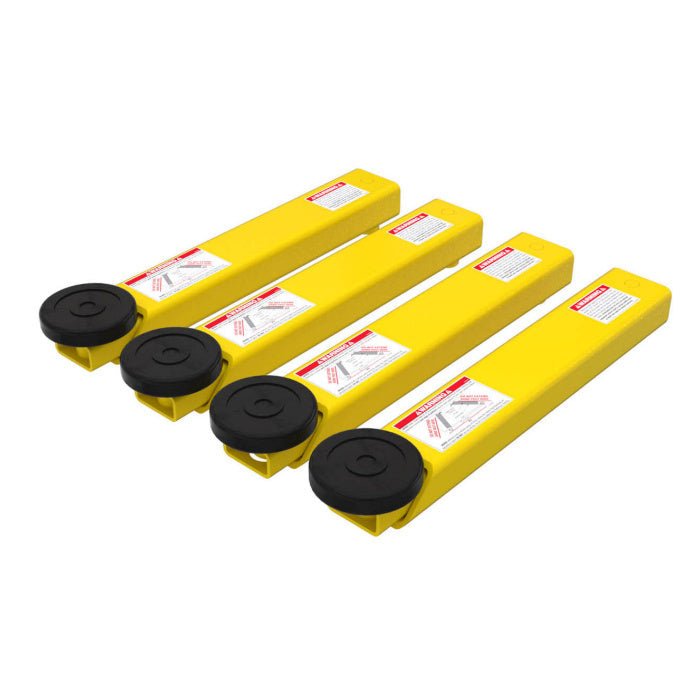

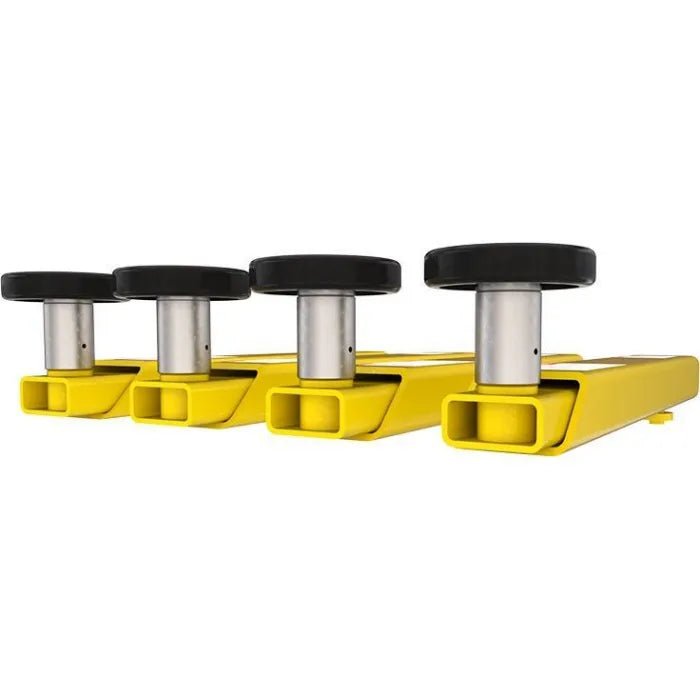

This low-profile arm kit comes complete with four telescoping lift arms and four contact lift pads. The contact pads included in the kit are interchangeable and feature low-profile pads. These contact pads easily drop into the lifting arm and have a thick polyurethane Tuf-Pad, designed to protect the chassis frame, while providing an extra-strong grip that holds your car firmly in place. Tuf Pads are also designed to withstand heavy use, giving you the freedom to safely lift vehicles of any size up to 9,000-lbs. Ideal for light trucks and vans, especially ones in heavier weight classes, the 6000AK Arm Kit allows you to adapt to any vehicle in your garage or shop with ease.

If you extend the Lift Arms (using their telescoping ability) past four inches from the edge of the platform, the rated capacity of the Lift Arms is reduced:

• Up to 4 inches: 2,250 lbs. per Lift Arm, 9,000 lbs. total. No reduction in rated capacity.
• At 6 inches: 1,500 lbs. per Lift Arm, 6,000 lbs. total.
• At 10 inches: 900 lbs. per Lift Arm, 3,600 lbs. total.
• At 18 inches (fully extended): 500 lbs. per Lift Arm, 2,000 lbs. total.

An optional lift arm kit increases versatility by increasing the contact pad reach. Features adjustable arms with stackable contact pad adapters for fast, easy and safe lifting of vehicles using manufacturer designated lift points. With 9,000 lbs. lifting capacity, these rugged lifts will easily handle virtually every automobile, light truck and SUV. Plus, the clear-center design of both the P-9000 and P-9000F installs over your existing pit without interfering with your lube bay opening.

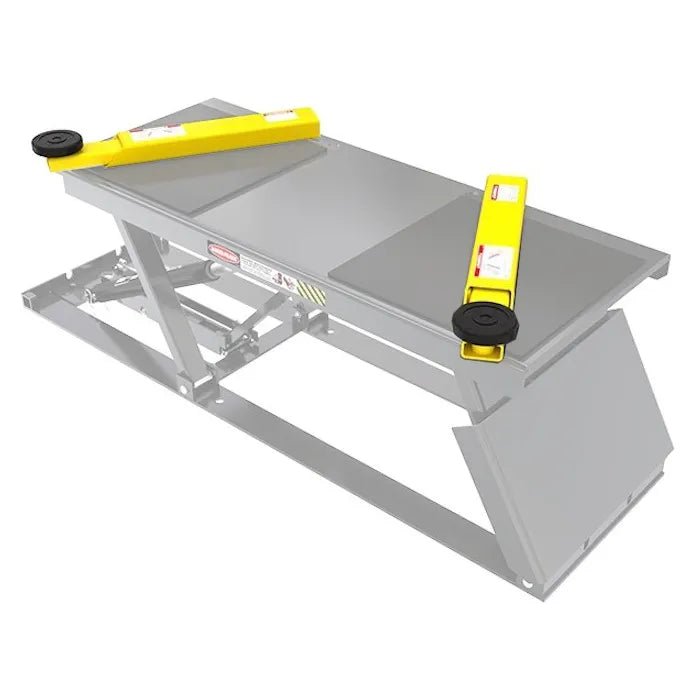

BendPak thinks of everything. Not only do they offer a pit lift with 9,000 lbs. capacity, above all others, but they also offer an arm kit that allows you to reach vehicle frame jacking points that you would not be able to get at without this arm kit. Most vehicles have frame jacking points that are on the other edge of the frame. But not all cars do. Some automobiles have jacking points that are deeper within the automobile’s frame. More toward the center of the vehicle. For those vehicles, the P9000 pit lift arm kit is necessary. These arms grab the outer edge of the pit lift pads, and go across the pad to reach in toward the opening between the two pads. The kit comes with some rubber lift blocks as well. Place these rubber lift blocks on the arms with they will meet the car frame jacking points. Virtually almost any vehicle under 9,000 pounds can be raised by this lift with the aid of this innovative accessory.
