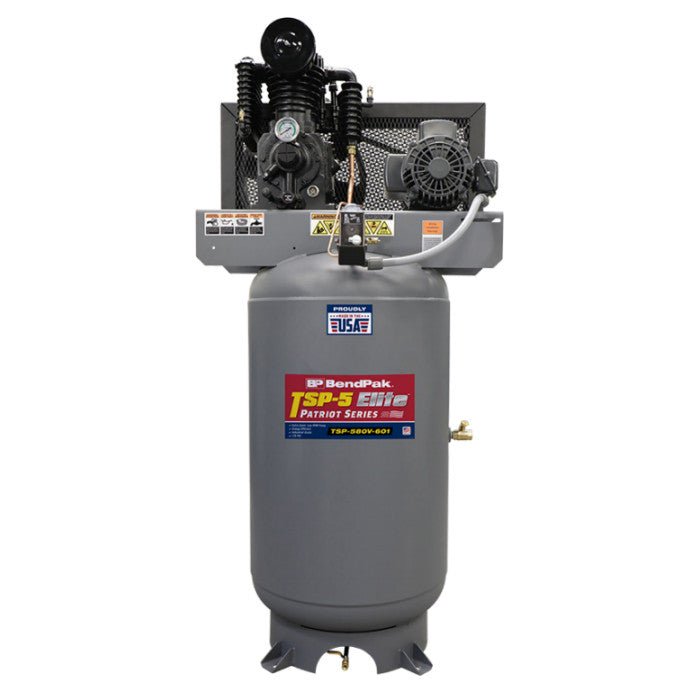

BendPak TSP-580V-601 5HP 1Ph 80Gal Vertical Air Compressor

The TSP-5 Patriot Series Air Compressor, Made in USA

The TSP-5 is one of BendPak’s most popular made in USA air compressor models. High-quality, slow running cast iron compressor pumps deliver proven longevity in the most demanding conditions. Because they run at a slower RPM than most comparable units, they’re quieter, run cooler and cost less to operate. 100% cast iron pumps provide the quality and performance needed for heavy‐use applications like automotive and body repair to manufacturing and industrial service.

Hydraulic pump
The two-stage, twin piston pump features splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling. Heavy‐duty, disc‐type valves are dependable and accessible without having to remove the cylinder head or perform other complicated valve maintenance procedures. A built‐in inter-cooler and air‐cooled after-cooler chill the air, resulting in reduced heat and condensation moisture.

Anti-vibration pads
This air compressor includes a set of four rugged, half-inch thick pads to ensure there’s virtually zero machine vibration during operation. The high-quality elastomer compound resists aging, compression set, water and oil.

Cooling fan

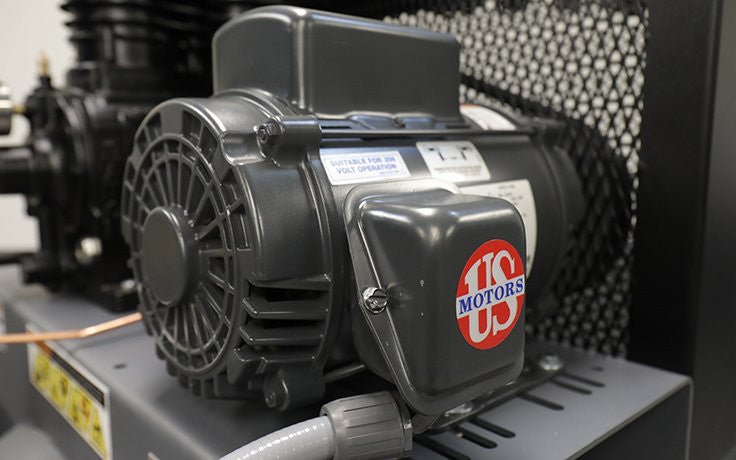

The TSP-5 Patriot air compressor operates at low temperatures and optimizes its efficiency for maximum air output. The pump runs at a lower speed, which also reduces noise in your shop or garage. When you finally decide which air compressor best fits your needs, take into account the overall lifetime maintenance costs. This is the “true cost” of owning anything. Electric bills can accumulate quickly, and more horsepower means a higher bill. That’s exactly why the TSP-5 Elite is such a money-saver: it runs at a cool temperature and runs an efficient 5 HP motor that won’t cut deeply into your bottom line. Why get less when you can save more with the TSP-5 Elite by ​BendPak?

Experience the Pure Power of BendPak USA Made Air Compressors

BendPak air compressors are now made in the USA and have a well-earned reputation for high performance and dependability. When you’re concentrating on a project, you shouldn’t have to worry about the temperature or moisture inside your air compressor; you just need a unit that works as hard as you do.

Top 5 Reasons to Choose a BendPak Air Compressor​
Our highly efficient ​Patriot line of air compressors are perfect air-pumping powerhouses that feature rugged cast-iron construction, high-quality Manchester Tanks, true copper piping for cooler operation, pressure control and extra-large pumps. We offer a variety of motor options for our ​Patriot air compressors, such as one or three phase, 60 Hz, and 5 horsepower, 7.5 horsepower, or 10 horsepower. All vertical models come standard with rugged 1/2-inch anti-vibration pads to keep the unit still during operation.

Standout Features of BendPak Air Compressors
BendPak Patriot Series air compressors directly resist temperature and moisture concerns with larger pistons that operate at lower speeds. Fewer rotations per minute directly results in lower operating temperatures, but thanks to the larger piston size, you don’t have to sacrifice performance. With lower a temperature comes much less moisture, ensuring your Patriot Series air compressor has a long and happy existence in your shop or garage. Whatever your high-pressure air requirements, BendPak has exactly what you need.

Is a Rotary Screw Air Compressor Worth the Cost?
There are many things to consider before you decide a rotary screw air compressor is worth a higher price. Such compressors are much quieter than traditional reciprocating (piston-type) compressors, but they’re also more expensive. Then again, they tend to require less maintenance over time and can operate continuously, which makes them ideal for busy shops. This guide will walk you through your options, so you have what you need to get the BendPak air compressor with enough horsepower and CFM for your budget.
