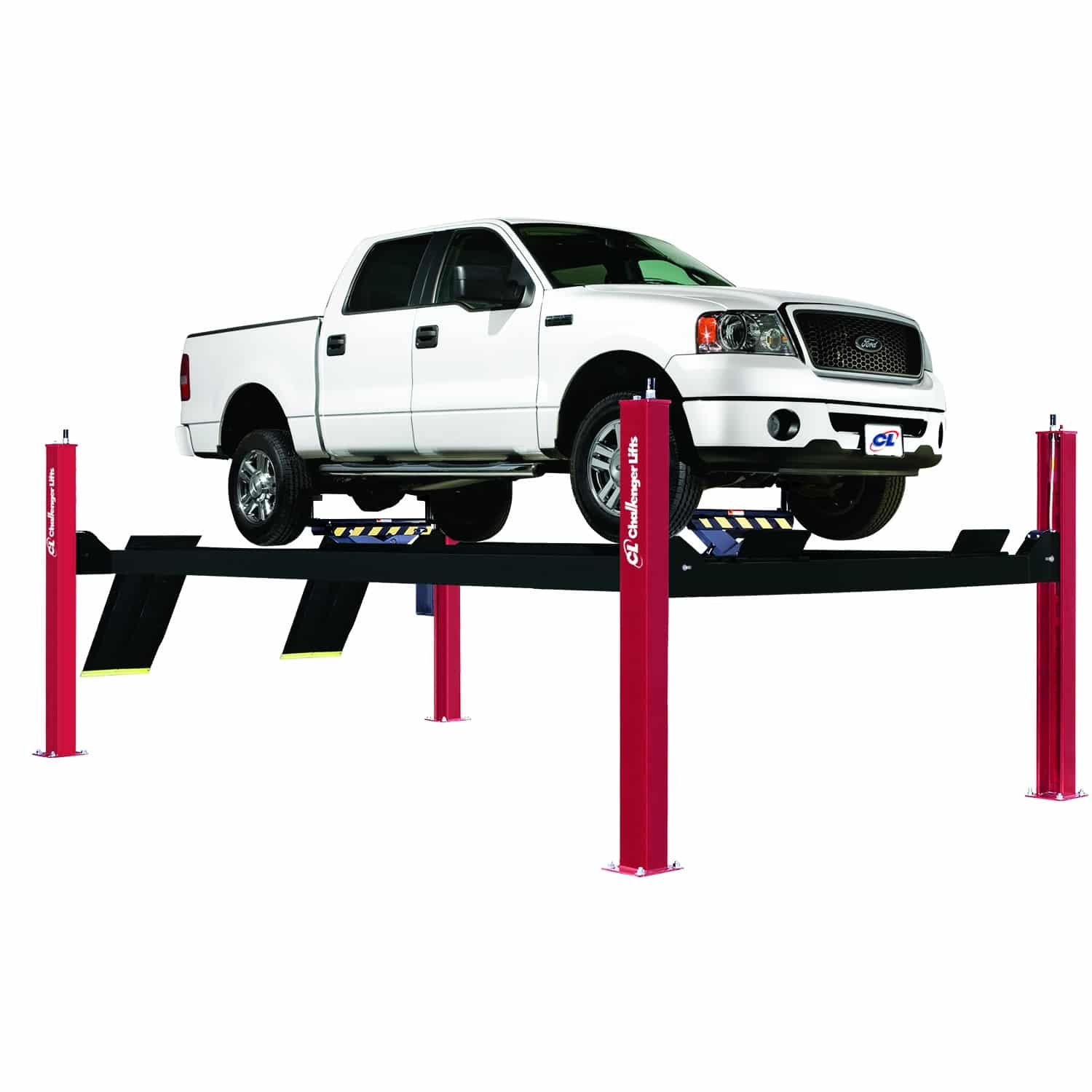

Challenger’s 14,000 lb. closed-front drive-on 4-post lift features a low approach angle and wide runways for easy approach. It also has one of the highest rise in the industry and durable column construction. We designed the 4P14 for versatility, with louvered approach ramps as well as in two lengths. A range of optional accessories can help you accommodate just about anything that comes in for service.
ALI/ETL certified.
Features & Benefits
• 14,000 lb. lift capacity
• Closed front design with either 182.5″ or 210” (extended) wheelbase to accommodate long vehicles
• 20″ wide runways aid for drive-on confidence
• Louvered approach ramps provide superior traction for driving vehicles on and off ramp
• 78″ rise height, among the highest rise in the industry, provides maximum head room for working underneath vehicles
• 14-level locking positions, allowing ergonomic working height for technicians to increase productivity and minimize fatigue
• Powder coat finish provides long-lasting durability
• Available with red or blue columns
Specs
| Model Number | 4P14EFX | 4P14XFX | |||
| Lifting Capacity | 14,000 lbs. | 14,000 lbs. | |||
| Open or Closed Front | Closed | Closed | |||
| Max. Wheelbase | 182.5” | 210” | |||
| Rise Height | 78” | 78” | |||
| Overall Length | 245.75” | 273.25” | |||
| Overall Width | 130.75” | 130.75” | |||
| Inside Columns | 116” | 116” | |||
| Between Columns | 196” | 223.5” | |||
| Height of Columns | 90.5” | 90.5” | |||
| Width of Runways | 20” | 20” | |||
| Height of Runways | 7.25” | 7.25” | |||
| Width Between Runways | 40” / 43” | 40” / 43” | |||
| Air Supply Required | 90-120 psi | 90-120 psi | |||
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph | |||
| Speed or Rise | 90 s | 90 s | |||
| Min. Recomm. Bay Size | 12’ x 24’ | 12’ x 26’ | |||
| ALI/ETL Certified | Yes | Yes | |||
| Colors Available | Red, Blue | Red, Blue |
| Accessories | |||||||||
| Alignment Accessories | |||||||||
| Part No. | Description | ||||||||
| RJ7.5 | Air/Hydraulic Rolling Jack – 7,500 lb. capacity | ||||||||
| 10355-6 | Pair of 6 in. stack extensions for 7.5K rolling jack | ||||||||
| 10355-9 | Pair of 9 in. stack extensions for 7.5K rolling jack | ||||||||
| 10333-RJ | Sprinter adapter kit for 7.5K rolling jack | ||||||||
| 40230-E | Internal air line kit for dual rolling jack operation (4P14EFX, 4015E series only) | ||||||||
| 40230-X | Internal air line kit for dual rolling jack operation (4P14XFX, 4015X series only) | ||||||||
| 10500SS | Stainless Steel Turning Radius Gauges | ||||||||
| 10500 | Powder Coated Turning Radius Gauges | ||||||||
| 40200-3D | Bolt-on alignment kit without turn plates | ||||||||
| 40200-3DBK | Bolt-on alignment kit with powder coated turn plates | ||||||||
| Ramps | |||||||||
| Part No. | Description | ||||||||
| 10266 | 36″ long Louvered Ramp Kit for drive-thru operation | ||||||||
| 10266L | 48″ Ramp Kit for low-profile vehicles | ||||||||
| Productivity Accessories | |||||||||
| Part No. | Description | ||||||||
| 10267 | 32 gallon Oil Drain Pan | ||||||||
| 10342 | Hanging tool holder for Oil Drain Pan (Part No. 10267) | ||||||||
| 10267 | 32 Gallon Oil Drain Pan Kit (44018 & 44030 only) | ||||||||
| 10310 | Air/electric workstation with filter/lubricator/regulator | ||||||||
| 3PH4P | Power Unit Upgrade to 3-Phase | ||||||||
| Download the 4P14 Product Brochure | |||||||||
| Download the 4P14 Spec Sheet | |||||||||
| Download the current 4P14 Manual | |||||||||
