Daytona 10,000 lbs 2 Post Lift, ALI Certified SKU BR10-2OH-33

With a 10,000 lb lifting capacity and dual direct drive hydraulic cylinders, this lift delivers smooth, efficient, and powerful lifting for a broad range of vehicles. Whether you’re performing general maintenance, heavy repairs, or bodywork, this lift accommodates both symmetric and asymmetric lifting thanks to its compact three-stage arm design.

Built for convenience and durability, the BR10-20H-33 comes equipped with automatic safety locks, single-point lock release, and automatic arm restraints to ensure secure lifting with minimal user input. The matte powder coat finish offers a sleek look and enhanced resistance against shop wear and corrosion. Height extension adapters (1.5″, 3″, and 6″) are included, and the lift is compatible with an optional 2-foot height extension kit for taller ceiling installations. With ALI certification and a 1-year warranty, this lift is ideal for serious shops looking for reliability and peace of mind.

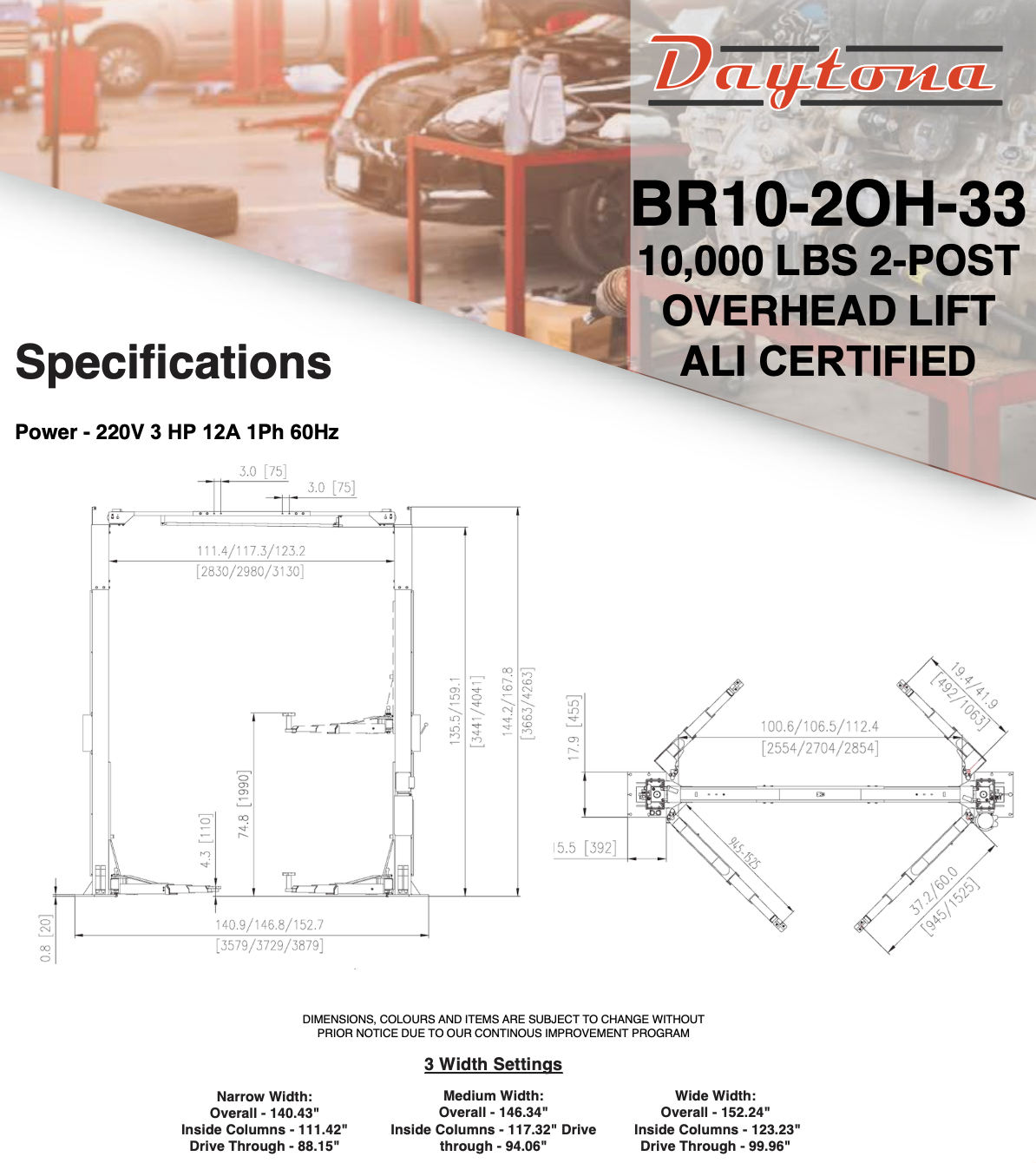

BR10 20H 33 Specification

• Capacity: 10,000lb

• Power Supply: 220V, 1 Phase, 60Hz

• Outer Width (Post Base Outsides): 154″

• Inner Width (Post Base Insides): 118″

• Clearance Under Arm at Full Height: 70″

• Inner Width Between Posts: 123.5″

• Outer Width (Post Outsides): 137.5″

• Minimum Pad Height (Arms Down): 4″

• Vehicle Clearance Between Arms: 113″

• Safety Cover Clearance Requirement: 9″

• Post Base Dimensions: 18″ x 18″

• Post Dimensions: 7″ x 12″

• Height to Overhead Bar: 144.5″

• Optional Height Extension Kit: Adds 2 feet

Adjustable Width Settings:

• Narrow:

  • Overall Width: 140.43″

  • Inside Columns: 111.42″

  • Drive Through: 88.15″

• Medium:

  • Overall Width: 146.34″

  • Inside Columns: 117.32″

  • Drive Through: 94.06″

• Wide:

  • Overall Width: 152.24″

  • Inside Columns: 123.23″

  • Drive Through: 99.96″

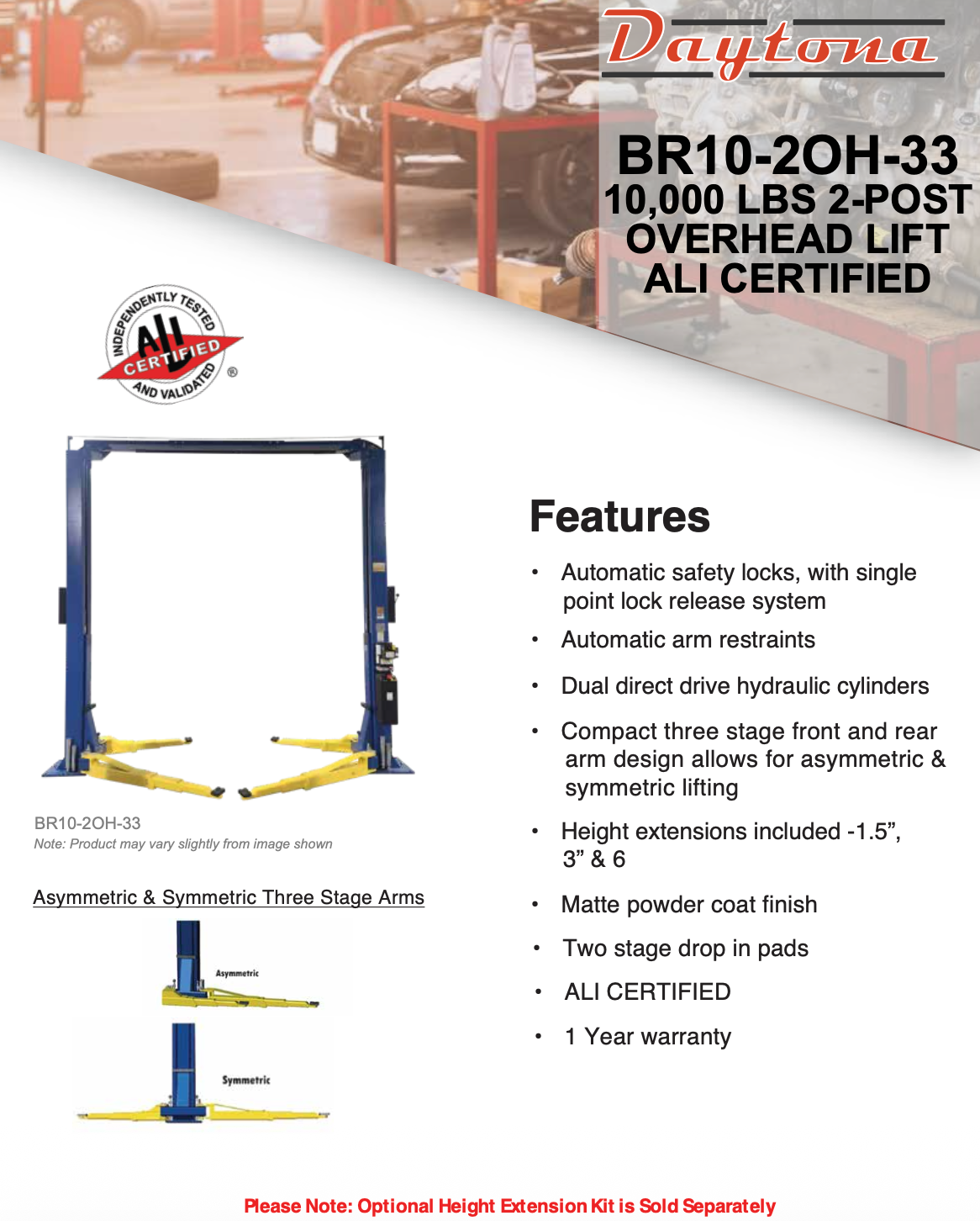

BR1020H33 10,000 lb 2-Post Lift Special Features

• ALI Certified for safety and reliability

• 10,000 lb lifting capacity suitable for cars, trucks, and SUVs

• Dual direct drive hydraulic cylinders for powerful lifting

• Automatic safety locks with single-point lock release

• Automatic arm restraints for secure load holding

• Compact 3-stage front and rear arms for symmetric/asymmetric lifting

• Matte powder coat finish for corrosion resistance

• Includes 1.5”, 3”, and 6” height extension adapters

• Two-stage drop-in pads for flexible lifting points

• Shipping Dimensions: Lift 142″ x 23” x 44” 2100lbs



• Pump attached to lift. Included in dimensions



• Optional Height Kit 31” x 18” x 17″ 200lbs

• Daytona 5-2-1 Warranty
  • 5 Year Structural
  • 2 Year Electric, Cylinders, Seal Kits
  • 1 Year Defective Parts
