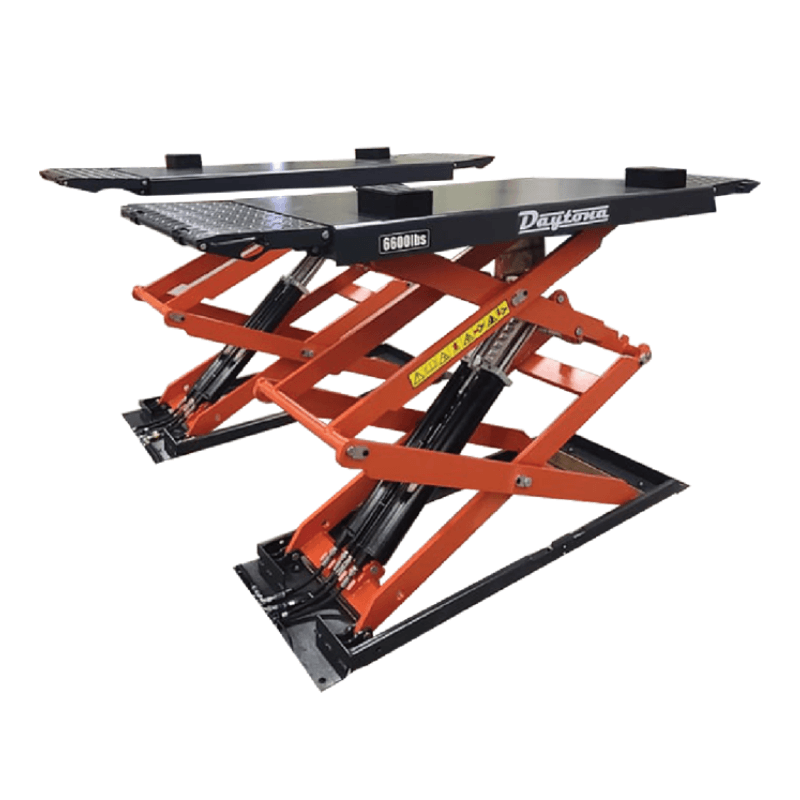

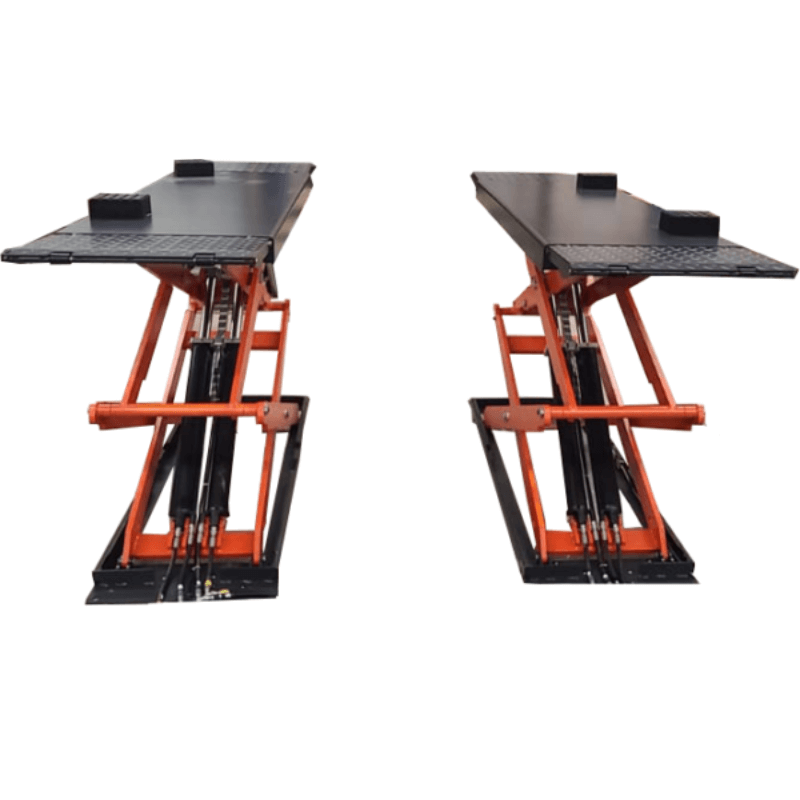

Daytona 6,600 lbs Full Rise Scissor Lift, Above Ground SKU LHS7

With a double hydraulic equalizing system and solid steel construction, this lift delivers the strength, stability, and safety needed for efficient vehicle maintenance. The pneumatic-actuated safety lock adds a secure hold at multiple working heights, while the powder-coated finish ensures durability over time.

Its low 5″ profile makes it ideal for vehicles with minimal ground clearance, and the approach ramps cleverly double as platform length extensions to support a wider variety of wheelbases. The integrated control station neatly houses both the lift controls and hydraulic power unit, creating a clean and user-friendly workspace.

Designed for professional-grade performance, the LHS7 reaches a maximum lift height of 74.5″ in just one minute. It includes four durable lift blocks and a 9-foot hose for convenient connection to the power unit, making it a complete solution for any auto shop or serious home garage.

LHS 7 Specification

• Power: 240V / 3 HP / 12 Amp / 1-Ph / 60 Hz

• Lifting Capacity: 6,600 lbs

• Rise Time: ~1 minute

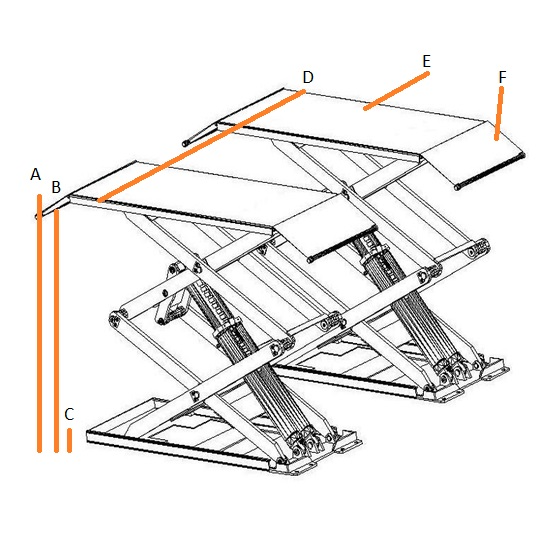

• Max Height (A): 74.5″

• Max Locking Height (B): 71″

• Lowered Height (C): 4.5″

• Max Width (D): 81″

• Platform Size (E): 59″ x 25″

• Platform with Ramps (F): 83″ x 25″

• Lift Blocks Included: 4 blocks (2.5” x 5” x 6.5”)

• Hydraulic Hose Length: 9 feet

• Pallet Dimension

  • (Lift): 65″ x 25″ x 13″ – 1,695 lbs

  • (Motor): 41″ x 15″ x 21″ – 165 lbs

LHS7 6,600 lbs High Rise Scissor Lift Special Features

• 6,600lb lifting capacity for cars and light trucks

• Double hydraulic equalizing system for balanced lifting

• Pneumatic safety lock ensures secure operation

• Solid steel construction for maximum durability

• Powder-coated finish resists wear and corrosion

• Low 5″ profile suits low-clearance vehicles

• Approach ramps double as platform extensions

• Integrated control station with power unit included

• Includes 4 lift blocks and a 9-ft hydraulic hose

• Daytona 5-2-1 Warranty
  • 5 Year Structural
  • 2 Year Electric, Cylinders, Seal Kits
  • 1 Year Defective Parts
