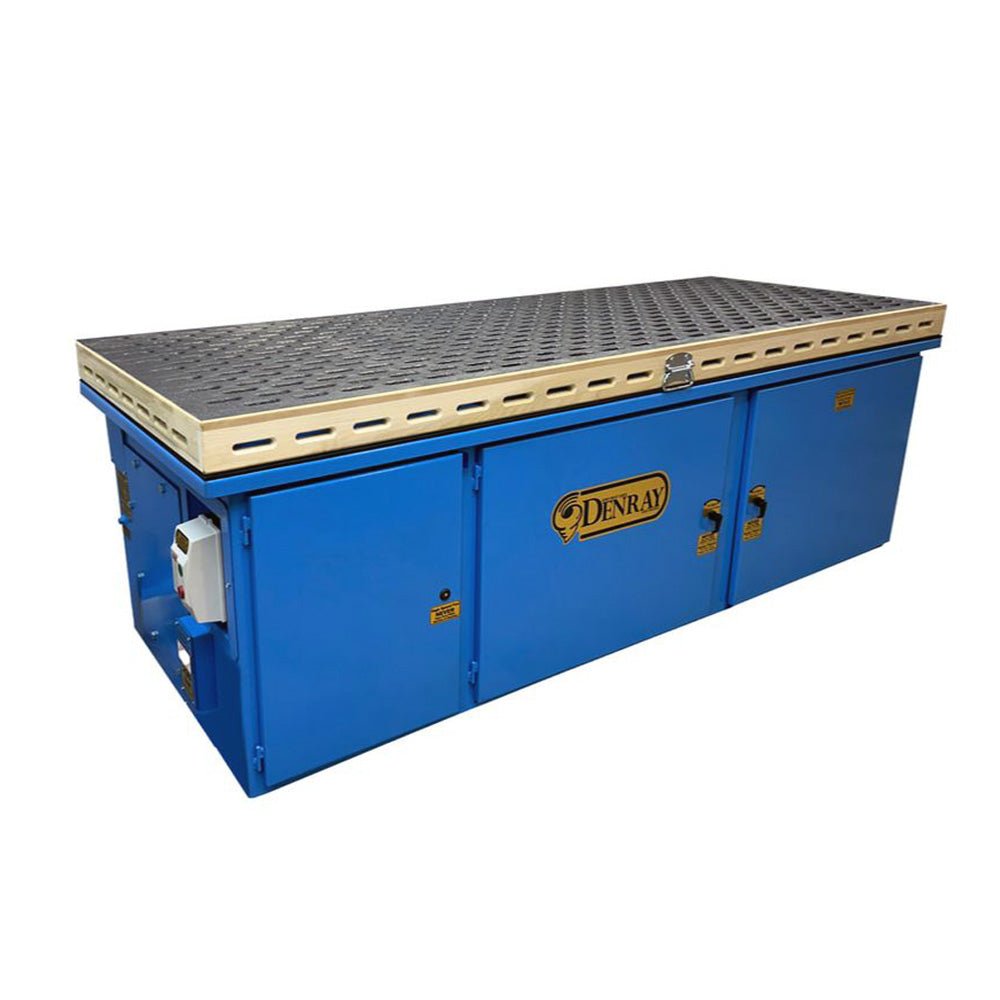

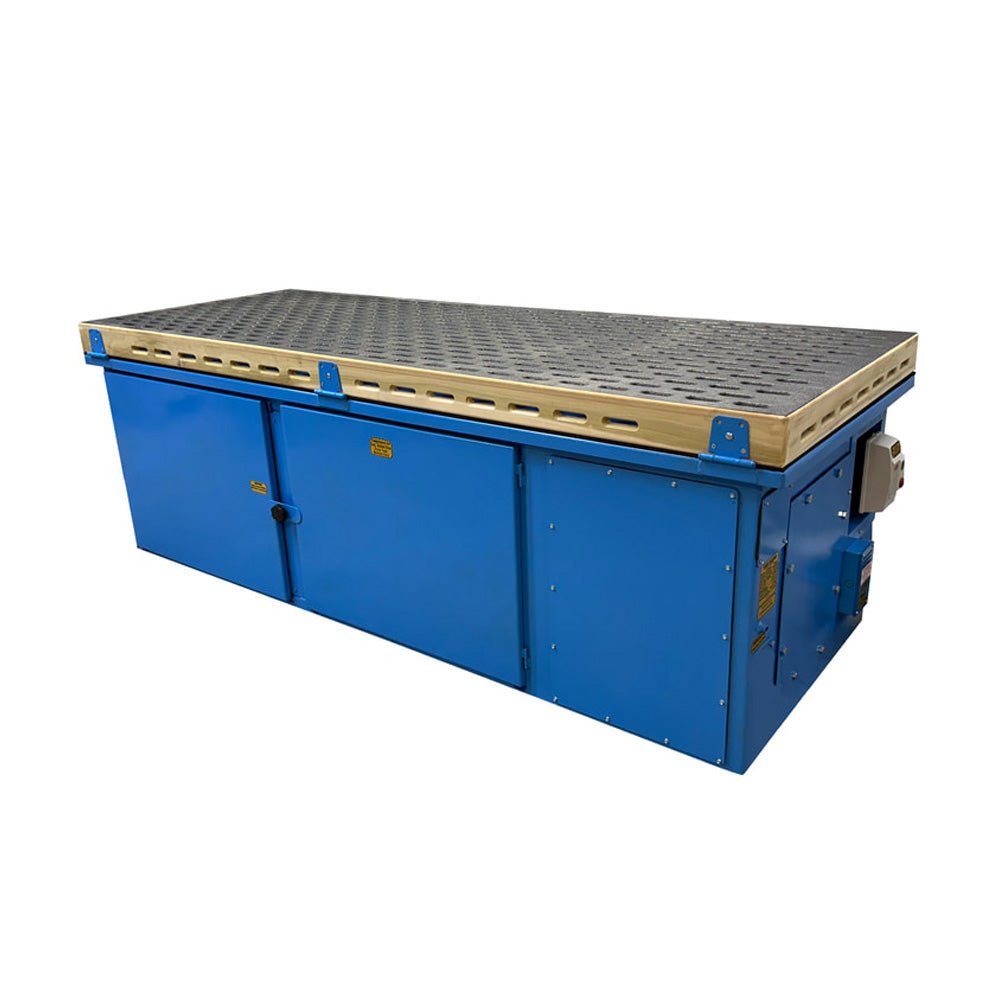

Denray Model 3696B Cartridge Filtration Downdraft Table

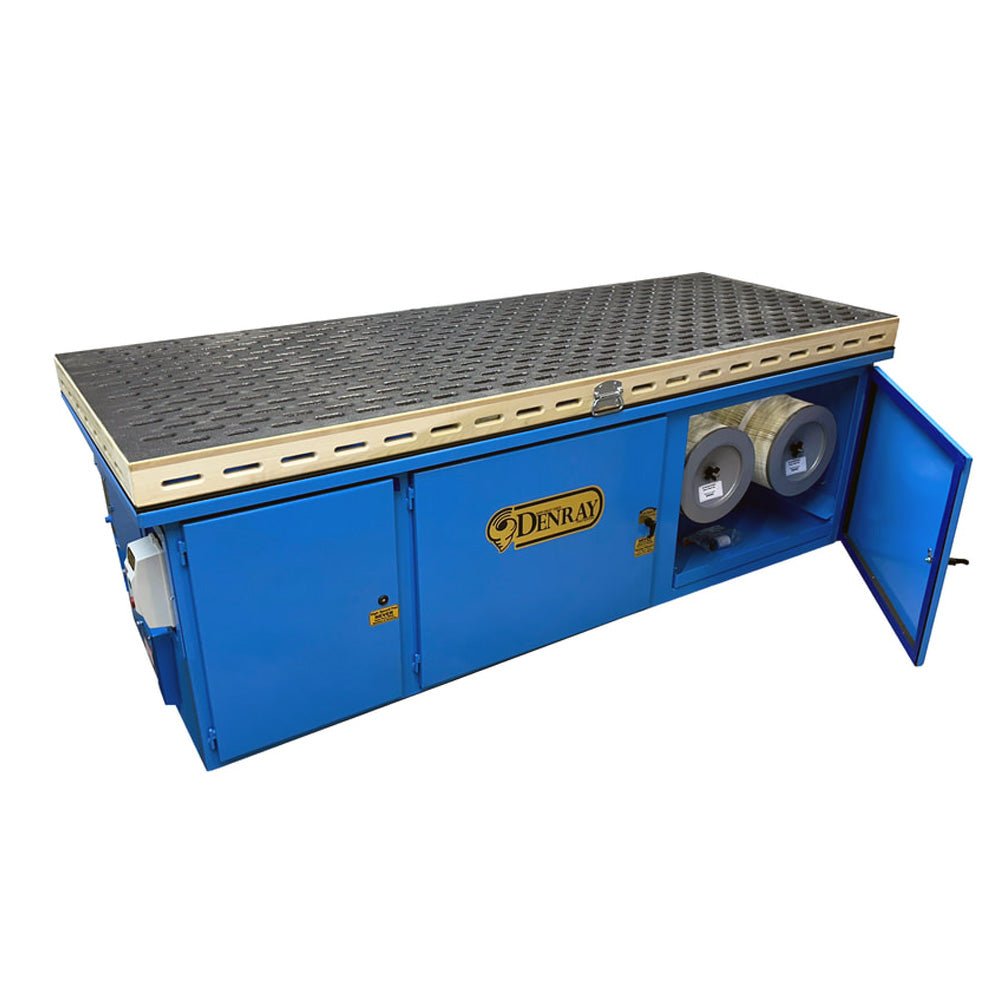

This model is well suited for medium to large-scale applications and is designed to support two or three jobs running simultaneously on the same table. The 3696B is one of the larger tables in Denray’s push-button cleaning line. It comes standard with 80/20 cartridge filters that achieve a 99.95% capture rate at 0.5 micron, along with a magnetic starter and a rubber-coated top.

Please note that the starter box on this model is located on the left side of the machine.

Product Information

• 36″ x 96″
• 36″ Height
• 985 lbs
• 5 HP Motor
• 18″ Fan
• 4800 CFM
• 82 Decibels Sound Level

Phase/Voltage Options

SINGLE–PHASE
220 VOLTAGE (23 AMPS)

THREE–PHASE
230 VOLTAGE (13.4 AMPS)
460 VOLTAGE (6.7 AMPS)
575 VOLTAGE (5.3 AMPS)

Additional Options

• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto-timer
• Muffler (reduces sound level by 10–12 dB)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter Bank
• Three-sided Hinged Safety Shield
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor and Fan Upgrade
