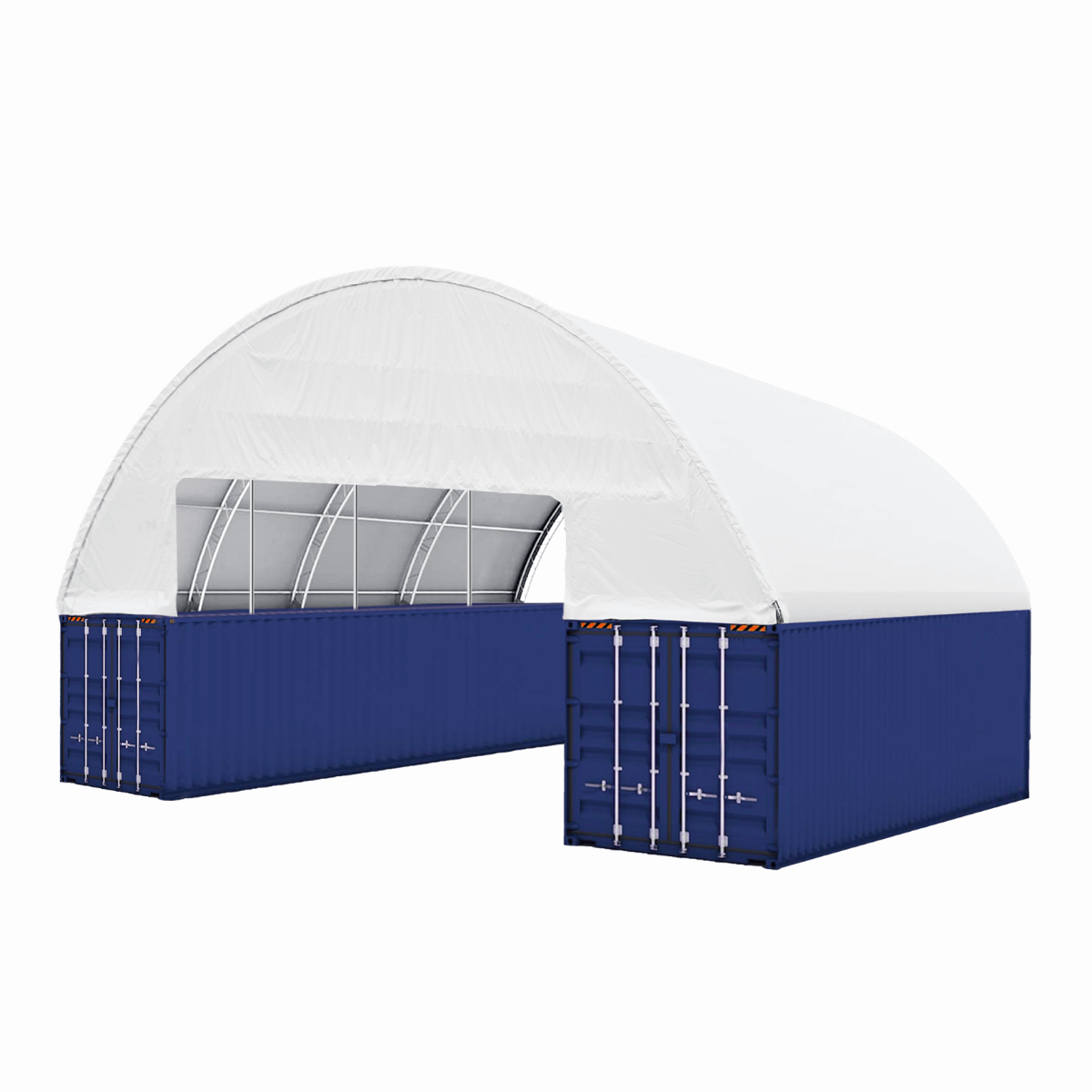

60’x40’x20′ Double Truss Container Canopy Shelter
Original price was: £9,855.22.£5,913.13Current price is: £5,913.13.
Heavy-Duty Double Truss Shipping Container Canopy Shelter 60’x40’x20′
Introducing the Container Shelter, a perfect combination of innovation and practicality, setting a new standard for outdoor protection. Measuring 60’x40’x20′, this Double Truss Shipping Container Canopy Shelter offers unmatched durability and versatility. Designed to meet a wide range of needs, it provides reliable protection for assets, projects, and events against all weather conditions.

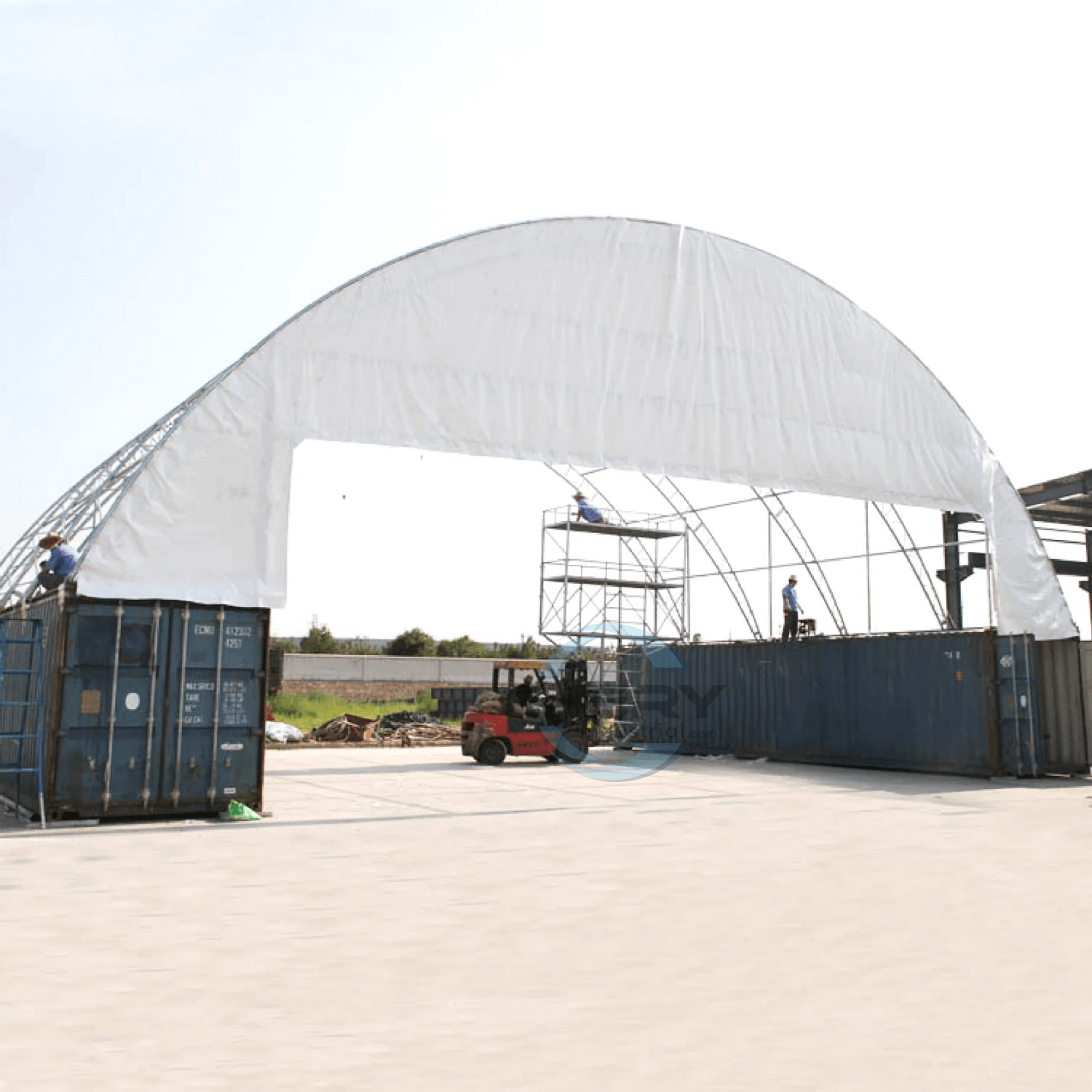

How to Install the Container Shelter?

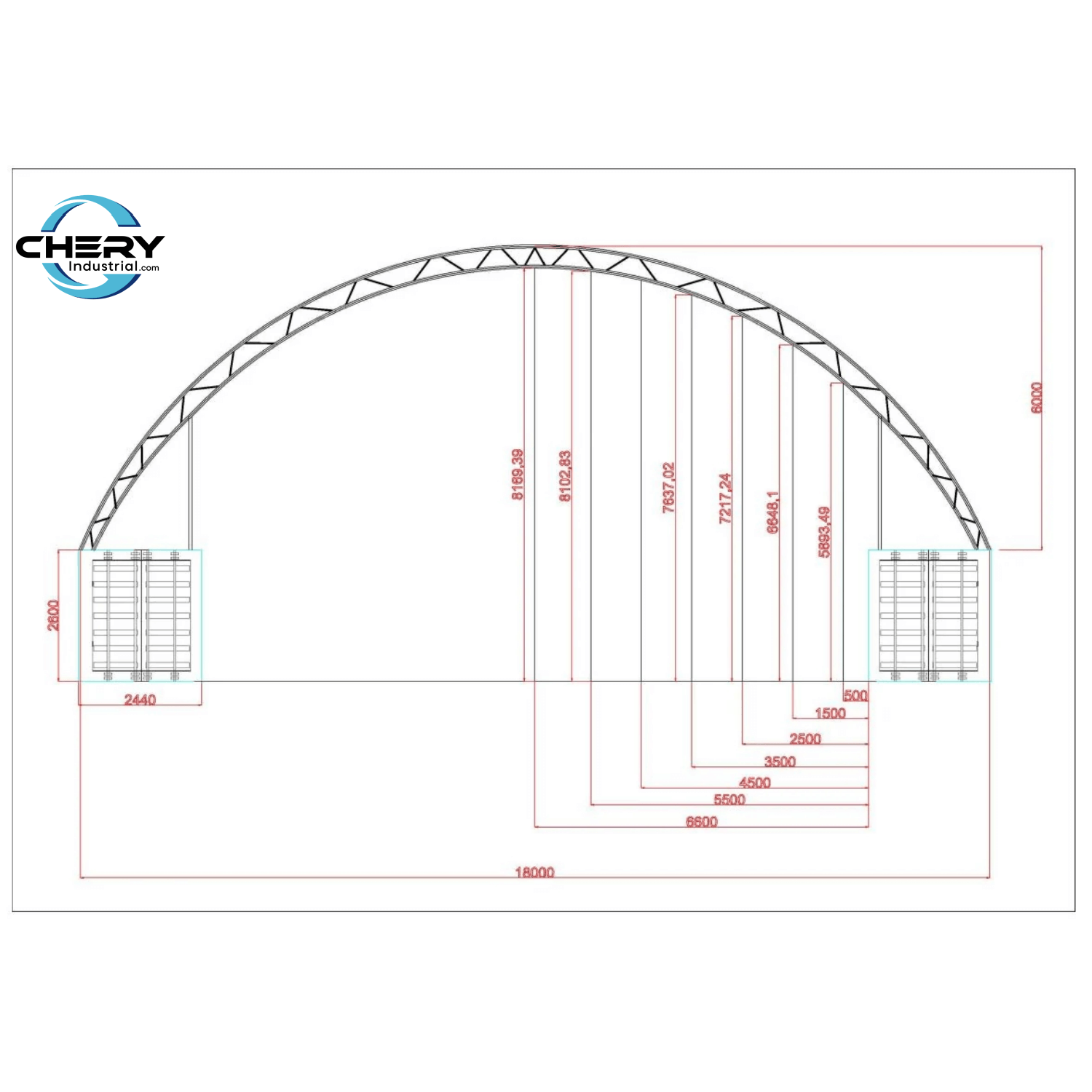

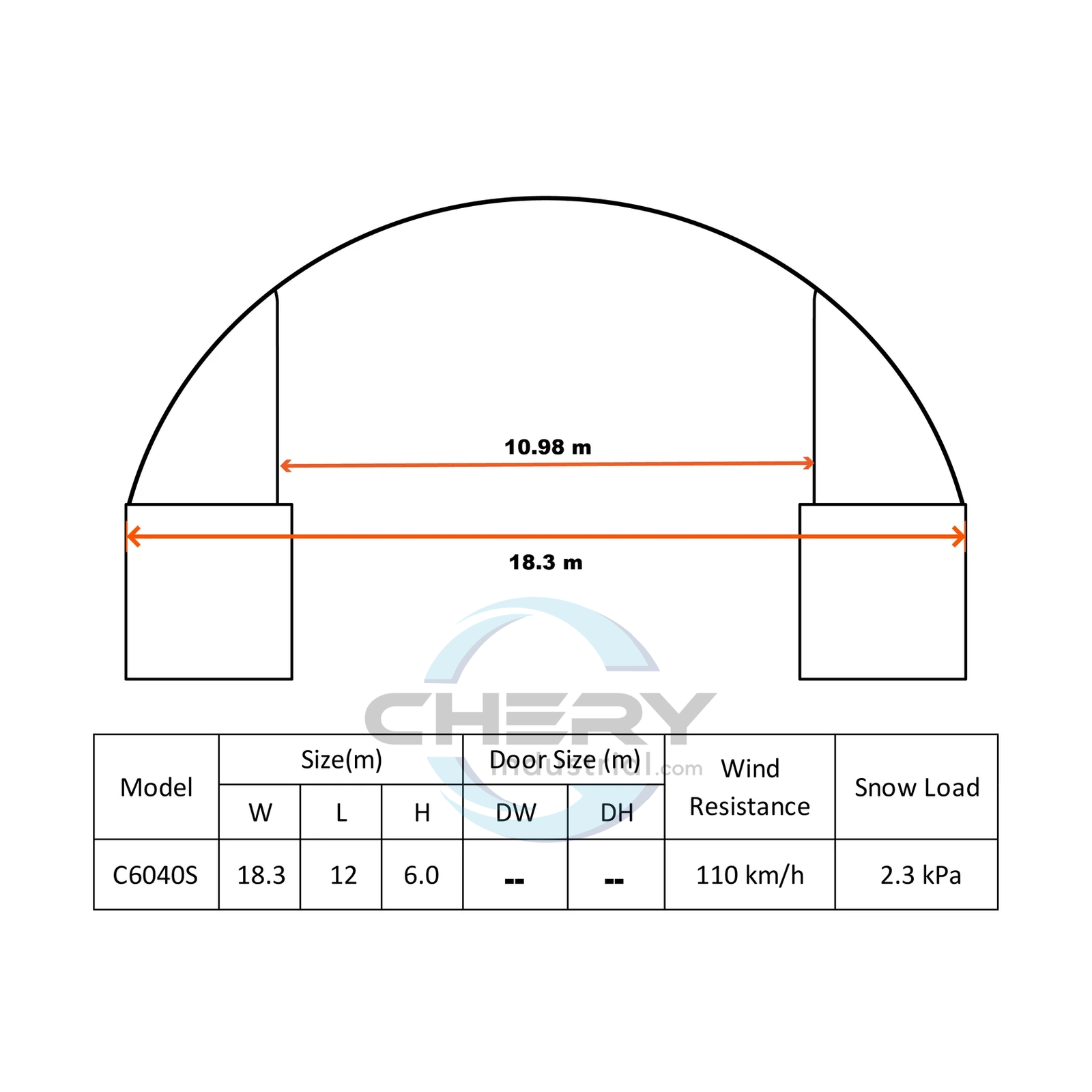

Specification
| Description | Specifications |
| Model | C604020 Dome Container Shelter |
| Dimension (ft) | W60xL40xH20 |
| Frame | Double Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 – +158 °F |
| Front/back walls (optional) | |

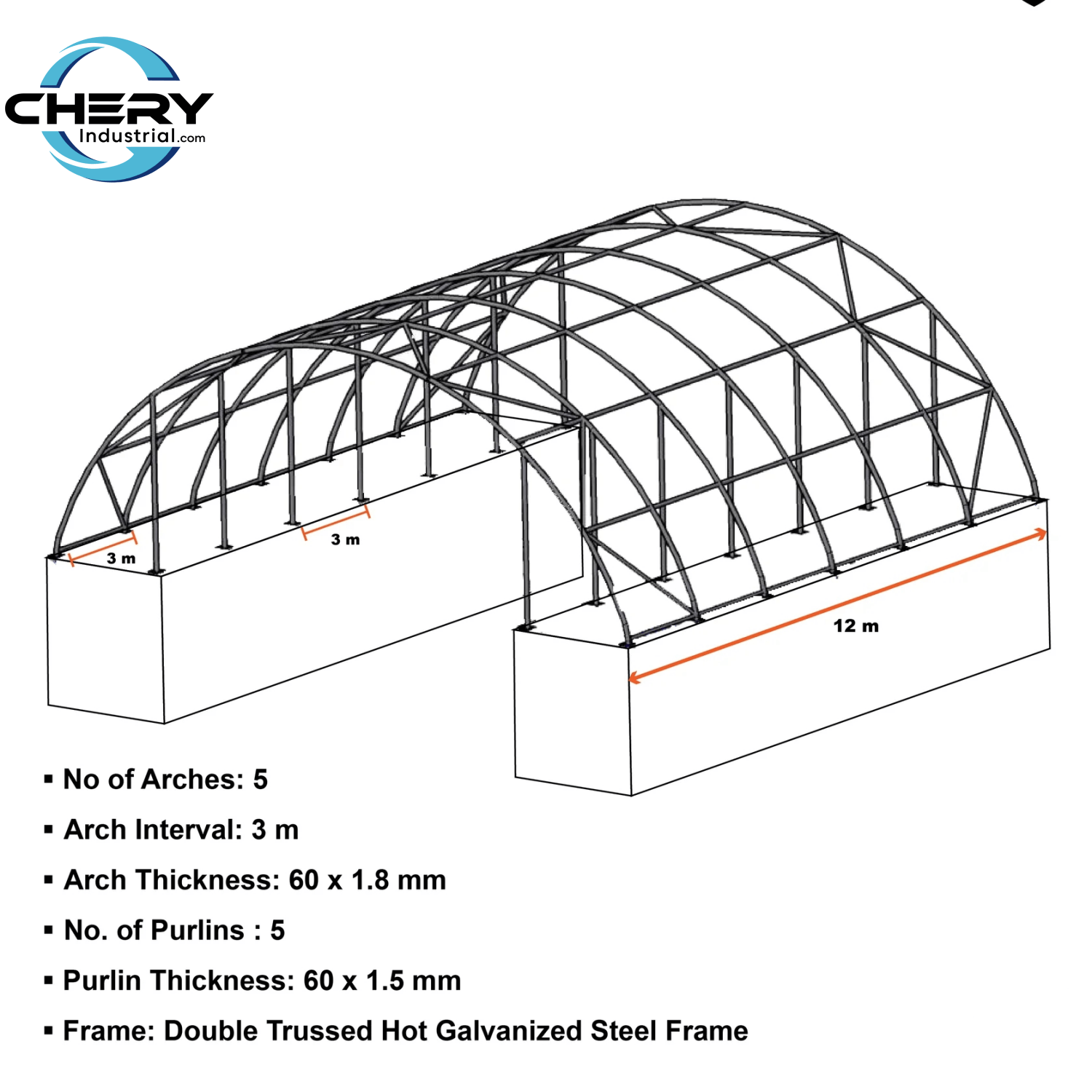

| Arch Interval | 9.8 ft |
| Arch Ø (mm) | Ø60×1.8 |
| Purlin Ø (mm) | Ø60×1.5 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |
| Weld | Base plates need to be welded on the Containers. |
| Average assembly time for DIY with 4 persons |
|
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
Note:
- “Lifespan” refers to the material durability, not installation.
- Structural integrity may be affected by severe weather (high winds, heavy snow, rain). Check forecasts before use.
- For snowy regions (e.g., Alaska, Colorado, Vermont), double-truss framing is strongly recommended.
Features
- CSA/TUV Snow Rating Report.
- SGS fabric certificate; PFAS-free and EU REACH compliant.
- No interior poles, offering 100% usable interior space.
- Heavy-duty PVC cover designed for winter protection.
- Durable frame resists strong winds and snow.
- Suitable for industrial, commercial, and agricultural use, as well as warehouses, storage tents, garden/lawn equipment, backyard items, firewood, or vehicle sheds.
Package Size
- Dimensions (inch): 131 x 44.1 x 63.8
- Weight (lb): 4299
- Requirement: Forklift or equivalent needed for unloading
Safety Precautions
- Keep the work area clean to prevent accidents.
- Keep children away from the assembly area.
- Follow the assembly manual closely to avoid mistakes.
- Secure the base in windy conditions; remove the cover during hurricanes.
- Remove snow promptly; avoid extended accumulation.
- Keep away from heat and open flames.
- Install on the inner edge of the container; extra support tubes are required for outer-edge setup.
