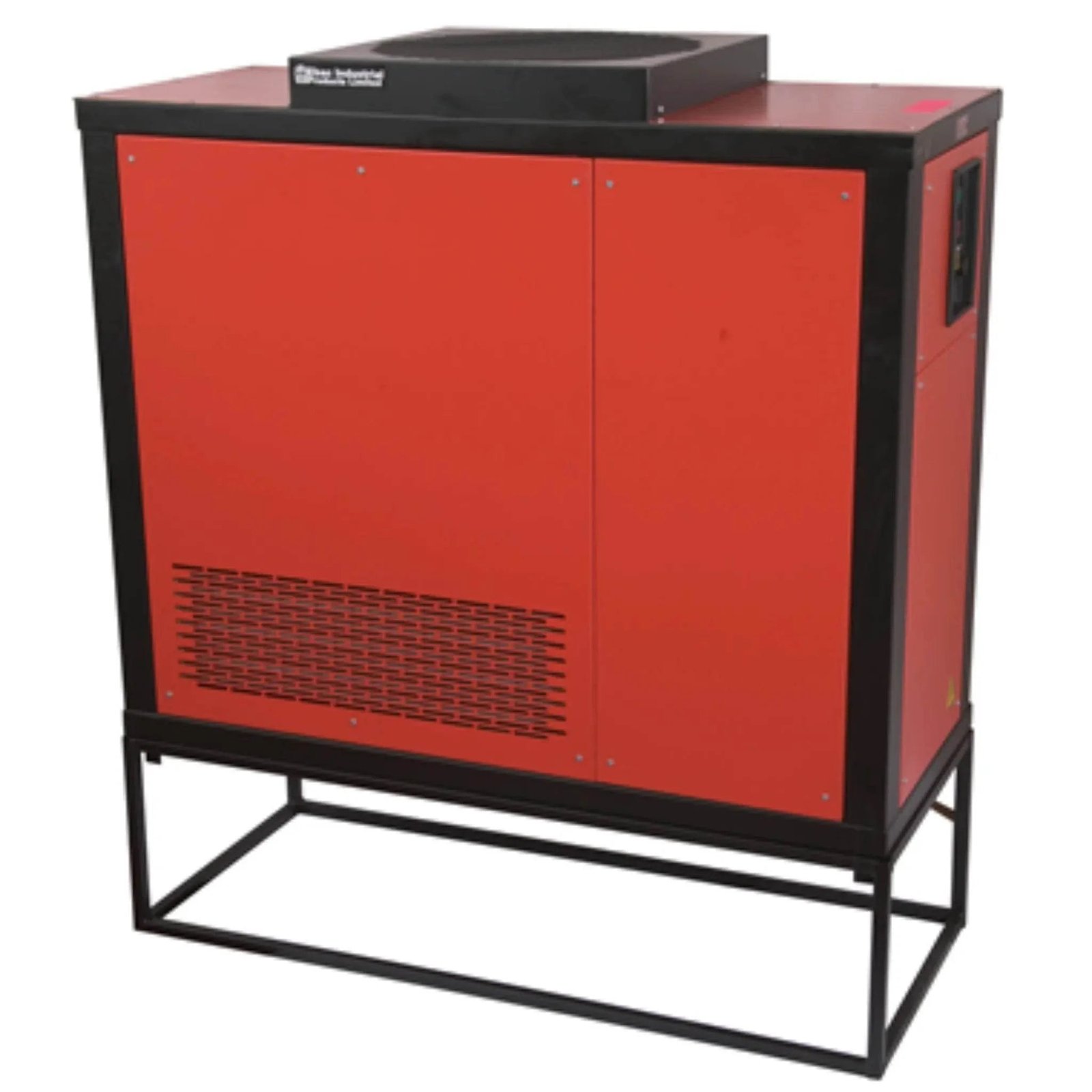

Ebac CD425-D 10147BR-US Refrigerant Dehumidifier 220V – 285 PPD, 1750 CFM, 353 lbs
Original price was: $8,132.67.$4,879.60Current price is: $4,879.60.
Ebac CD425-D HVAC Dehumidifier with Pump – Model 10147BR-US (220V, 3-Phase)
The Ebac CD425-D (10147BR-US) is the 220V, 3-phase variant of the pump-equipped CD425-D refrigerant HVAC dehumidifier. It draws 16A at 220V for 3.6 kW output, producing 285 PPD extraction and 1,750 CFM airflow. Reverse-cycle defrost enables operation down to 33°F; the internal condensate pump automatically discharges collected moisture. All performance specifications are identical to the 460V pump model (10149BR-US) — the difference is electrical compatibility for 220V 3-phase distribution.
CD425-D 10147BR-US – Key Specifications and Features
- Model: 10147BR-US (CD425-D, 220V 3-phase, with pump)
- Extraction rate: 285 PPD
- Airflow: 1,750 CFM
- Electrical: 220V, 3-phase, 60 Hz, 16A, 3.6 kW
- Defrost system: reverse-cycle defrost
- Operating temperature: 33°F to 95°F
- Effective volume: 52,970 ft³
- Internal condensate pump: automatic, included
- Control: digital adjustable humidistat
- Construction: welded steel chassis, baked epoxy and vinyl coating
- Dimensions: 43″ W × 19″ D × 47″ H
- Weight: 353 lbs
Where the CD425-D 220V Pump Model Performs
International facilities with 220V 3-phase distribution and North American sites without 460V service use the 10147BR-US where centralized HVAC dehumidification is required and drainage is not gravity-accessible. The same 285 PPD, 1,750 CFM, and 52,970 ft³ effective volume apply. The internal pump is particularly useful in these installations because the unit may be positioned at a distance from floor drains, and the pump can discharge condensate over the required lift height.
Related: Industrial Dehumidifiers · Ebac Equipment · Desiccant Dehumidifiers
All Four CD425-D Variants at a Glance
The CD425-D is offered in four configurations: 460V with pump (10149BR-US), 460V gravity drain (10148BR-US), 220V with pump (10147BR-US), and 220V gravity drain (10146BR-US). All share 285 PPD extraction, 1,750 CFM, 3.6 kW, reverse-cycle defrost, and 33°F minimum. Voltage and pump availability are the only differentiating factors.
| Model | 10147BR-US |
| Extraction Rate | 285 PPD |
| Airflow | 1,750 CFM |
| Electrical | 220V, 3-phase, 16A, 3.6 kW |
| Min Operating Temp | 33°F |
| Max Operating Temp | 95°F |
| Effective Volume | 52,970 ft³ |
| Condensate | Internal pump (automatic) |
| Dimensions | 43″ W × 19″ D × 47″ H |
| Weight | 353 lbs |
