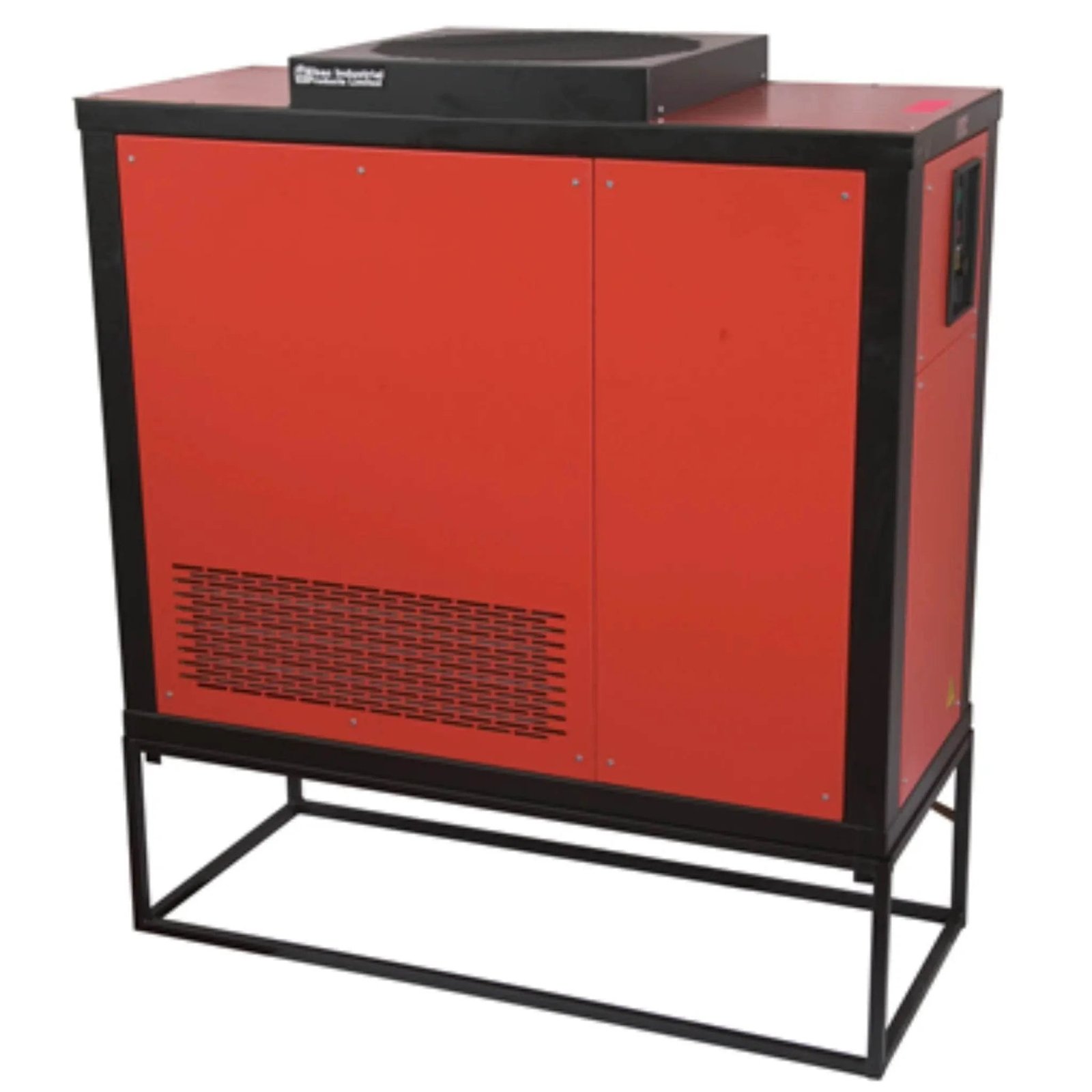

Ebac CD425-D 10149BR-US Refrigerant Dehumidifier 460V – 285 PPD, 1750 CFM, 353 lbs

Ebac CD425-D HVAC Dehumidifier with Pump – Model 10149BR-US (460V, 3-Phase)

The Ebac CD425-D (10149BR-US) is a 285 PPD refrigerant HVAC dehumidifier running on 460V, 3-phase at 8A and 3.6 kW, with 1,750 CFM airflow and an internal condensate pump. Unlike the desiccant DD series, the CD425-D uses a refrigerant compressor with reverse-cycle defrost to operate down to 33°F. It is ducted directly into building HVAC systems, covers an effective volume of 52,970 ft³, and weighs 353 lbs with a steel chassis finished in baked epoxy and vinyl coatings. The internal pump automatically expels condensate without manual draining.

CD425-D 10149BR-US – Key Specifications and Features

• Model: 10149BR-US (CD425-D, 460V 3-phase, with pump)
• Extraction rate: 285 PPD
• Airflow: 1,750 CFM
• Electrical: 460V (440V rated), 3-phase, 60 Hz, 8A, 3.6 kW
• Defrost system: reverse-cycle defrost
• Operating temperature: 33°F to 95°F
• Effective volume: 52,970 ft³
• Internal condensate pump: automatic, included
• Control: digital adjustable humidistat
• Construction: welded steel chassis, baked epoxy and vinyl coating
• Noise level: 69 dBA
• Dimensions: 43″ W × 19″ D × 47″ H
• Weight: 353 lbs

Where the CD425-D Performs

Warehouses, distribution centers, and large commercial facilities integrate the CD425-D directly into existing HVAC ductwork to control humidity across 52,970 ft³ without separate portable unit deployment. The 1,750 CFM airflow is an HVAC-scale figure — 7× the process airflow of the DD900 desiccant unit — making it appropriate for central plant installation rather than spot dehumidification. The reverse-cycle defrost system enables year-round operation in unheated or marginally heated buildings where temperatures drop near freezing, while the internal pump eliminates drain line routing limitations by discharging condensate automatically. Mold prevention in cold storage antechambers, corrosion control in maintenance bays, and condensation management in food processing facilities are typical deployments.

Related: Industrial Dehumidifiers · Ebac Equipment · Desiccant Dehumidifiers

CD425-D vs. DD Series – Refrigerant HVAC vs. Desiccant

The CD425-D is a refrigerant compressor unit integrated into ductwork — it processes the building’s circulating air volume rather than spot-treating a zone. The DD series units (DD700, DD900, DD1200) are standalone desiccant machines that can be positioned anywhere with duct connections. The CD425-D’s 33°F minimum is higher than the DD series’ -4°F, so in sub-freezing environments the DD units are required. Where temperatures stay above 33°F and centralized HVAC integration is desired, the CD425-D at 1,750 CFM and 285 PPD is the more appropriate specification.
