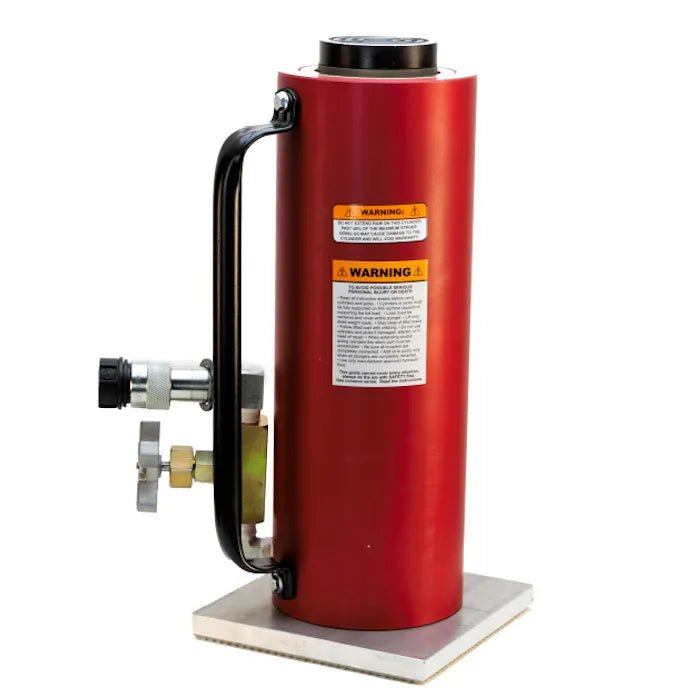

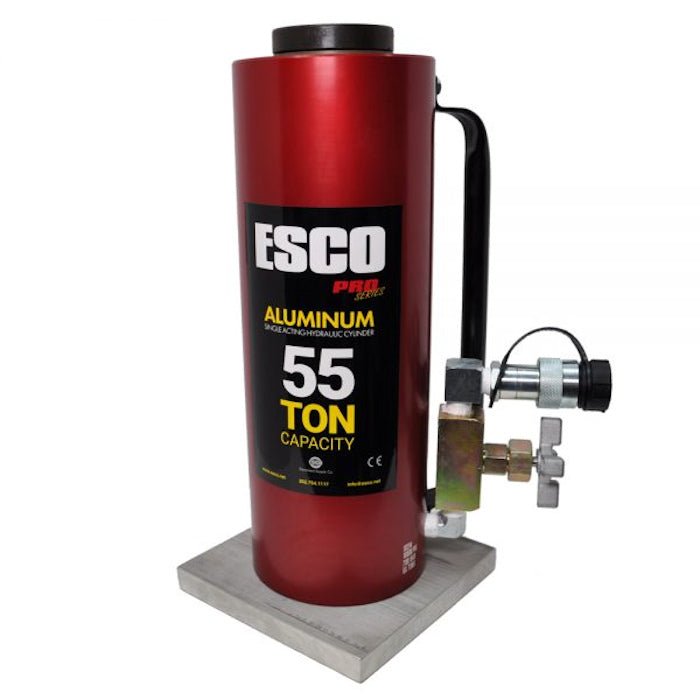

ESCO 10314 HD Lightweight 55-Ton High Lift Hydraulic Jack

ESCO 10314 HD Lightweight 55-Ton High Lift Hydraulic Jack

The ESCO Professional Aluminum Jack Cylinder Series are designed for high-capacity, precision lifting applications. The Heavy-Duty construction provides longevity and reliability when faced with continual use in the shop or field. The ESCO 55-Ton Jacks are ideal for technicians who work on large equipment including: trucks, tractors, mining and construction equipment.

The ESCO 10314 HD Lightweight 55-Ton High Lift Hydraulic Jack is the perfect jack for off highway tire work.

Tool Fact
Lightweight aluminum structure is ideal for any fleet truck, service bay or shop. Upgraded Stop-Ring promotes point-loading prevention and reduces internal damage to piston.

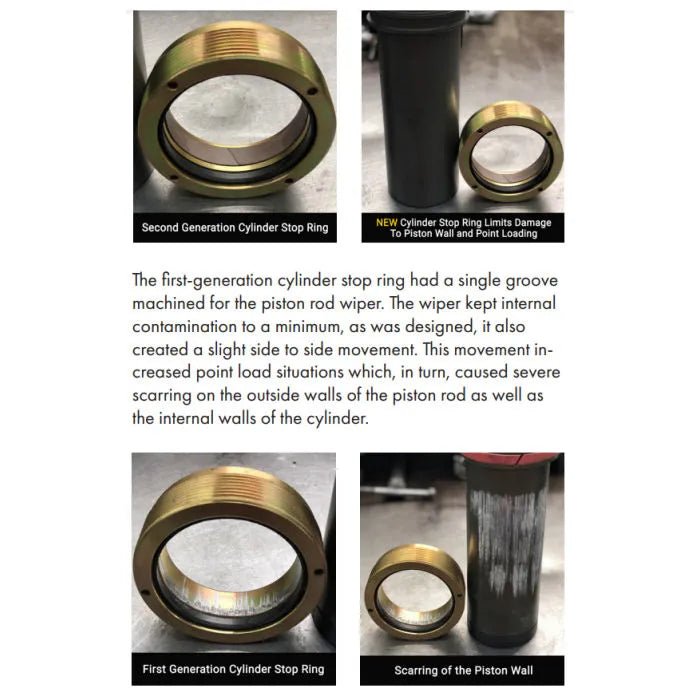

New Cylinder Stop Ring Limits Damage To Piston and Point Loading
The first-generation cylinder stop ring had a single groove machined for the piston rod wiper. The wiper kept internal contamination to a minimum, as was designed, it also created a slight side to side movement. This movement increased point load situations which, in turn, caused severe scarring on the outside walls of the piston rod as well as the internal walls of the cylinder.
