Double Truss Storage Shelter W20’xL33’xH16′
Price range: $2,687.99 through $2,777.59

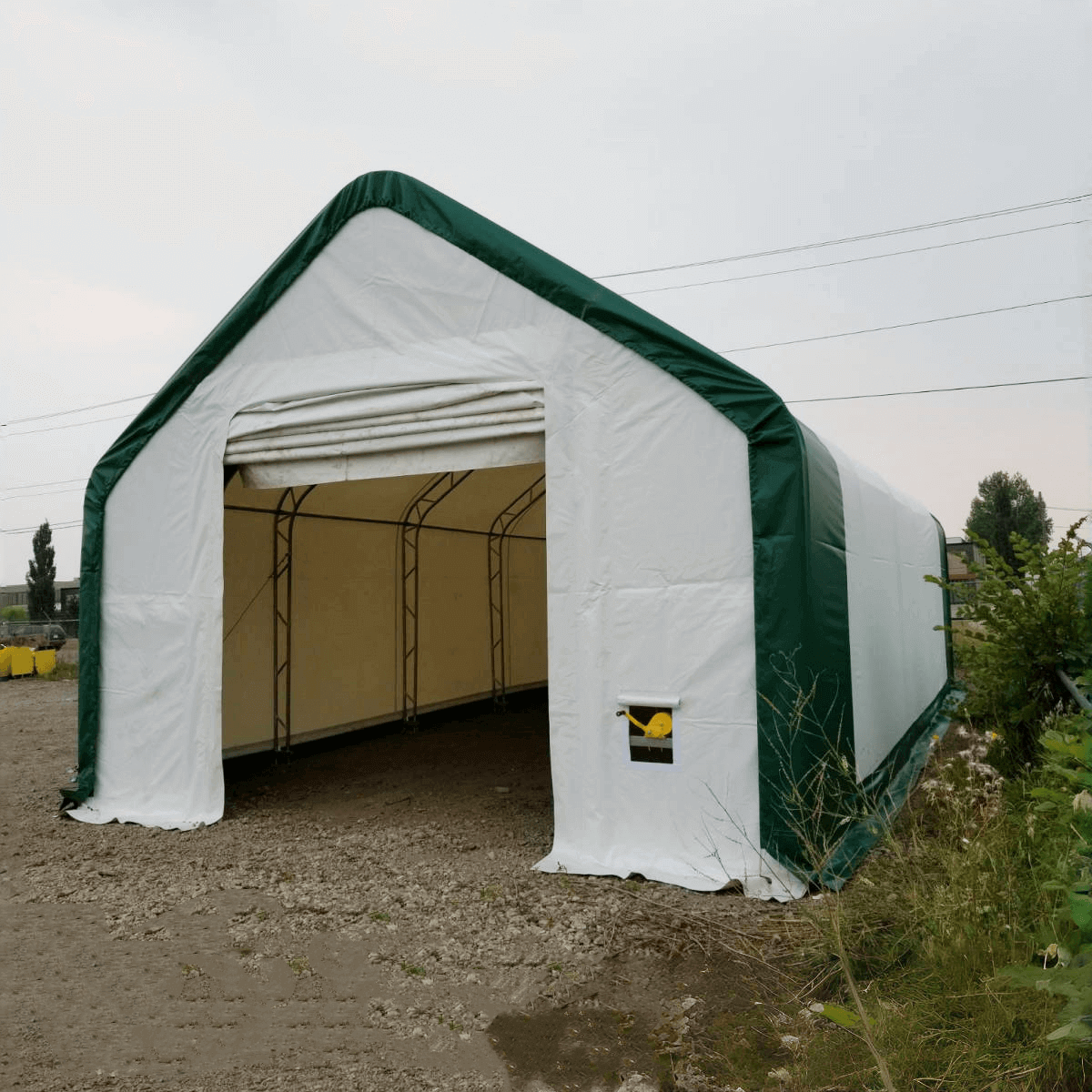

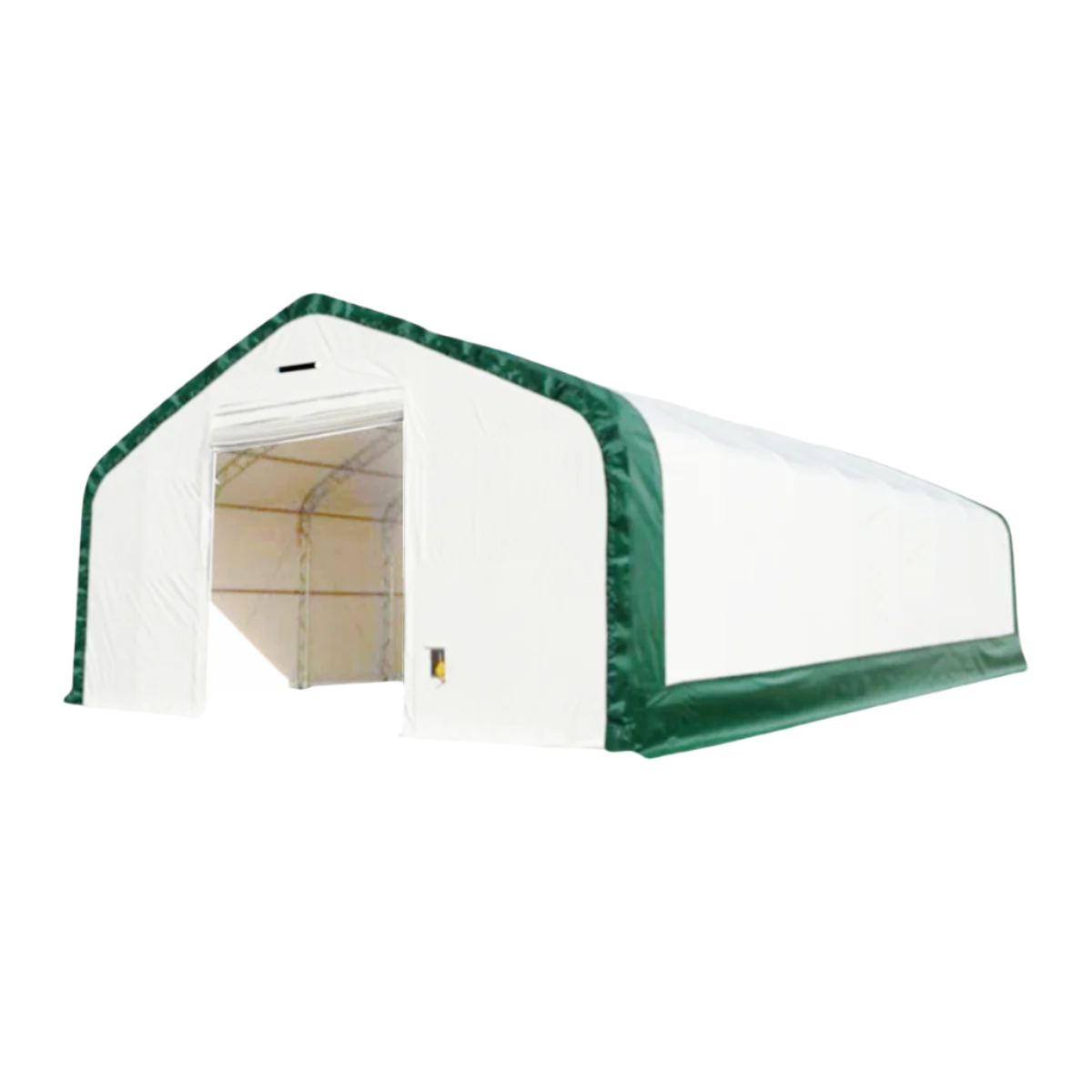

Gold Mountain Storage Shelter W20’xL33’xH16’ – Double Truss
The Gold Mountain Storage Shelter W20’xL33’xH16’ – Double Truss provides durable protection for automobiles, tools, equipment, agricultural materials, and industrial machinery. Designed to withstand harsh weather conditions including snow, storms, sun, wind, and rain, this shelter ensures reliable, long-lasting coverage. The peak roof design helps snow slide off quickly, while the heavy-duty PVC fabric offers superior strength and extended lifespan compared to PE, allowing natural light inside for easy visibility.

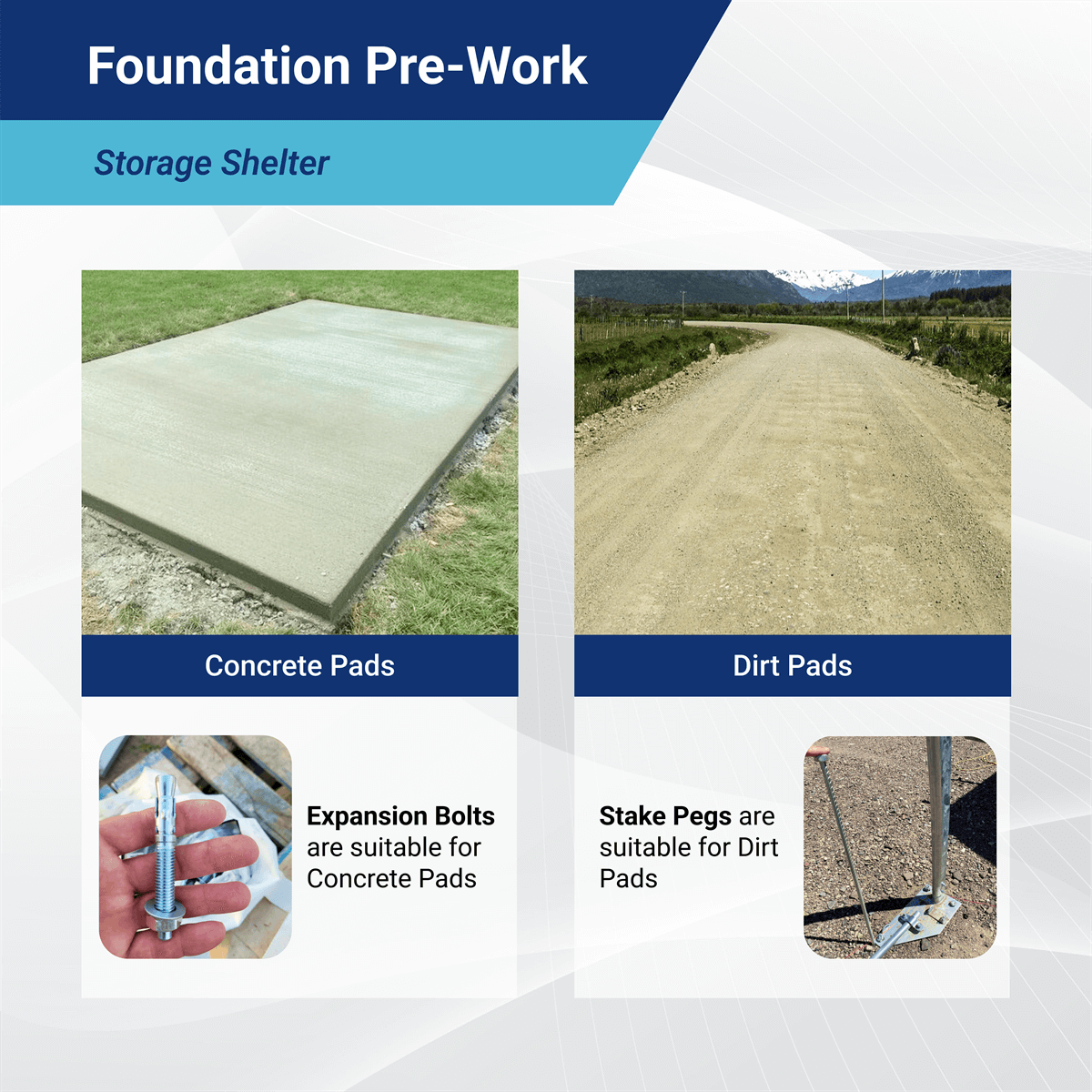

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Your browser does not support the video tag.
How to build a Storage Shelter?
Specifications
| Description | Specifications |

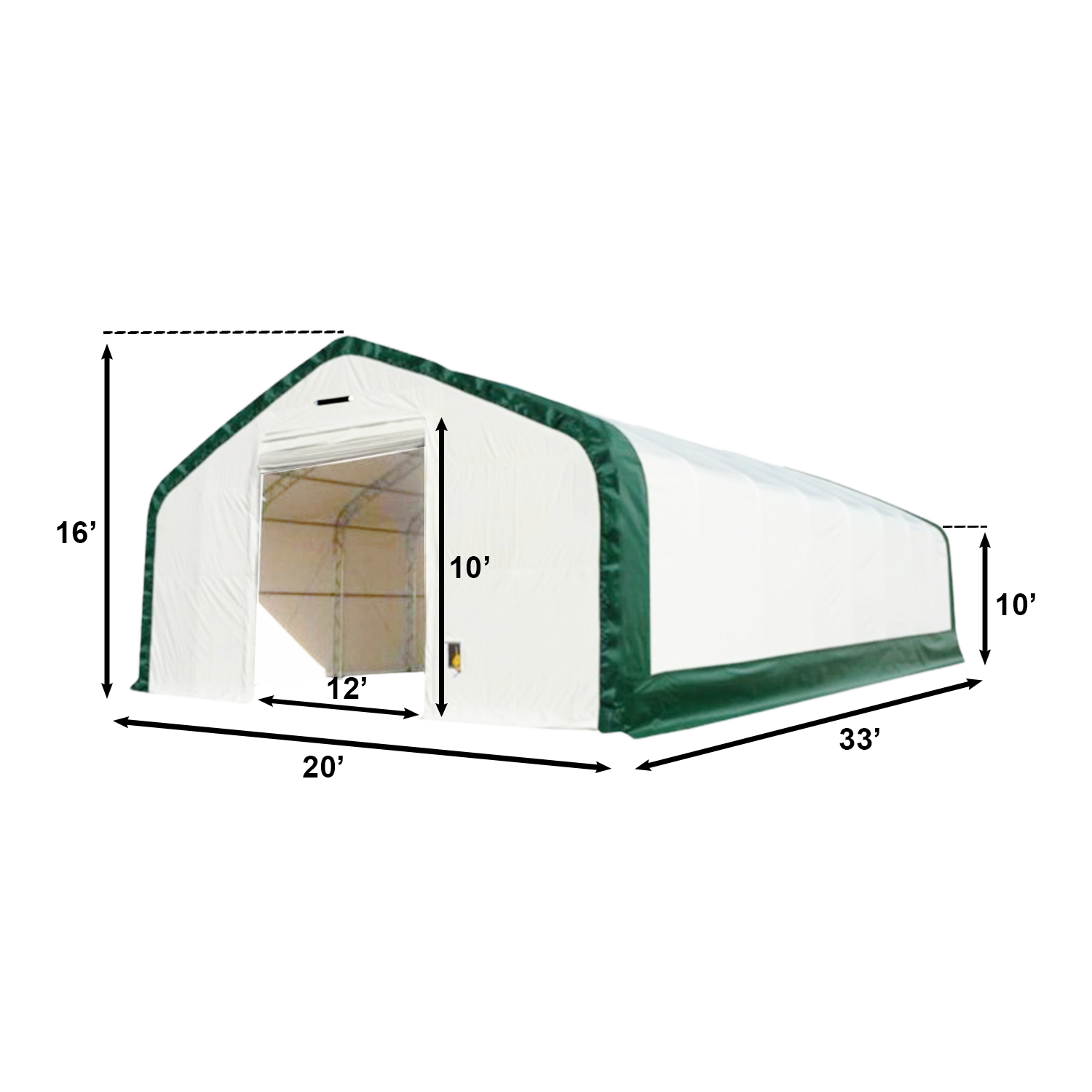

| Dimensions (WxLxH) | 20’x33’x16′ |
| Side-wall Height | 10 ft |

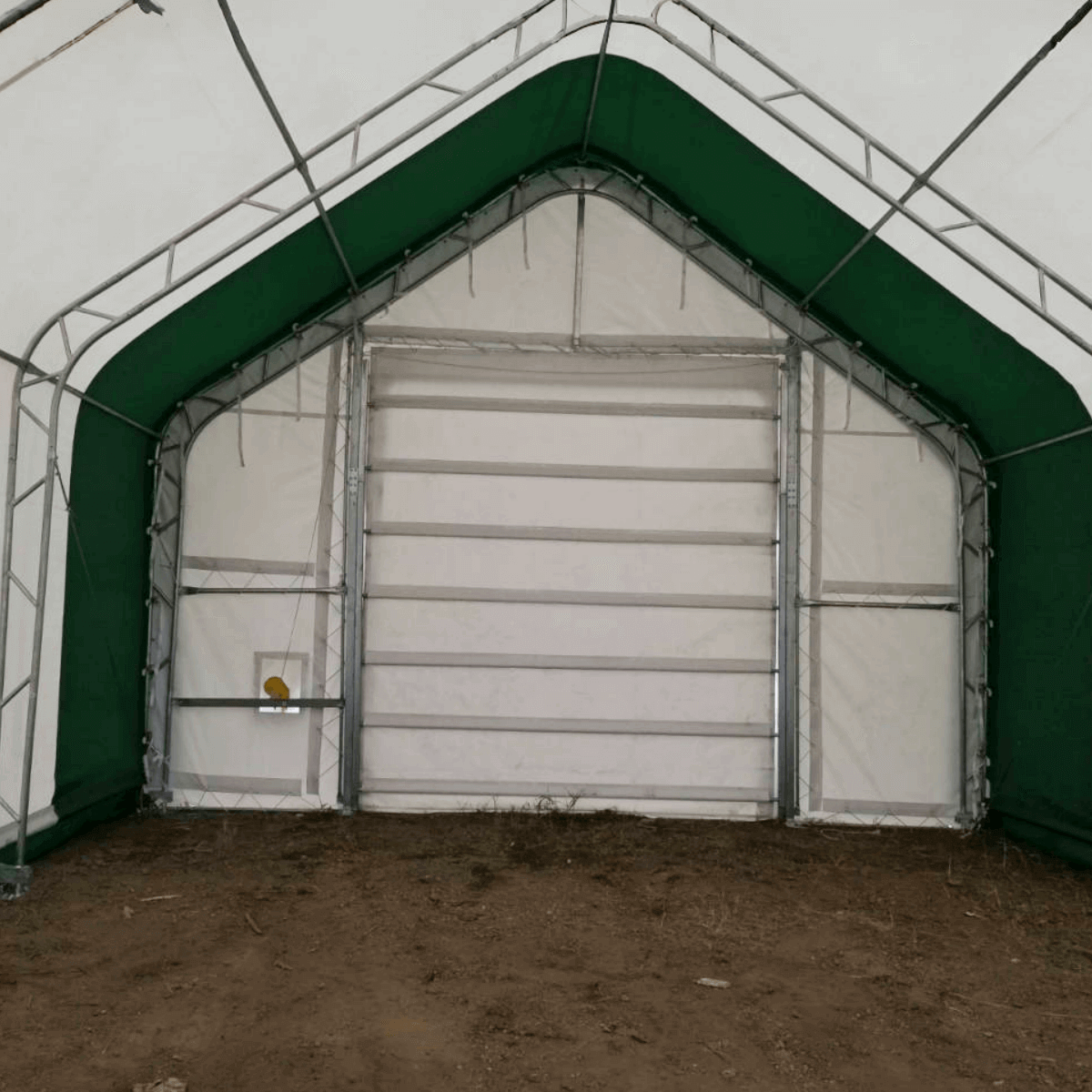

| Door size (WxH) (Front & Rear) | 12’x10′ |
| Door Type | Mechanical Rollup Door |

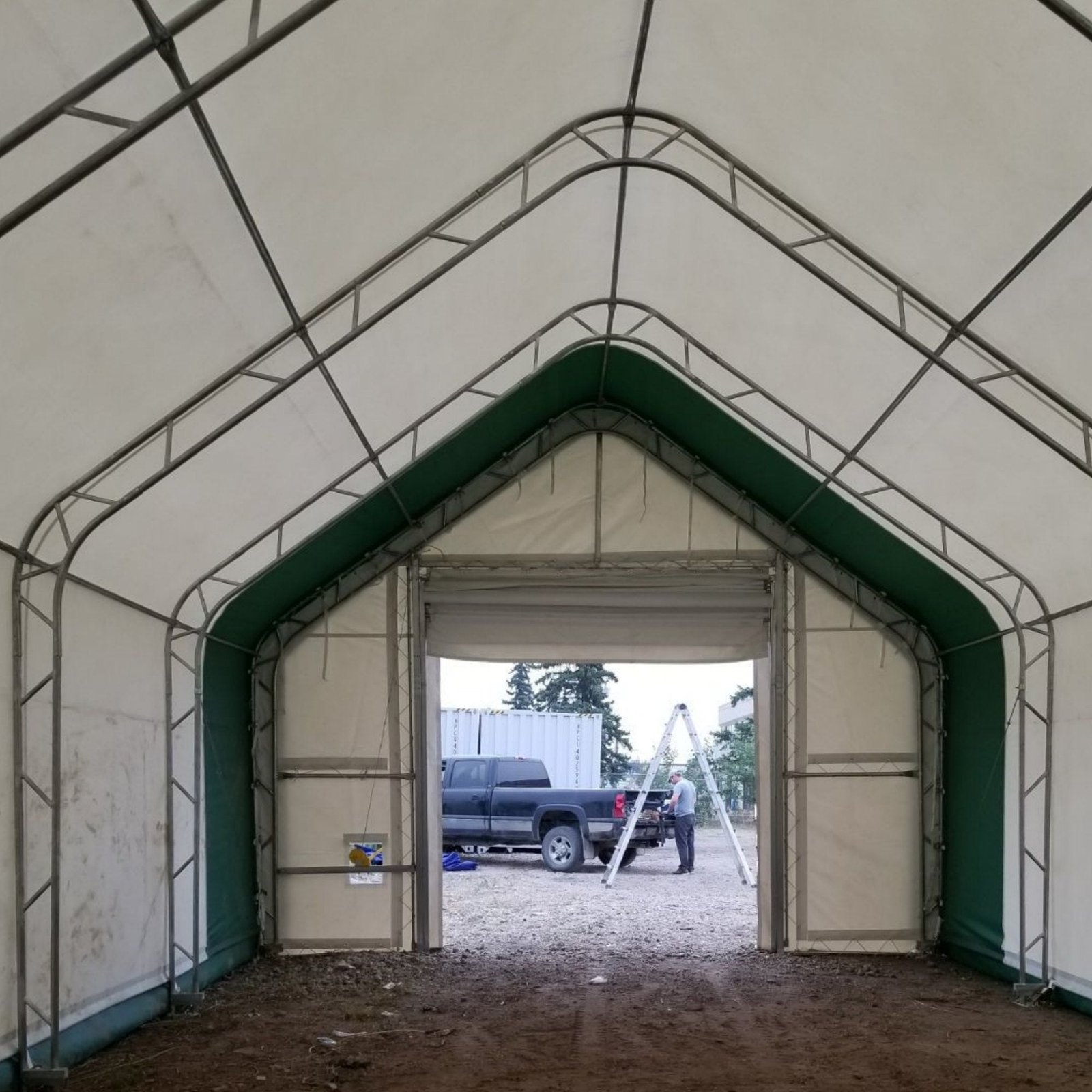

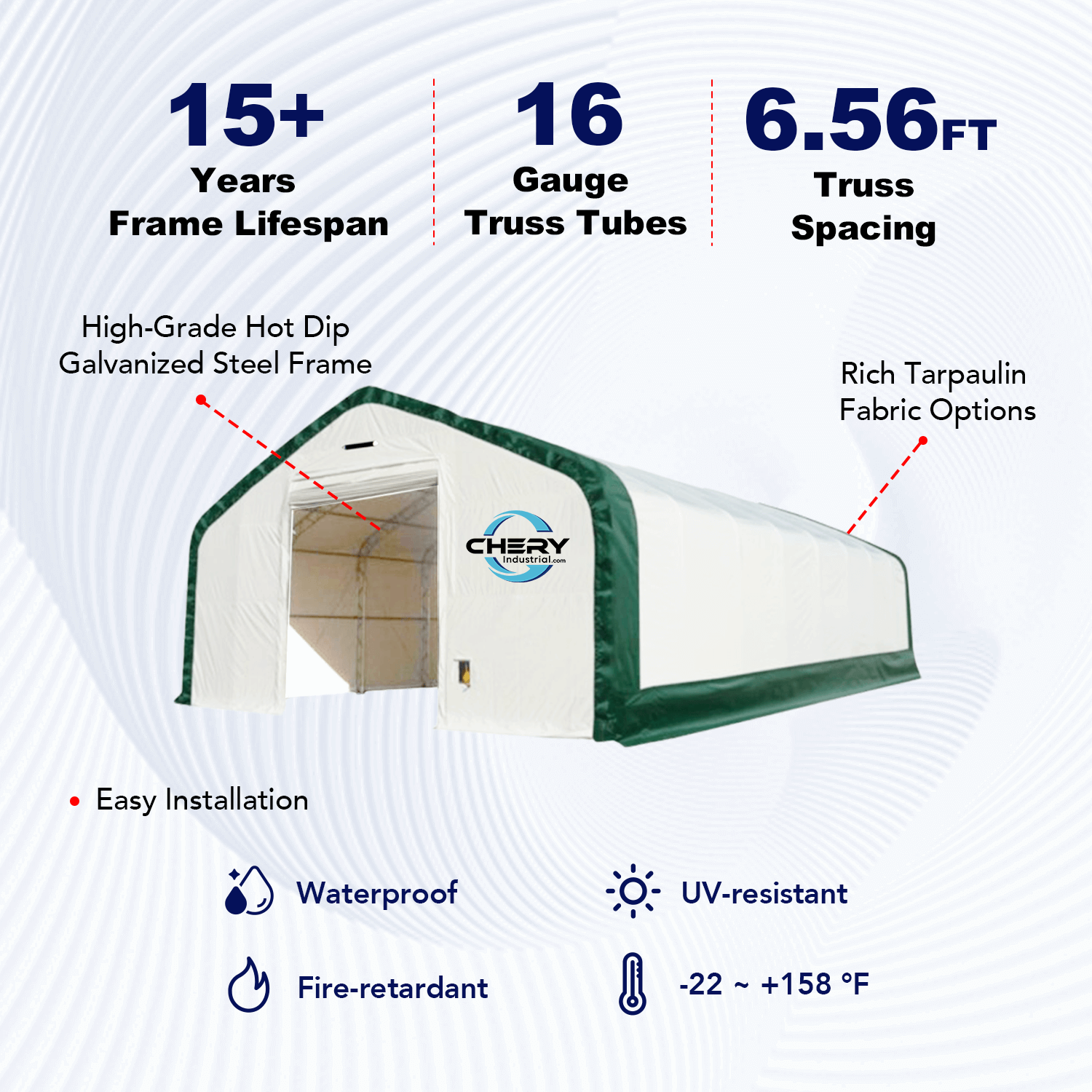

| Frame | Double Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 16 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 – +158 °F |
| Arch Ø | Φ 40×1.5mm |
| Purlin Ø | Φ 40×1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 6 |

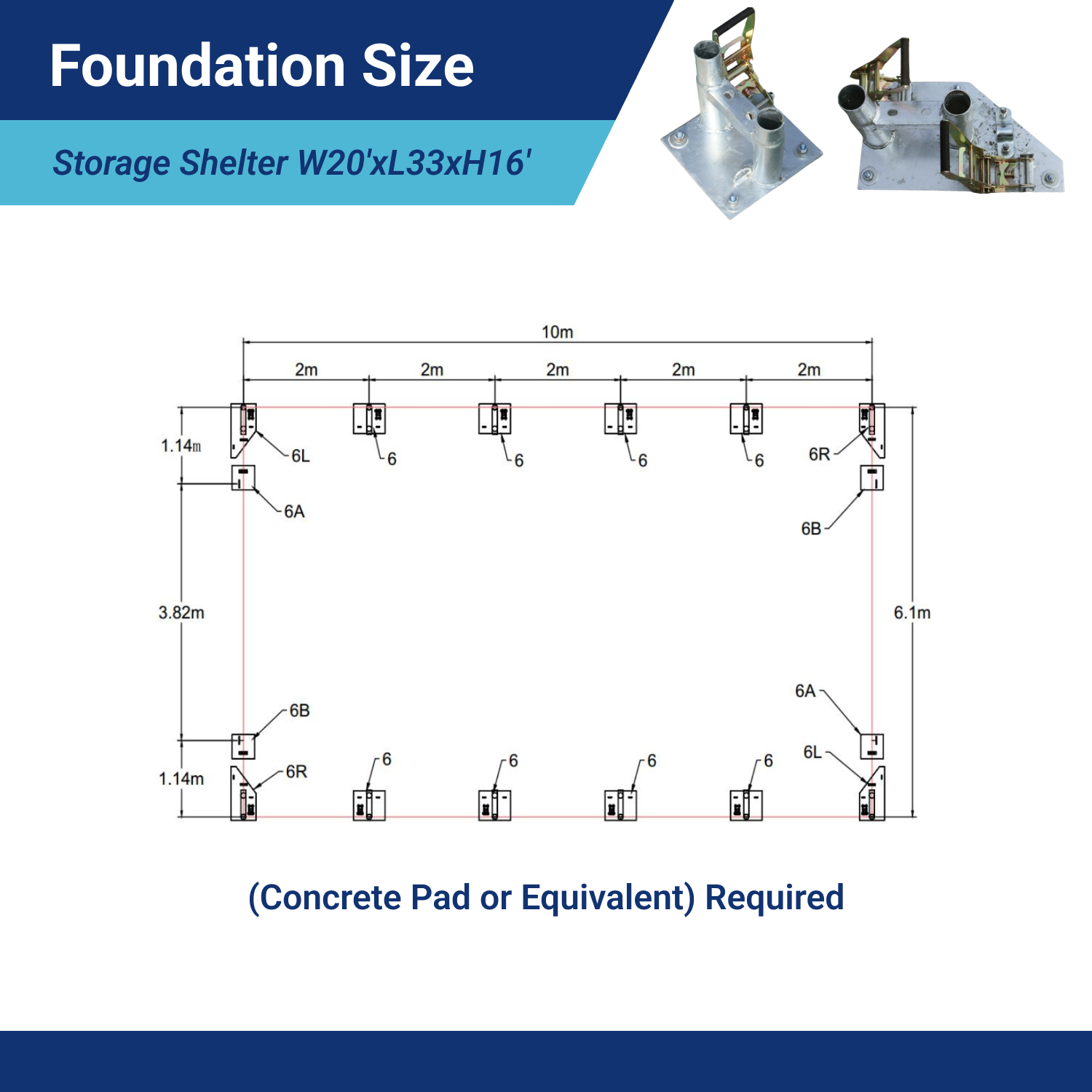

| Number of Anchor plates | 12 |

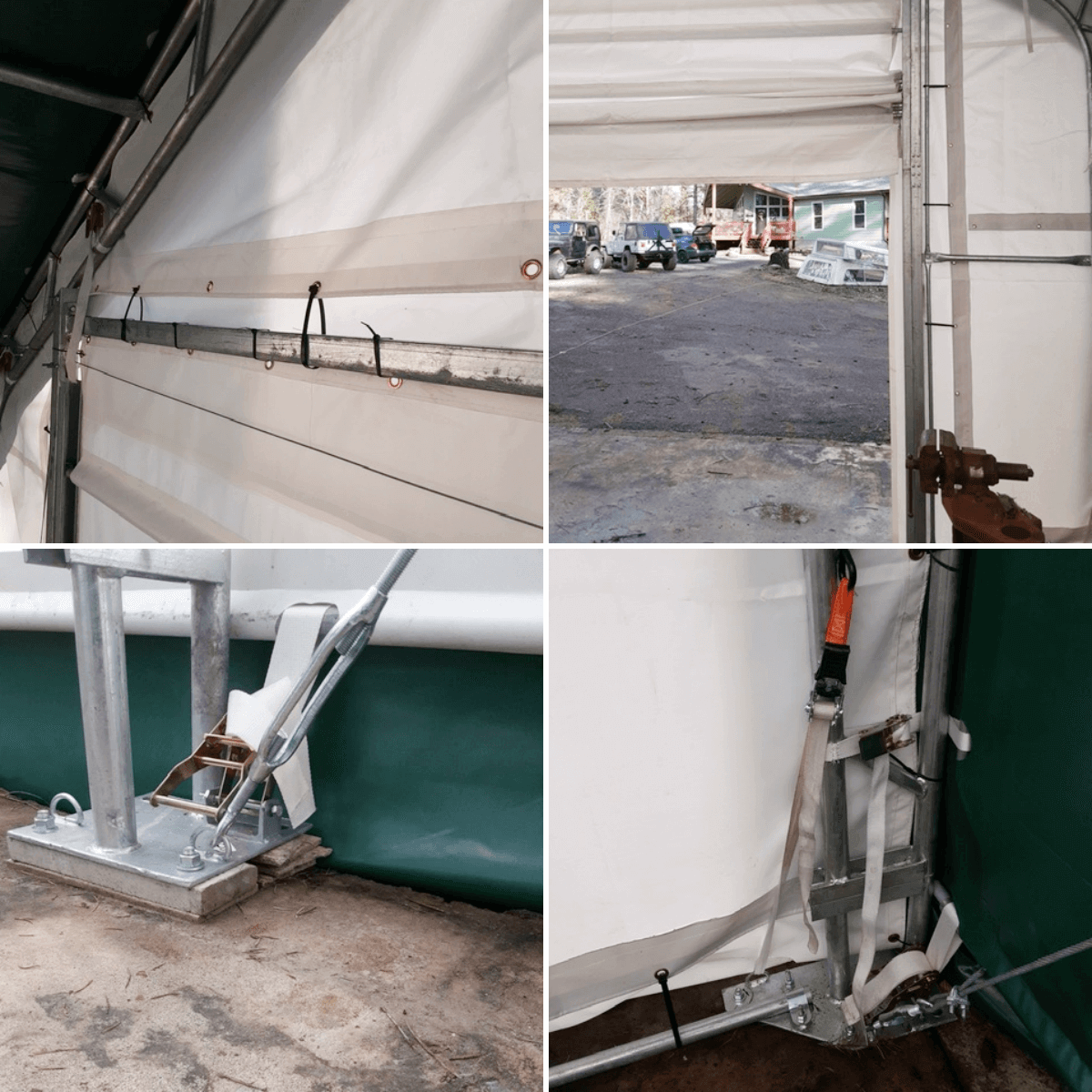

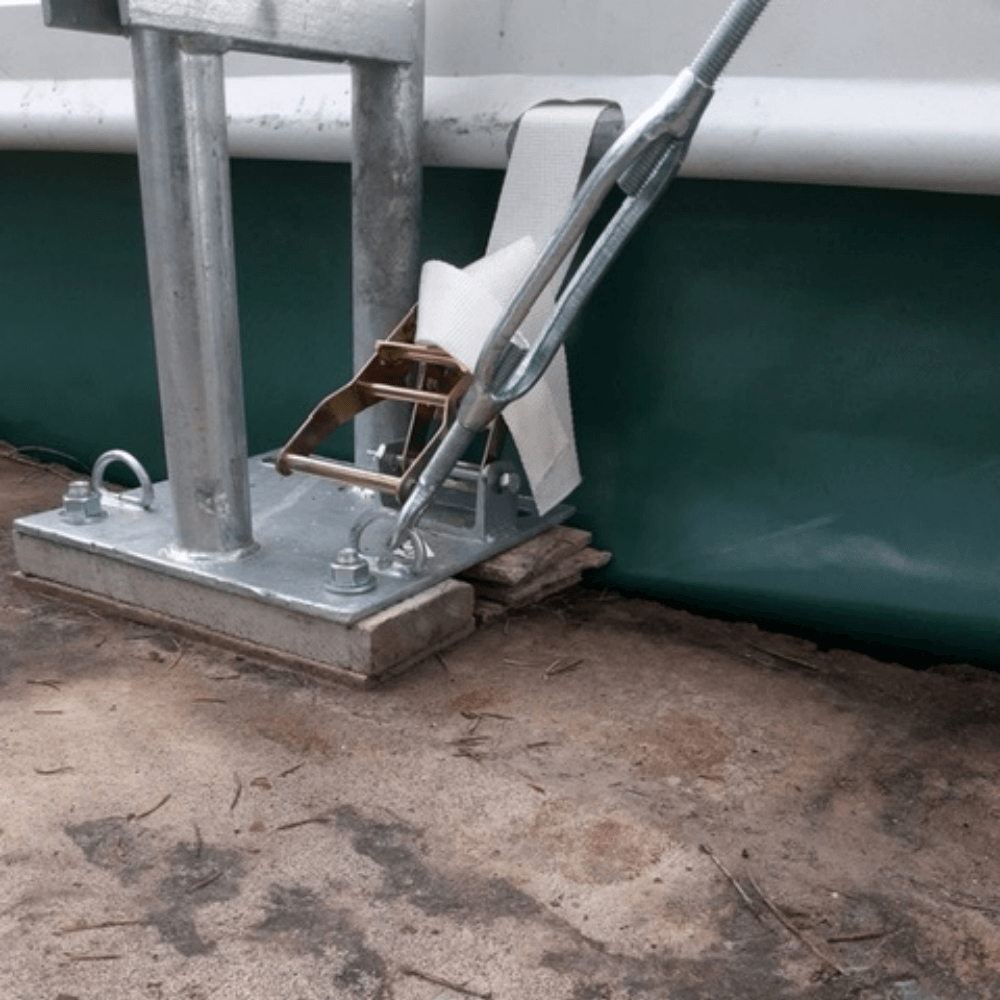

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 1 Day |

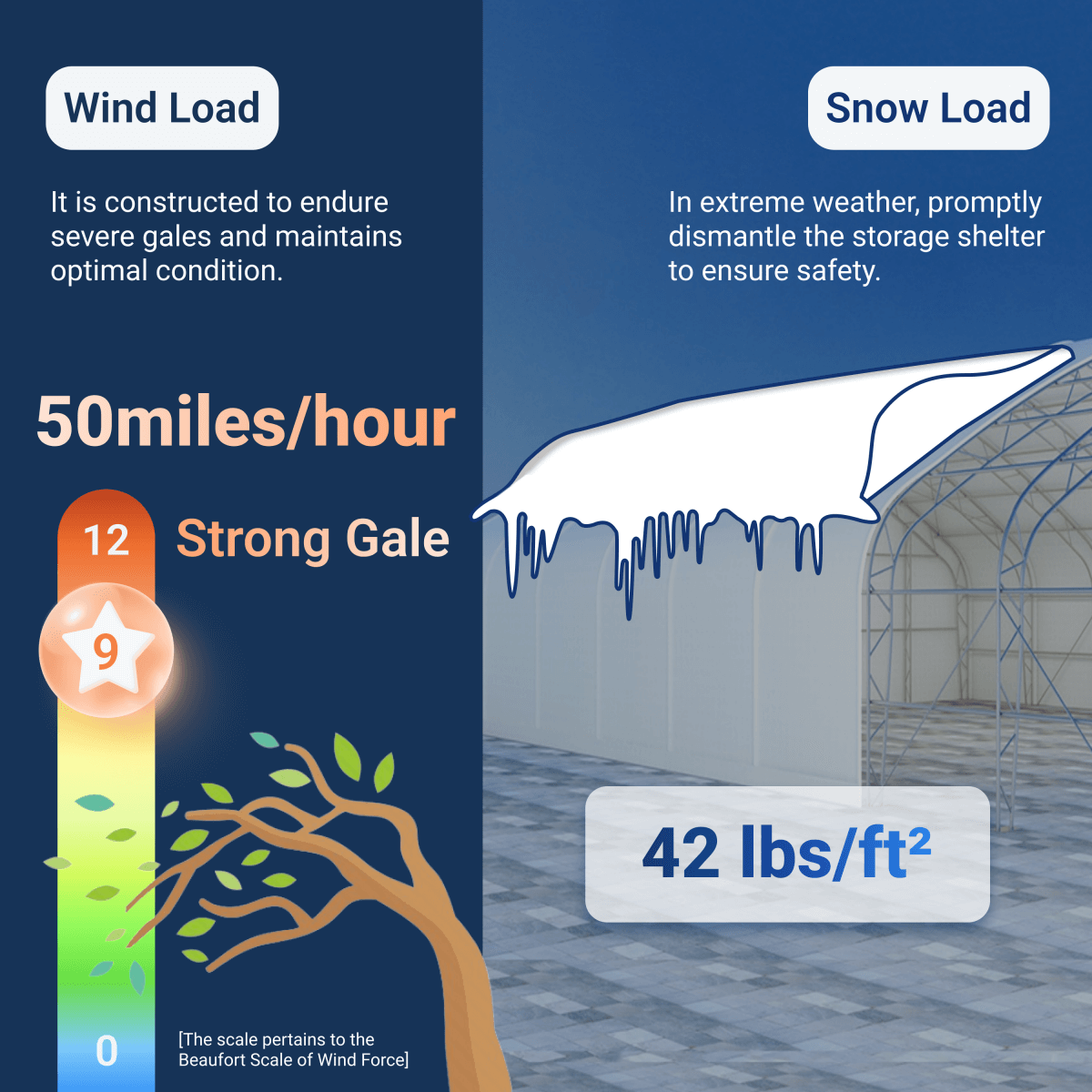

| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
– PE: 2 Years Warranty. – PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
Installation Tips
-
Temporary placement usually does not require a permit; for semi-permanent setups, check local regulations.
-
Tighten roof fabric adequately to avoid sagging (“hammocks”). Re-tighten once or twice after a few months, especially if assembled in cold weather, as the fabric may slacken when temperatures rise.
Features
- No building permits required*
- Easy to set up and install
- Portable for relocation
- Two large doors for easy entry and exit
- Fabric cover blocks UV radiation and allows natural light
- Galvanized steel frame resists harsh weather
- Suitable for various uses
Package & Delivery

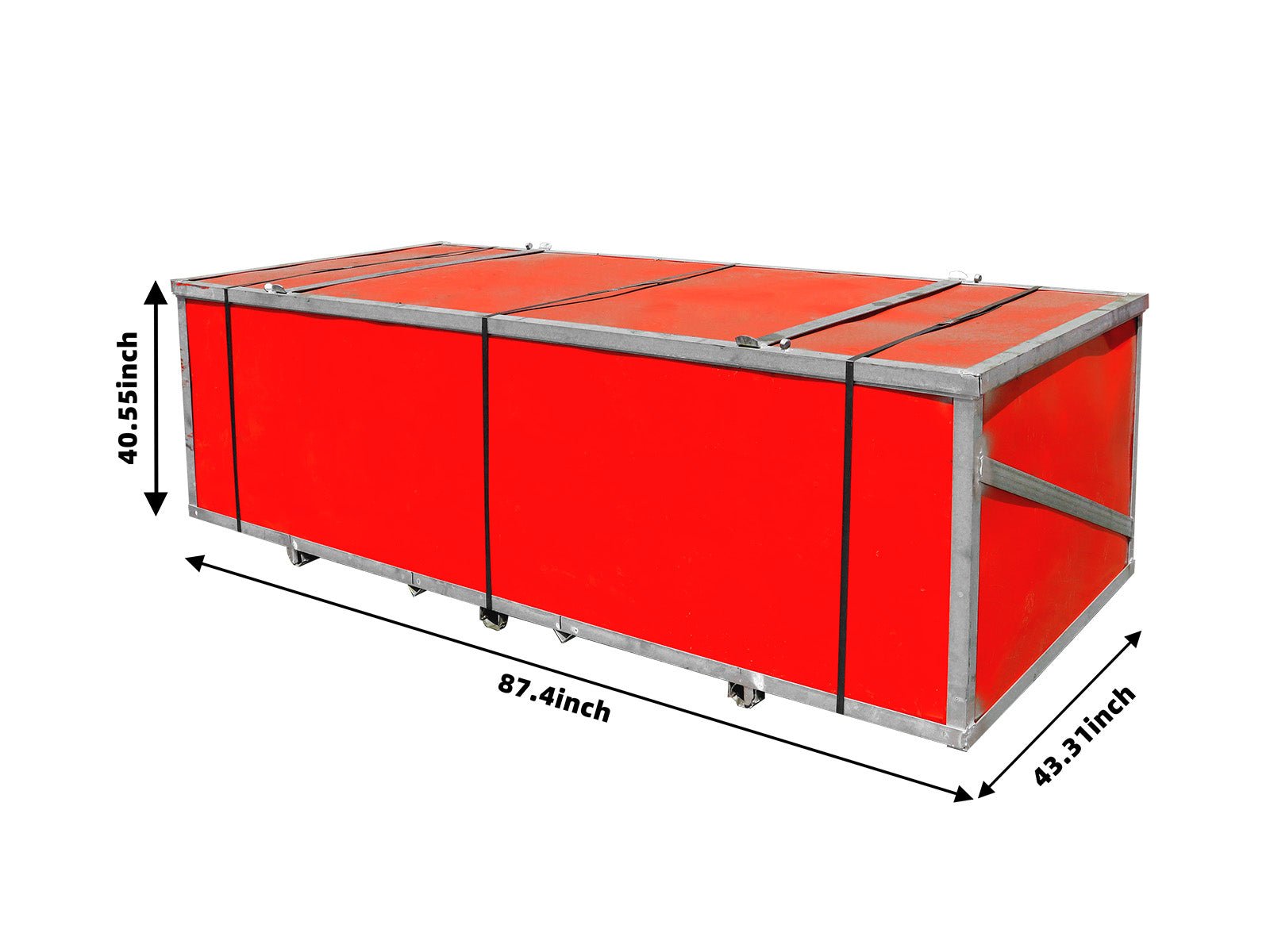

- Package Size (LxWxH): 87.4 x 43.3 x 40.6 inches
- Weight: 2,095 lbs

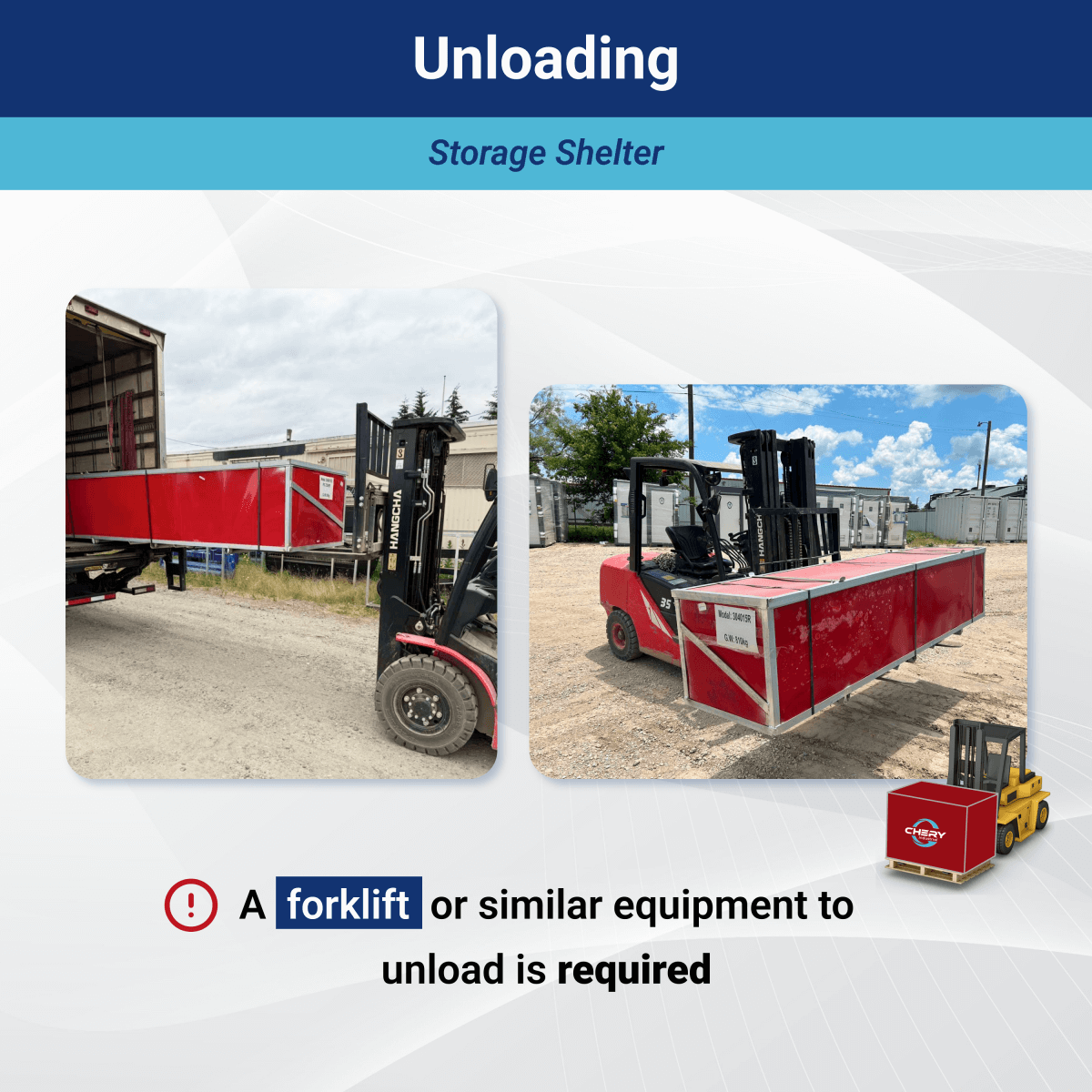

- Unloading: Forklift or equivalent required
- Shipped via box or flatbed truck depending on size
