Double Truss Storage Shelter W20’xL40’xH16′
Original price was: $5,898.65.$3,539.19Current price is: $3,539.19.

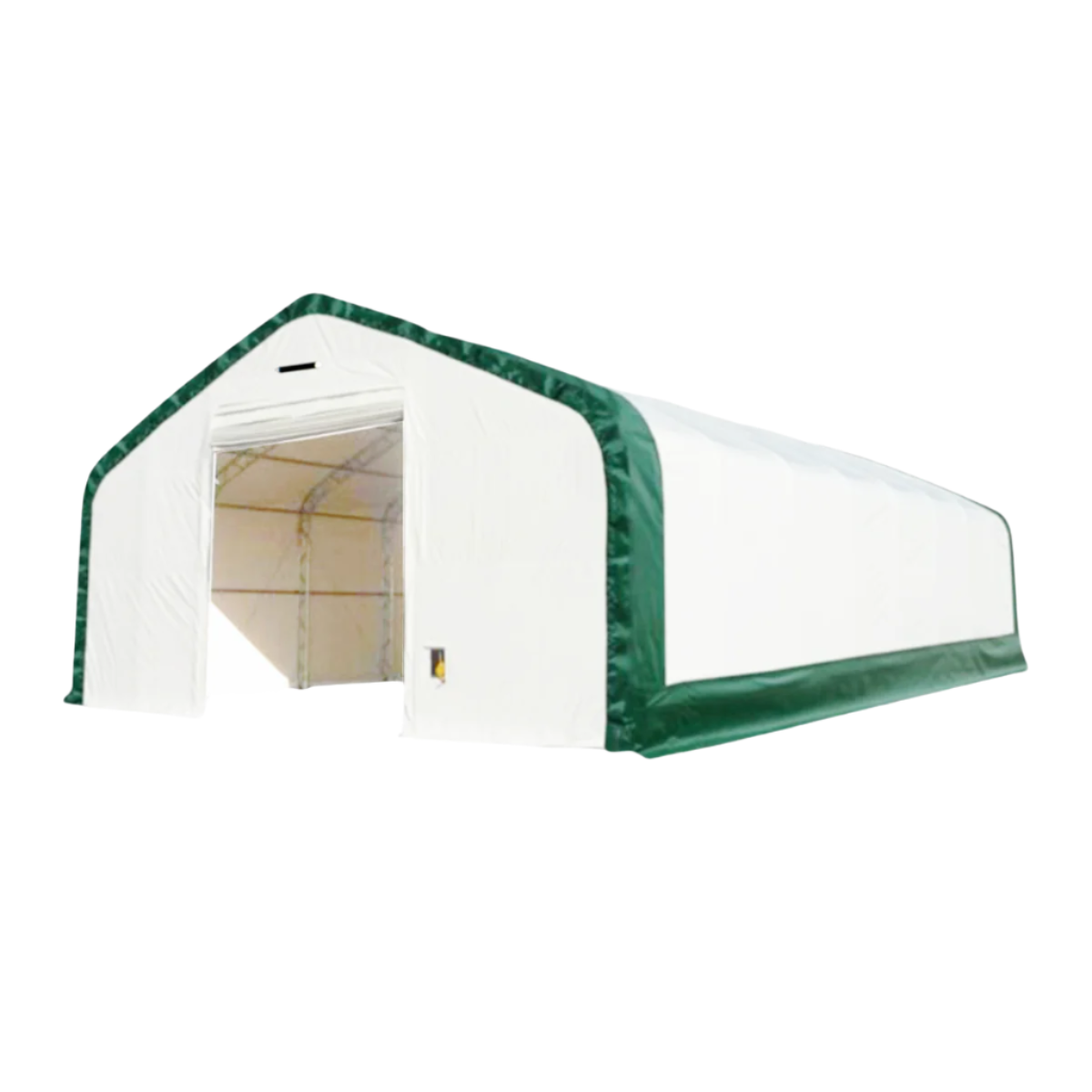

Gold Mountain Storage Shelter – W20’xL40’xH16’ Double Truss PVC

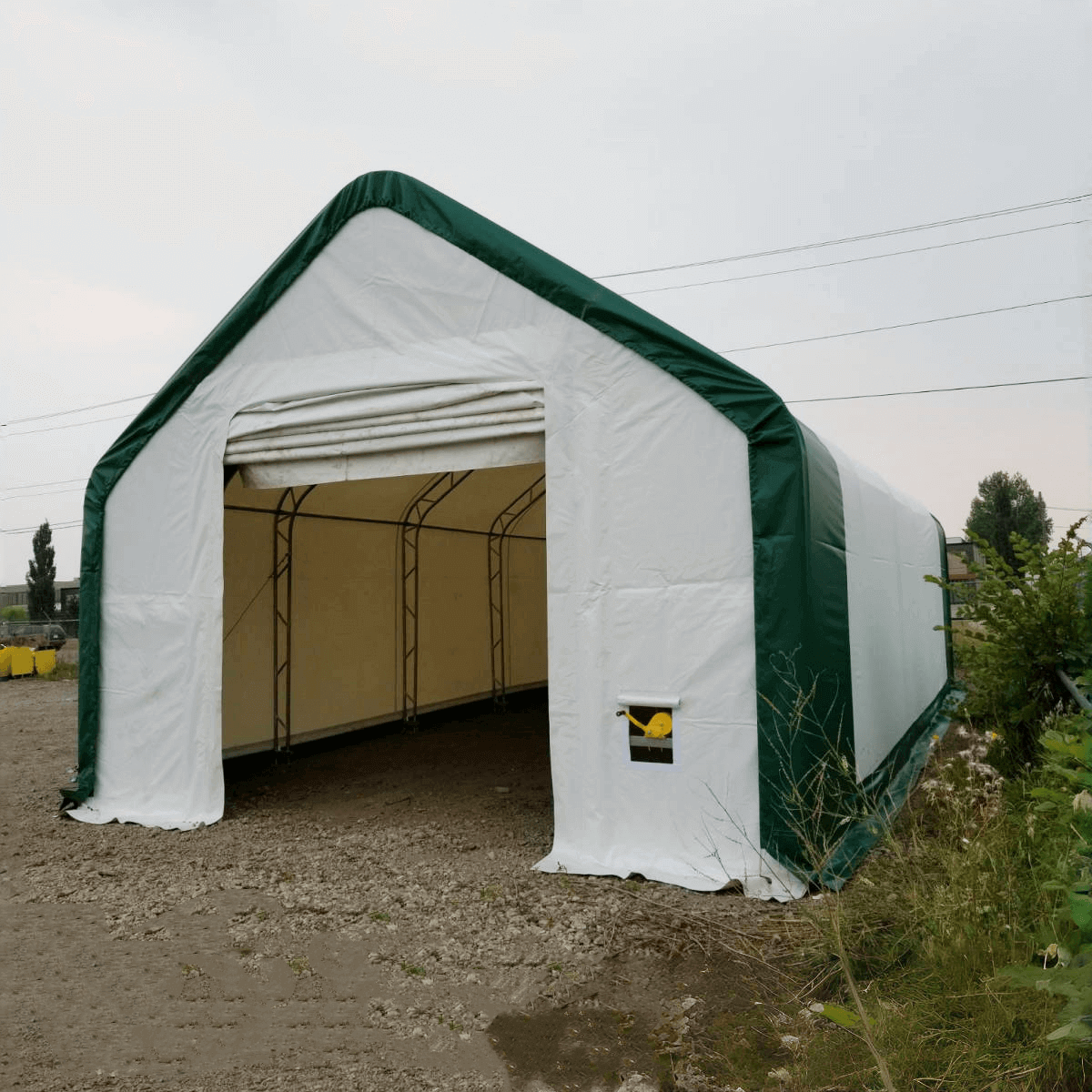

The Gold Mountain Double Truss Storage Shelter (20’x40’x16′) delivers robust protection for farms, construction sites, auto shops, and more. Constructed with galvanized steel tubes, this shelter withstands harsh weather, ensuring your vehicles, equipment, and supplies remain safe. The peak design promotes efficient snow shedding, while the dome design provides extra overhead space. Both options maintain the same durability and efficiency, with PVC fabric offering superior weather resistance and longer lifespan compared to PE.
Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Your browser does not support the video tag.
How to build a Storage Shelter?
Specifications
| Description | Specifications |

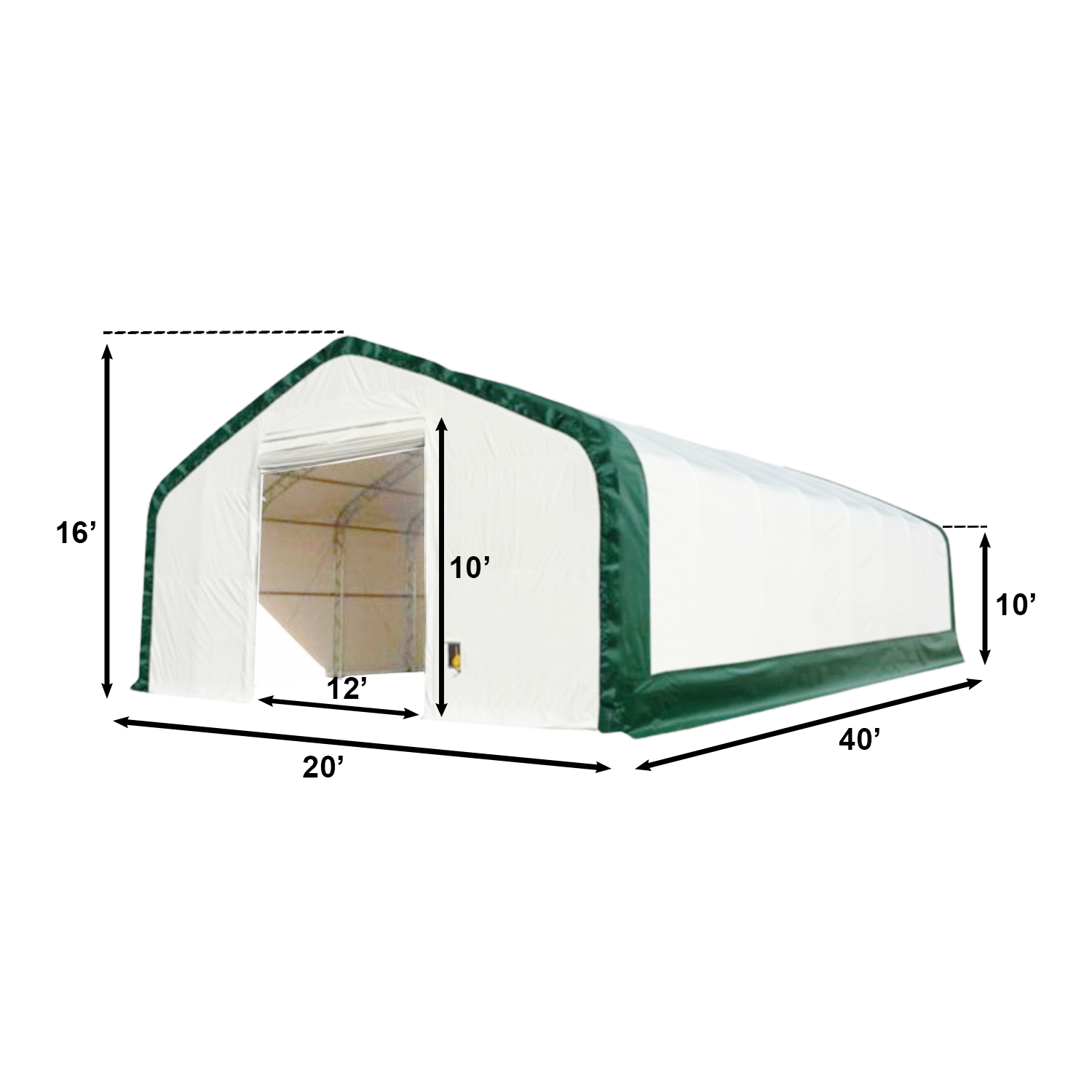

| Dimensions (WxLxH) | 20’x40’x16′ |
| Side-wall Height | 10 ft |
| Door size (WxH) (Front & Rear) | 12’x10′ |

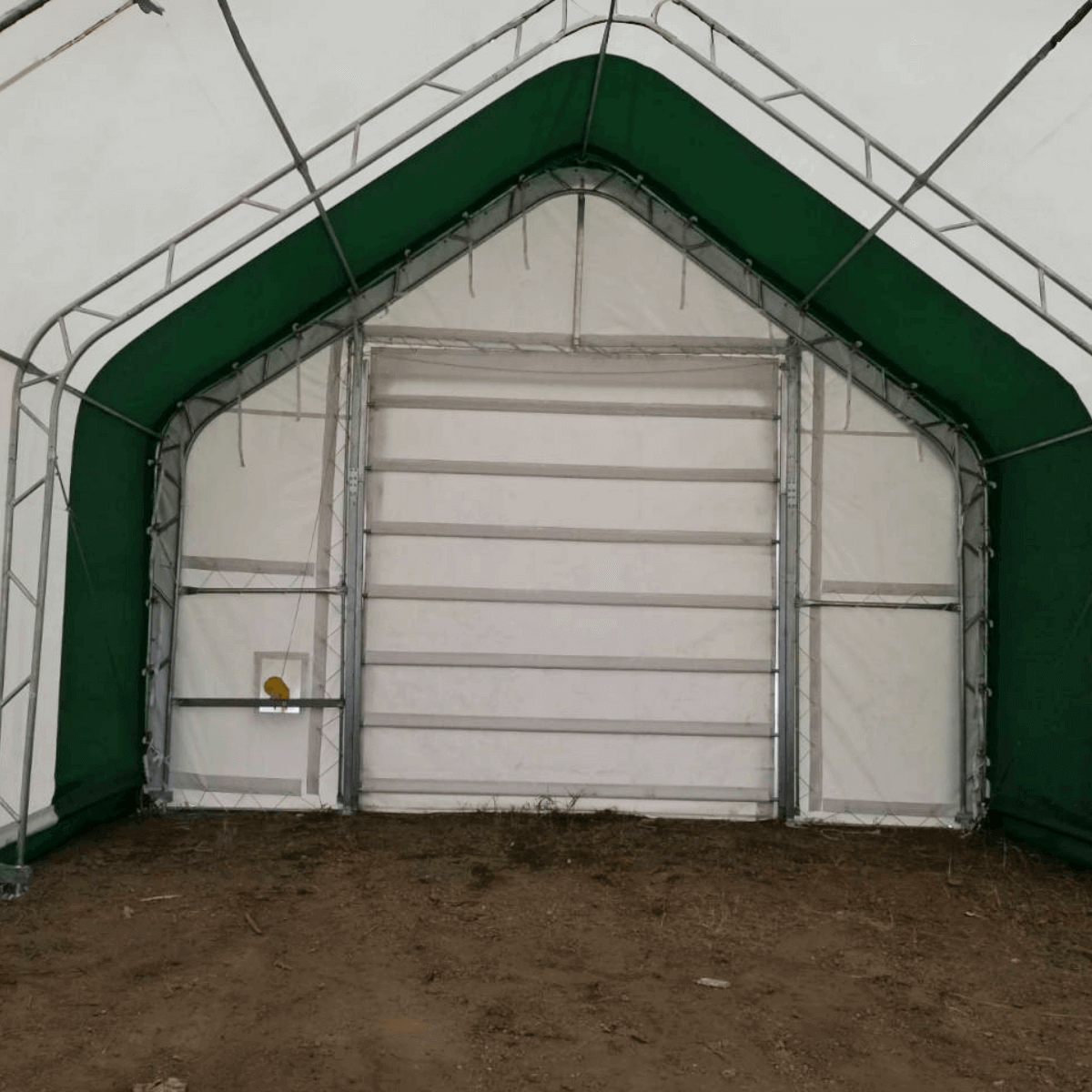

| Door Type | Mechanical Rollup Door |

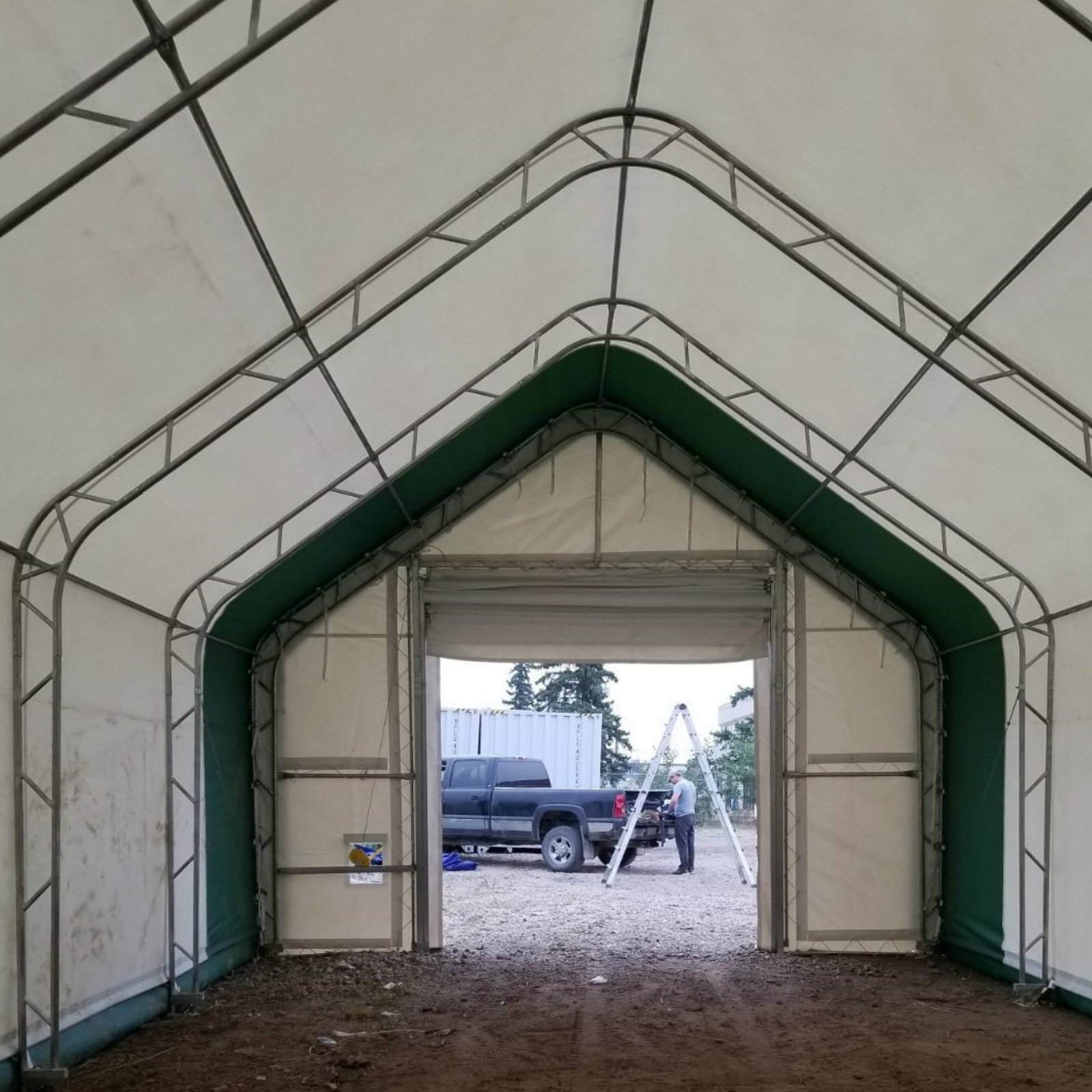

| Frame | Double Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 16 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 – +158 °F |
| Arch Ø | Φ 40×1.5mm |
| Purlin Ø | Φ 40×1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 7 |

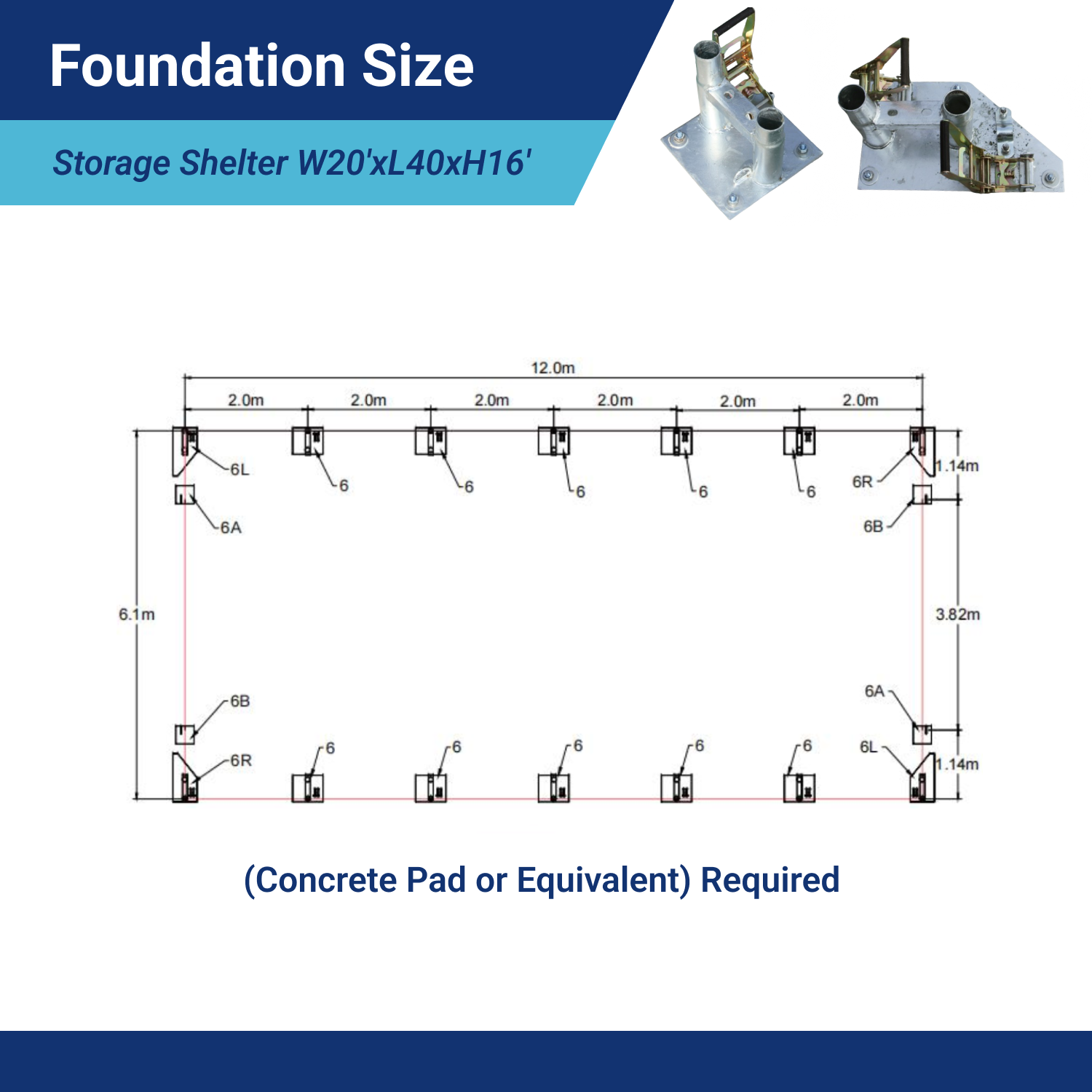

| Number of Anchor plates | 14 |

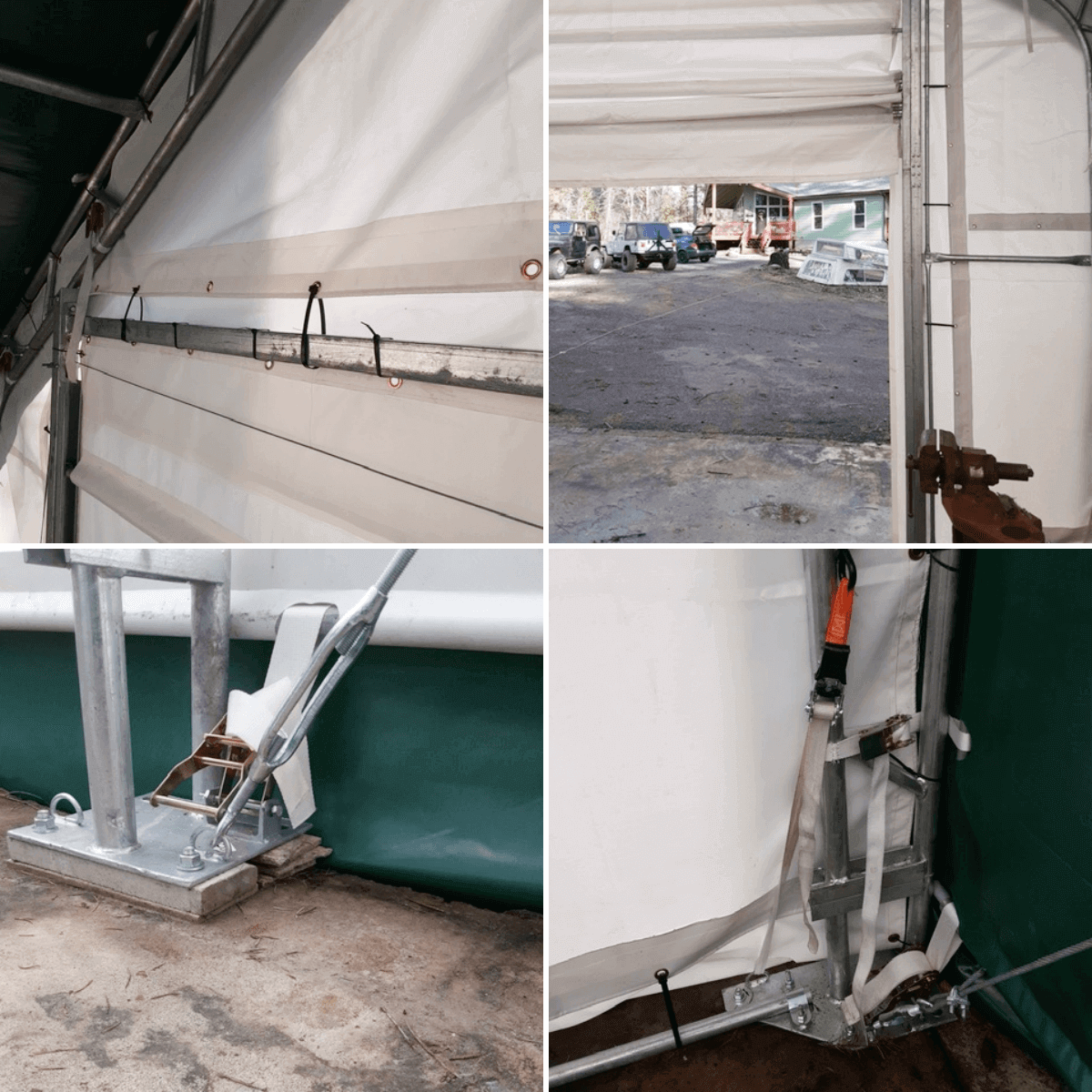

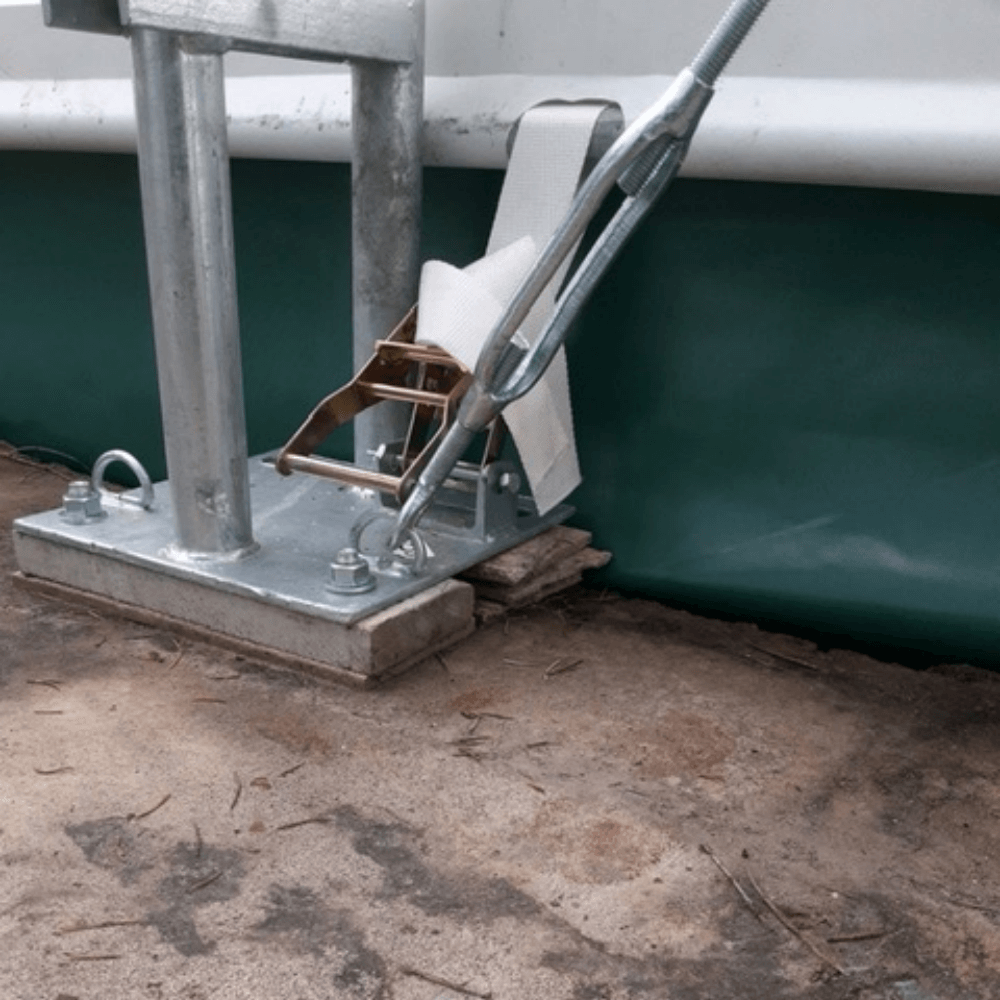

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 2 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
– PE: 2 Years Warranty. – PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
-
Temporary placements usually do not require permits. For semi-permanent installations, check with local authorities.
-
Properly tighten the roof fabric to avoid sagging (“hammocks”), and re-tighten after a few months, especially after cold-weather installations.
Features
- No building permits required*
- Fully waterproof, snow-resistant, and stable under storm conditions
- Portable and easy to assemble or dismantle
- Two large doors for convenient access
- PVC fabric blocks UV radiation while allowing natural light
- Galvanized steel frame resists harsh weather
- Suitable for industrial, agricultural, event, and vehicle storage applications

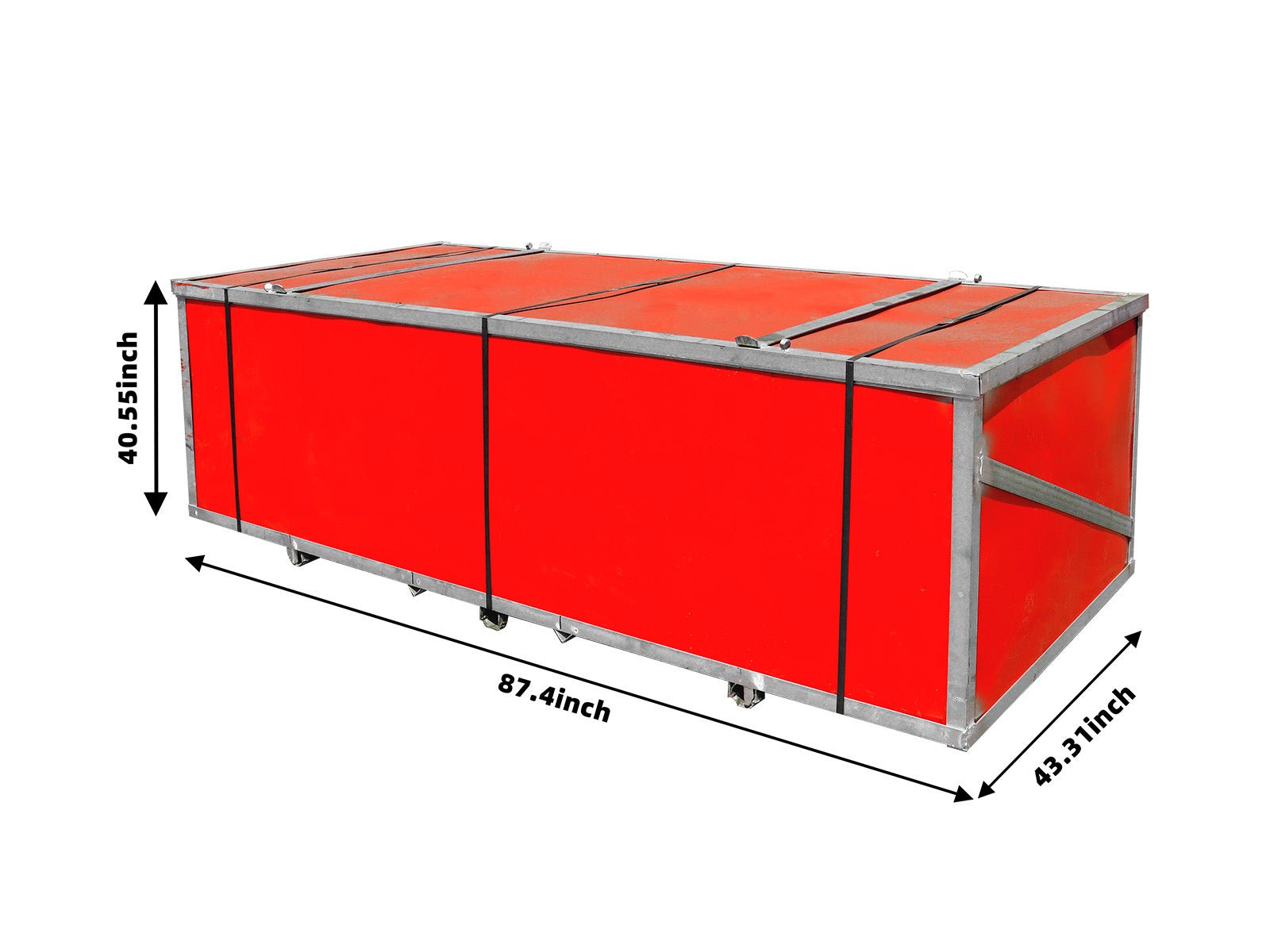

Package Size & Weight
- Dimensions (LxWxH): 87.4 x 43.3 x 40.6 in
- Weight: 2,315 lb
- Note: Forklift or equivalent required for unloading
Delivery:
- Loaded on box or flatbed truck depending on size
- Forklift or equivalent required for unloading
s204016,20×40, 20x40x16, Double Truss Storage Shelter, fallout shelter storage room, Gold Mountain Storage shelter, Gold Mountain dome storage shelter, outdoor storage shelter, Storage Shelter
