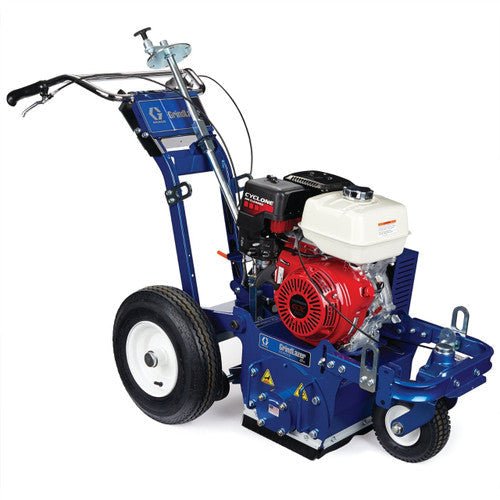

Graco GrindLazer HP DC1013 G Gas-Powered Scarifier 25M993

The GrindLazer HP DC1013 G is the contractor’s top choice for versatile scarifying tasks, including marking parking lot lines, intersection markings, construction zones, and smoothing sidewalks. The optional LineDriver System enhances productivity, reducing the physical strain of walking while working.

DialDown Depth Control System:

• Precise Cutter Depth Control: Easily adjust the cutting depth with multiple settings for accurate results.

InstaCut Technology:

• Flexible Removal or Inlay: Unique “hands-on” engagement allows manual adjustment of the cutting deck system for optimal positioning.
• Deck Adjustment: The deck can “float” over uneven surfaces without needing tools.

Vibration Reduction Technology:

• Enhanced Comfort: Reduces vibration by up to 4 times compared to competitors with pneumatic air-filled tires, comfort grips, and a vibration-reducing cart design.
• Comfort-Grip Handlebars: Provides precise steering and all-day comfort.

Durable 13 HP Honda Power with Cyclone Filter:

• Preferred Power: Features a cyclone filter to protect the engine from dust and debris.

Extreme-Duty ProStart System:

• Safer Operation: Ensures easy start/stop with a centrifugal mechanism, better cold-weather starting, and longer belt life while preventing broken recoils.

TriBelt Drive System:

• Efficient Power Transfer: The 3-cog belt design optimizes power transfer and reduces downtime.

Fat Track Front Swivel Wheel:

• Easy Turning: The proven front caster system allows for quick and easy turns and better maneuverability without excessive effort.

EasyGlide Wheel Mount System:

• Improved Maneuverability: Features a front-mounted caster and dual rear pneumatic tires, reducing vibration and making it safer and easier to maneuver.

Dust Removal:

• Vacuum Port: Compatible with the optional LazerVac vacuum system for efficient dust management.

LineDriver Compatible:

• Increased Productivity: Enhances productivity by allowing you to work more efficiently with the LineDriver System.

  Technical Specifications

  Air Filter Type	Cyclone
  Cut Direction	Forward
  Cutter Drum Diameter (in)	5
  Cutter Type	Drum
  Depth Adjustment	Manual
  Engine Brand	Honda
  Engine Model	GX390
  Engine Size (HP)	13
  Engine Start Type	ProStart
  LineDriver Required	Optional
  Maximum Cut Rate (ft2/hr)	800
  Maximum Cut Rate w/ LineDriver (ft2/hr)	1700
  Maximum Cut Width (in)	10
  Model	GrindLazer
  Product Series	High Production
  Series	High Production Series
  Type	Concrete Scarifier
  Vacuum Port	Yes
  Water Connection	Optional
