iDeal 14,000 lb 4-Post Alignment Lift & 3D Wheel Aligner Combo — FP14KAC-X + IWA-60-2000T-K + RAJ-7K-H

Description

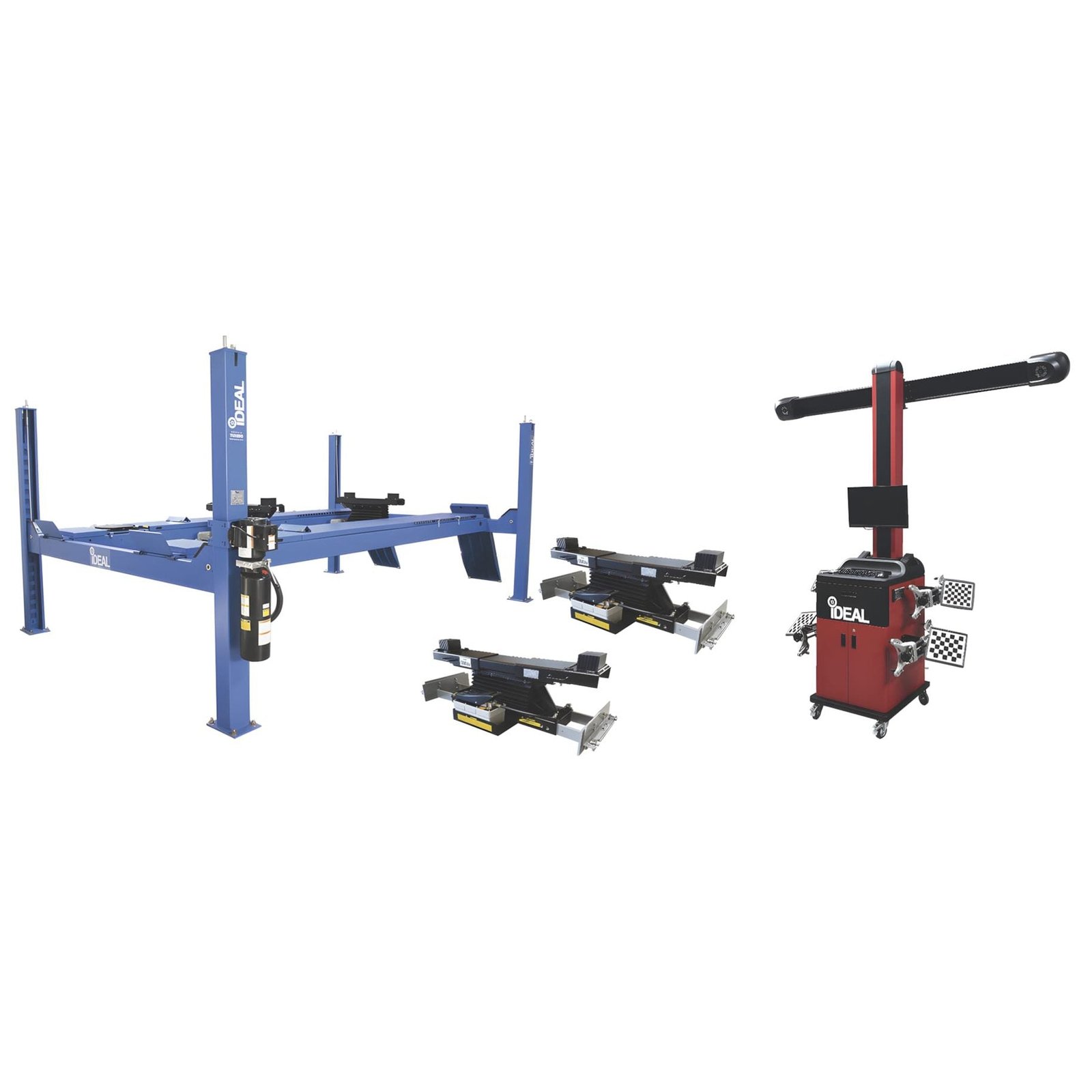

The iDeal CK-FP14KACX-IWA-60-2000T-K combo pairs a 14,000-lb FP14KAC-X 4-post alignment lift, an IWA-60-2000T-K 3D wide-scope wheel aligner, and a Tuxedo RAJ-7K-H 7,000-lb rolling air jack into a single bundle. It is built for shops that run alignments alongside general service and want one bay set up to handle cars, light trucks, and full-size trucks up to a 182-1/2″ service wheelbase.

The FP14KAC-X is a commercial-spec alignment lift with 20″-wide runways, 18 locking heights, and a bolt-on alignment kit so the lift can be used as a standard 4-post service lift between alignments. Full-width rear slip plates, two front turntable pockets with spacer covers, and selectable narrow or wide (43″ or 46″) runway spacing make it usable across a wide vehicle mix without reconfiguring the bay each time.

The IWA-60-2000T-K runs Techno Vector 7 software on a Windows 10 cabinet with two high-resolution wide-scope cameras and magnesium-alloy targets. Alignment accuracy is rated to 0.01 degrees. The cabinet is on casters, so a single aligner can serve multiple bays. The unit ships with a 25+ year vehicle specification database, integrated adjustment diagrams, 12″-24″ wheel clamps, steering wheel holder, brake depressor, chocks, plastic clamp protectors, and two sets of duck head inserts. Optional yearly software and specification updates are available.

The Tuxedo RAJ-7K-H high-mount rolling air jack rides on the FP14KAC-X jack rails with dual spring-loaded roller assemblies, telescoping locking support arms, and air/hydraulic operation. It is rated 7,000 lbs with two locking height positions and a set of rubber adapters.

This combo ships freight from Montana and includes installer training. Plan for a minimum bay of 16′ x 25′, properly cured concrete, 220V/20A single-phase service at the lift power unit, 120V/15A single-phase service at the aligner cabinet, and shop air for the rolling jack.

What’s Included

• FP14KAC-X 14,000-lb 4-post alignment lift with bolt-on alignment kit
• Front turntable pockets with spacer covers (turntables sold separately)
• Full-width rear wheel slip plates
• Self-chocking approach ramps with nylon rollers
• One pair of wheel chocks
• IWA-60-2000T-K 3D wheel aligner cabinet with Windows 10 PC and Techno Vector 7 software
• Two high-resolution wide-scope cameras on adjustable boom
• Four magnesium-alloy targets with oil-resistant protective layer
• Four 12″-24″ wheel clamps with plastic protectors and two sets of duck head inserts
• Steering wheel holder, brake depressor, and aligner chocks
• Storage cabinet, printer drawer, and brackets for adapters and targets
• RAJ-7K-H 7,000-lb high-mount rolling air jack
• Telescoping locking support arms and rubber height adapters (set of 2)
• Installer training

Features

FP14KAC-X 14,000-lb 4-Post Alignment Lift

• 14,000-lb capacity with 79-1/2″ maximum rise
• Cable lift system with 18 locking height positions
• 20″-wide runways selectable at 43″ or 46″ runway spacing
• Bolt-on alignment kit so the lift doubles as a 4-post service lift
• 166-3/4″ max two-wheel alignment wheelbase, 157″ max four-wheel alignment wheelbase, 182-1/2″ max service wheelbase
• Full-width rear wheel slip plates
• Two front turntable pockets with spacer covers
• Single-point pneumatic lock release with adjustable lock stops for leveling
• Slack-cable safety devices
• Self-chocking approach ramps with nylon rollers
• Powder-coated finish

IWA-60-2000T-K 3D Wheel Aligner

• 3D wide-scope imaging with two high-resolution industrial cameras
• 0.01-degree alignment accuracy
• CE certified
• Techno Vector 7 software on Windows 10
• Mobile cabinet for multi-bay use
• Pre-installed 25+ year vehicle specification database
• Integrated adjustment diagrams and on-screen help system
• Multiple 2D and 3D views with live-reading screen
• Multi-functional LED guide on the camera boom
• Wireless internet support and Android remote-control capability
• Magnesium-alloy targets with oil-resistant protective layer
• 12″-24″ wheel clamps with plastic protectors and two sets of duck head inserts
• Storage cabinet with printer drawer and adapter/target brackets
• VIN scanner capable (scanner not included)
• Optional yearly specification and software updates

Tuxedo RAJ-7K-H 7,000-lb Rolling Air Jack

• 7,000-lb lifting capacity
• High-mount design for low-position jack rails
• Air/hydraulic operation
• Dual spring-loaded roller body assemblies with roller bearing wheels
• Telescoping locking support arms
• Two locking height positions
• Rubber height adapters included (set of 2)
• Protective skirts

Specifications
