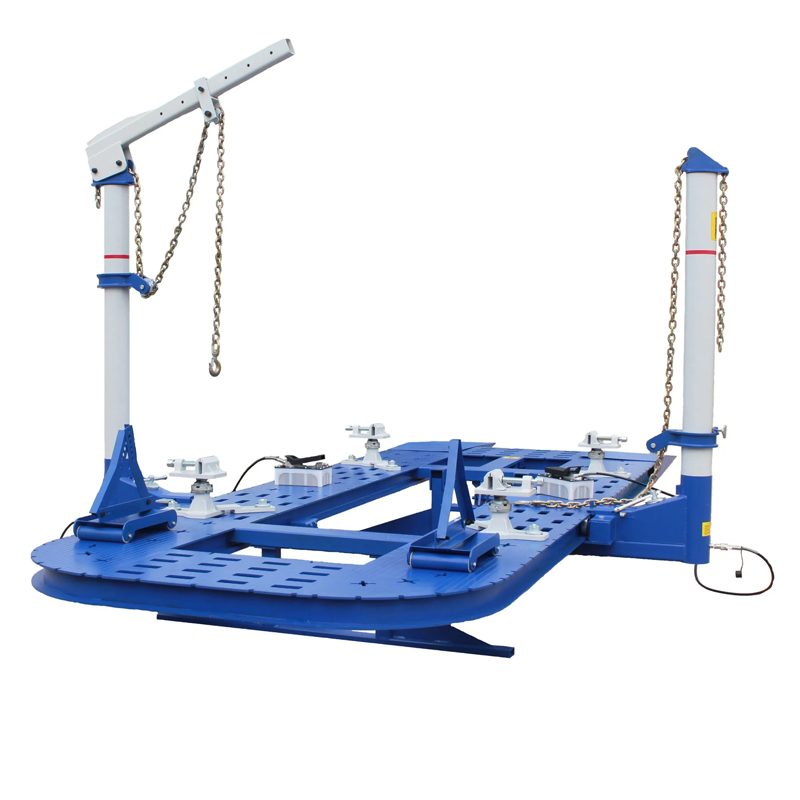

iDeal FR-77-18, 18′ Tilt Deck Steel Plate Platform Frame Rack

FR-77-18 Frame Rack by iDeal

Are your current frame racks holding you back? It’s time to face facts: outdated equipment is costing you time, money, and clients. Enter the FR-77-18 Tilt Deck/Steel Plate Platform Frame Rack – the game-changer you’ve been waiting for. This powerhouse boasts an 18-foot steel deck and a robust 7,700 lbs lifting capacity, ready to handle even your most challenging repair jobs.

With two 10-ton pulling towers operating at 10,000 PSI hydraulic pressure, you’re equipped to tackle the toughest frame straightening tasks with ease. The tilt deck operation and drive-on ramps ensure smooth vehicle positioning, while the universal anchoring system adapts to various models. The FR-77-18 offers precision, power, and versatility with features like quick disconnect hydraulic fittings, an overhead boom pull tower extension, and high-quality air/hydraulic pumps. You’ll wonder how you ever managed without it.

Frame Rack FR-77-18 Specifications:

• Frame Rack Model: FR-77T-18
• Deck Design: Steel
• Deck Length: 18′
• Deck Width: 82.6″
• Deck Height: 19.7″
• Pull Force Per Tower: 10 Ton
• Hydraulic Pressure: 10,000 PSI
• Required Air Pressure: 100 – 120 PSI
• Lifting Capacity: 7,700 lbs
• Power: NA
• Ship Weight: 4,189 lbs
• Weight: 5300 lbs
• Pallet Dimensions: 240″L 84″W 35″H

FR-77-18 Frame Rack Special Features:

• Durable, Heavy Duty steel deck Construction
• Tilt Deck Operation with 7,700lbs. Capacity with Drive On Ramps

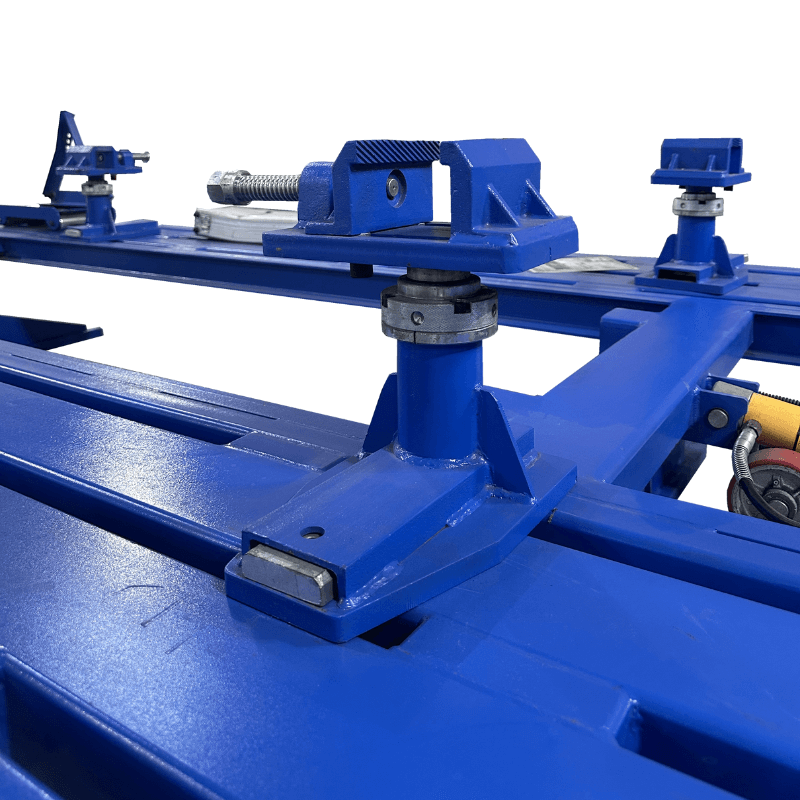

• Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
• Two – 10 Ton Pulling Towers with Telescoping Heads
• Adjustable Tower Collars
• Overhead Boom Pull Tower Extension
• Quick Disconnect Hydraulic Fittings
• Two – 10′ Pulling Chains with Hooks
• Two – High Quality Air/Hydraulic Pumps with Pressure Gauges
• Universal Wheel Stand And Dead Vehicle Dolly
• Powder Coat Finish
• iDeal Warranty:
  One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.

FR-77-18 Manual:

   iDeal FR-77-18 Product Manual

Deal FR-77-18 Product Options:

• FR-77-TBK25
• FR77 Series Tool Board Kit
• FR-PROMEASRKIT
• Professional Measure Kit
• FR-EWINCH, Electric Winch
• FR-BAGJACK
• Air Bag Jack

• All refurbished items are stocked and shipped from Texas Warehouse Only
• Pictures of units can be shared upon request
• 20% off is based off regular price.
• Contact Us today if your item is available
