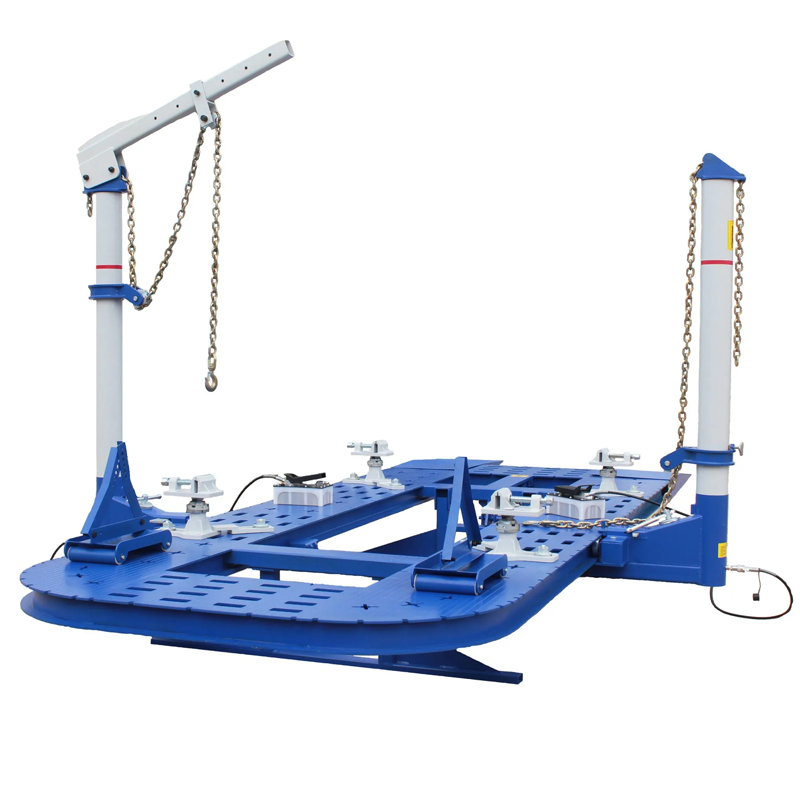

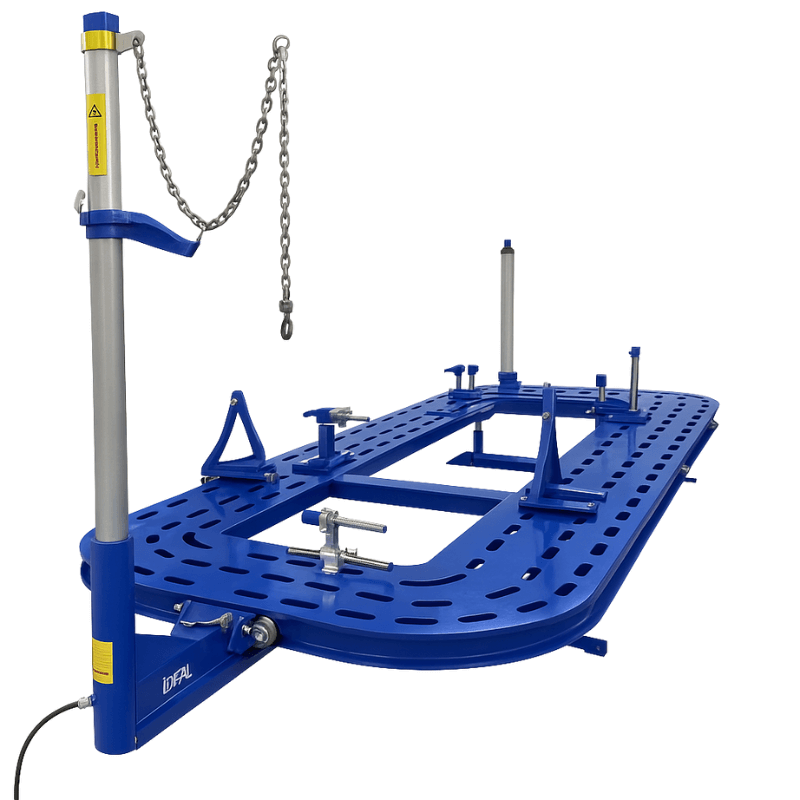

Ideal FR-77-20, 20′ Title Steel Plate Deck Frame Rack

FR-77-20 Frame Rack by Ideal

Do you need a frame rack that can handle the toughest jobs? The FR-77-20 Steel Plate Deck Frame Rack Machine is your answer. With a massive 20-foot steel plate deck and a 7,700-pound lifting capacity, this powerhouse can accommodate even the largest vehicles. Its 10-ton pull force per tower and 10,000 PSI hydraulic pressure ensure you have the strength for any repair.

Effortlessly position vehicles with the tilt deck operation and drive-on ramps. The universal anchoring system and adjustable height pinch weld assemblies adapt to any model, while quick disconnect hydraulic fittings and 10-foot pulling chains streamline your work. High-quality air/hydraulic pumps with pressure gauges provide precise control. Optional accessories like the Tool Board Kit and Electric Winch further enhance its capabilities. Don’t let inferior equipment limit your potential – invest in the FR-77-20 and take your repair business to the next level.

Frame Rack FR-77-20 Specifications:

• Frame Rack Model: FR-77-20
• Deck Design: Steel Plate
• Deck Length: 20′
• Deck Width: 82.6″
• Deck Height: 19.7″
• Pull Force Per Tower: 10 Ton
• Hydraulic Pressure: 10,000 PSI
• Required Air Pressure: 100 – 120 PSI
• Lifting Capacity: 7,700 lbs
• Power: NA
• Ship Weight: 5,300 lbs

FR-77-20 Frame Rack Special Features:

• Durable, Heavy Duty steel deck Construction

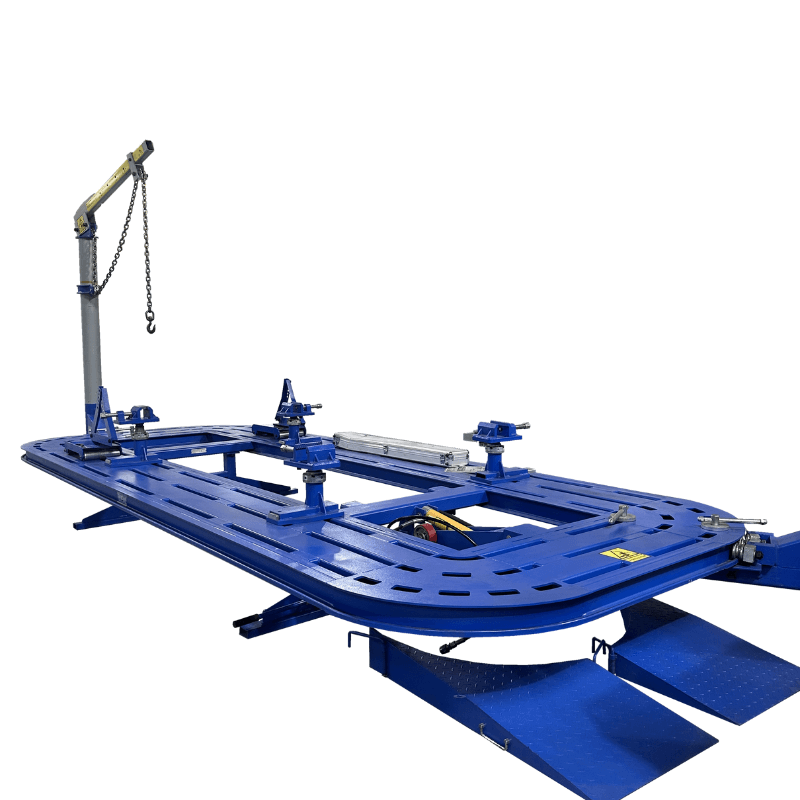

• Tilt Deck Operation with 7,700lbs. Capacity with Drive On Ramps

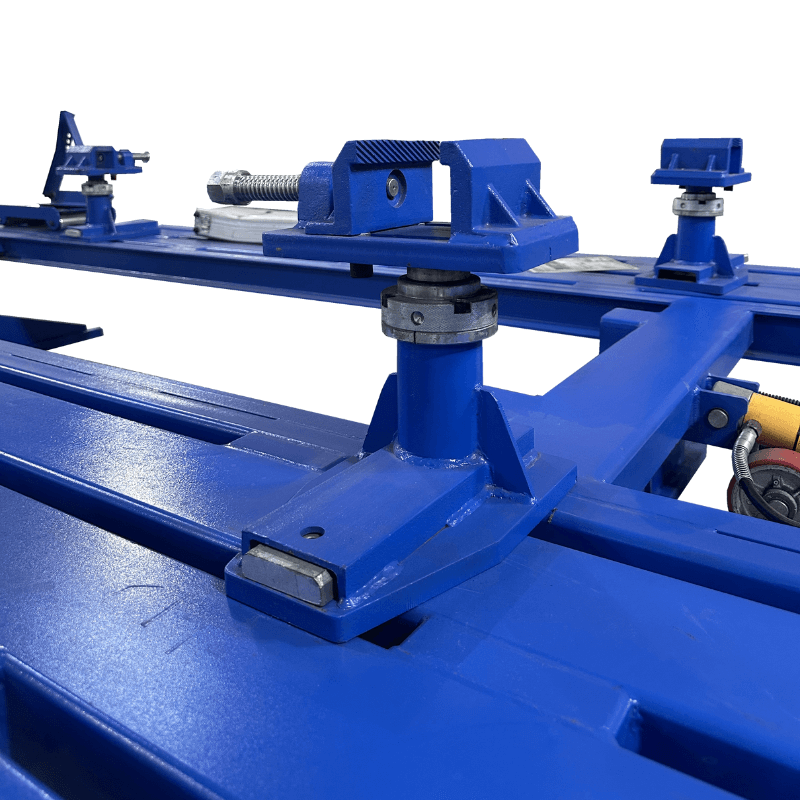

• Universal Anchoring System with Adjustable Height Pinch Weld Assemblies

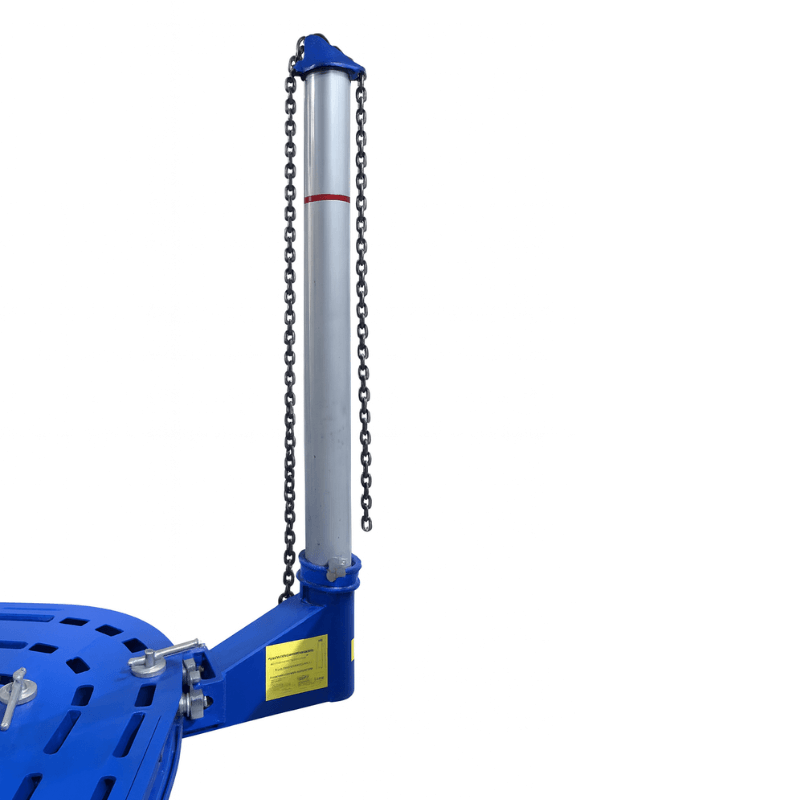

• Two – 10 Ton Pulling Towers with Telescoping Heads
• Adjustable Tower Collars

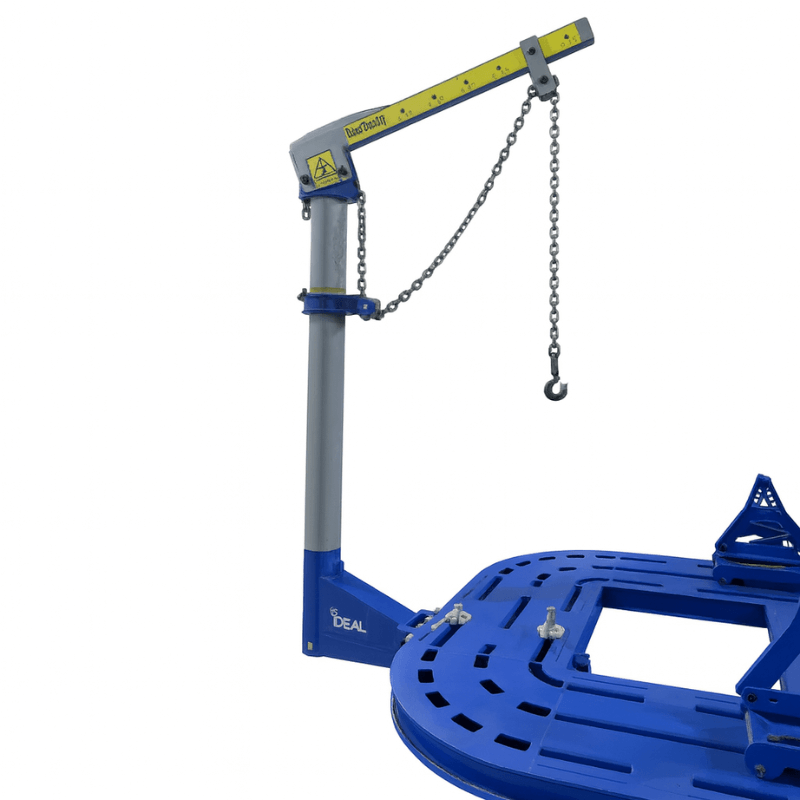

• Overhead Boom Pull Tower Extension
• Quick Disconnect Hydraulic Fittings
• Two – 10′ Pulling Chains with Hooks
• Two – High Quality Air/Hydraulic Pumps with Pressure Gauges
• Universal Wheel Stand And Dead Vehicle Dolly
• Powder Coat Finish
• iDeal Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment

FR-77-20 Manual:

   iDeal FR-77-20 Product Manual

• All refurbished items are stocked and shipped from Texas Warehouse Only
• Pictures of units can be shared upon request
• 20% off is based off regular price.
• Contact Us today if your item is available
