iDEAL LT-PT2500AH-X POWERTRAIN PLATFORM

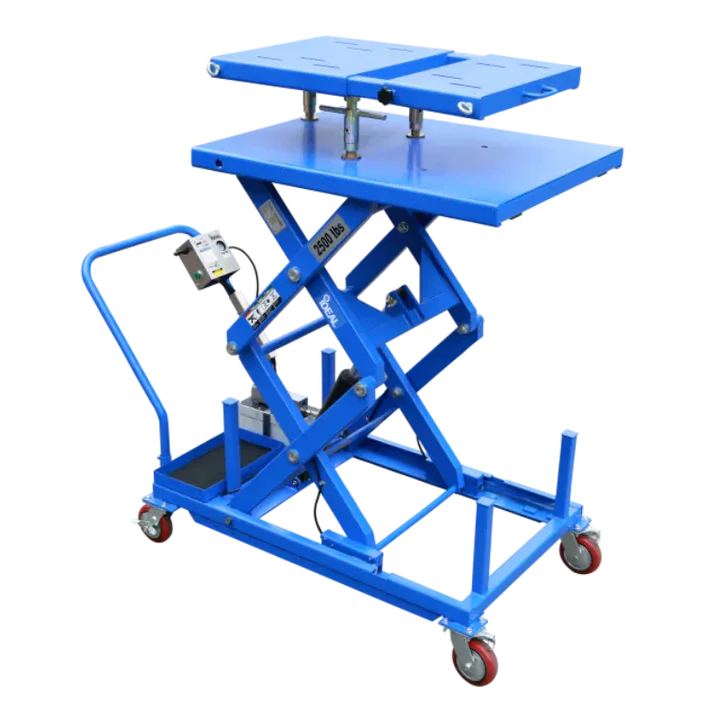

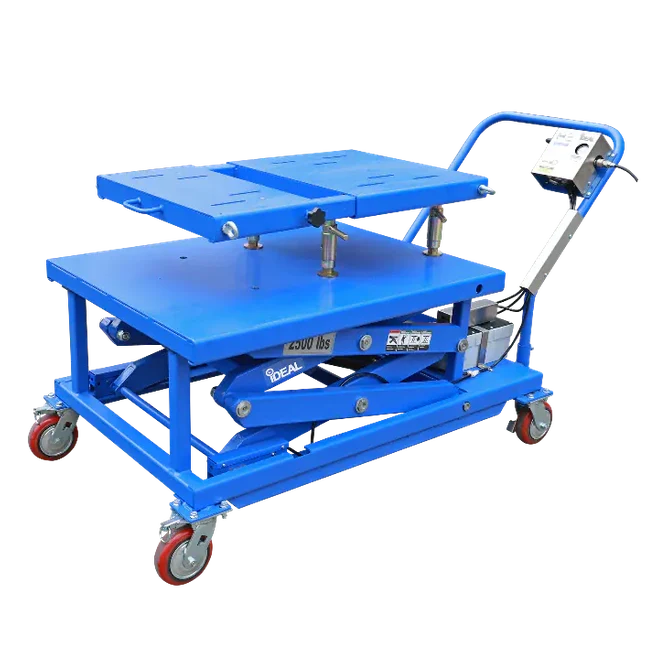

iDEAL LT-PT2500AH-X Powertrain Platform Lift Table (Air-Hydraulic)

When you’re dropping a transmission, positioning an engine, or wrestling a transaxle into place, the difference between “good” and “great” equipment is simple: control. The iDEAL LT-PT2500AH-X is a commercial/industrial grade, high-rise 2,500 lb capacity air-hydraulic lift table designed to handle heavy powertrain components with smooth, deliberate lifting and confident load stability—so your technicians can focus on alignment and safety instead of fighting gravity.

This isn’t a flat deck with wheels. It’s a purpose-built multi-adjustable powertrain platform featuring an extendable, slotted PT platform (with 5.2″ adjustment length) plus precision tilt and height adjustments via heavy-duty jack screws. That means cleaner fitment under the vehicle, easier alignment to mounts, and less repositioning once the component is supported. And because real shops move fast, the LT-PT2500AH-X adds an exclusive stainless-steel pneumatic hand-control panel with an integrated air gauge and water separator—built for consistent air-hydraulic performance at 90–125 PSI.

From the stable double-scissor heavy-duty design to the locking/directional casters and tie-down anchoring, it’s engineered to keep loads secure and techs confident—job after job.

Key Highlights

• 2,500 lb Capacity: Built for powertrain service—engines, transmissions, axles, and transaxle assemblies.
• Air-Hydraulic Operation: Smooth lifting, locking, and controlled lowering using shop air (90–125 PSI).

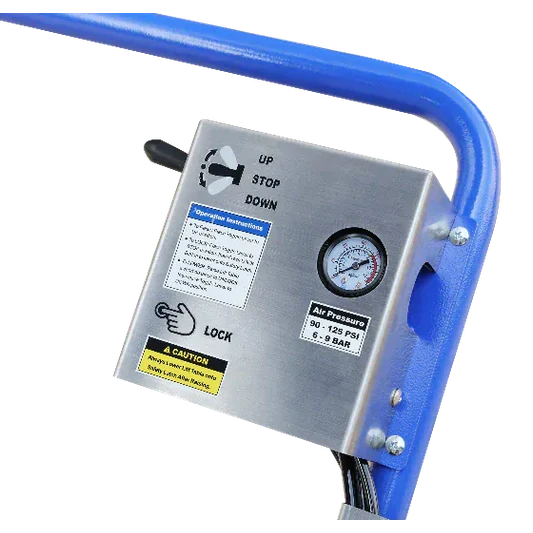

• Stainless-Steel Pneumatic Control Panel: Hand-operated controls with integrated air gauge and water separator.

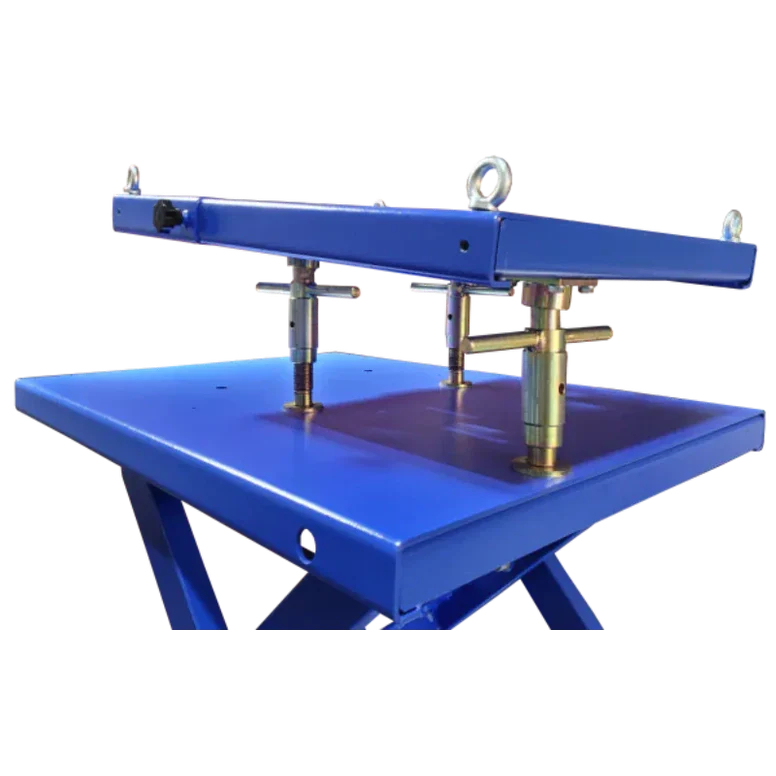

• Extendable & Slotted PT Platform: Heavy-duty platform with 5.2″ length adjustment for better component fitment.
• Precision Tilt & Height Adjustments: HD jack screws help dial-in alignment when mounts don’t line up perfectly.

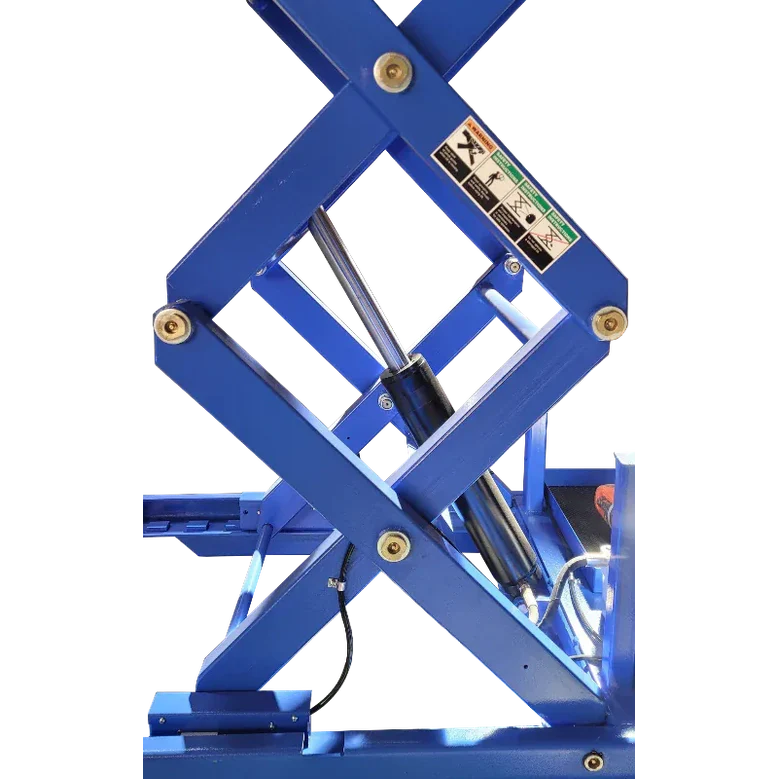

• Double-Scissor HD Design: Strong, stable lift geometry with a high-quality hydraulic cylinder.
• Built-In Load Security: Includes (4) tie-down ring eyelets and a heavy-duty ratchet strap.
• Portable & Shop-Friendly: High-quality locking swivel and directional poly casters plus a removable hand bar.
• Durable Powder-Coat Finish: Built to handle daily service environments.

How You’ll Use It (Everyday Workflow)

• Roll the LT-PT2500AH-X into position and lock the casters for stable placement.
• Set the slotted platform length to match the component footprint.
• Raise using the pneumatic hand controls; fine-tune with tilt/height jack screws for precise alignment.
• Secure the assembly using the tie-down eyelets and included heavy-duty ratchet strap.
• Lower smoothly and safely for removal, service, or reinstallation—controlled the entire way.

What’s Included

• LT-PT2500AH-X air-hydraulic lift table
• Extendable & slotted multi-adjustable powertrain platform
• Stainless-steel pneumatic hand control panel with air gauge & water separator

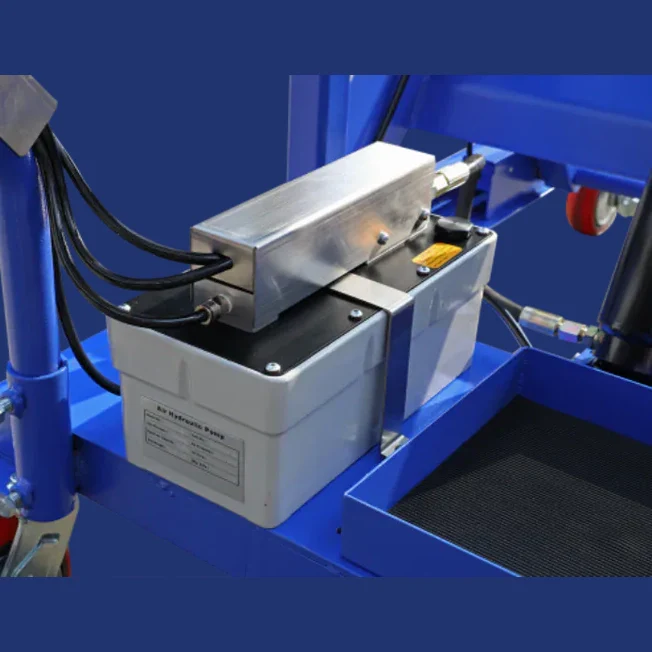

• High-duty air-hydraulic pump & hydraulic cylinder
• Locking swivel & directional poly casters
• Removable hand bar
• Integrated utility/tool tray + sub-platform storage area
• (4) tie-down ring eyelets
• Heavy-duty ratchet strap

Specifications

Bottom Line

The iDEAL LT-PT2500AH-X is a professional powertrain-handling solution built for controlled lifting and precise positioning. With a 2,500 lb capacity, extendable slotted platform, air-hydraulic operation, and secure tie-down support, it helps your shop remove and install engines and transmissions with less struggle—and more confidence—every single time.
