iDEAL MSC18KX-CRSBM ALI Certified Crossbeam Frame-Engaging Adapter for MSC-18K-X and MSC-13K-B Mobile Column Lifts

Description

The iDEAL MSC18KX-CRSBM is a frame-engaging crossbeam adapter that converts an iDEAL mobile column lift from wheel-engaging to frame-engaging service. Capacity ranges from 22,000 lb to 33,000 lb across the supported pad-width and pad-height envelope, and the unit is ALI Certified to the rigorous standards governing professional automotive lifting equipment.

With the crossbeam in place, technicians get full wheels-free access to brakes, suspension, axles, exhaust, and undercarriage components — the work most often blocked by a wheel-engaging carriage. The crossbeam can be deployed individually with a two-column MSC-18K-X-236 set to lift one end of a vehicle, or in pairs with a four-column MSC-18K-X-472 set to lift the entire vehicle off the ground.

The pillar supports adjust in both width and height, so the same crossbeam fits across a wide range of frame geometries — light commercial trucks at one end of the envelope and Class 6–8 trucks, fleet vehicles, and bus chassis at the other. Min/max pad width is 6¼” to 110″, and min/max pad height is 20″ to 25″.

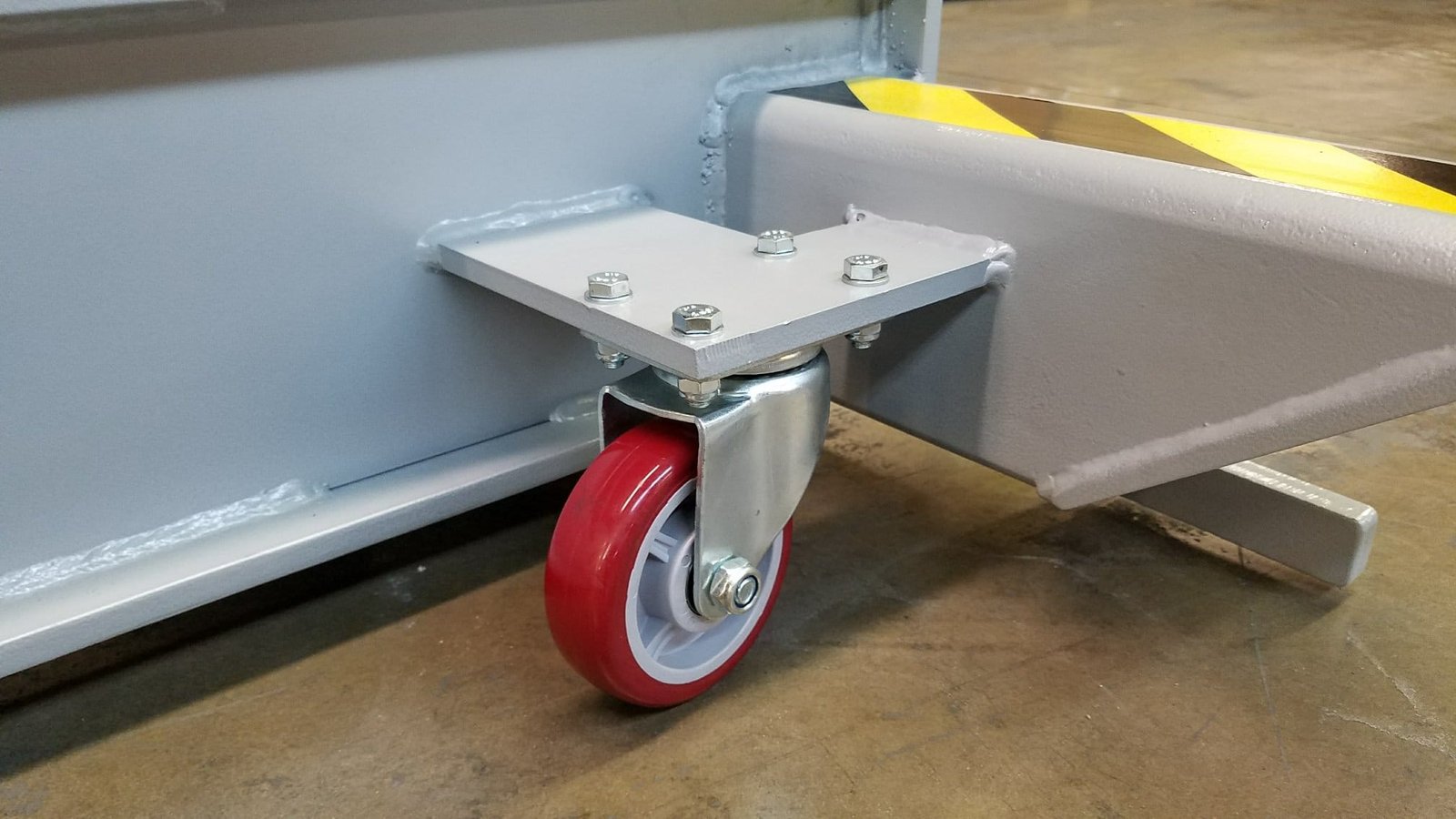

The unit rolls on poly casters and ships with a tow bar, so a single technician can reposition it across the bay without lifting equipment. Each end of the beam carries hooked feet that mate with the column-lift carriage forks, and reflective hazard striping marks the beam ends and pillar bases.

Features

• 22,000 lb to 33,000 lb maximum support capacity across the rated pad-width and pad-height envelope
• ALI Certified to professional automotive lifting safety and performance standards
• Adjustable-width and adjustable-height pillar supports for varied frame geometries
• Three pairs of HD contact-pad adapters included — Standard, Axle, and Cradle
• Poly casters and tow bar included for single-technician staging
• Single-unit operation with two-column MSC-18K-X-236, or paired with four-column MSC-18K-X-472
• Cross-compatible with iDEAL MSC-13K-B mobile single-column lifts

HD Contact Pad Adapter Package

Each MSC18KX-CRSBM ships standard with three pairs of heavy-duty contact-pad adapters, sized for different lift-point geometries. No separate pad purchase is needed at the time of order; the bundled set covers most light-commercial and heavy-truck lifting scenarios.

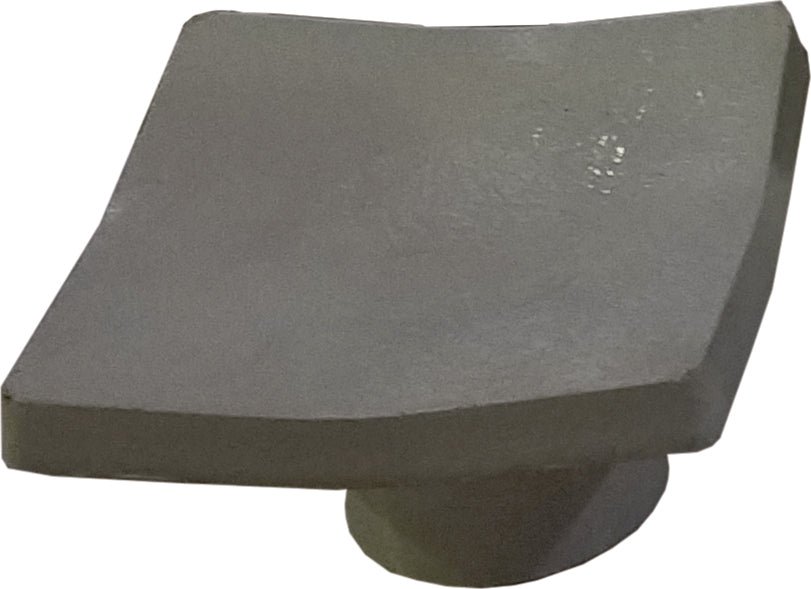

Standard Pad

The Standard Pad is the default contact surface for flat or near-flat frame rails. It distributes load across a flat machined face, with a small lip on the underside that nests onto the threaded pillar shaft.

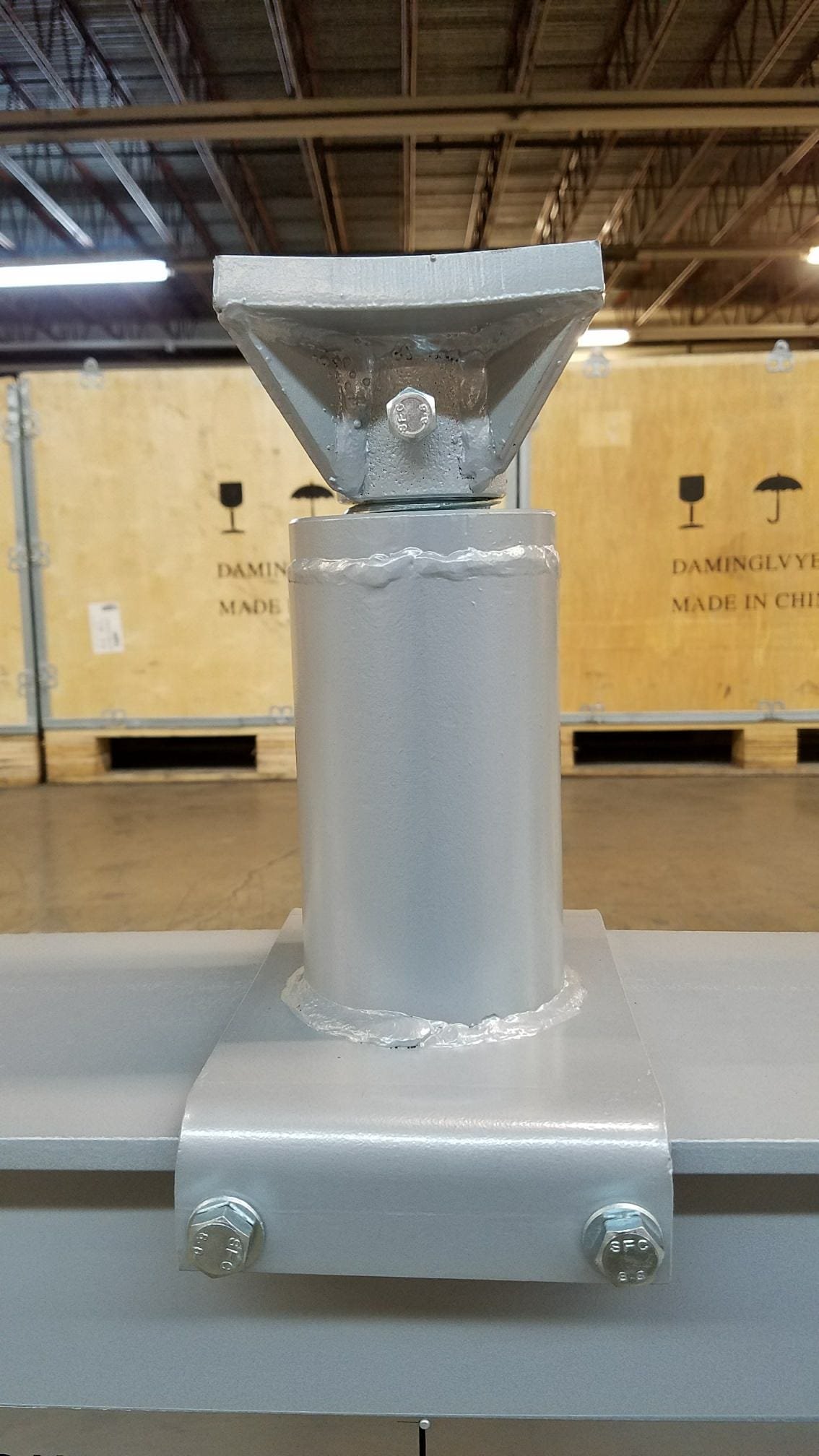

Mounted on the pillar at retracted height (20″):

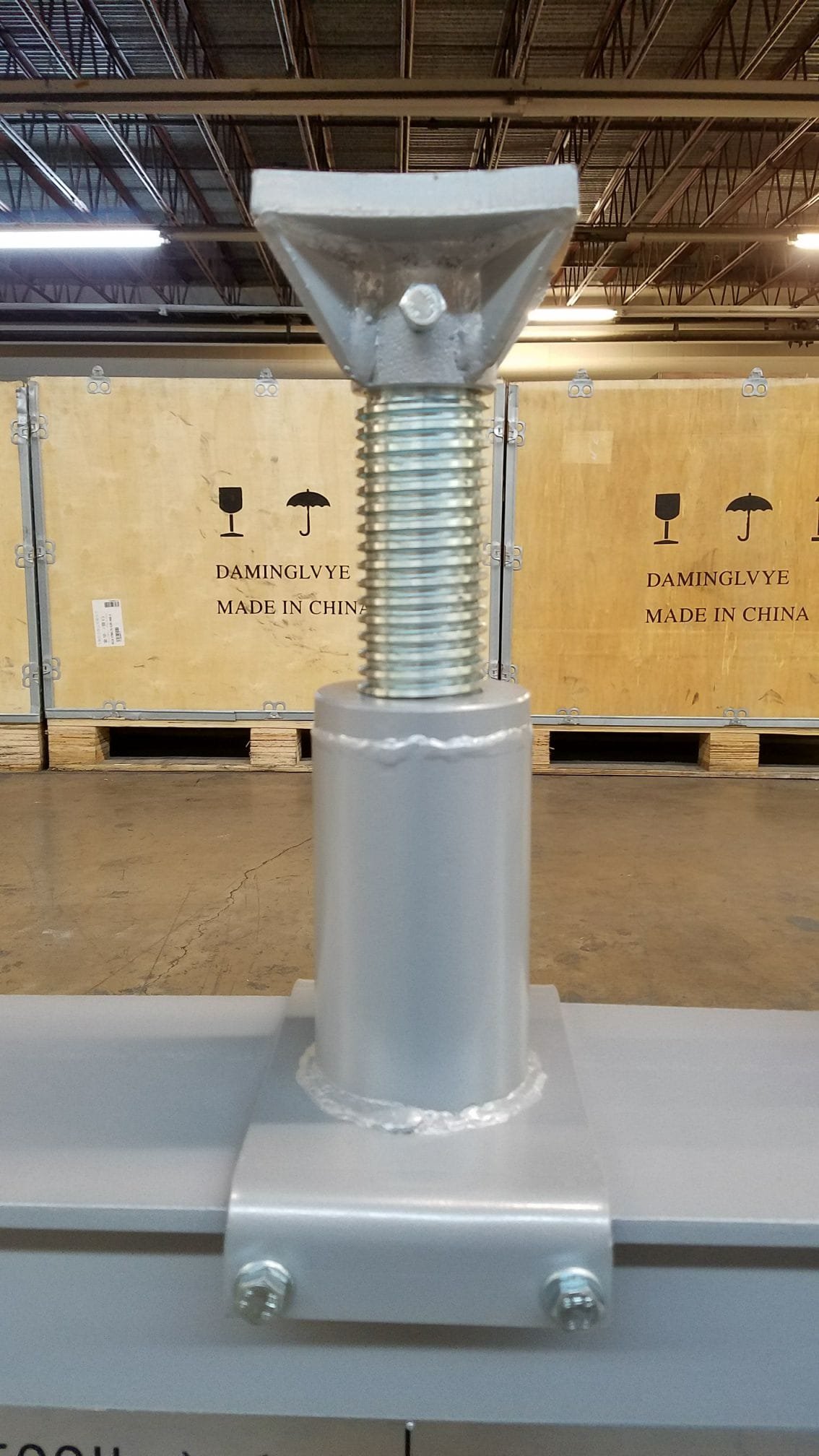

And at full extension (25″):

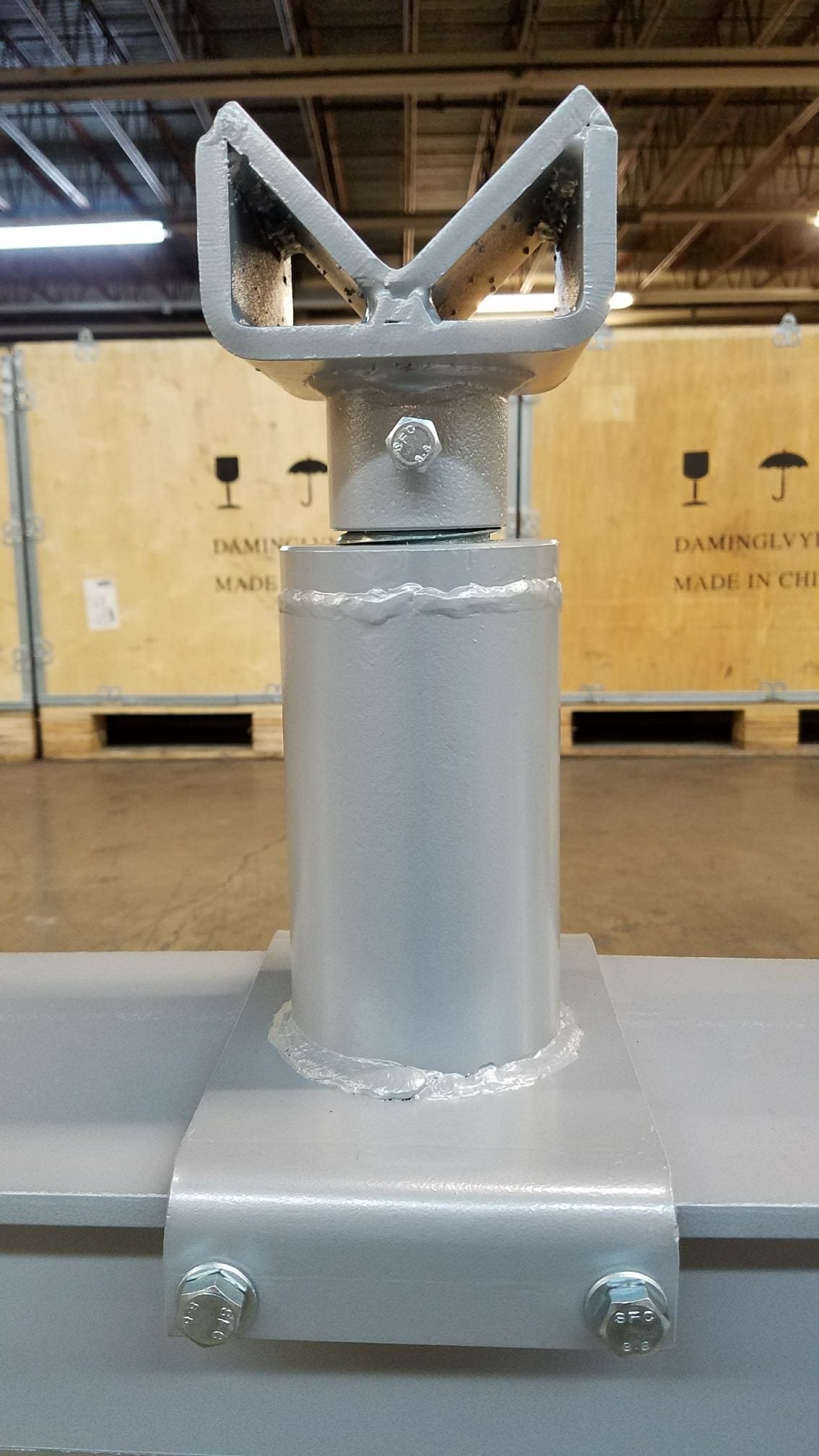

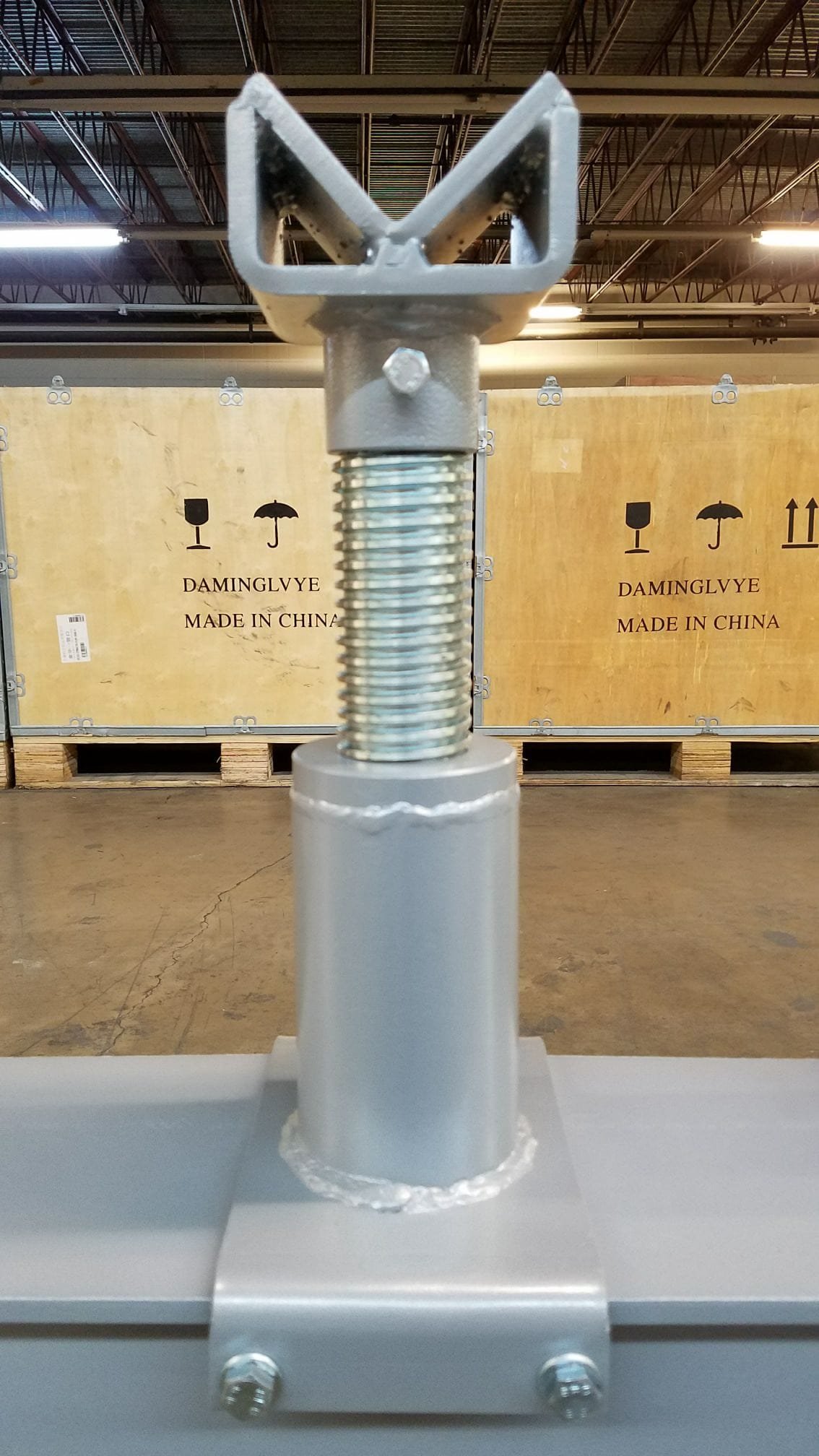

Axle Pad

The Axle Pad is a V-block style adapter for cradling axle tubes and round components. The opposed ramped faces self-center the load and prevent rolling.

Cradle Pad

The Cradle Pad is a U-channel adapter with raised side walls, sized for tubular members and frame rails that need lateral capture. The flat trough holds the contact point in position while the side walls prevent the load from walking off the pad during lift cycles.

Compatibility

The MSC18KX-CRSBM is engineered for iDEAL mobile single-column lifts:

• iDEAL MSC-18K-X mobile column lift — 18,000 lb per column
• iDEAL MSC-18K-X-236 two-column set — single crossbeam lifts one end of a vehicle
• iDEAL MSC-18K-X-472 four-column set — paired crossbeams lift an entire vehicle
• iDEAL MSC-13K-B mobile single-column lift — 13,000 lb per column

The crossbeam is sold individually. Most four-column wheels-free configurations require two MSC18KX-CRSBM units.

Specifications

Shipping & Handling

This item ships via freight carrier.

Documents

iDEAL MSC ALI Certified Accessories Flier (PDF)

For installation manuals, load charts at specific pad widths, or compatibility questions on a non-listed lift, contact sales@mygaragesupplies.com or call 307-381-1810.
