iDEAL PSB-AFCF23B-AK CROSS FLOW DRAFT PAINT SPRAY BOOTH

Overview

The iDEAL PSB-AFCF23B-AK Cross Flow Draft Paint Spray Booth is a commercial-grade, A-Frame style booth built for clean finishes, consistent ventilation, and bright, even visibility—without forcing you into a premium price bracket.
It’s engineered around an efficient cross-draft airflow path that pulls clean, filtered air through the front intake filters, carries overspray and vapors smoothly across the work zone, then captures and exhausts through a rear filtered chamber and upward discharge.
The result: a safer, more controlled spray environment—and paintwork that looks like it came out of a higher-end booth.

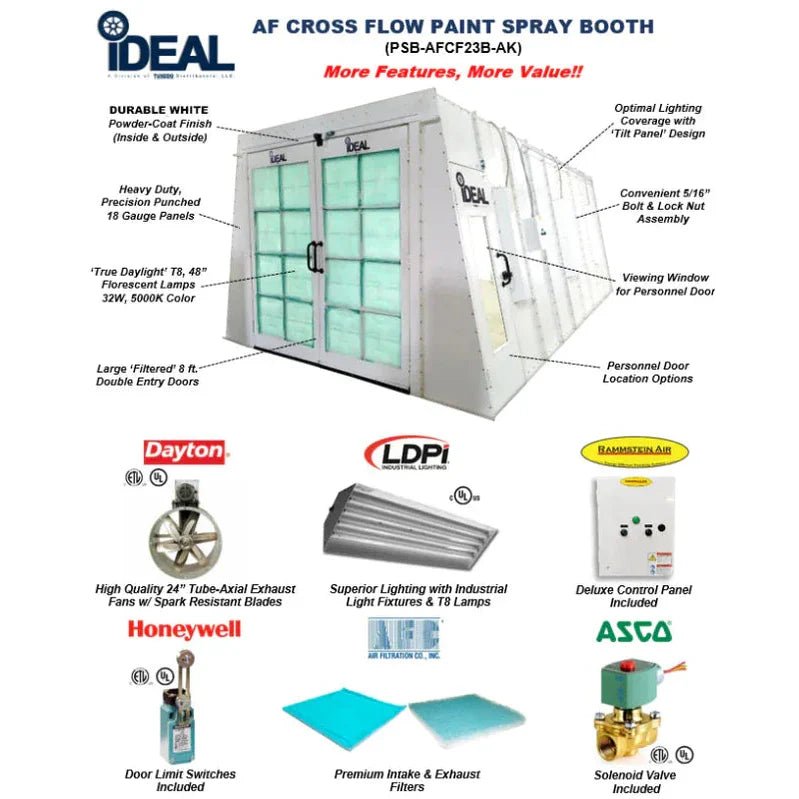

With heavy-duty 18-gauge precision-punched panels, a bright white powder-coat finish (inside and out), and a lighting system designed to reduce shadows where they matter most, this booth is a standout solution for
small to mid-sized automotive refinishing as well as industrial and wood finishing applications.

Why You’ll Love This Booth

• True Cross-Draft Performance: Optimized airflow delivers 9,500 CFM @ 0.5″ static pressure for steady capture of overspray and fumes.
• Built to Work Hard: Heavy-duty 18-gauge panel construction with precision punching for dependable fit and long service life.
• Lighting That Helps You Spray Better: Tilt-panel design improves coverage and reduces dark zones and glare while you’re laying down coats.
• Clean, Professional Interior: Bright white powder coat inside and out improves visibility and keeps the booth looking sharp.
• Safety-Forward Details: Door shutoff switches, manometer, solenoid valve, and a spark-resistant fan setup contribute to a safer work area.
• Fast Turnaround: Typically ships within 48 hours so you can get spraying sooner.

Airflow & Filtration System

The PSB-AFCF23B-AK is designed to keep your spray zone stable and predictable. Clean air is drawn through premium AFC intake filters at the front entry doors,
travels across the booth to carry overspray away from the work surface, then passes into a filtered exhaust chamber before being discharged upward through
a UL Listed Dayton 24″ tube-axial exhaust fan with spark-resistant fan blades.

• Airflow: 9,500 CFM @ 0.5″ static pressure
• Fan: UL Listed Dayton 24″ tube-axial exhaust fan (spark resistant blades)
• Filters: Premium AFC intake & exhaust filters
• Included: Manometer, solenoid valve, hardware & sealant

Lighting & Visibility

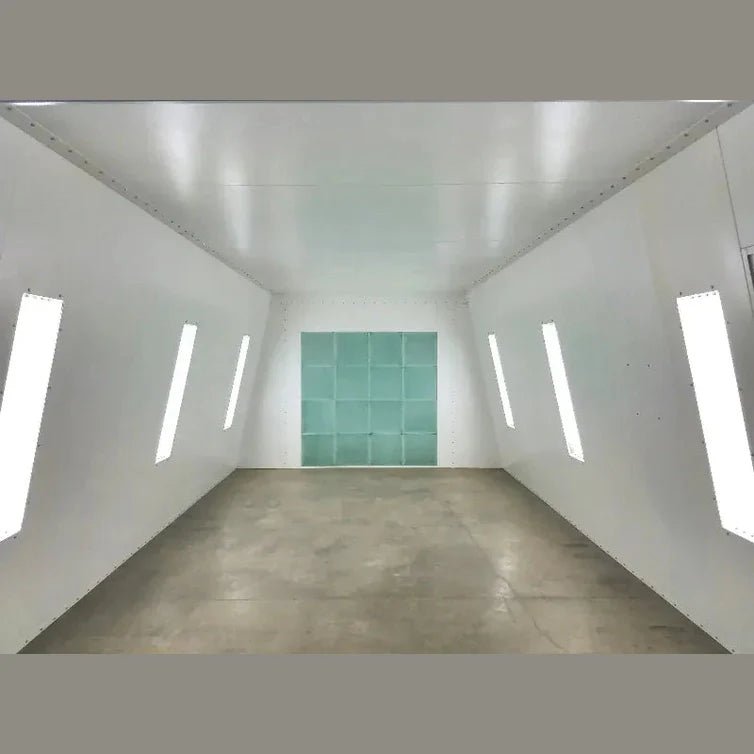

Paint quality lives and dies in the light. This booth includes a high-output vertical lighting package and a tilt-panel design that helps throw light where you actually need it:
along your panels, edges, and curves—reducing shadowing and improving color match confidence.

• (6) LDPI Industrial T-8 vertical light fixtures (4-lamp each)
• (24) GE T8 fluorescent lamps — 32W, 5000K, 4′ length
• Tilt-panel lighting design for better coverage

Doors, Controls & Safety

The PSB-AFCF23B-AK comes ready to run with a deluxe control panel and multiple shutoff-protected access points—so your team can move confidently and safely in and out of the booth.

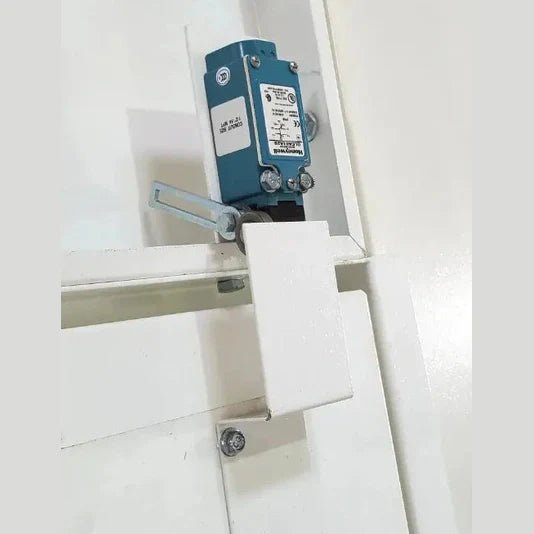

• Double entry doors with shutoff switches
• Personnel door with viewing window & shutoff switch
• Deluxe control panel included
• Meets NFPA 33 standards

Construction & Finish

• Heavy duty 18-gauge panels with precision punched construction
• Convenient 5/16″ bolt & nut assembly for straightforward installation
• White powder coat finish (inside & outside)

Dimensions

• Inside Dimensions: 22’–6″ L × 13′ W × 8’–6″ H
• Outside Dimensions: 25’–4″ L × 13’–4″ W × 8’–10″ H

Electrical & Motor Specs

• Motor: 3HP, NEMA rated
• Standard Power: 3 Phase, 230/460VAC, 60Hz
• Fan Type: 24″ tube-axial
• Optional: Single phase (1PH) electrical configuration

Options & Upgrades

• Single Phase Electrical Configuration (1PH)
• 8′ Exhaust Duct Kit (25″ diameter)
• Side Personnel Door Kit
• 30″ Lighted Extension Panel Kit
• 30″ Solid Extension Panel Kit
• Electric Booth Heater (3 Phase)
• Electric Booth Heater (1 Phase)
• LED Lighting Upgrade Kit

At a Glance (Specifications)

• Model: PSB-AFCF23B-AK
• Booth Type: A-Frame Cross Flow Draft
• CFM: 9,500 @ 0.5″ static pressure
• Inside Dimensions: 22’–6″ L × 13′ W × 8’–6″ H
• Outside Dimensions: 25’–4″ L × 13’–4″ W × 8’–10″ H
• Fan / Motor: 24″ Tube Axial / 3HP / 3PH 230/460VAC 60Hz
• Lighting: 6 vertical T-8 fixtures (4 lamps each), 24 lamps included (32W, 5000K, 4′)
• Standards: Meets NFPA 33

Bottom Line

If you want a booth that sprays clean, lights up your work like it should, and keeps airflow consistent without overspending,
the iDEAL PSB-AFCF23B-AK is the smart move. It’s the kind of equipment that improves results immediately—then keeps paying you back with reliability,
safer operation, and a finish quality you’ll be proud to deliver.
