Karcher Vacuum Sweeper KM 100/100 R Bp

DESCRIPTION

The Karcher KM 100/100 R Bp is a professional walk-behind sweeper built for high-performance cleaning of extensive indoor and outdoor areas starting from 2,500 m² (≈ 26,910 sq ft). Designed for industrial, commercial, and public spaces, it features a dual dirt container system on wheels, a robust round polyester filter with automatic cleaning, and a floating main roller that adapts to uneven surfaces. With traction drive for both forward and reverse motion, an overhead sweeping mechanism, and a switchable sweeping function, this machine provides efficient, low-dust cleaning. Two battery options are available: wet batteries for extended runtime and AGM batteries for lighter operation and easier maneuverability.

KEY APPLICATIONS

• Environments
  Industrial facilities, commercial buildings, parking structures, and retail spaces
• Floor Types
  Hard indoor floors, outdoor surfaces, car parks, and production areas
• Typical Locations
  Service stations, schools, warehouses, and car dealerships

FEATURES

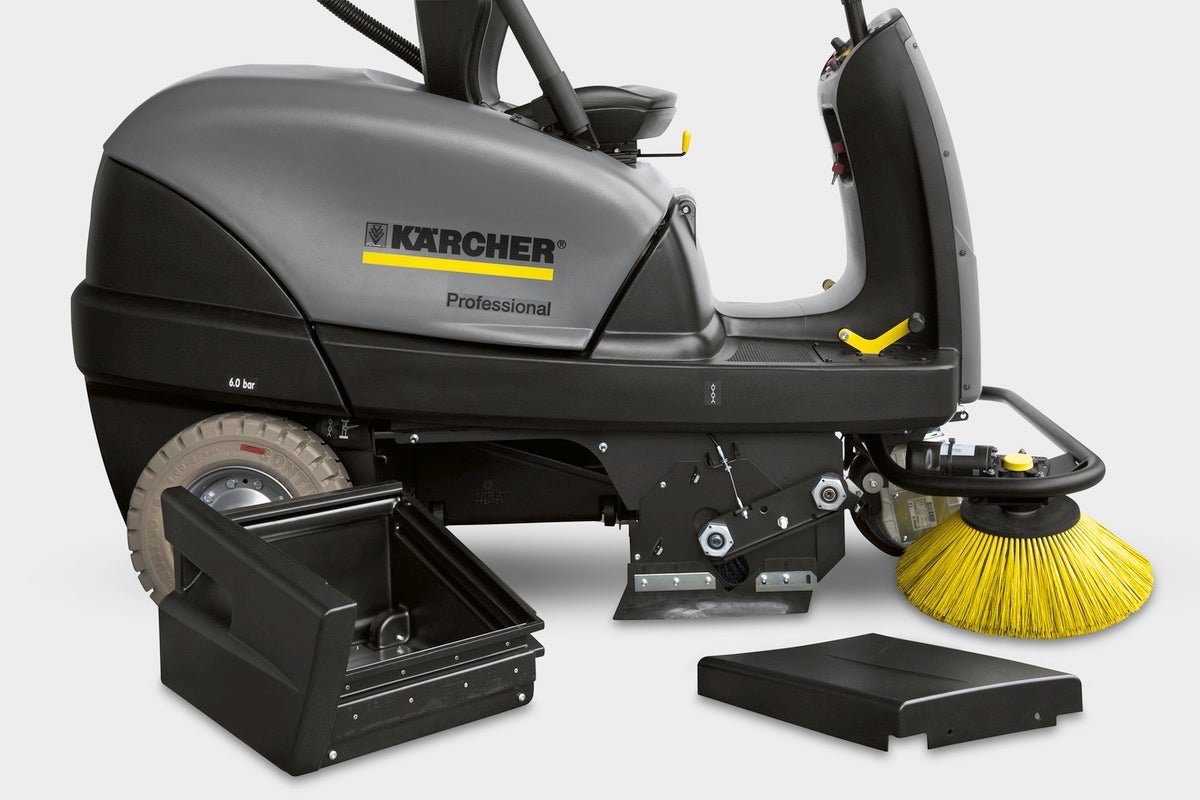

• Dual Dirt Containers on Wheels
  Allows easy removal and transport of collected debris for uninterrupted cleaning

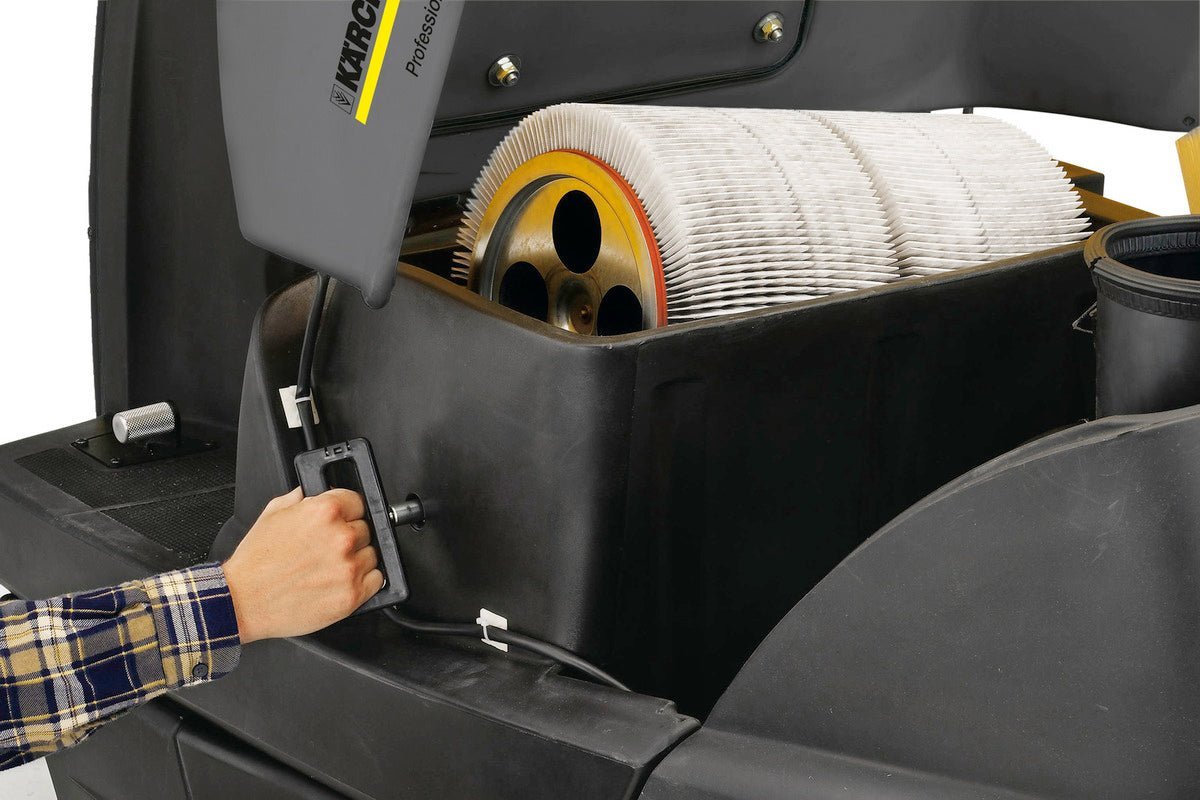

• Automatic and Manual Filter Cleaning
  Keeps the polyester round filter efficient and ensures low-dust operation
• Floating Main Sweeper Roller
  Adjusts to floor contours to maximize debris pickup

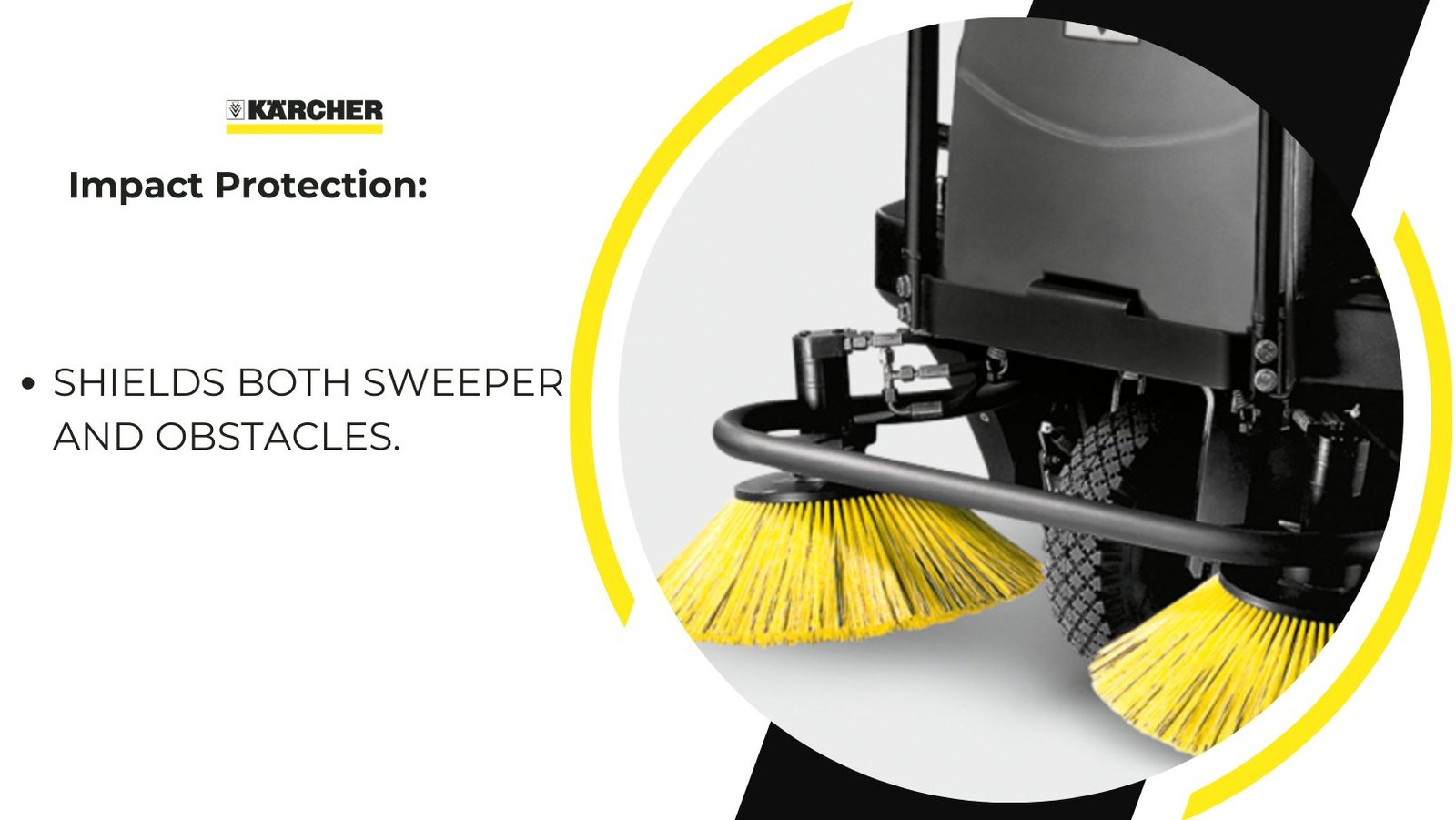

• Adjustable Side Brushes
  Liftable brushes allow efficient edge and corner cleaning
• Overhead Sweeping Principle
  Directs dirt efficiently into collection containers for thorough cleaning
• Traction Drive
  Reliable forward and reverse movement for precise operation in tight areas
• Coarse Dirt Flap
  Captures larger debris to maintain suction and efficiency
• Suction Volume Control
  Optimizes cleaning performance on different surface types
• Switchable Sweeping Function
  Provides flexibility for specific cleaning tasks
• Indoor & Outdoor Capability
  Engineered to perform in various environments while maintaining dust-free operation
• Battery Status & Operating Time Display
  Monitors battery levels and tracks machine usage for maintenance planning

INCLUDED ACCESSORIES

• Polyester round filter
• Non-marking wheels
• Automatic and manual filter cleaning system
• Floating main roller
• Side brushes (adjustable/liftable)
• Coarse dirt flap
• Overhead sweeping principle
• Traction drive (forward & reverse)
• Suction system
• Indoor and outdoor use capability
• Battery indicator
• Elapsed time counter
• Switchable sweeping function

TECHNICAL SPECIFICATIONS

• Dimensions & Weight
  • Length × Width × Height: 2006 × 1005 × 1343 mm (≈ 78.9 × 39.6 × 52.9 in)
  • Weight with wet batteries: 540 kg (≈ 1190 lb)
  • Weight with AGM batteries: 468.6 kg (≈ 1033 lb)
  • Transport Weight (wet batteries): 375 kg (≈ 827 lb)
  • Permissible Overall Weight: 660 kg (≈ 1455 lb)
• Performance & Speed
  • Driving / Cleaning Speed: 6 km/h (≈ 3.7 mph)
  • Maximum Climbing Ability: 15 %
  • Area Performance: 6,000 m²/h (≈ 64,583 sq ft/h)
  • Area Performance with 2 Side Brushes: 7,800 m²/h (≈ 83,958 sq ft/h)
  • Working Width: 700 mm (≈ 27.6 in)
  • Working Width with 1 Side Brush: 1000 mm (≈ 39.4 in)
  • Working Width with 2 Side Brushes: 1300 mm (≈ 51.2 in)
• Brush System
  • Roller Brush Diameter: 285 mm (≈ 11.2 in)
  • Roller Brush Width: 710 mm (≈ 28 in)
  • Side Brush Diameter: 450 mm (≈ 17.7 in)
• Waste & Filtration
  • Waste Container Volume: 100 L (≈ 26.4 gal)
  • Filter Area: 6 m² (≈ 64.6 sq ft)
  • Nominal Suction: 12 mbar
  • Nominal Volume Flow: 50 l/s
• Motor & Electrical
  • Traction Drive Motor: 24 V / 750 W (wheel hub), total drive system 24 V / 2050 W
  • Fan & Roller Brush Motor: 24 V / 600 W, 3500 RPM
  • Side Brush Motor: 24 V / 100 W, 70 RPM
• Battery & Charging
  • Wet Battery Variant: 24 V 4 PzS 240 Ah, runtime ≈ 2.5 h, charging 10–15 h
  • AGM Battery Variant: lighter weight, slightly shorter runtime, similar charging
• Tyres & Brakes
  • Rear Tyre Size: 4.00–8, Air Pressure: 6 bar (≈ 87 psi)
  • Service Brake: Electronic
  • Parking Brake: Electrically operated disc brake, spring-loaded
• Operating Conditions
  • Temperature: -5 to +40 °C (23 to 104 °F)
  • Air Humidity: 20–90 % (non-condensing)
• Noise & Vibration
  • Sound Pressure Level: 75 dB(A)
  • Sound Power Level: 94 dB(A)
  • Hand-Arm Vibration: <2.5 m/s²
  • Seat Vibration: <0.5 m/s²
