Katool 7,000lb Single Post Lift SKU KT-SPL 700

Equipped with adjustable lift pads, the SPL 700 can accommodate a variety of vehicle widths with ease. It offers a maximum lift height of 71 2/3″ and a clearance height of 68″, providing plenty of room for underbody maintenance. Designed to run on a standard 110V power source with a 30-amp breaker, it fits seamlessly into most home or commercial electrical systems. For added convenience, it comes with four truck adapters in two sizes: 2.75″ and 6″, enhancing its versatility.

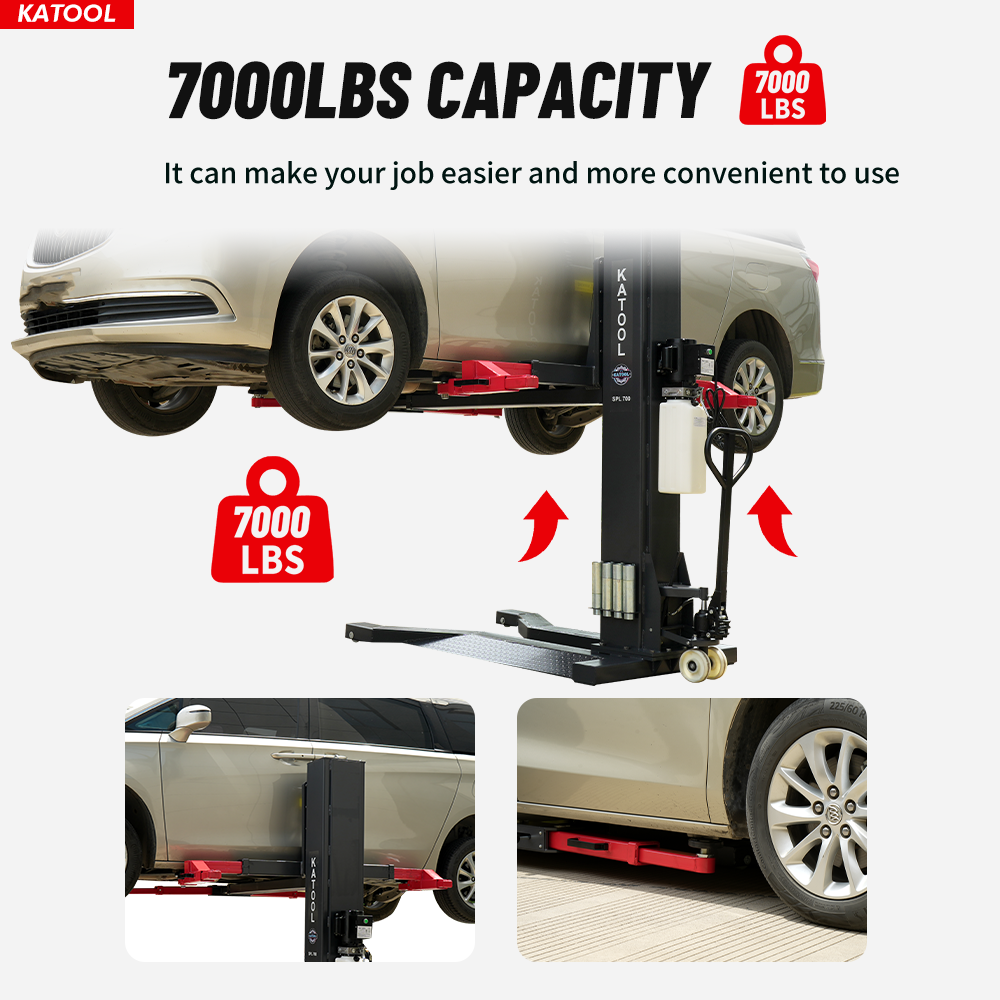

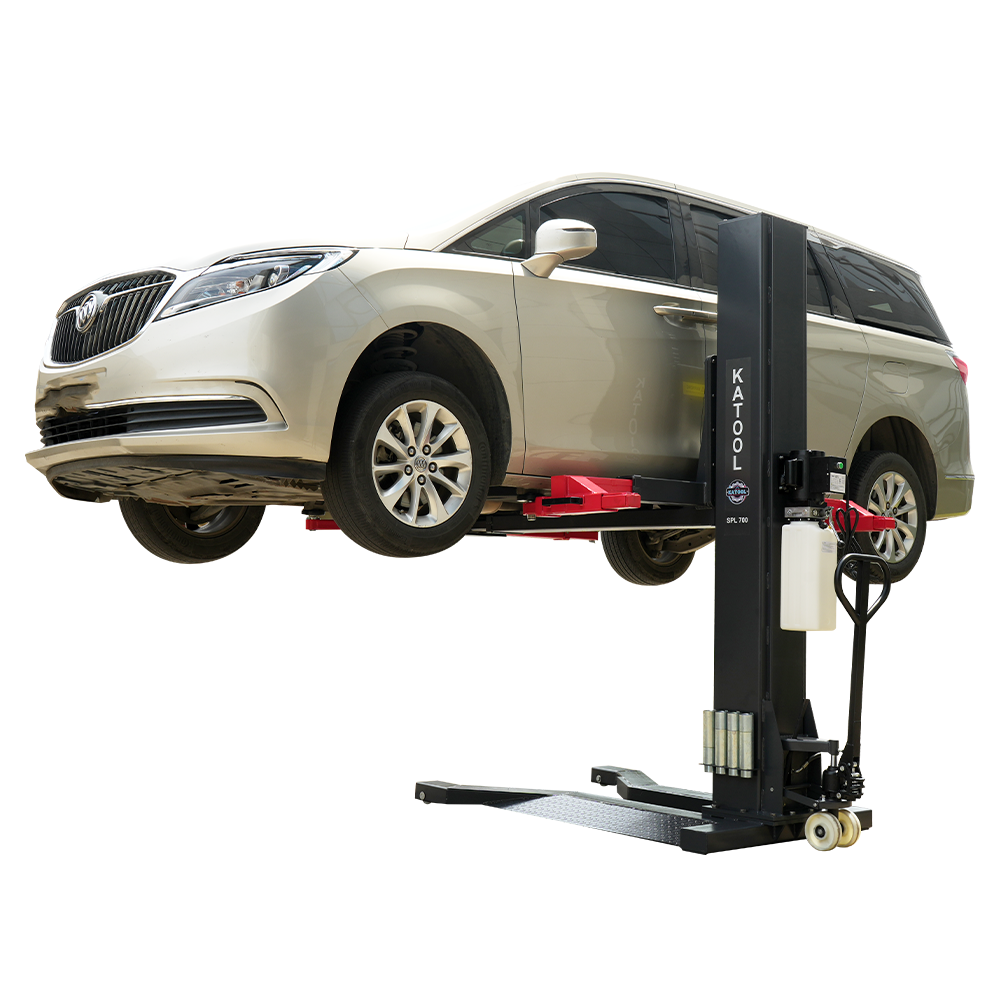

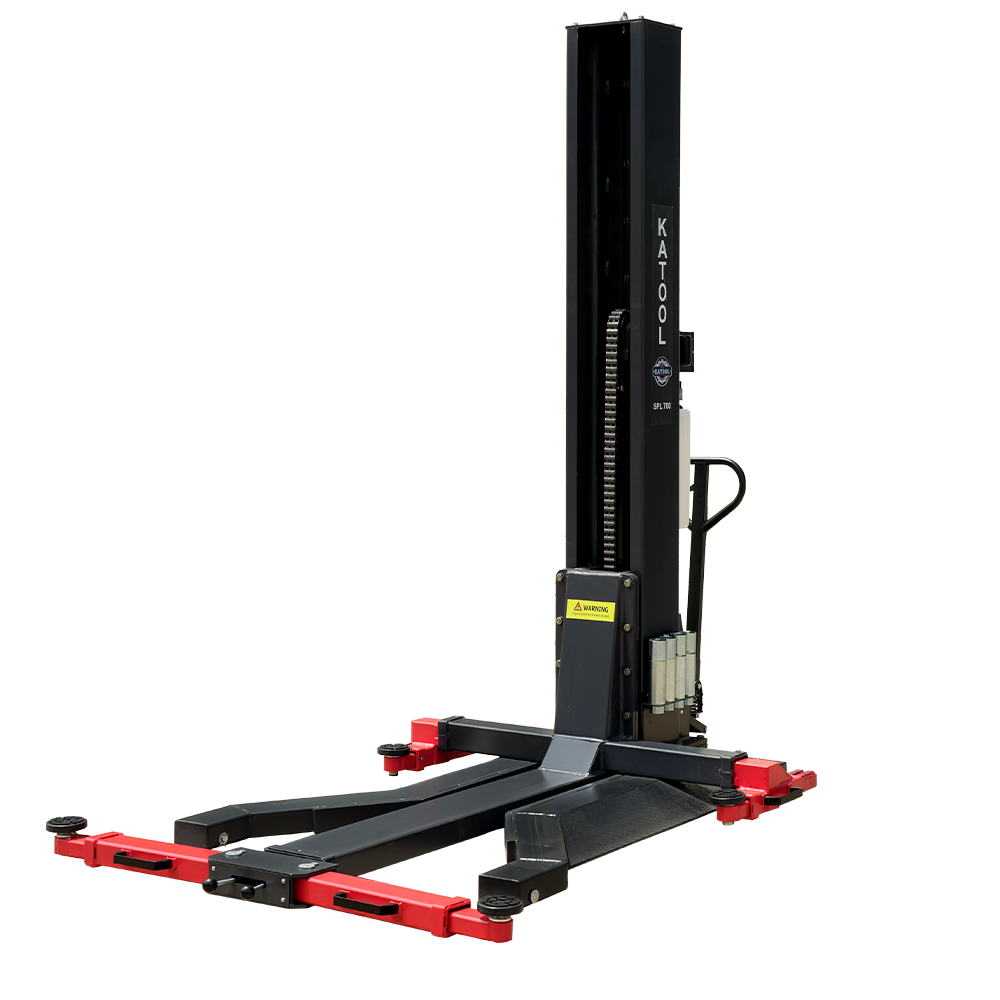

The Katool SPL 700 Single Post Lift is a space-saving solution built for home garages and professional shops that require compact yet powerful lifting equipment. With a 7,000 lb lifting capacity, it’s ideal for servicing sedans, small trucks, and light-duty vehicles. Its single-post design ensures complete undercarriage access while taking up minimal floor space—perfect for optimizing workspace.

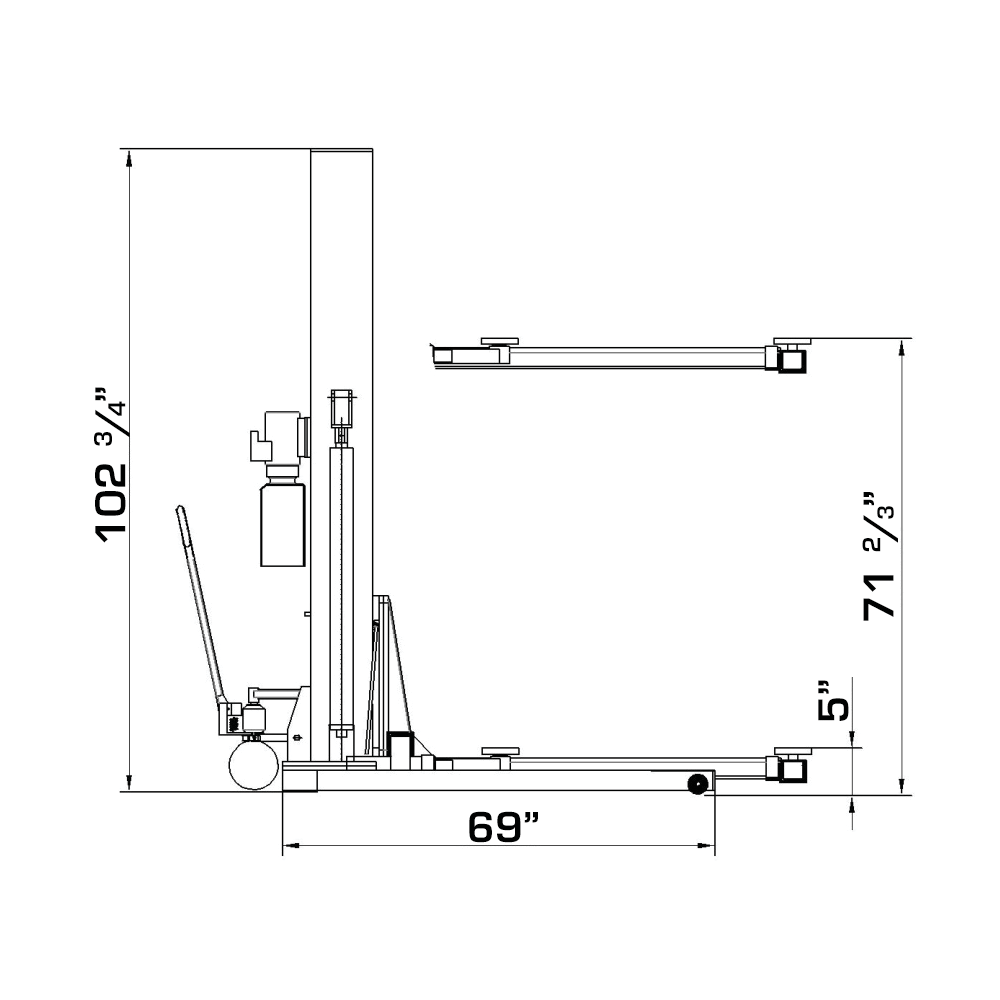

SPL 700 Specifications

• Lifting Capacity: 7,000 lbs
• Max Lifting Height (No Adapters): 71 2/3″
• Max Clearance Height: 68″
• Minimum Pad Height: 5″
• Overall Height: 102 3/4″ (8’ 6 3/4″)
• Overall Dimensions (L x W x H): 111 1/2″ x 96″ x 102 3/4″
• Column Size: 10 1/2″ x 12 1/2″
• Distance Between Lifting Pads:
  • Column to Offside: 39 1/2″ – 81″
  • Column to Column: 53″ – 73″
  • Offside to Offside: 54 1/3″ – 91 1/2″
• Motor Requirement: 110V, 30-amp breaker
• Oil Requirement: 3–5 gallons AW32 or AW46 (not included)
• Shipping Weight: 1,900 lbs
• Adapter Heights Included: (4) 2.75″ and (4) 6″
• Adapter Peg Size: 2″

SPL 700 Special Features

• Heavy-duty 7,000 lb lifting capacity
• Compact single-post design saves shop space

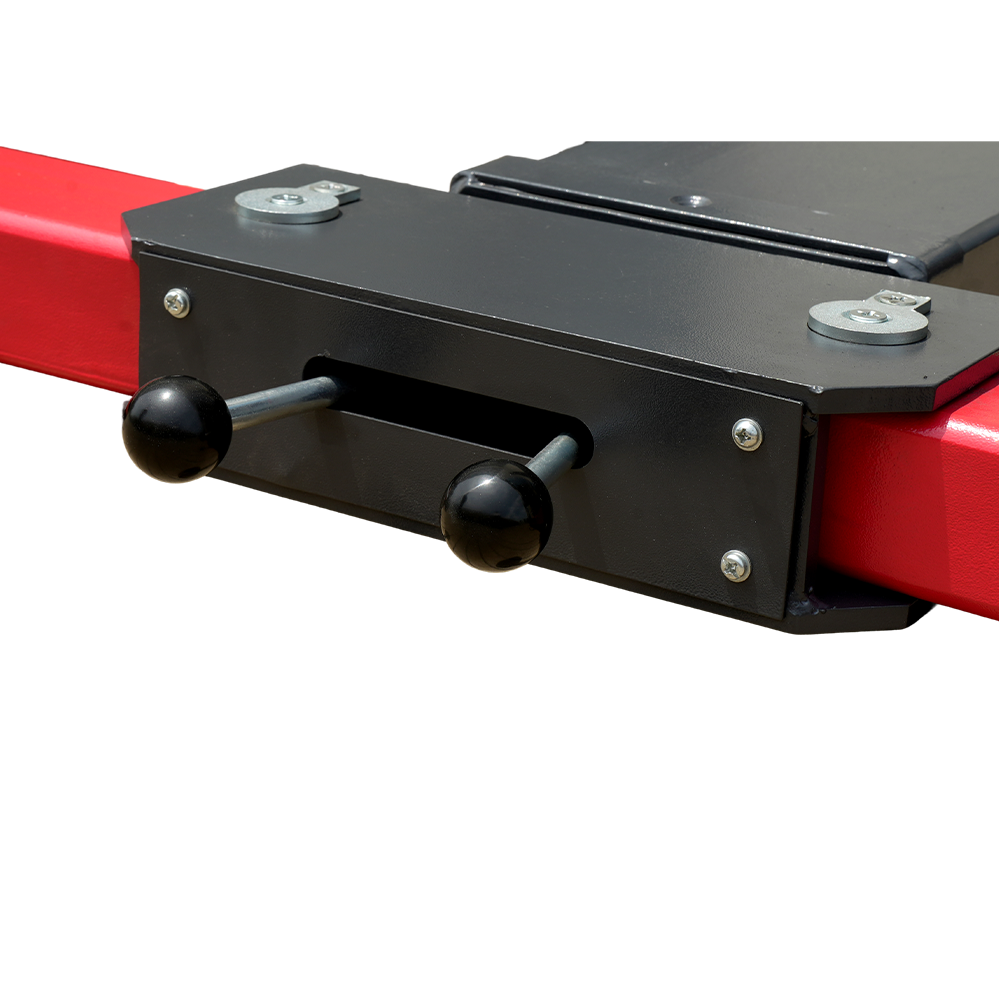

• Fully adjustable lifting pads for multiple vehicle sizes
• Runs on 110V power for home or shop use
• Hydraulic system requires 3–5 gallons of oil
• Easy installation and operation for all experience levels
• Includes four truck adapters for added versatility
• Ideal for tire, brake, and undercarriage service
