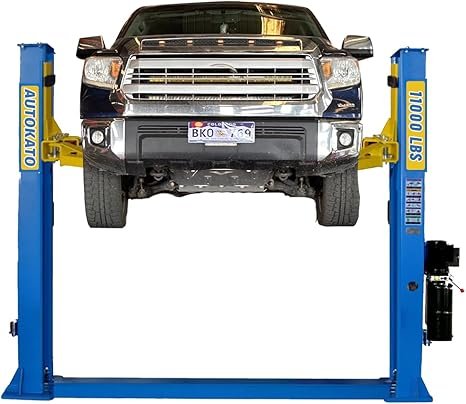

Katool AK-H115Z 11000 lbs Heavy Duty Two Post Lift

H115Z Two-Post Vehicle Lift – 11,000 lb Heavy Duty Garage Hoist

Upgrade your garage or workshop with the Katool AK-M115S (H115Z) Two-Post Lift, a heavy-duty hoist engineered to handle vehicles up to 11,000 lbs. Designed for professional mechanics and serious automotive enthusiasts, this lift delivers excellent stability and lifting power for cars, trucks, and SUVs. Its clear-floor configuration allows unobstructed movement beneath the vehicle, improving efficiency during repairs and maintenance.

Performance and Safety

The H115Z is powered by a dual hydraulic chain-drive system that provides smooth, balanced lifting across the full range of motion. Automatic safety locks on both columns, combined with manual release levers, ensure secure operation at all lift heights. A high-precision 2.2 kW motor delivers consistent performance, while adjustable arms and height adapters offer flexibility for different wheelbases and frame designs. With a maximum lifting height of 70.75 inches, the lift provides ample clearance for underbody service.

AK H115Z Specifications

• Lifting Capacity: 11,000 lb (5,000 kg)
• Maximum Lifting Height (under pads): 70.75″
• Minimum Pad Height: 4.25″
• Overall Height: 110.9″
• Overall Width: 140.4″
• Drive-Thru Clearance: 94.5″
• Arm Reach (Min–Max):
  • Front: 30.75″–50.5″
  • Rear: 30.75″–50.5″
• Motor Power: 2.2 kW (220 V, 60 Hz)
• Net Weight (excluding accessories): Approx. 1,350 lb (620 kg)

AK-H115Z Heavy-Duty Two-Post Lift Key Features

• Clear-floor twin-post design for unobstructed access beneath the vehicle
• Dual hydraulic chain-drive cylinders for stable and even lifting
• Automatic safety locks with manual release on both columns
• CE certified and tested to 115% dynamic and 150% static load standards
• Includes height extension adapters (+30 mm and +120 mm) and rubber pad protectors
• Compatible with both 110 V and 220 V electrical systems
• Overhead safety shutoff bar for added protection
• Integrated foot-guard rails and built-in toolbox for improved safety and organization
