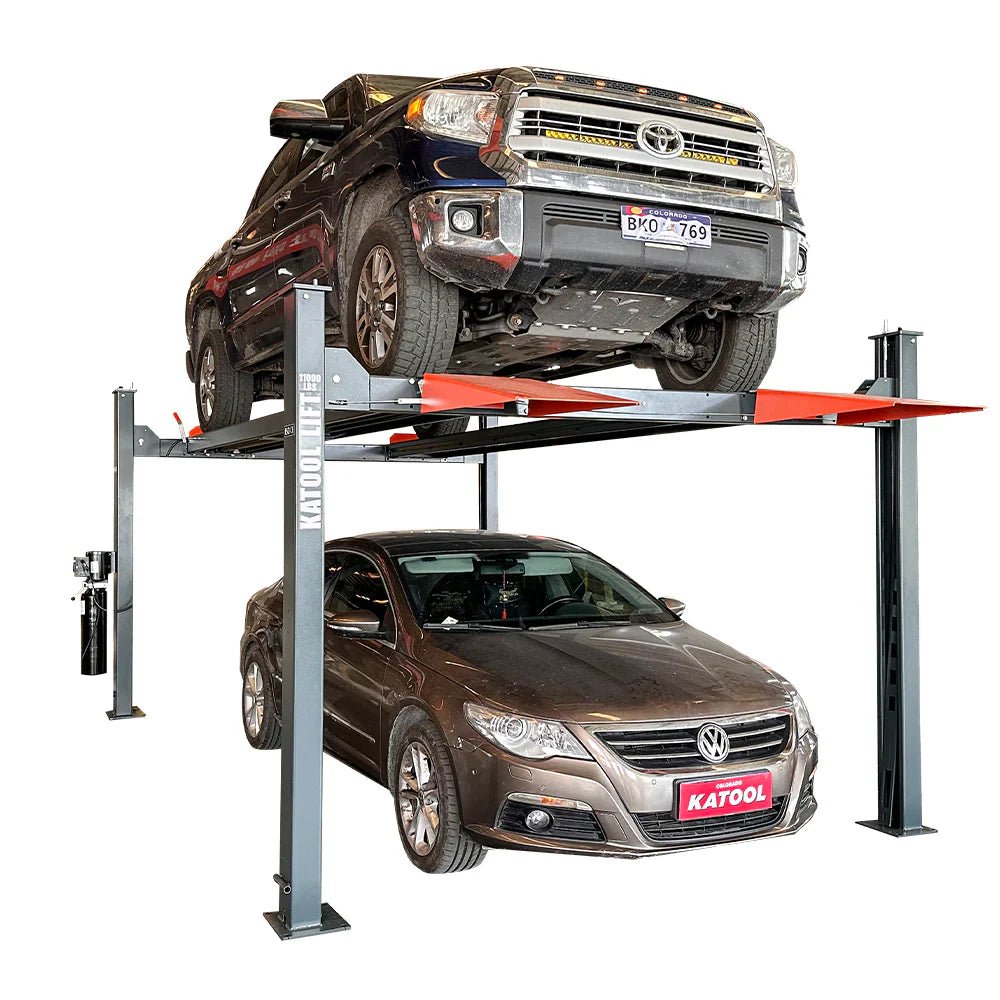

Katool Four Post Vehicle Lift 11,000lbs 4H110

•Boost Your Garage with the Katool 4H110 4-Post Lift (11,000 lbs)

Upgrade your workspace with the Katool 4H110 4-Post Lift, designed for safe, reliable, and efficient lifting of cars, SUVs, and most light trucks. Suitable for professional workshops and home garages alike, this lift combines strong performance with straightforward, user-friendly operation.

Built for Power, Safety, and Flexibility

• Lifting Capacity: 11,000 lbs (4,990 kg), ideal for cars, SUVs, and most light trucks
• Approved By CE & Certified: Meets 115% dynamic load capacity and tested to 150% static load capacity for enhanced safety
• Single-Point Manual Safety Lock Release: Equipped with four mechanical locks and a secondary slack-cable safety system that activates in the rare event of cable failure
• Flexible Power Column Placement: Power-side column can be installed on either side, front, or rear to match your garage layout
• Non-Skid Platforms & Adjustable Lock Ladders: Provides stable, secure vehicle positioning for various wheelbases and sizes
• Optional Mobility & Lifting Accessories: Compatible with caster kits for mobility and rolling jacks for added lifting capability (sold separately)
• Included Accessories: Comes with two drip trays and one jack tray to help keep your workspace clean and organized
• High-Quality Hydraulic System: Supports 110V/60Hz/1PH power with optional 220V/60Hz/1PH configuration ( contact us if you need 220v)

Vehicle Compatibility

The Katool 4H110 is ideal for lifting and storing:

• • Sedans and coupes

• • SUVs and crossovers

• • Pickup trucks

• • Classic and collector vehicles

• • Small commercial vans

Key Features of the Katool 4H110 4-Post Lift

       •11,000 lb Lifting Capacity: Safely lifts cars, SUVs, and most light trucks

• CE Certified & Exceeds Standards: Tested to 115% dynamic and 150% static load ratings for dependable operation
• Advanced Safety System: Single-point release with both primary and secondary mechanical locking mechanisms
• Adjustable Platforms & Lock Ladders: Securely supports vehicles of different sizes at comfortable working heights
• Multiple Power Options: Compatible with 110V or 220V electrical systems
• Optional Enhancements: Add caster kits for portability and rolling jacks for increased lifting versatility (sold separately)
• Included Free Accessories: Two drip trays, jack tray, Hydraulic power unit,Steel approach ramps ,Installation hardware & User manual

Key Features & Specifications

• Lifting Capacity: 11,000 lbs (4,990 kg)
• Maximum Lifting Height: 84.25 in (2,140 mm)
• Lifting Time: Up – 83 seconds / Down – 40 seconds
• Height of Posts: 94.88 in (2,410 mm)
• Overall Width: 126 in (3,200 mm)
• Overall Length (with ramps): 229.73 in (5,835 mm)
• Overall Length (WITHOUT ramps): 182 in (≈15.2 ft)
• Width Between Inside Columns: 112.81 in (2,865 mm)
• Minimum Runway Height: 6.2 in (157 mm)
• Motor: 110VAC / 60HZ / 1PH
• Net Weight: 2,116 lbs (960 kg)

Built With Heavy-Duty Construction

• •Reinforced steel runways

• • Powder-coated finish for corrosion resistance

• •High-strength aircraft-grade steel cables

• • Industrial-grade hydraulic cylinder

Safety Features

•  • Single-point manual safety lock release

• • Four mechanical locking positions

• • Secondary slack-cable safety system

• •Tested to 115% dynamic load capacity

• • Tested to 150% static load capacity

Assembly

• • Estimated assembly time: 4–6 hours

• • 2–3 people recommended

• • Detailed installation manual included

Manufacturer Backed Warranty

The Katool KT-4H110 includes a 1-year limited warranty covering all parts and manufacturing defects. The structural components of the vehicle lift are covered for an additional 3 years. Customers also have the option to purchase an extended warranty for up to 2 more years by contacting us.
